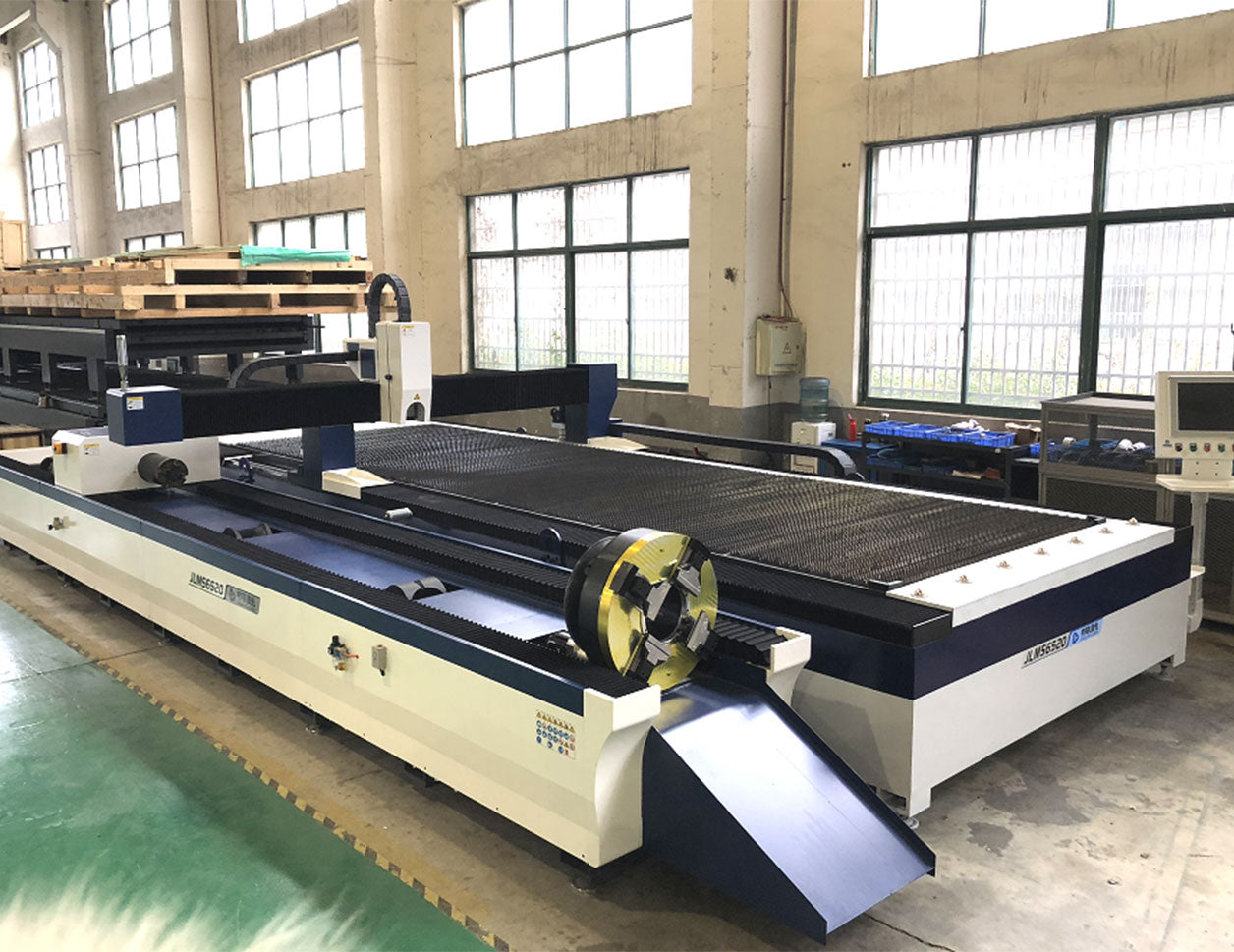

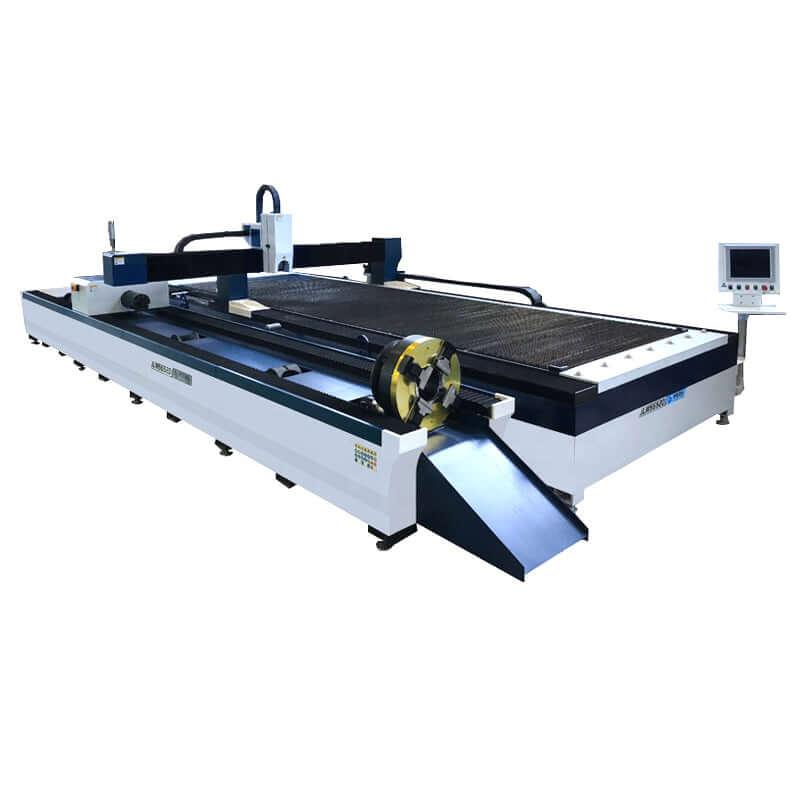

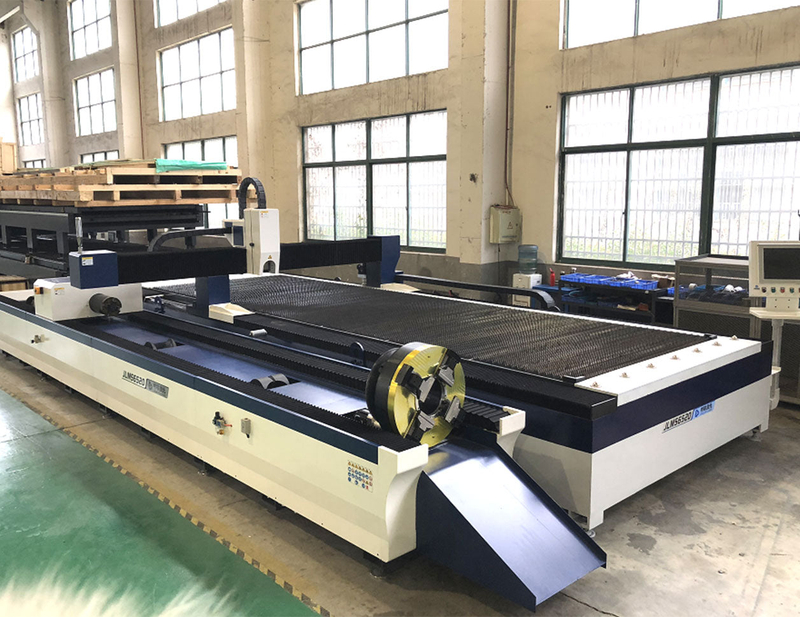

JLNS6025 laser cutting machine adopts famous Baichu CNC system and heavy welding for maximum stability.
The workbench is made of steel plate for maximum durability, it has the advantages of high precision, heavy load, smooth transmission, and high speed. It can be used to cut carbon steel, stainless steel, aluminum alloy, and other metal materials.
| Model | JLNS6025 |
| Power | 1000W-12000W |
| Working Area (L*W) | 6000*2500mm |
| Tube Diameter(mm) | 120 / 160 / 220 / 280 / 320 / 350 |
| Tube length(mm) | 3000 / 6000 / 7000 / 9000 |
| Maximum revolutions of chuck(RPM) | 80-120 |
| X/Y-axis Positioning Accuracy | ±0.05mm |
| X/Y-axis Repositioning Accuracy | ±0.01mm |
| Positioning speed | 70m/min |
| Max. Acceleration | 1G |
If you’re interested in our products, please feel free to contact us. We’re here to help!
