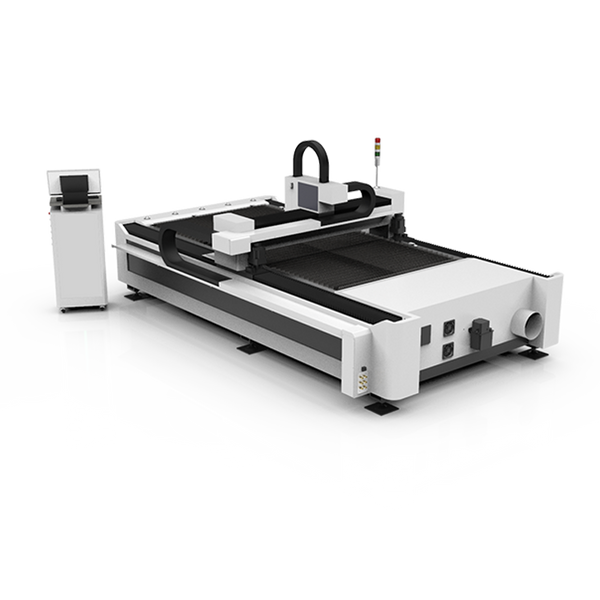

JWM6020 advanced appearance design laser cutting machine is the latest generation of laser cutting machine, which has the characteristics of advanced appearance design, small size, high precision and good stability. This machine is used for large-area manufacturing of high-end appearance parts, such as automobile body, aircraft fuselage, yacht fuselage, cabinet door and window processing, etc.
Model | JWM6020 |
Power | 3000W-6000W, Carbon Steel: 18mm-25mm, Stainless Steel: 8mm-14mm, Aluminum: 6mm-12mm |
Working Area (L*W) | 6000*2000mm |
X/Y-axis Positioning Accuracy | ±0.03mm |
X/Y-axis Repositioning Accuracy | ±0.01mm |
Max. No-load Speed | 80m/min |
Max. Acceleration | 1G |
JWM6020 advanced appearance design laser cutting machine is the latest generation of laser cutting machine, which has the characteristics of advanced appearance design, small size, high precision and good stability. This machine is used for large-area manufacturing of high-end appearance parts, such as automobile body, aircraft fuselage, yacht fuselage, cabinet door and window processing, etc.
Model | JWM6020 |
Power | 3000W-6000W, Carbon Steel: 18mm-25mm, Stainless Steel: 8mm-14mm, Aluminum: 6mm-12mm |
Working Area (L*W) | 6000*2000mm |
X/Y-axis Positioning Accuracy | ±0.03mm |
X/Y-axis Repositioning Accuracy | ±0.01mm |
Max. No-load Speed | 80m/min |
Max. Acceleration | 1G |
