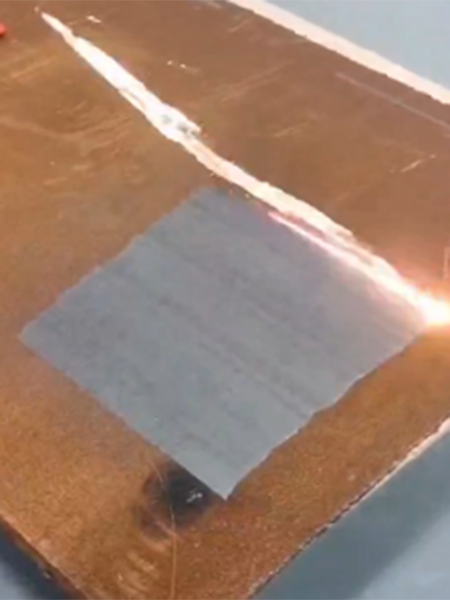

1. Non contact cleaning
By using high-energy laser beams to instantly vaporize dirt, traditional cleaning can avoid physical damage to molds, especially suitable for cleaning precision components.
2. Environmentally friendly and pollution-free
No chemical solvents or water are required, reducing the pressure of wastewater treatment and meeting the environmental protection requirements of modern industry.
3. Efficient and precise control
Laser parameters can be manually adjusted to adapt to different materials and cleaning needs, such as rust, oil stains, etc
Power (W) | Material | Cleaning Speed (mm/S) | Effective Beam/ Cleaning Range (mm) | Cleaning Depth (um) | Cleaning Efficiency (cubic meter/hour) |
1000 | Floating Rust | 25 | 150 | 20 | 6 |
1000 | Paint | 25 | 150 | 100 | 4 |
1000 | Chrome Plating | 25 | 150 | 120 | 2.5 |
1500 | Floating Rust | 50 | 150 | 20 | 15 |
1500 | Paint | 50 | 150 | 100 | 6 |
1500 | Chrome Plating | 50 | 150 | 120 | 4 |
2000 | Floating Rust | 50 | 300 | 20 | 20 |
2000 | Paint | 50 | 300 | 100 | 8 |
2000 | Chrome Plating | 50 | 300 | 120 | 5 |
3000 | Floating Rust | 50 | 300 | 20 | 30 |
3000 | Paint | 50 | 300 | 100 | 14 |
3000 | Chrome Plating | 50 | 300 | 120 | 9 |

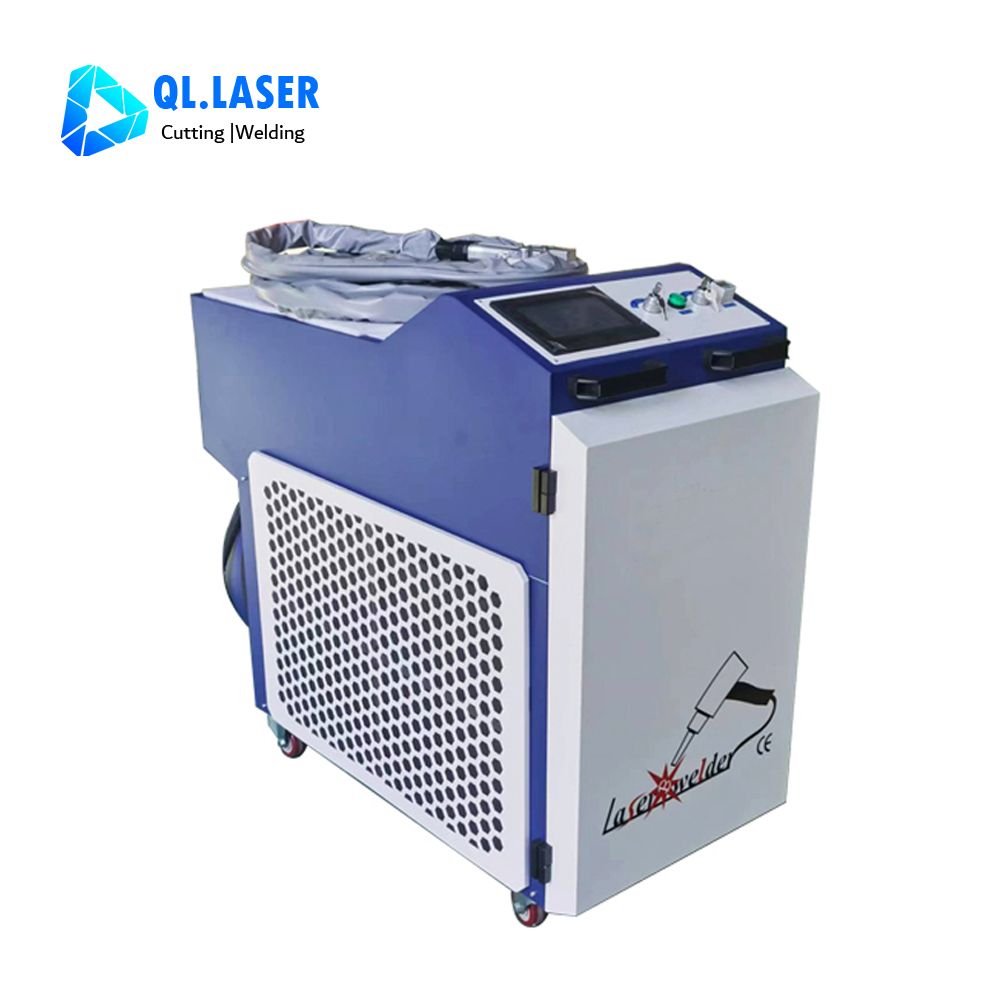

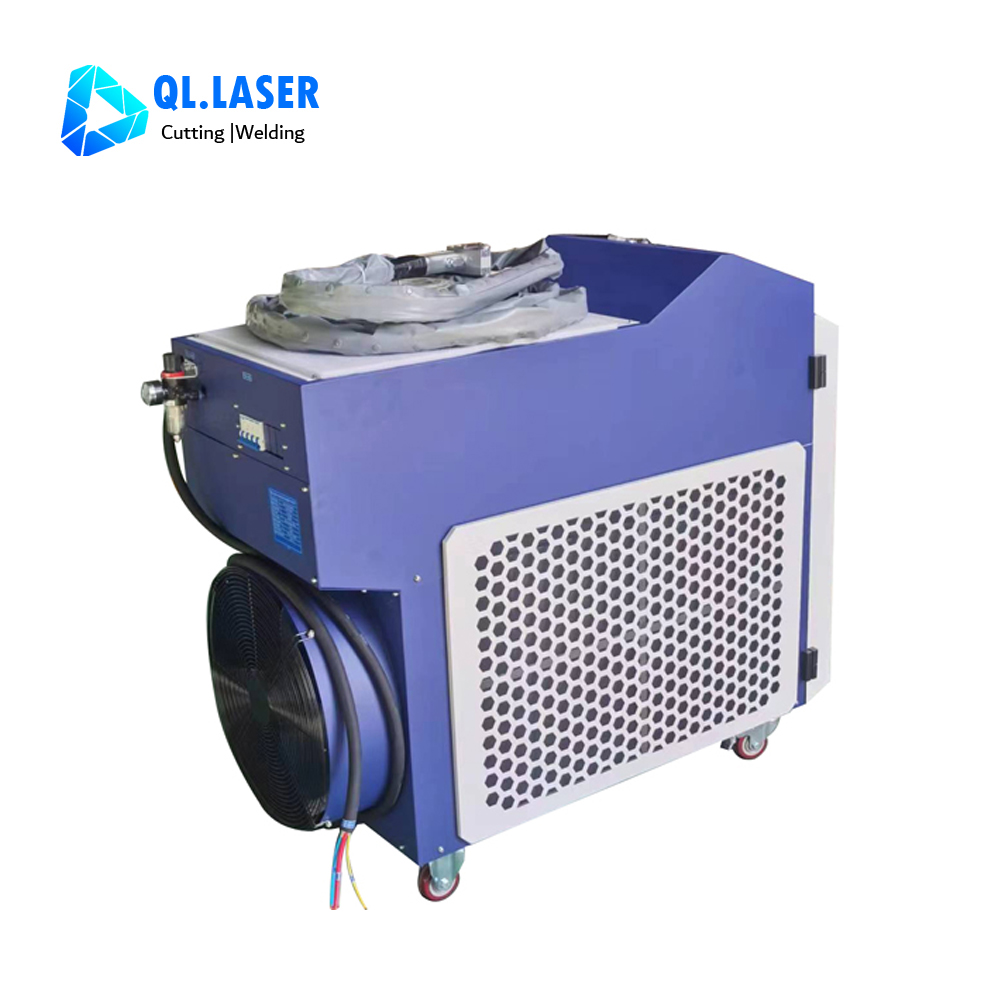

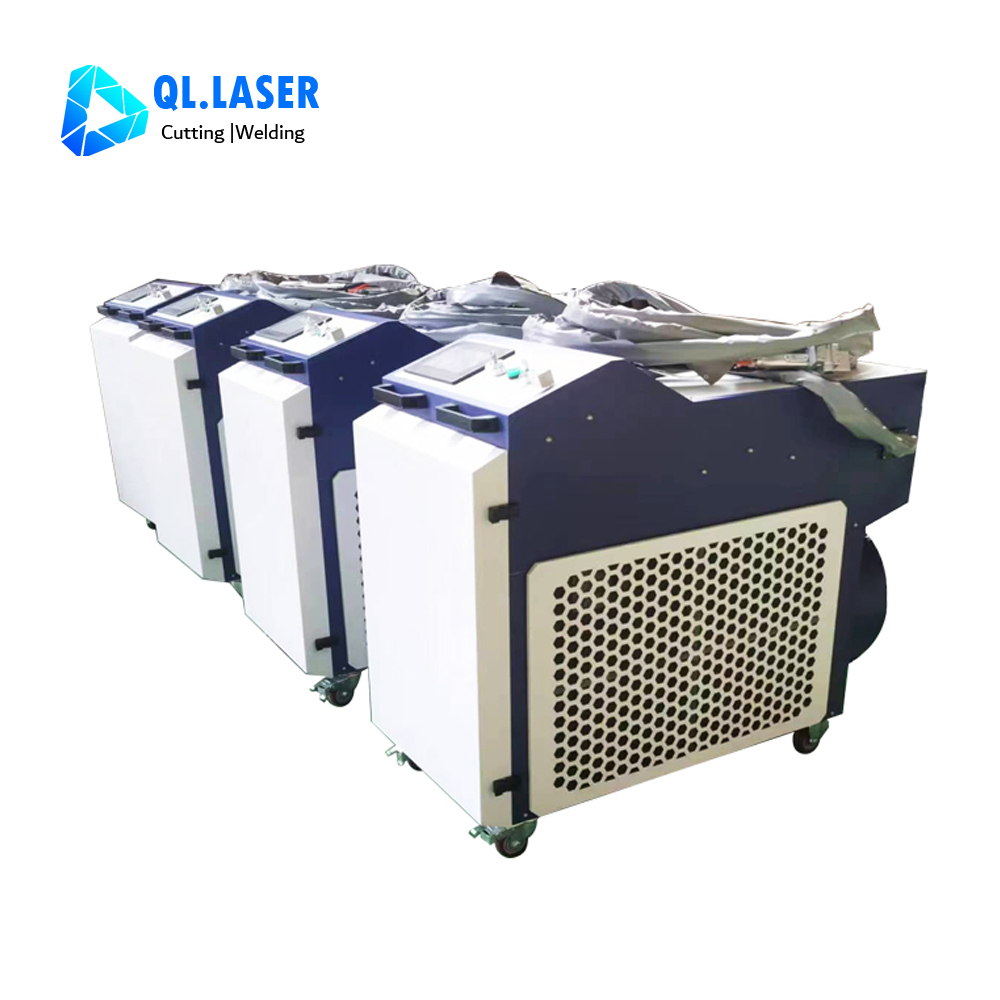

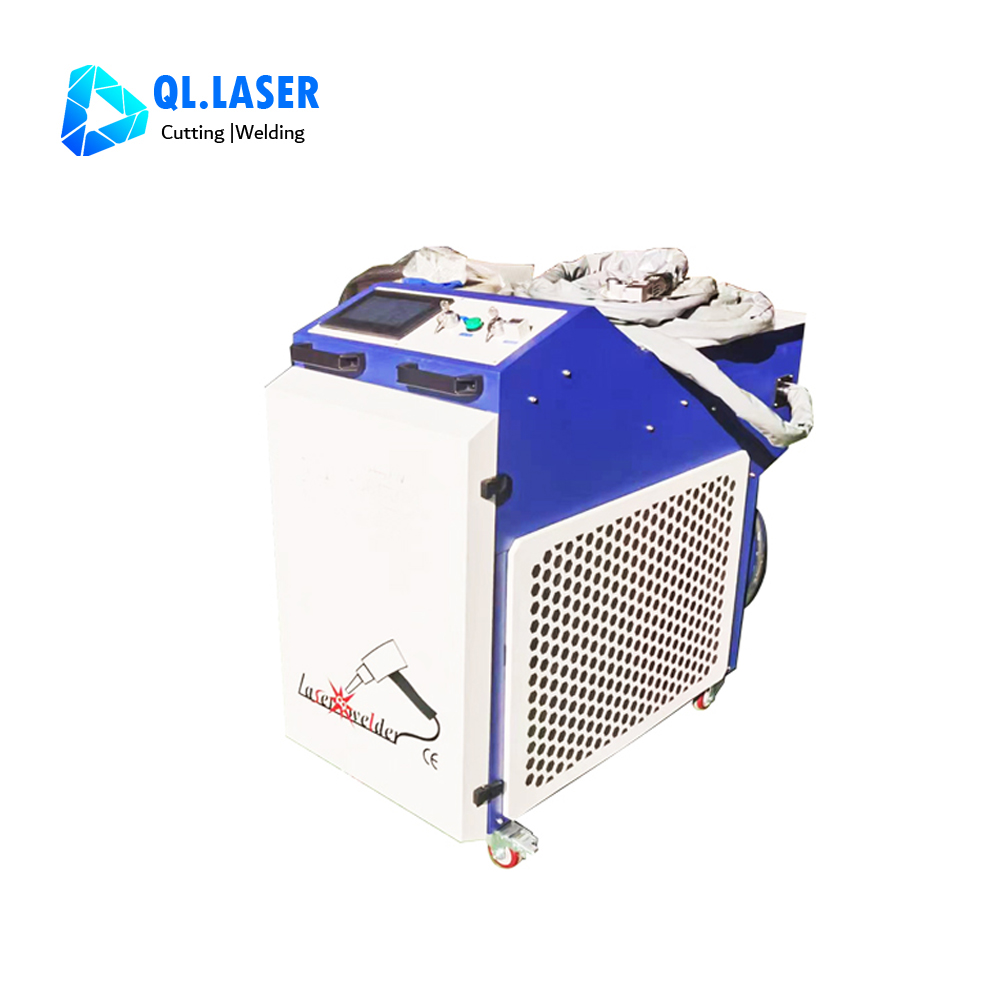

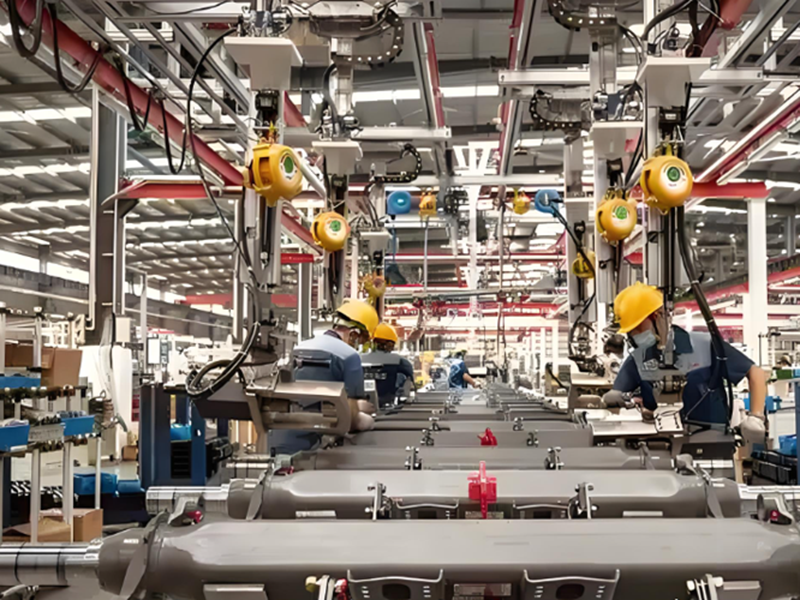

Handheld laser cleaning machines are widely used in industrial manufacturing,automotive electronics, aerospace and other fields
 |  |  |
 |  |  |  |
1. What is the cleaning width?
Cleaning width maximum 300mm.
2. Does it require gas? What gas?
Yes, laser cleaning machine need to use gas as shield gas. It use nitrogen gas or air .
Air needs to be oil-free and water free. Air compressor need to install dryer and 5class filters.
3. What are consumables?
Consumable is protective lens and gas.
