| Quantity: | |
|---|---|
1. The welding seam is beautiful, uniform, free of welding scar and discoloration, and does not need to be polished in the later stage. Save labor hours.
2. The welding is firm, and the weld strength reaches or even exceeds the base metal itself.
3. One time welding forming, basically no deformation, meeting the requirements of high quality products.
4. Welding speed is fast, 4-10 times faster than traditional welding, a machine can save at least 2 welders a year.
5. The operation is simple, easy to learn and fast to start, the operator's technical threshold is not high, and the labor cost is saved.
Material | thickness mm | scan speed | scan width mm | laser power /W | duty cycl e | pulse frequency | wire feeding speed cm/s | wire diameter |
Carbon | 1 | 300 | 3 | 350 | 100 | 2000 | 60 | 1 |
2 | 300 | 3 | 700 | 100 | 2000 | 60 | 1.2 | |
3 | 300 | 3 | 1100 | 100 | 2000 | 60 | 1.2 | |
4 | 300 | 3 | 1500 | 100 | 2000 | 1.6 | 1.6 | |
5 | 220 | 3 | 1800 | 100 | 2000 | 50 | 1.6 | |
6 | 220 | 3 | 2200 | 100 | 2000 | 50 | 1.6 | |
8 | 220 | 3 | 3000 | 100 | 2000 | 40 | 2 | |
Aluminium | 1 | 300 | 3 | 500 | 100 | 2000 | 60 | ER5356 1.0 |
2 | 300 | 3 | 800 | 100 | 2000 | 60 | ER5356 1.2 | |
3 | 300 | 3 | 1400 | 100 | 2000 | 60 | ER5356 1.2 | |
4 | 300 | 3 | 1800 | 100 | 2000 | 60 | ER5356 1.6 | |
5 | 220 | 3 | 2000 | 100 | 2000 | 50 | ER5356 1.6 | |
6 | ||||||||
8 | ||||||||
Stainless | 0.5 | 300 | 2 | 260 | 100 | 2000 | 80 | ER304 0.8 |
0.8 | 300 | 2 | 300 | 100 | 2000 | 80 | ER304 0.8 | |
1 | 300 | 2 | 350 | 100 | 2000 | 60 | ER304 1.0 | |
2 | 300 | 3 | 700 | 100 | 2000 | 60 | ER304 1.0 | |
3 | 300 | 3 | 1100 | 100 | 2000 | 60 | ER304 1.2 | |
4 | 300 | 3 | 1500 | 100 | 2000 | 60 | ER304 1.2 | |
5 | 220 | 3 | 1800 | 100 | 2000 | 50 | ER304 1.6 | |
6 | 220 | 3 | 2200 | 100 | 2000 | 50 | ER304 1.6 | |
8 | 220 | 3 | 3000 | 100 | 2000 | 40 | ER304 2.0 |

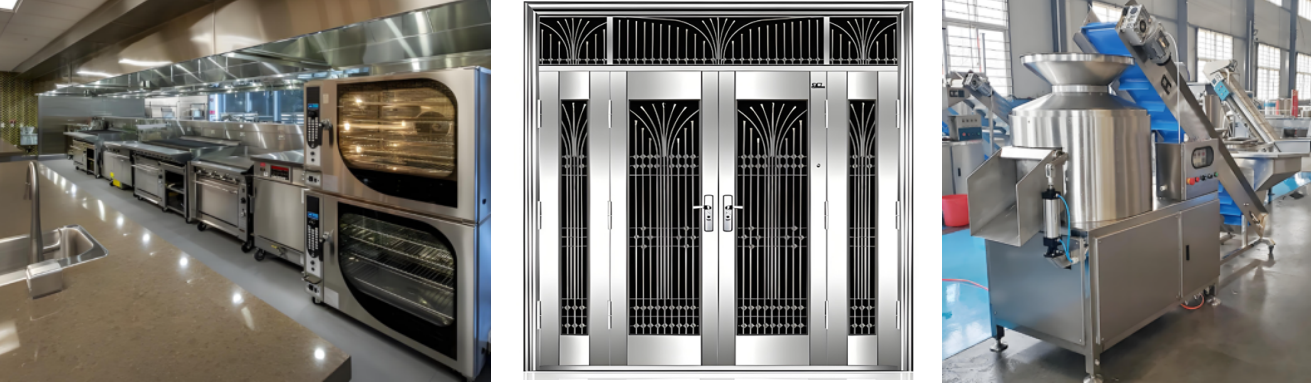

Handheld laser welding machines are widely used in the field of welding medium and thin plates of metals such as stainless steel and aluminum alloys, such as kitchen appliances, door and window guardrails, Food Machinery and other industries.
1. What is laser welding machine delivery time？
Delivery time: 7working days after receive payment.
2. Does it require gas? What gas?
Yes, laser welding machine use nitrogen gas or argon gas as shield gas.
Air needs to be oil-free and water free. Air compressor need to install dryer and 5class filters.
3. Can laser welding machines use CO2?
No, it can not.
4. Which type of welding wire can be used?
It uses solid welding wire,diameter 0.8mm 1.0mm 1.2mm 1.6mm and 2.0mm.
