Introduction
Shipbuilding and offshore engineering have extremely strict manufacturing standards for structural stability, corrosion resistance and assembly precision. Unlike general building steel structures, marine profile steel components such as bulb flat steel, ship stiffeners, channel steel and angle steel require complex beveling, intersecting cutting, scallop holes and precise size control to adapt to hull deformation, marine vibration and seawater corrosion environments.

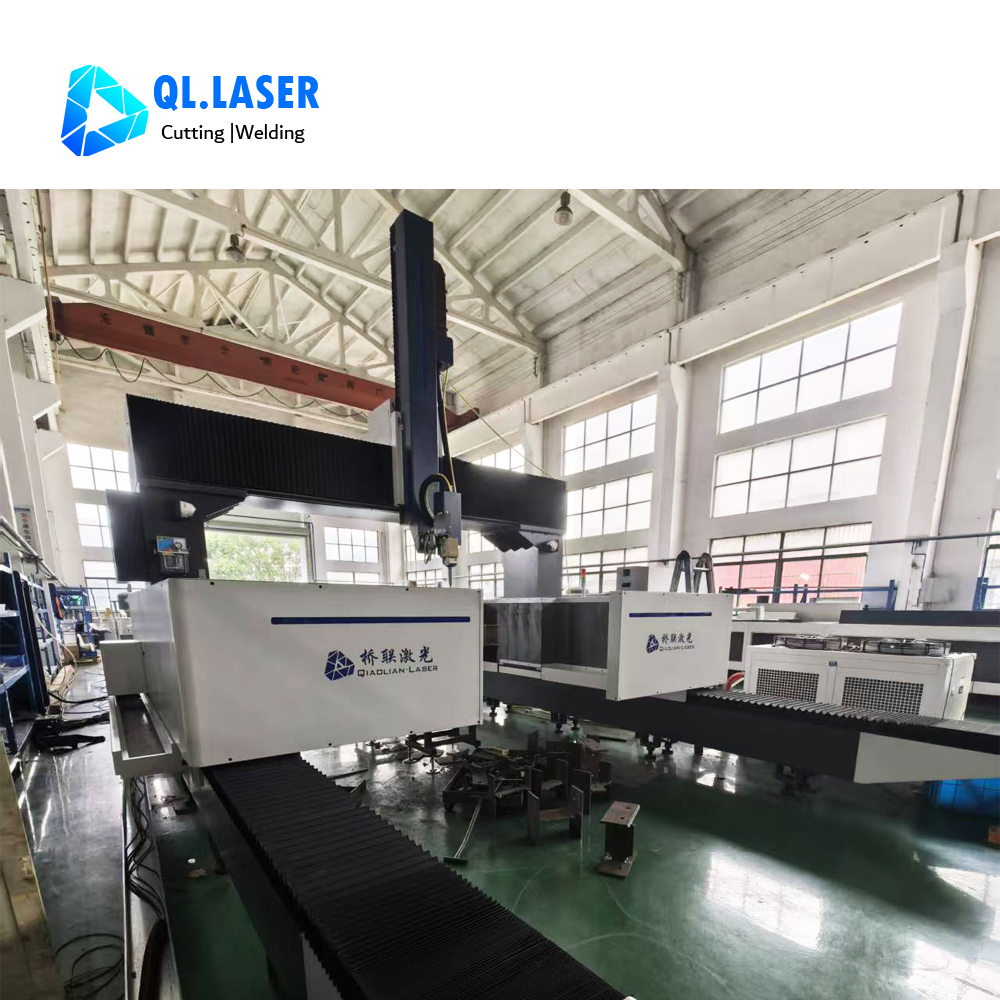

Traditional processing methods including sawing, flame cutting and manual grooving cannot meet the high-precision and high-reliability requirements of modern shipyards and offshore platform manufacturing. The profile laser cutting machine with 3D five-axis linkage and high-power laser output has become standard intelligent processing equipment for shipbuilding and offshore industries, realizing one-stop precision forming of all marine steel profiles.
Unique Processing Requirements of Marine & Offshore Profiles
Ship and offshore structural profiles differ greatly from ordinary construction steel. Marine-grade profiles feature thick walls, high-strength alloy materials and complex spatial modeling. Most hull stiffeners, bulkhead supports and platform beam parts require asymmetric bevels, special-shaped notches and reserved process holes for welding shrinkage and hull assembly gaps.
In offshore engineering, steel profiles need to withstand long-term wind wave impact, salt fog corrosion and alternating load pressure. Therefore, the cutting section must be smooth without thermal deformation, and the welding groove must be uniform and consistent to avoid structural stress concentration. Traditional multi-process processing easily causes cumulative errors and poor repeatability, which directly affects the overall safety of marine engineering structures.
Core Application Scenarios in Shipbuilding Industry
1. Hull Stiffener and Bulb Flat Steel Fabrication
Bulb flat steel is the most widely used reinforcing profile for ship hulls and decks. The profile laser cutting machine realizes fixed-length cutting, edge trimming, scallop drainage hole cutting and unilateral bevel forming in one process. It replaces inefficient manual scribing and sawing, ensuring uniform specifications for batch hull stiffeners and improving the overall rigidity of the ship body.
2. Cabin Structure and Bulkhead Profile Processing
Ship cabin frames, partition supports and auxiliary beam profiles require multi-angle bevel matching and special-shaped notch cutting. The 3D five-axis swinging cutting head supports ±45° arbitrary bevel cutting, perfectly adapting to V, X, Y and K welding grooves required for ship hull welding. The zero-deformation cutting effect ensures seamless assembly of segmented cabin structures.
3. Ship Outfitting and Auxiliary Structural Parts
Various ladder supports, guardrail bases, pipe brackets and equipment fixing profiles on ships have complex and diverse specifications. The profile laser cutter supports intelligent identification and automatic nesting of different profile types, realizing flexible production of small-batch and multi-style ship outfitting parts, greatly reducing workpiece backlog and material waste.
Key Applications in Offshore Engineering Industry
1. Offshore Platform Steel Profile Manufacturing
Offshore drilling platforms, wind power base platforms and marine engineering support frames require high-strength thick-walled profile steel. High-power profile laser cutting equipment provides stable thick plate penetration cutting, with flat cutting sections and consistent bevel angles, meeting the high structural safety standards of offshore facilities working in harsh marine environments.
2. Marine Corrosion-resistant Profile Precision Machining
For stainless steel and weather-resistant marine alloy profiles used in offshore projects, laser processing features a tiny heat-affected zone, effectively avoiding material oxidation and structural performance degradation. It maintains the original corrosion resistance and mechanical strength of marine special steel, extending the service life of offshore structural components.
3. Modular Offshore Prefabricated Component Cutting
Modern offshore engineering adopts modular prefabricated production mode. The 12m ultra-long processing stroke of the profile laser machine supports full-length raw profile one-time forming, realizing standardized batch production of large prefabricated modules and improving the installation efficiency of offshore hoisting and docking operations.
Industry Advantages of Profile Laser Cutting for Marine Manufacturing
High Precision Meets Marine Safety Standards
The equipment maintains stable cutting tolerance within ±0.05mm, with smooth and burr-free sections. It eliminates secondary grinding and groove correction, ensuring that all profile components fully comply with ship classification society manufacturing standards.
Eliminate Cumulative Errors of Traditional Multi-process
Integrating cutting, grooving, hole making and modeling in one process avoids positioning errors caused by repeated clamping. The overall assembly precision of ship and offshore structures is significantly improved, reducing on-site welding correction workload.
Adapt to Harsh Marine Engineering Working Conditions
Laser processing produces no thermal deformation or stress concentration. The processed profiles can resist marine vibration, salt fog corrosion and alternating loads, ensuring long-term stable operation of ships and offshore platforms.
Improve Shipyard Intelligent Manufacturing Level
Supporting direct import of marine 3D design software models, automatic nesting and one-click program generation, it realizes digital and intelligent profile processing, helping shipyards upgrade from traditional manual production to modern intelligent manufacturing.
Conclusion
Profile laser cutting machines have become essential core equipment for modern shipbuilding and offshore engineering manufacturing. Relying on 3D five-axis high-precision cutting capability, it solves the industry pain points of low precision, low efficiency and poor consistency in traditional marine profile processing. It not only improves the manufacturing quality and structural safety of ships and offshore platforms, but also greatly promotes the standardized, intelligent and high-efficiency development of the marine engineering industry.
