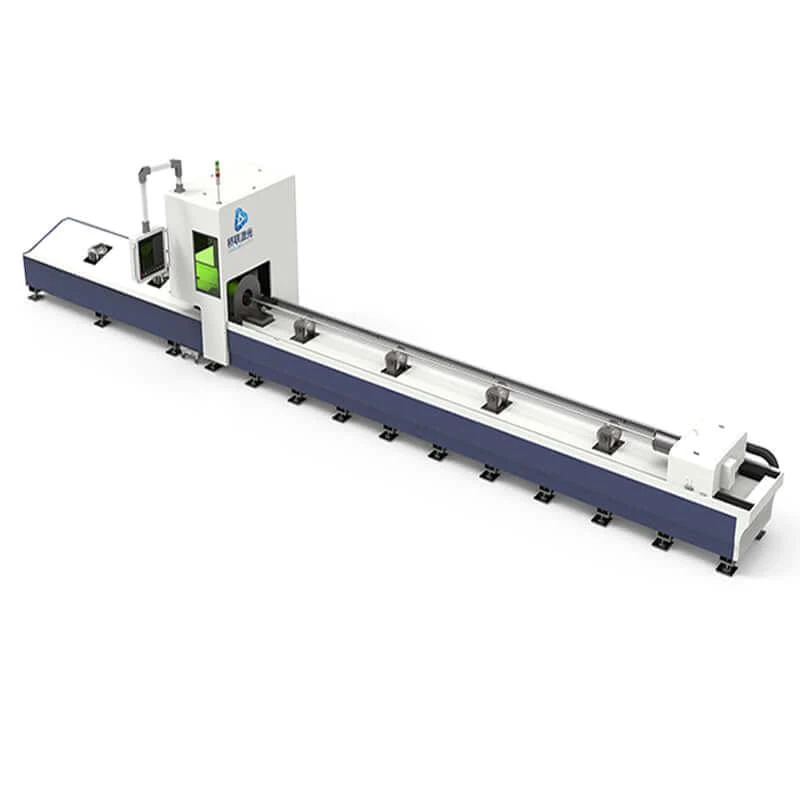

The JCT2612 2-chuck clamping tube laser cutting machine is ideal for precision cutting on a variety of materials, including steel ,iron ,SS,MS ,aluminium ,copper etc.The JCT2612 features a precision 2-chuck fixture for greater accuracy and stability when cutting, ensuring your projects look great every time.
The machine can be used to cut materials such as round pipe, square pipe,rectangular tube, h beam ,c shape steel, L shape steel, angle steel.elliptic tube etc.
| Model | JCT2612 |
| Power | 1000W-6000W |
| Min.Dia(mm) | 20 |
| Max.Dia(mm) | 120 |
| Tube length(mm) | 3000 / 6000 / 9000 / 12000 |
| Number of Chucks | 2 |
| Maximum revolutions of chuck(RPM) | 80-120 |
| X/Y-axis Positioning Accuracy | ±0.05mm |
| X/Y-axis Repositioning Accuracy | ±0.03mm |
| Positioning speed | 90m/min |
| Max. Acceleration | 1G |
If you’re interested in our products, please feel free to contact us. We’re here to help!
