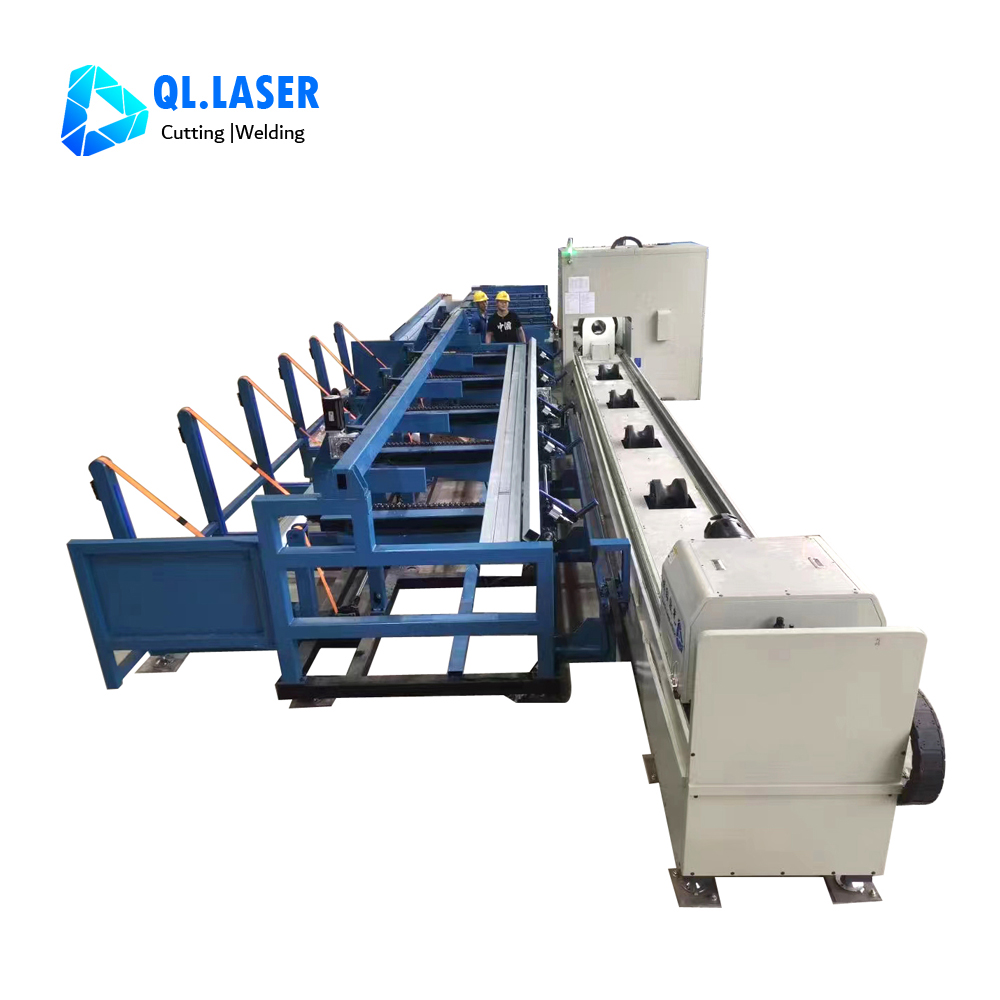

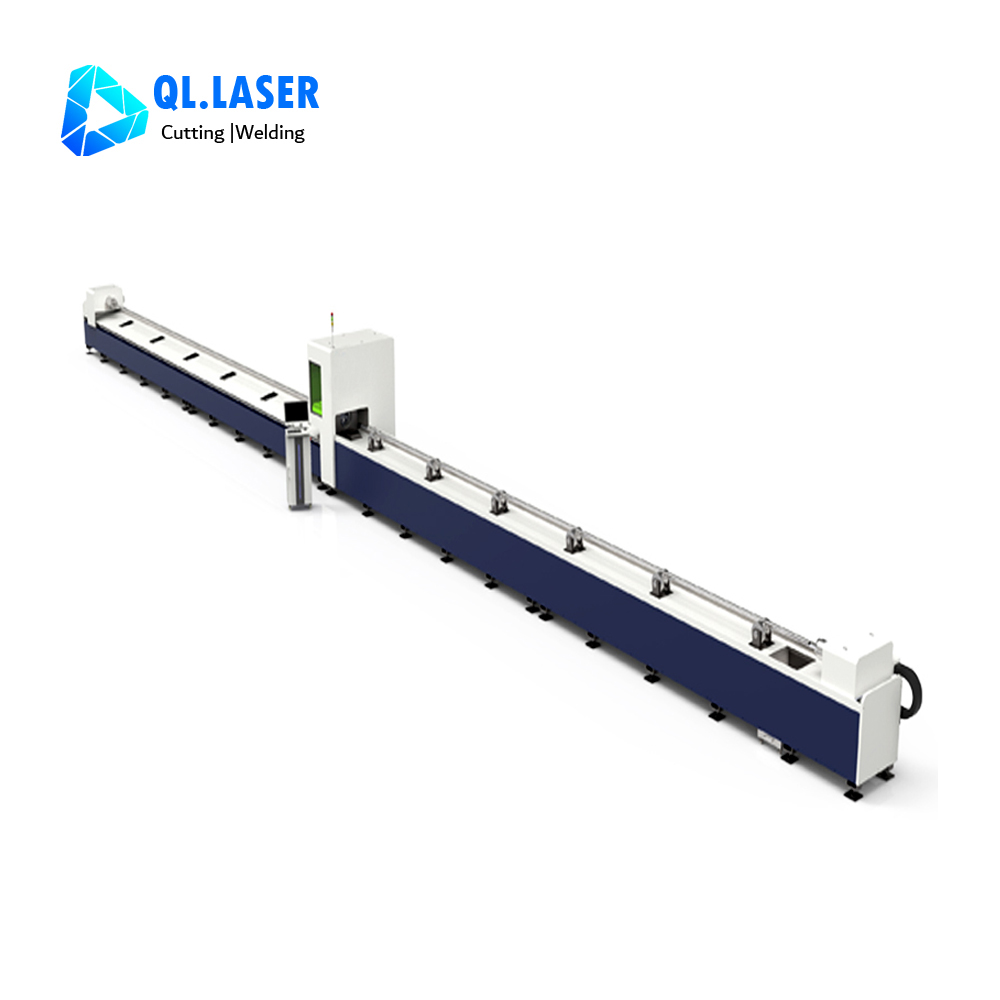

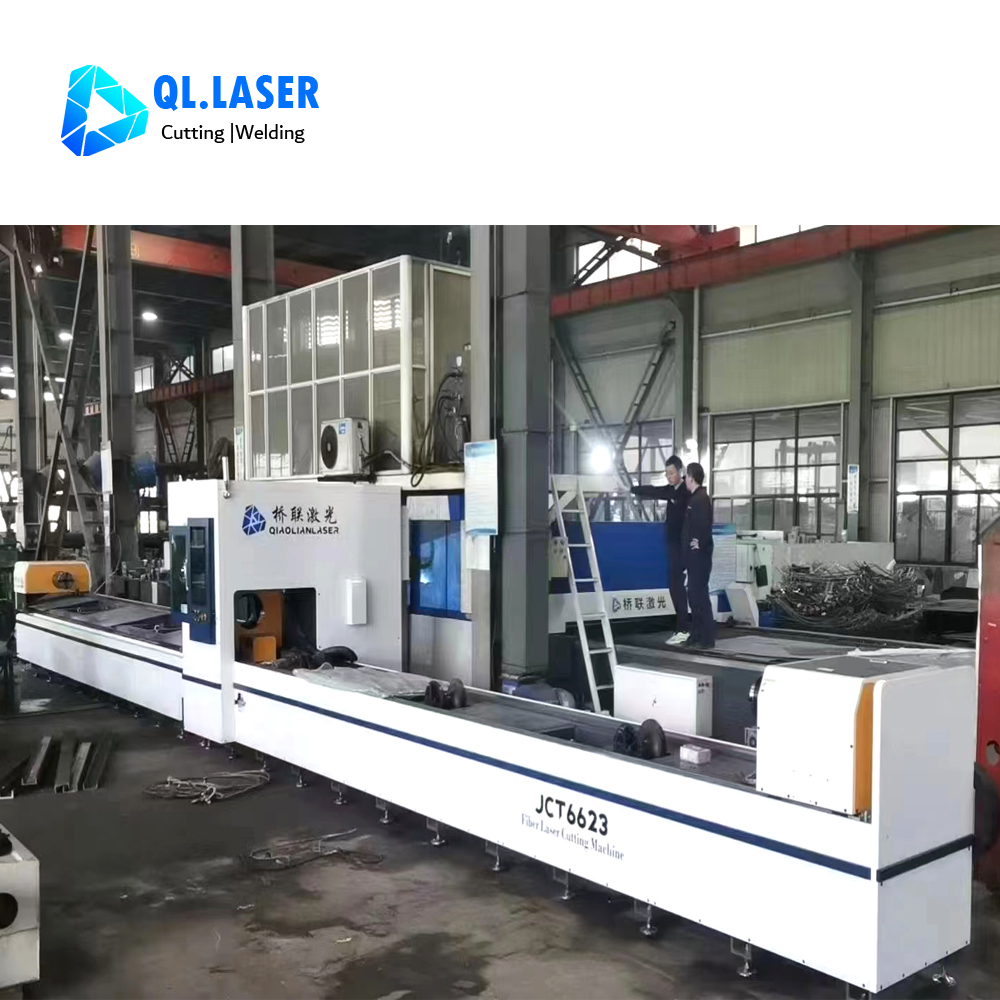

3chuck laser tube cutting machine is a professional equipment for cutting various metal pipes,it is mainly composed of laser power,laser cutting head,control system and cutting software, water chiller,3sets high precision chucks, pipe cutting workstation, coaxial auxiliary gas system, machine tool etc.Optional automatic loading and unloading system and semi-automatic loading and unloading system.
1. 3-chuck Clamping Technology, Real 0 tailing without tube length restriction.
2. EtherCAT bus system

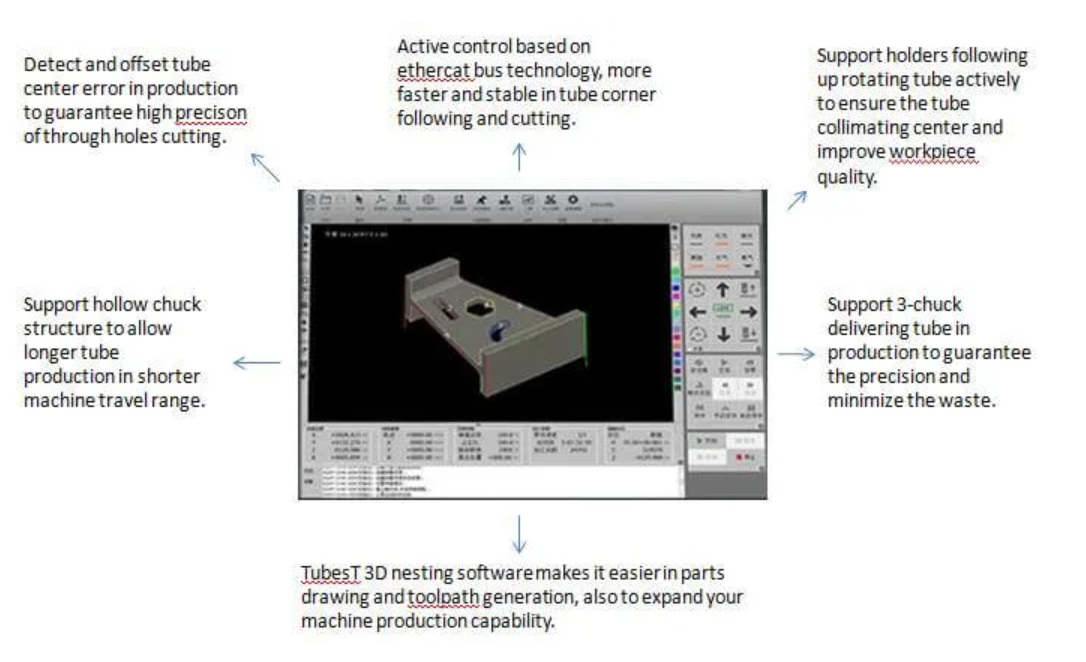

FSCUT5000 series is EtherCAT bus system specially designed for fiber laser pipe cutting machine. Work with TubesT 3D nesting software, it will achieve most efficiency and minimum waste.
3. Special Steel Centering
Realize precise cutting of special steel
Capable of centering L-Shaped, U-shaped, H-Shaped steel
4. Single Side Centering
Increase cutting precision of hole on tube.
5. Bevel cutting （optional)
Support bevel parts cutting,Matched with drawing generated by nest software to cut bevel part.

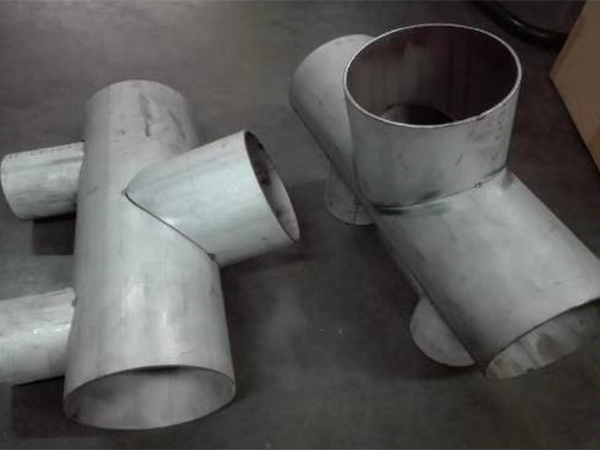

6. It cut round tube, square tube, rectangular tube, angle iron, channel steel, waist tube, H-shaped steel, I-shaped steel, C-shaped steel etc.
Model | JCT3612 | JCT3616 | JCT3622 | JCT3628 | JCT3630 |
Laser Power Source | 1.5kw / 2kw / 3kw / 6kw | ||||
Min.Dia(mm) | 20 | ||||
Max.Dia(mm) | 120 | 160 | 220 | 280 | 300 |
Tube length(mm) | 3000 / 6000 / 9000 / 12000 | ||||
Number of Chucks | 3 | ||||
X/Y-axis Positioning Accuracy | ±0.05mm | ||||
X/Y-axis Repositioning Accuracy | ±0.03mm | ||||
Positioning speed | 90m/min | ||||
Max. Acceleration | 1G | ||||
>> Product Uses

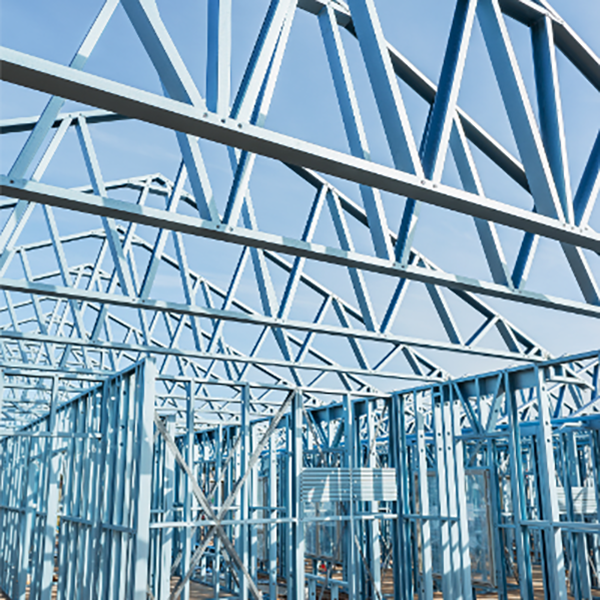

Applied in industries such as Shipyard Manufacturing, Automotive,Steel Frame, fitness equipment, furniture manufacturing etc.
|
|
|
|
|
|
|

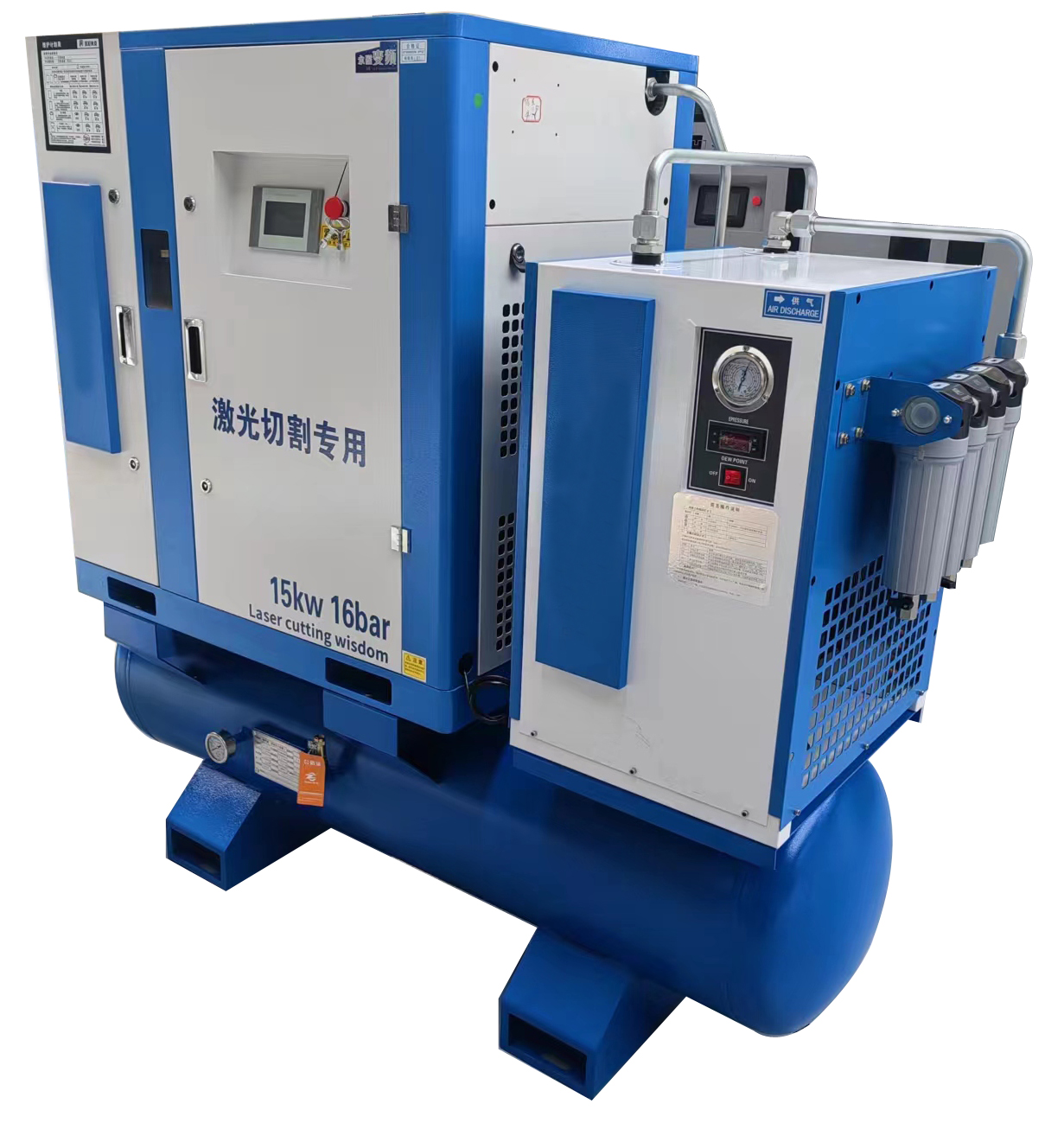

15kw-16bar Technical Parameters of All-In-One Air compressor | ||
Air compressor | power | 15kw |
Volume Flow | 1.2m³/min | |
pressure | 1.58Mpa | |
Start method | Y-Δ Start/Frequency Conversion | |
Cooling method | Air cooling | |
Electricity | 380V/50Hz | |
freeze dryer | Free Air Deliver | 2.6m³/min |
Pressure | 1.6Mpa | |
Inlet Temperature | ≤80℃ | |
Ambient Temperature | ＜45℃ | |
Pressure Dew-Point | 2-10℃ | |
Outlet diameter | G1 | |
Fine filter*5 | Free Air Deliver | 3.0m³ |
Pressure | ≤2.0Mpa | |
Exhaust dust content | 0.01um | |
Outlet diameter | RP3/4 | |
Air Tank*1 | Gas storage tank capacity | 340L |
Pressure | 1.58Mpa | |
Inlet diameter | RP3/4 | |
Outlet diameter | RP3/4 | |
Temperature | 150℃ | |
Safety valve | RC1/2 | |
Drain valve | RC1/2 | |
size | φ500*1760mm | |
size | 1800*700*1600mm | |
weight | 450kg | |
