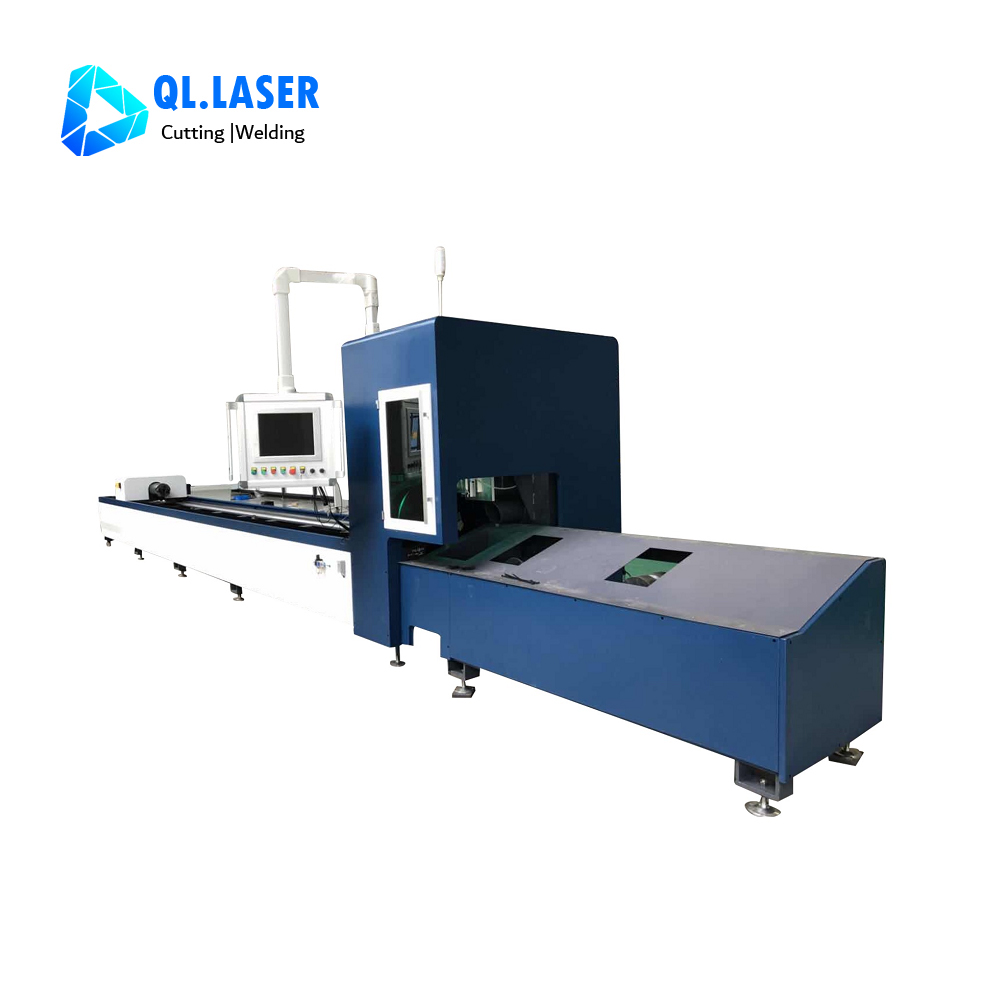

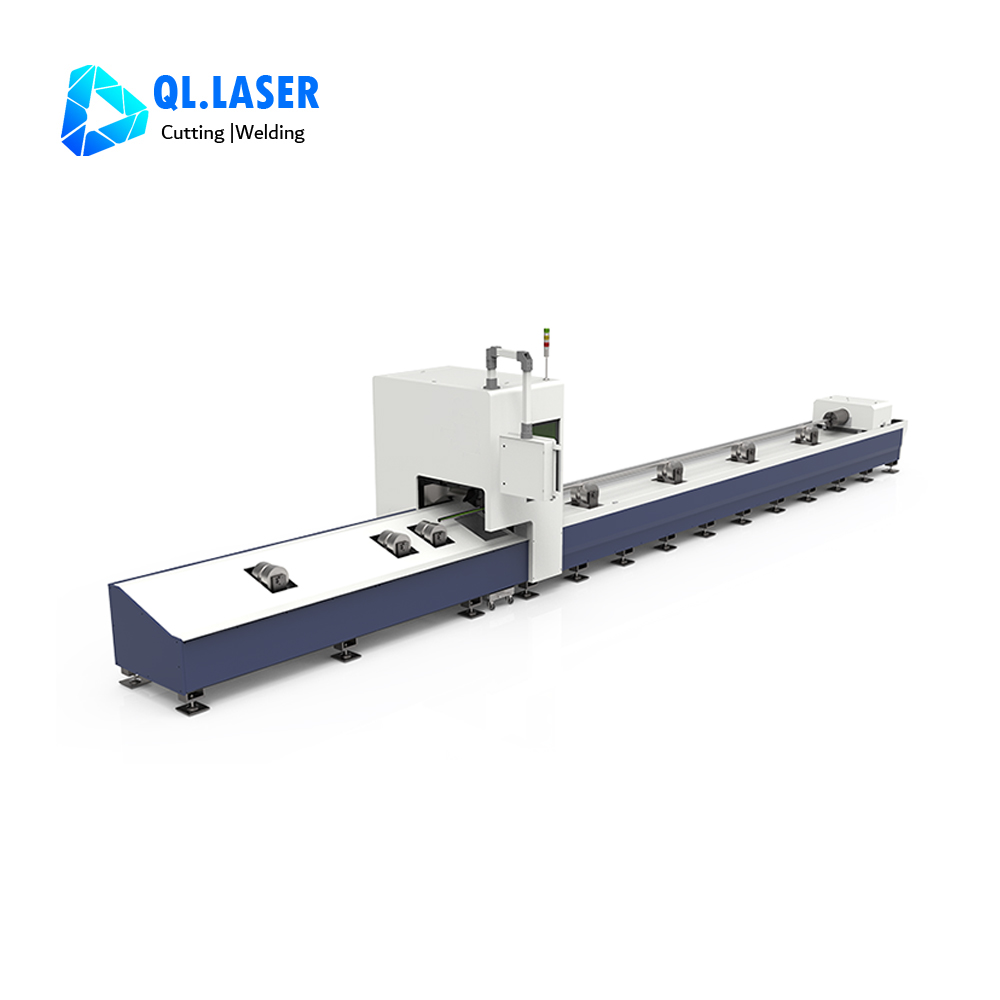

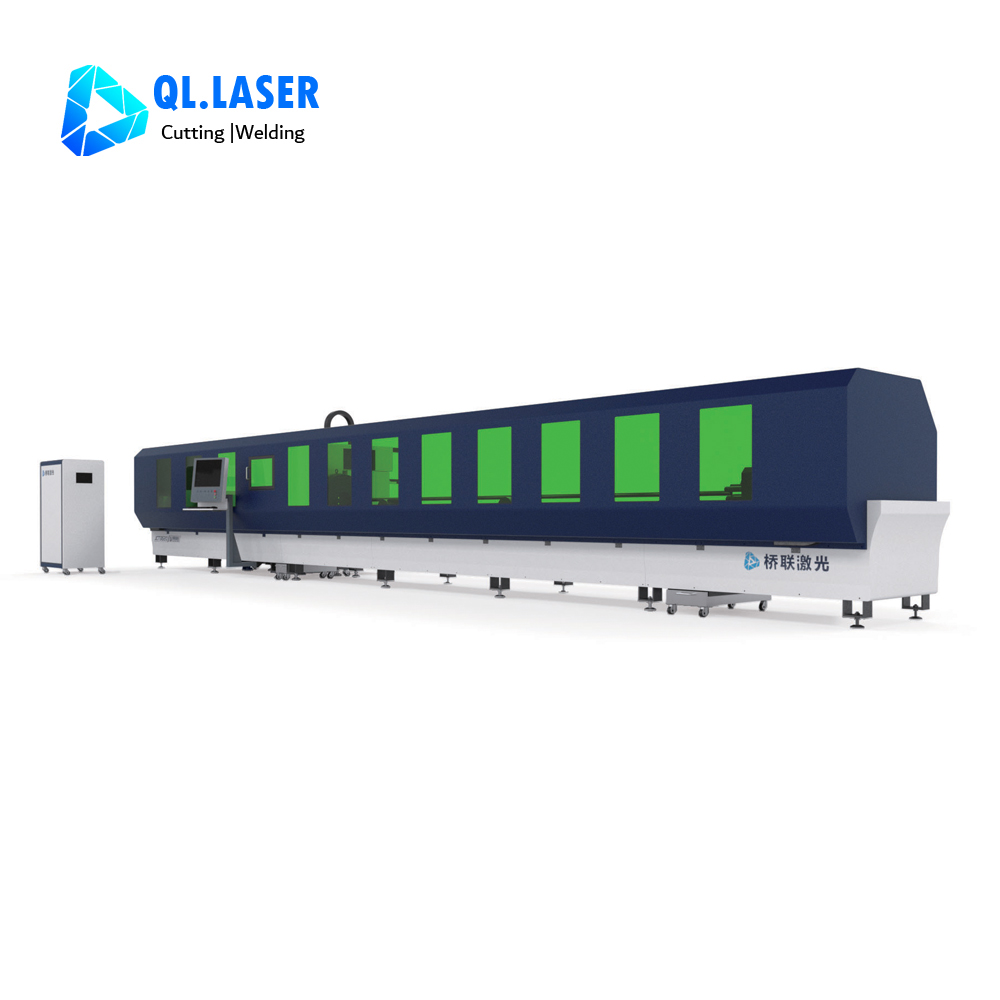

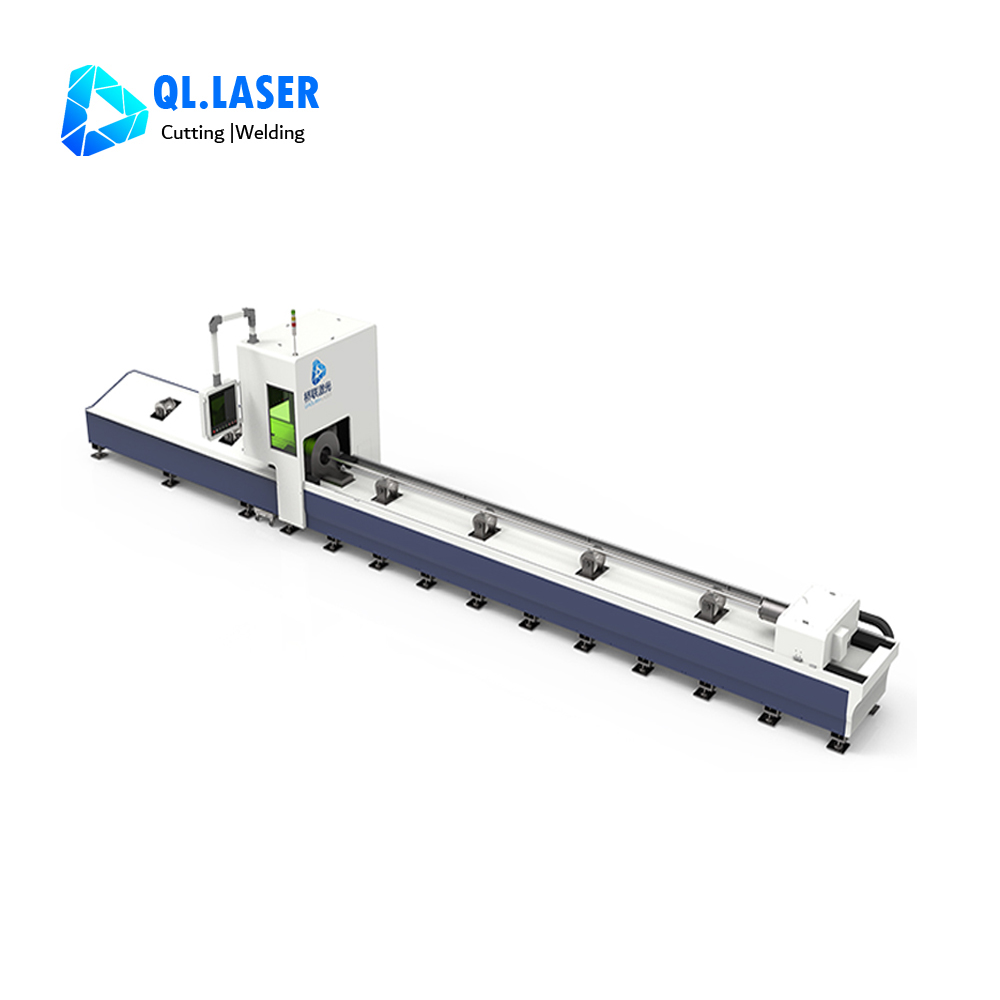

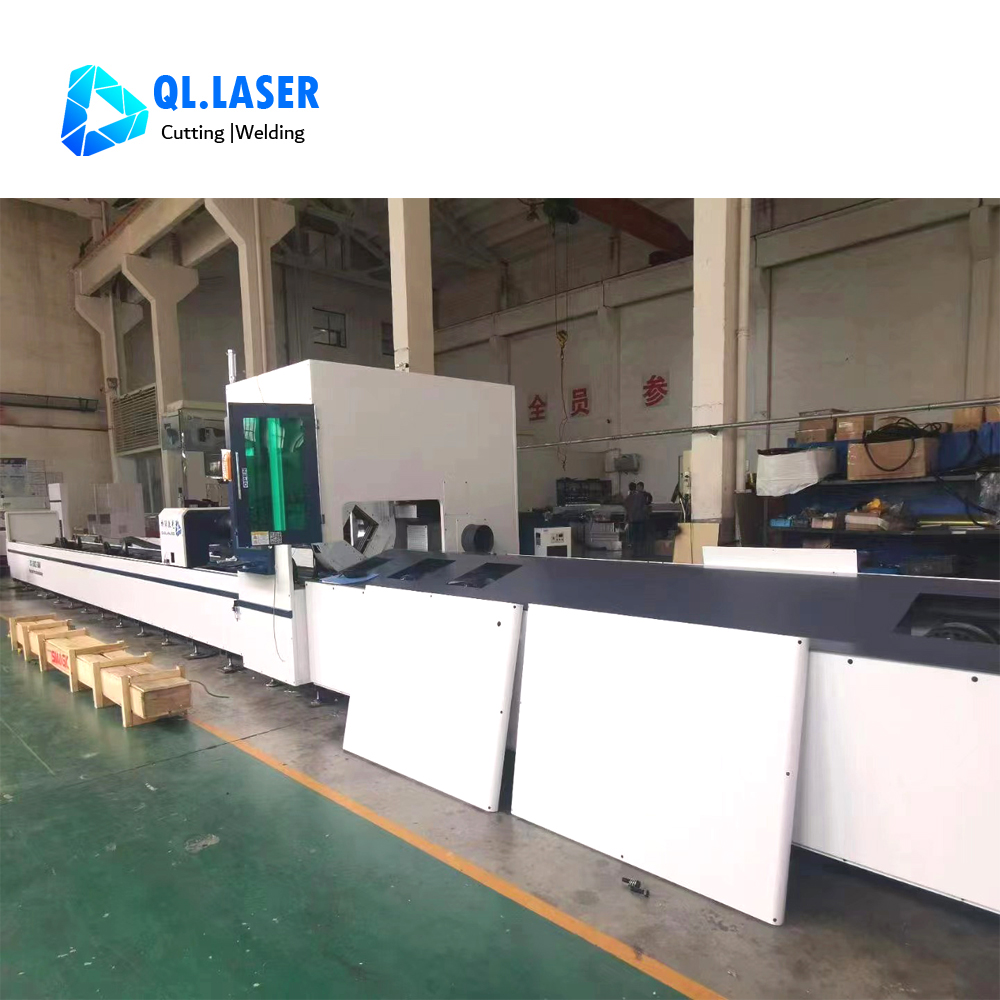

Pipe laser cutting equipment is a specialized device that uses laser technology to achieve precision machining of metal pipes. Suitable for high-precision cutting of metal pipes such as stainless steel pipe, carbon steel pipe, and alloy steel pipe etc.

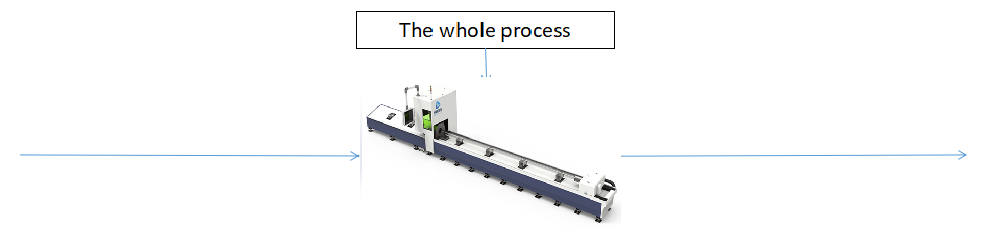

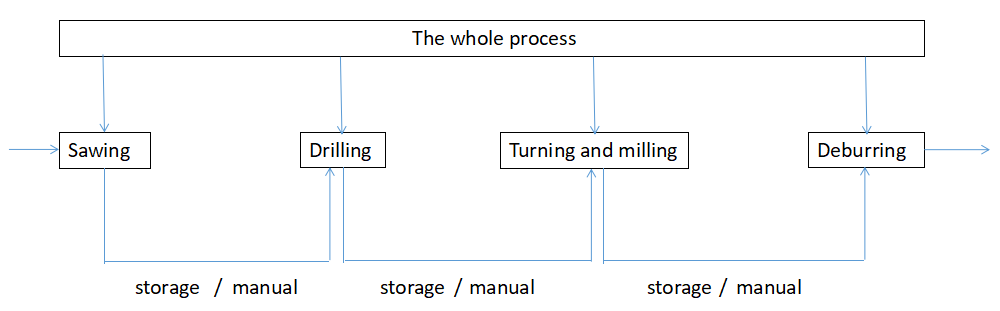

Laser machining can optimize machining processes in several ways. Piercing and complex cutting can be done in one operation. Furthermore, it is possible to cut the pipe into multiple parts. Solutions for optimizing tube processing can minimize subsequent operations such as deburring, welding and assembly. The resources required for intermediate stages, such as storage and handling parts, are also much lower, thus speeding up the machining process and significantly reducing the costs of production methods using conventional tools for sawing, drilling and milling.

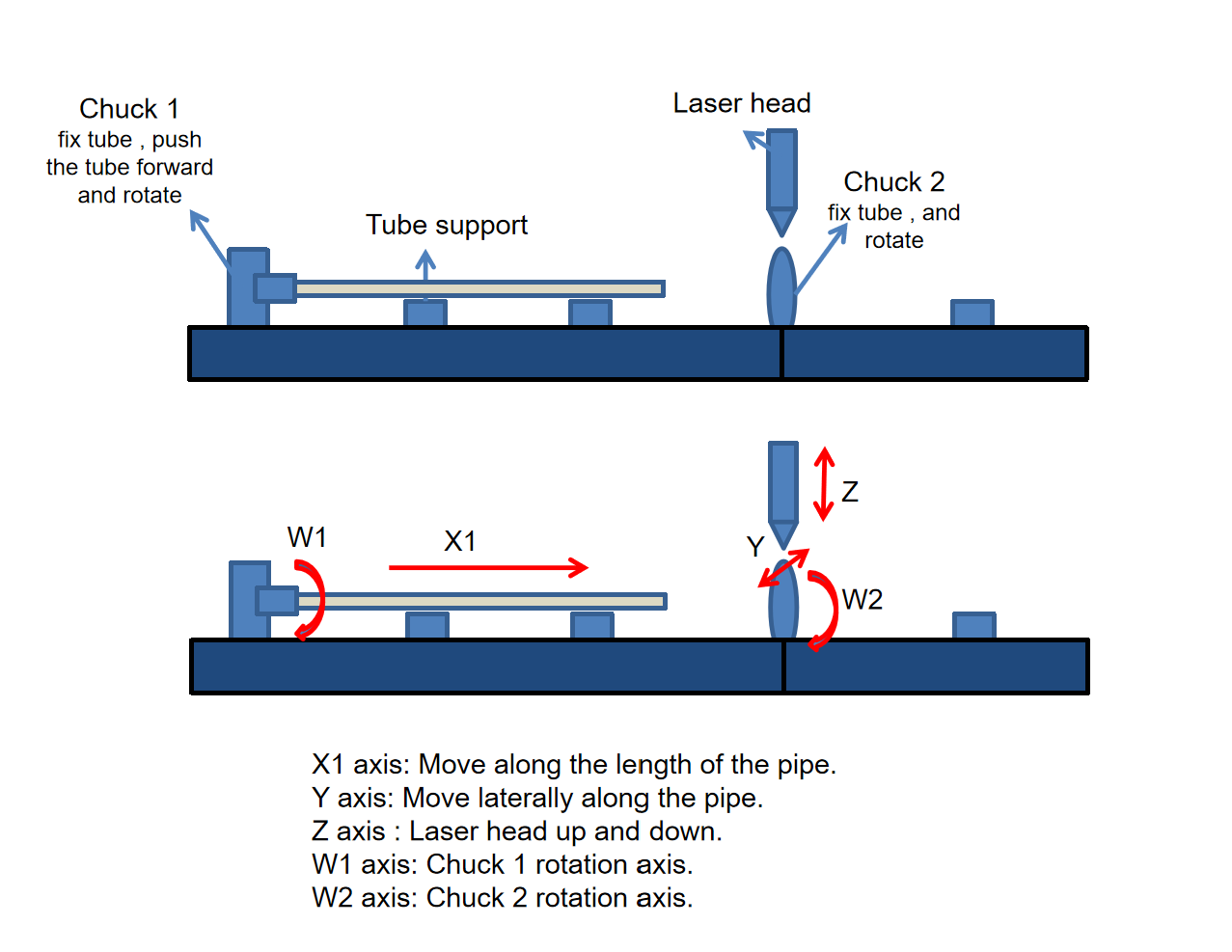

Laser tube cutting process

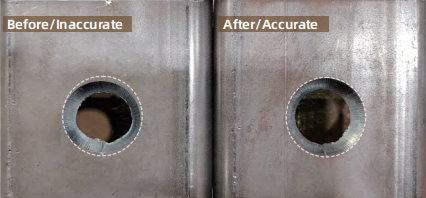

Guarantee motor movement accuracy and part size accuracy
Compare instruction track with feedback track to help technician tell the difference of main axes servo gain.

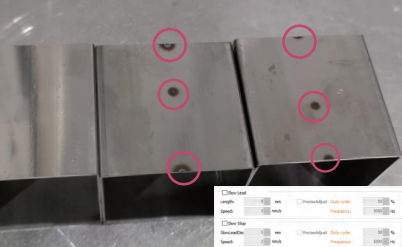

Smoothen tube section
Avoid starting burnt point on opposite side and ending bump formed by early falling.

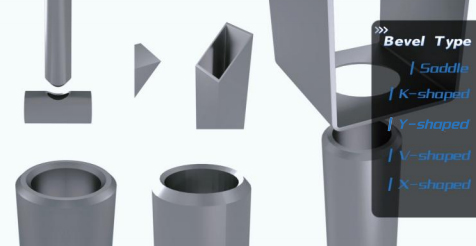

Facilitate welding process
Saddle,K-shaped,Y-Shaped, V-shaped,and X-shaped bevel supported.
| Model | JCT2612 | JCT2616 | JCT2622 | JCT2628 | JCT2630 |
| Laser Power | 1500W 2000W 3000W 6000W | ||||
| Min.Dia(mm) | 20 | ||||
| Max.Dia(mm) | 120 | 160 | 220 | 280 | 300 |
| Tube length(mm) | 3000 / 6000 / 9000 / 12000 | ||||
| Number of Chucks | 2 | ||||
| X/Y-axis Positioning Accuracy | ±0.05mm | ||||
| X/Y-axis Repositioning Accuracy | ±0.03mm | ||||
| Positioning speed | 90m/min | ||||
| Max. Acceleration | 1G | ||||

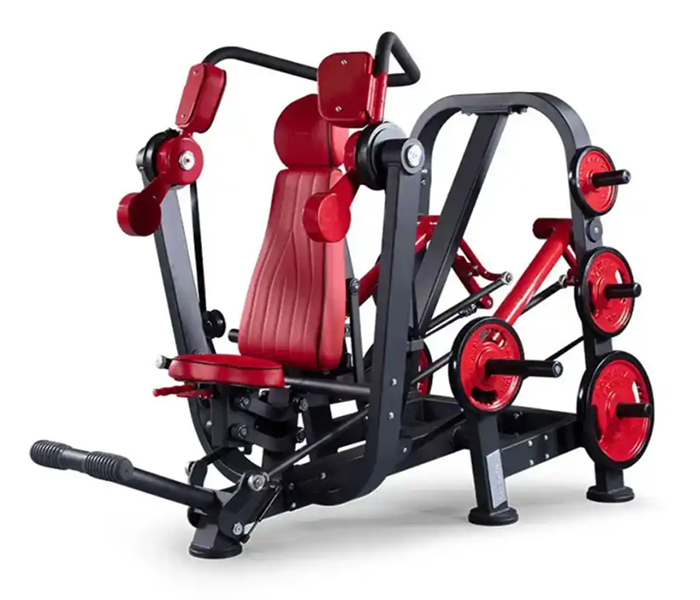

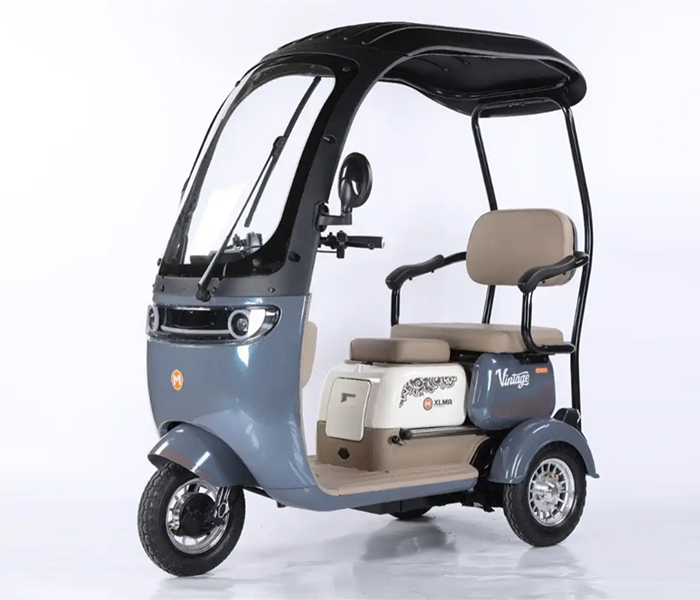

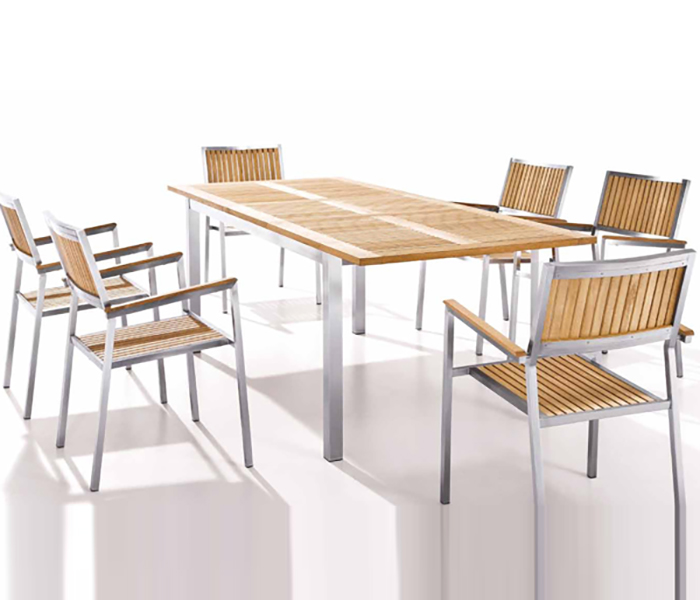

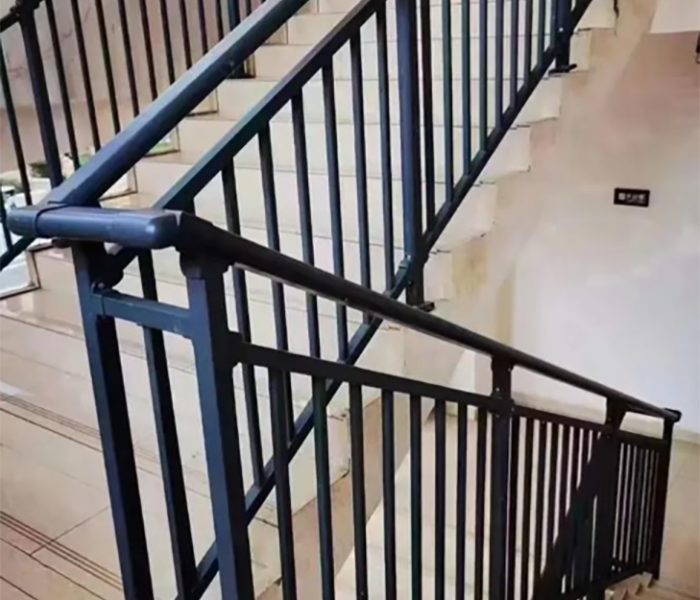

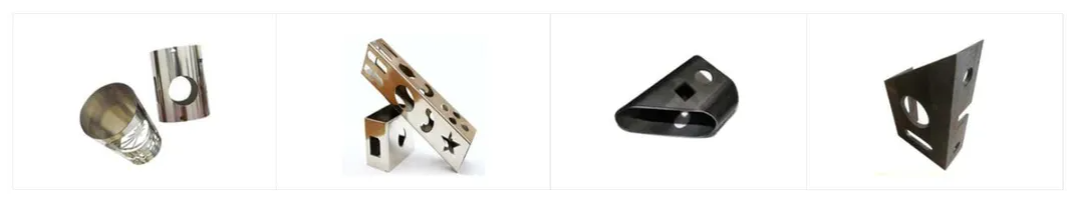

Applied in industries such as fitness equipment, furniture manufacturing, electric vehicles, and stair handrails etc.
 |  |  |  |
1. How long pipes can it cut? It can cut 6m 9m and 12m.
2. What thickness of pipe can it cut? It can cut thickness upto 10mm .
3. What material can it cut? Carbon steel pipe, stainless steel pipe, aluminum pipe.
