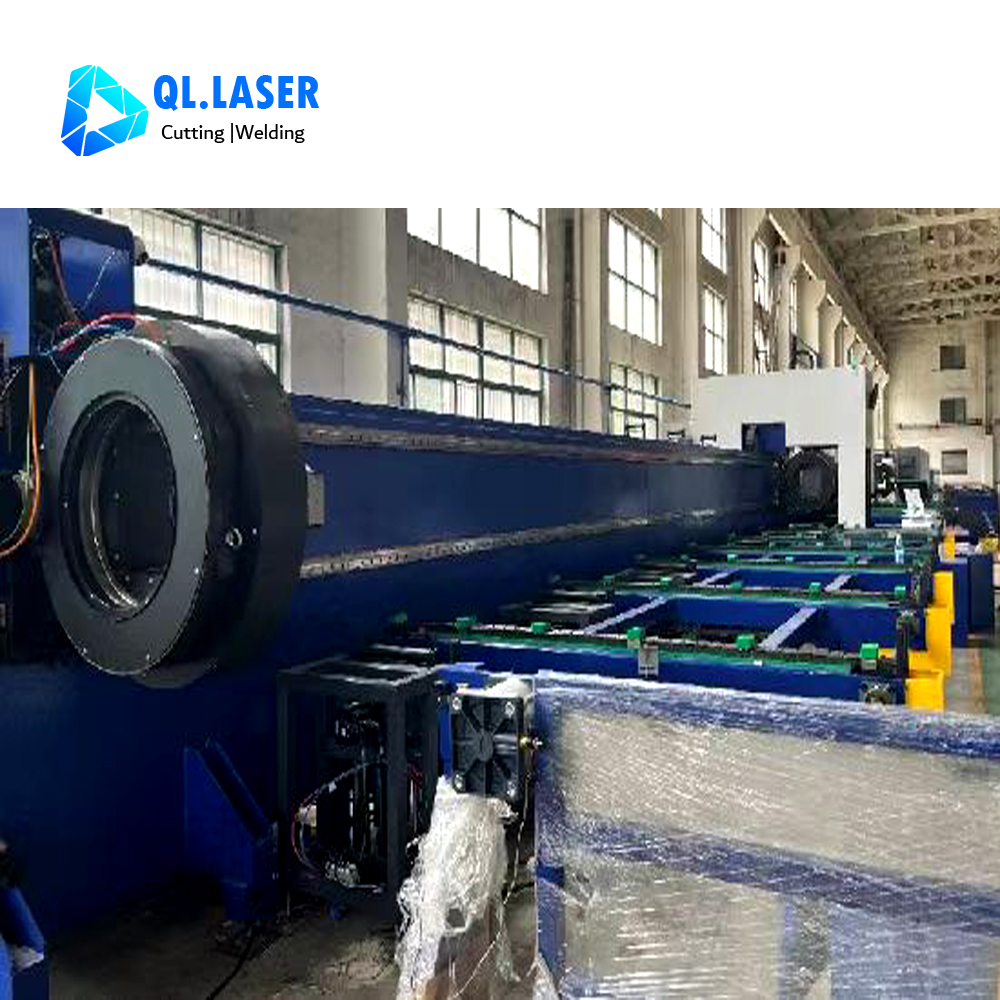

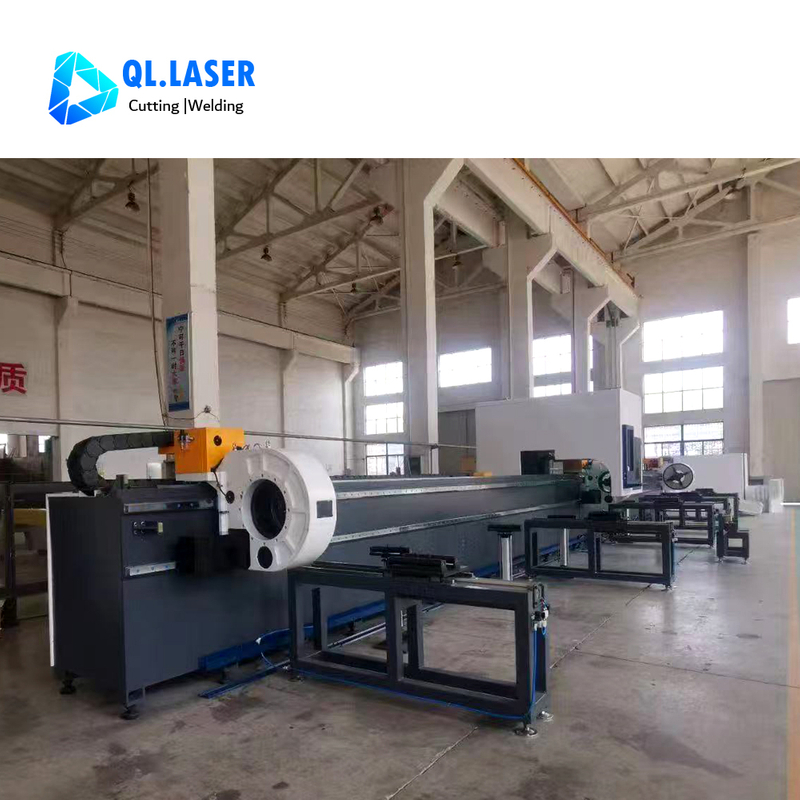

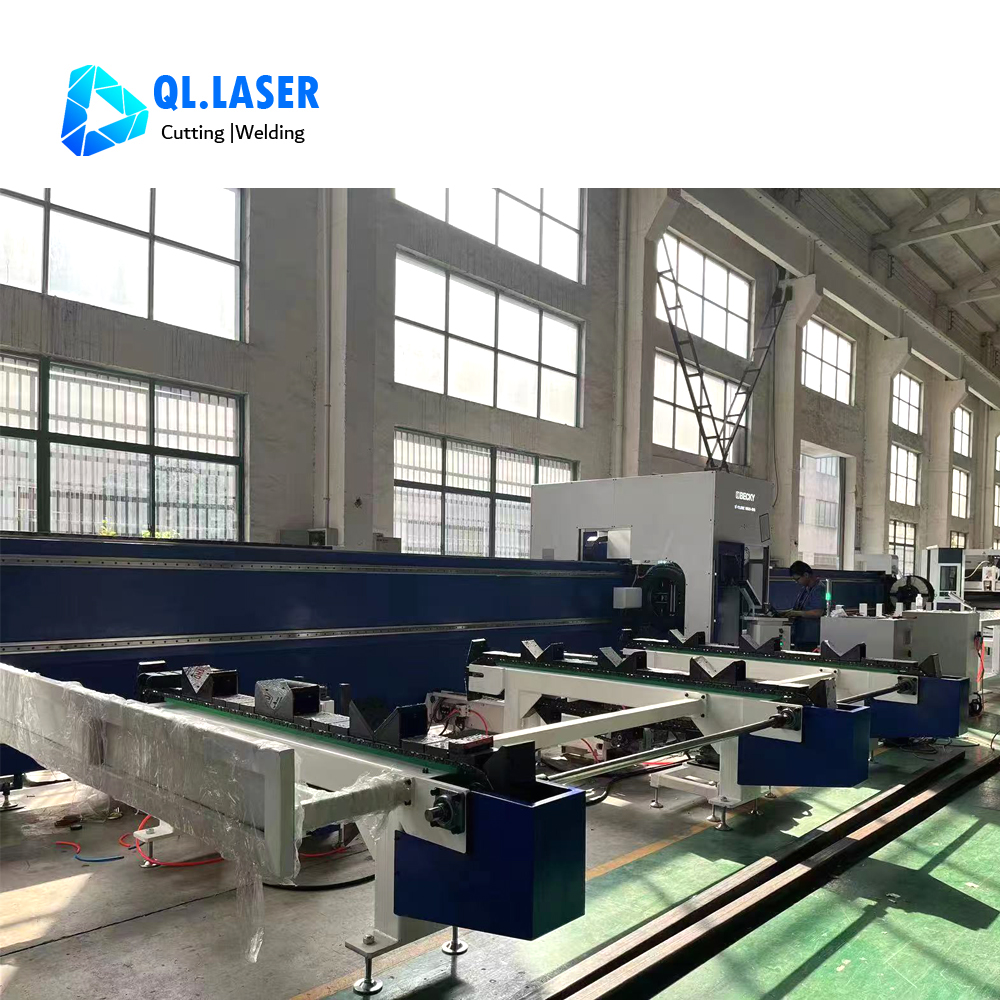

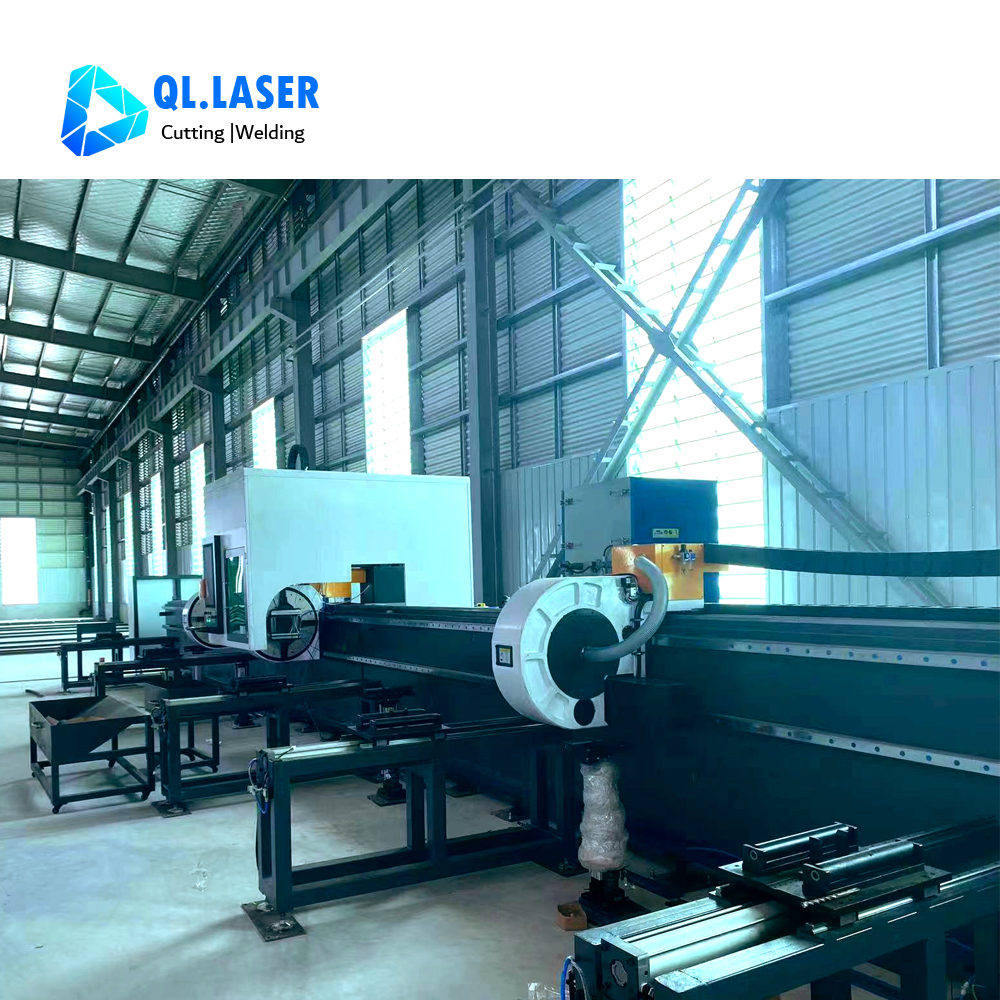

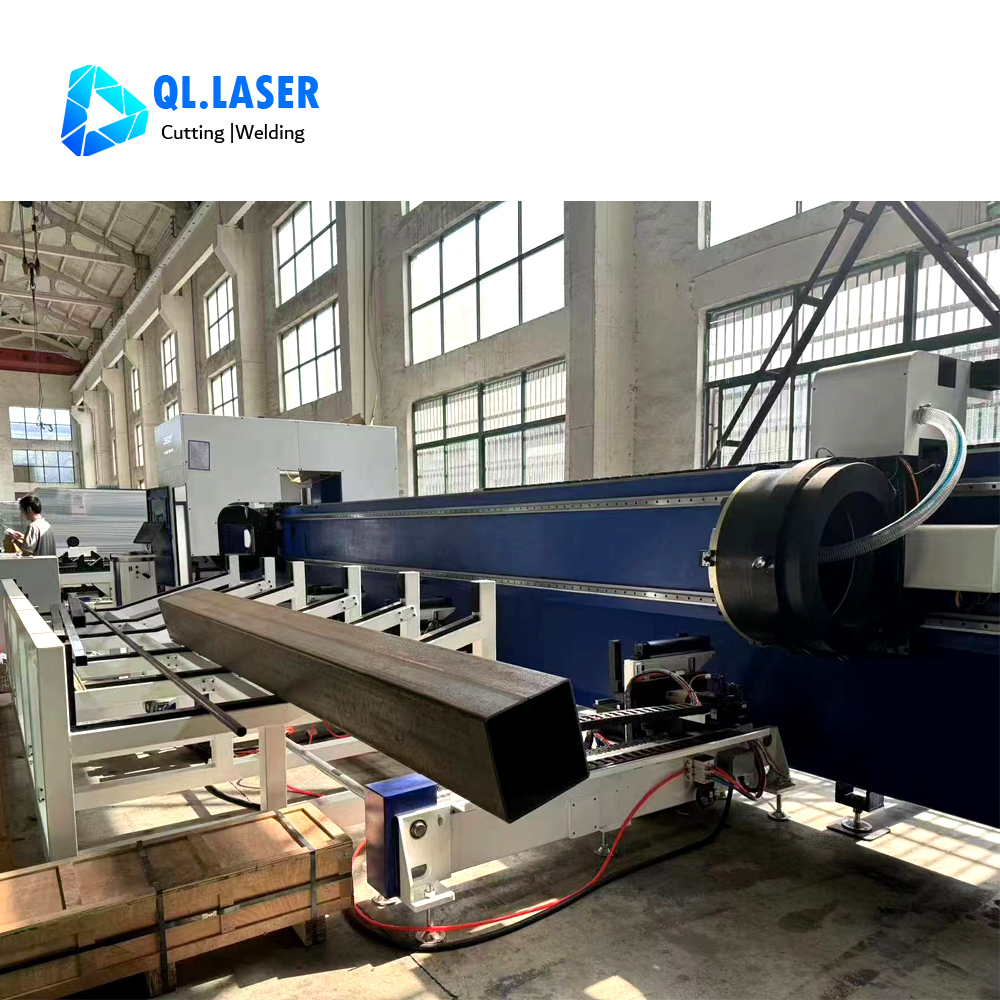

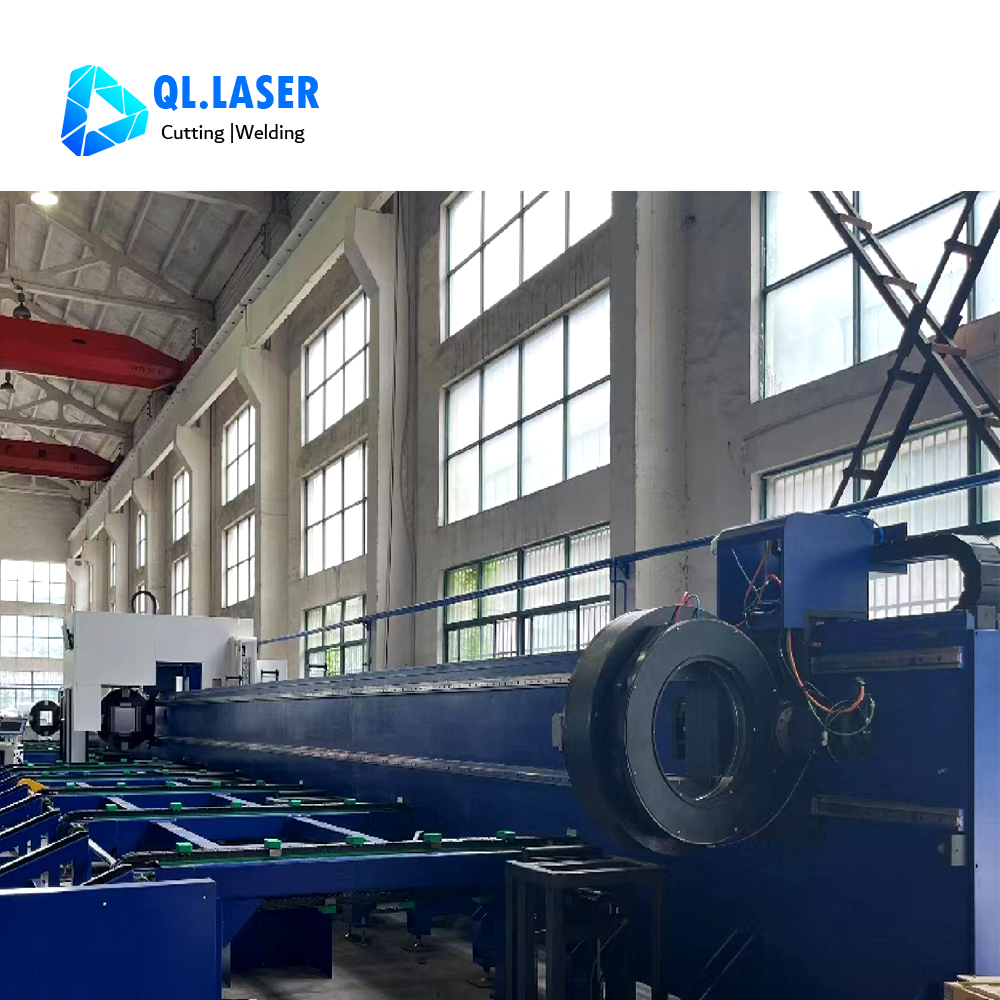

Side mounted laser pipe cutting machine is a device specifically designed for cutting various heavy-duty metal pipes,it is mainly composed of fiber laser power source,intelligent laser cutting head,bus control system, cutting and nesting software, water chiller,Heavy duty high-precision chuck, pipe cutting workstation, coaxial auxiliary gas system, machine tool, semi automatic loading and unloading system etc.
1. Cut 12000mm entire tube at most, Maximum pipe diameter 500mm,
2. Maximize the weight of single tube.

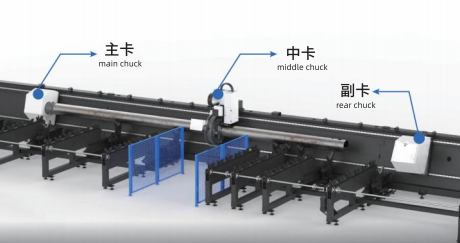

3. Support 3 chuck full stroke moving, improve accuracy by preventing tube shaking.

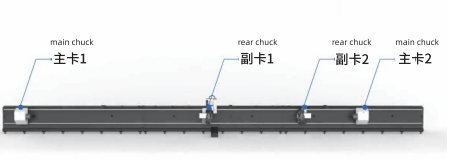

4. Support 4chuck dual chuck pulling and heavy tube cutting ,loading and unloading.

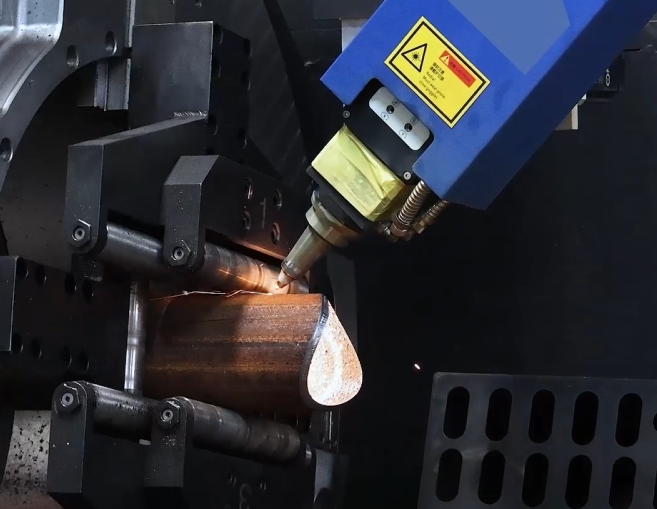

5. WIth bevel cutting function, Improve cutting efficiency.

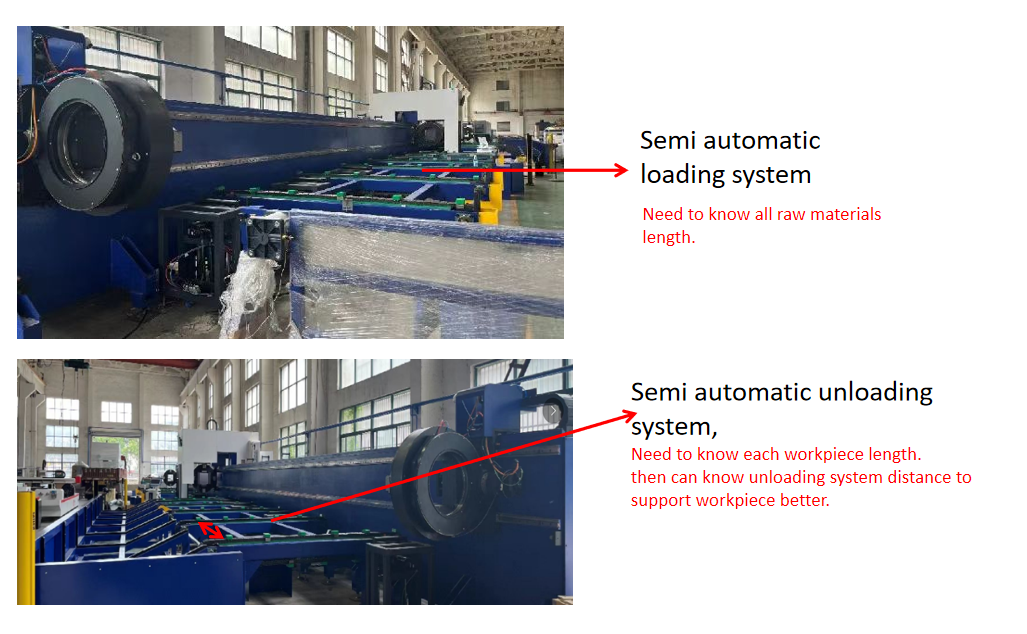

6. Equipped with a semi-automatic loading and unloading system, achieving machine automation, saving workers, and improving production efficiency.

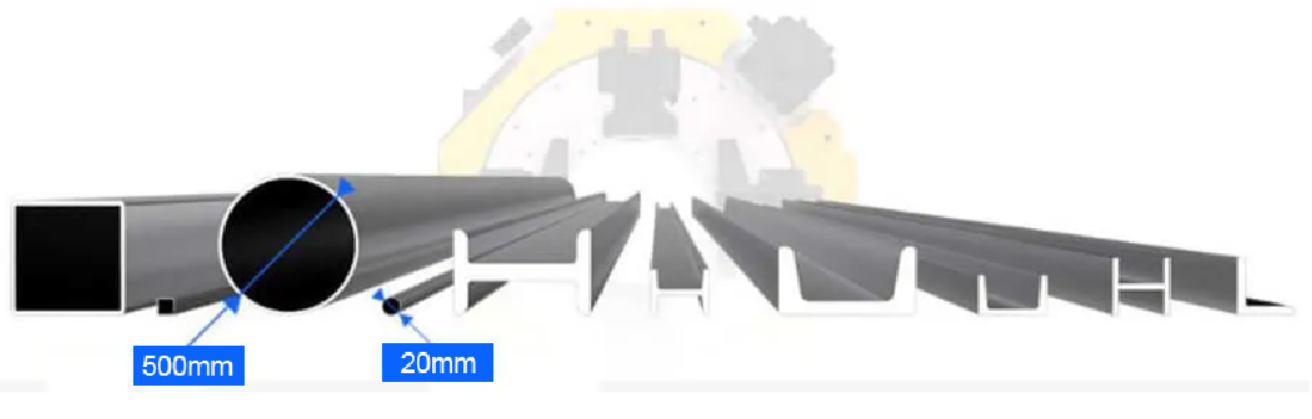

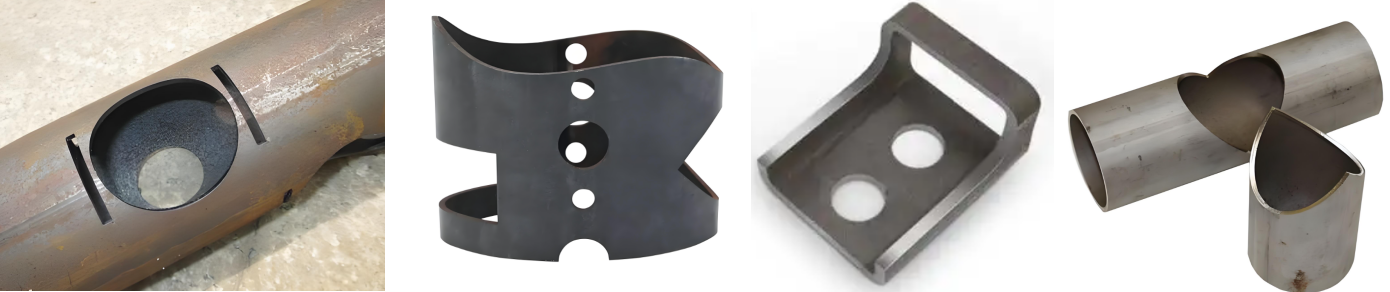

7. It cut round tube, square tube, rectangular tube, angle iron, channel steel, waist tube, H-shaped steel, I-shaped steel, C-shaped steel etc.
Model | JCT6630 | JCT6635 | JCT6645 | JCT6650 | JCT6660 |
Fiber Laser Power | 6kw / 12kw / 20kw | ||||
Min.Dia(mm) | 20 | ||||
Max.Dia(mm) | 300 | 350 | 450 | 500 | 600 |
Tube length(mm) | 3000 / 6000 / 9000 / 12000 | ||||
Number of Chucks | 3 or 4 | ||||
X/Y-axis Positioning Accuracy | ±0.05mm | ||||
X/Y-axis Repositioning Accuracy | ±0.03mm | ||||
Positioning speed | 90m/min | ||||
Max. Acceleration | 1G | ||||
Side mounted laser pipe cutting machines are widely used in the engineering machinery, steel structure industry, construction industry, aerospace industry, etc
1. How to choose this tube laser cutting machine?
You need to tell us the material you cut ,raw material length, workpiece length, maximum thickness and maximum size. Then we will recommend you the most suitable machine for you.
2. What languages does this pipe cutting machine support?
It support Chinese,English,Russian,Spanish ,French, German，Italian，Portuguese，Japanese，Korean and Nederlands.
3. What is the warranty period for this tube cutting machine?
The laser has a 24 month warranty period, excluding fiber optic cables and all lenses. Other parts have a 12-month warranty period, excluding consumables, except for human factors.
