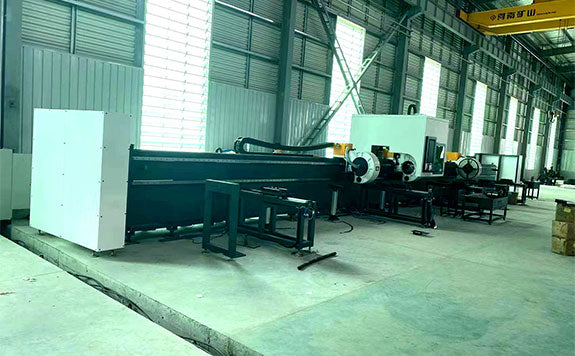

The JCT3616 high-efficiency and stable tube laser cutting machine is a new generation of laser cutting machines.
It integrates advanced technology from home and abroad. The machine is suitable for round pipe, square pipe， rectangle tube,L shape steel, C shape steel,H beam ,I beam, elliptical tube,angle and other materials. The equipment not only has the characteristics of high precision, good beam quality, and a large processing range but also has excellent performance in terms of stability and efficiency.
| Model | JCT3616 |
| Power | 1000W-6000W |
| Min.Dia(mm) | 20 |
| Max.Dia(mm) | 160 |
| Tube length(mm) | 3000 / 6000 / 9000 / 12000 |
| Number of Chucks | 3 |
| Maximum tailing length(mm) | 0-100 |
| Maximum revolutions of chuck(RPM) | 80-120 |
| X/Y-axis Positioning Accuracy | ±0.05mm |
| X/Y-axis Repositioning Accuracy | ±0.03mm |
| Positioning speed | 90m/min |
| Max. Acceleration | 1G |
If you’re interested in our products, please feel free to contact us. We’re here to help!
