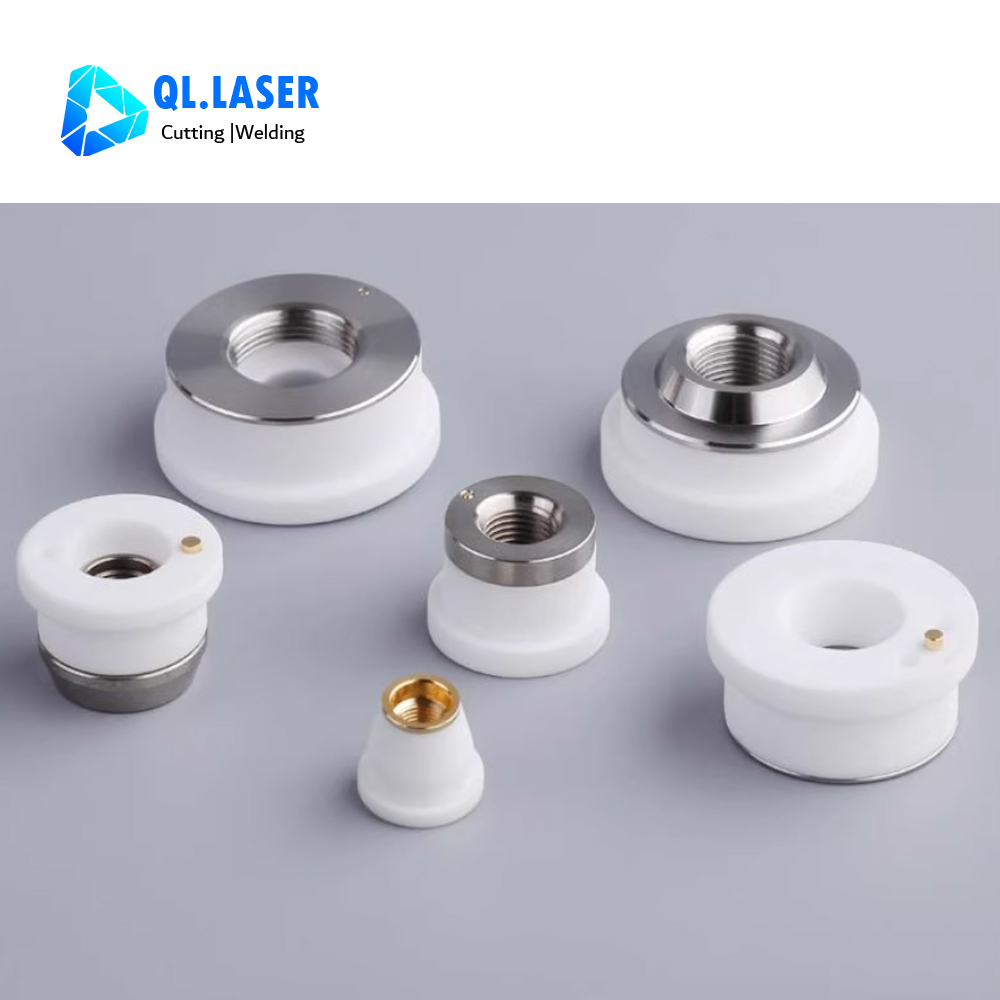

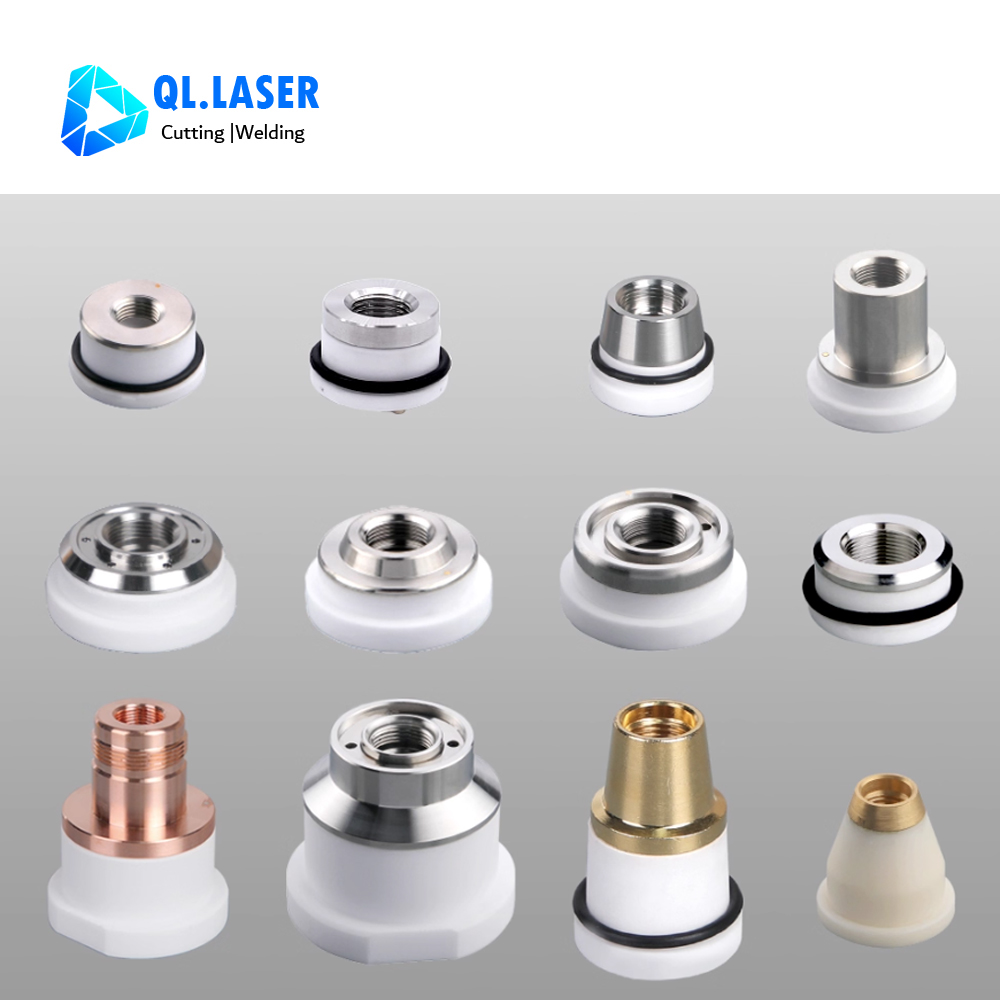

1. High hardness and corrosion resistance
Using imported ceramics with excellent electrical and thermal conductivity.
2. Stable signal and high sensitivity
Using imported conductive silver adhesive and gold-plated uranium needles, it offers excellent electrical conductivity, high sensitivity, and good follow-up performance, with effective insulation that reduces sensor damage caused by impact on the product.
No | Part Category | Upper Diameter (mm) | Bottom Diameter (mm) | Height (mm) | Thread |

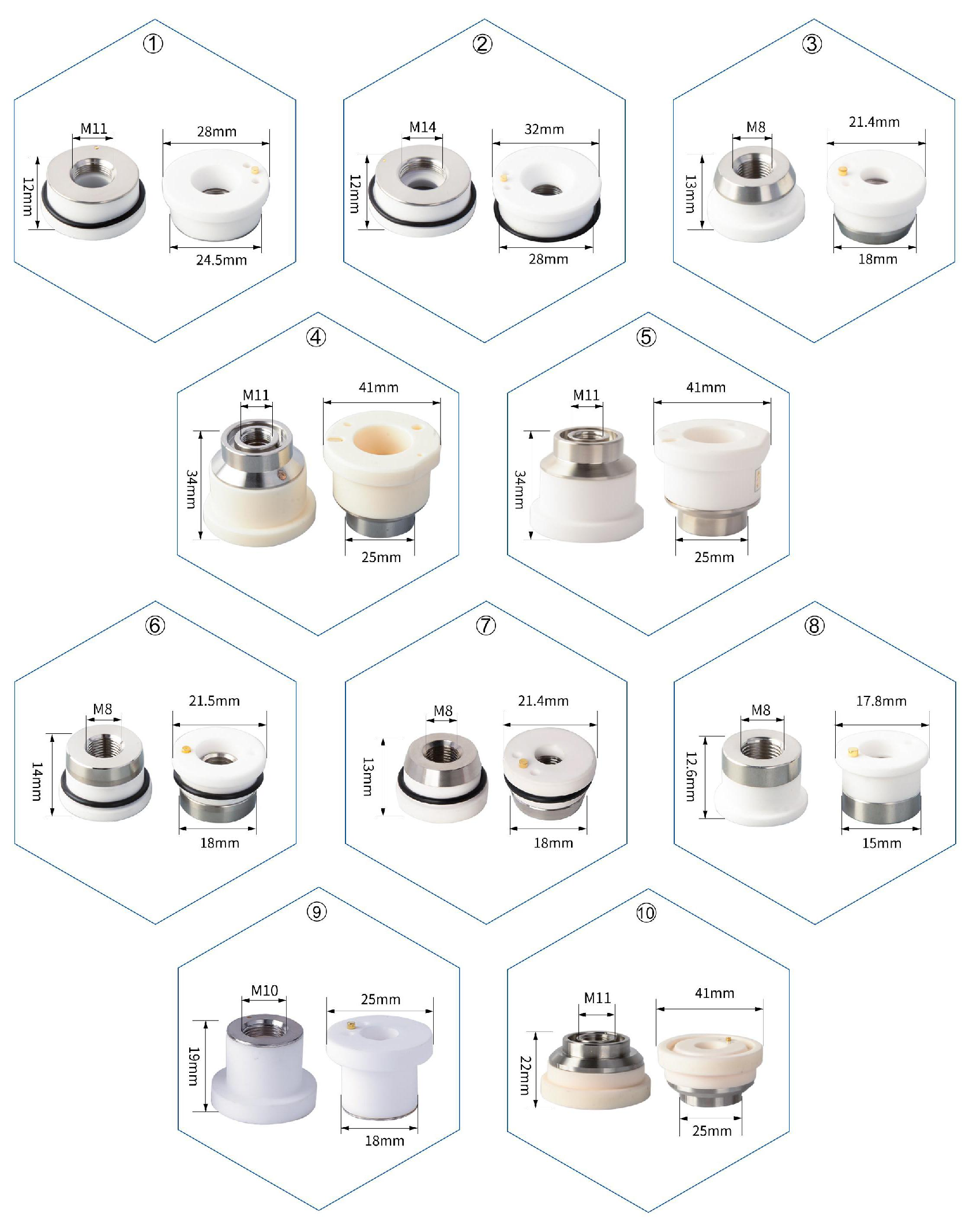

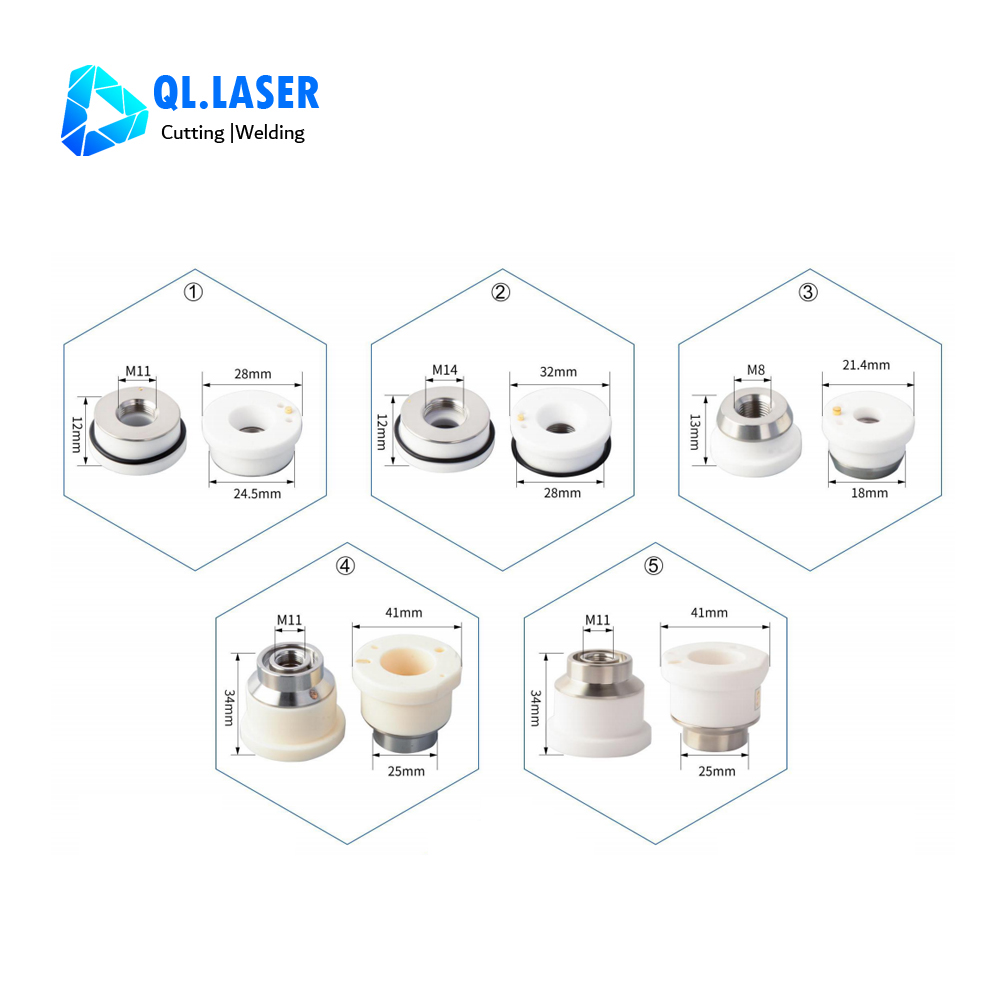

1 | Raytool/Bodor | 28 | 24.5 | 12 | M11 |
2 | Raytool/Bodor | 32 | 28 | 12 | M14 |
3 | Ospri | 21.4 | 18 | 13 | M8 |
4 | BOCI | 41 | 25 | 34 | M11 |
5 | WSX | 41 | 25 | 34 | M11 |

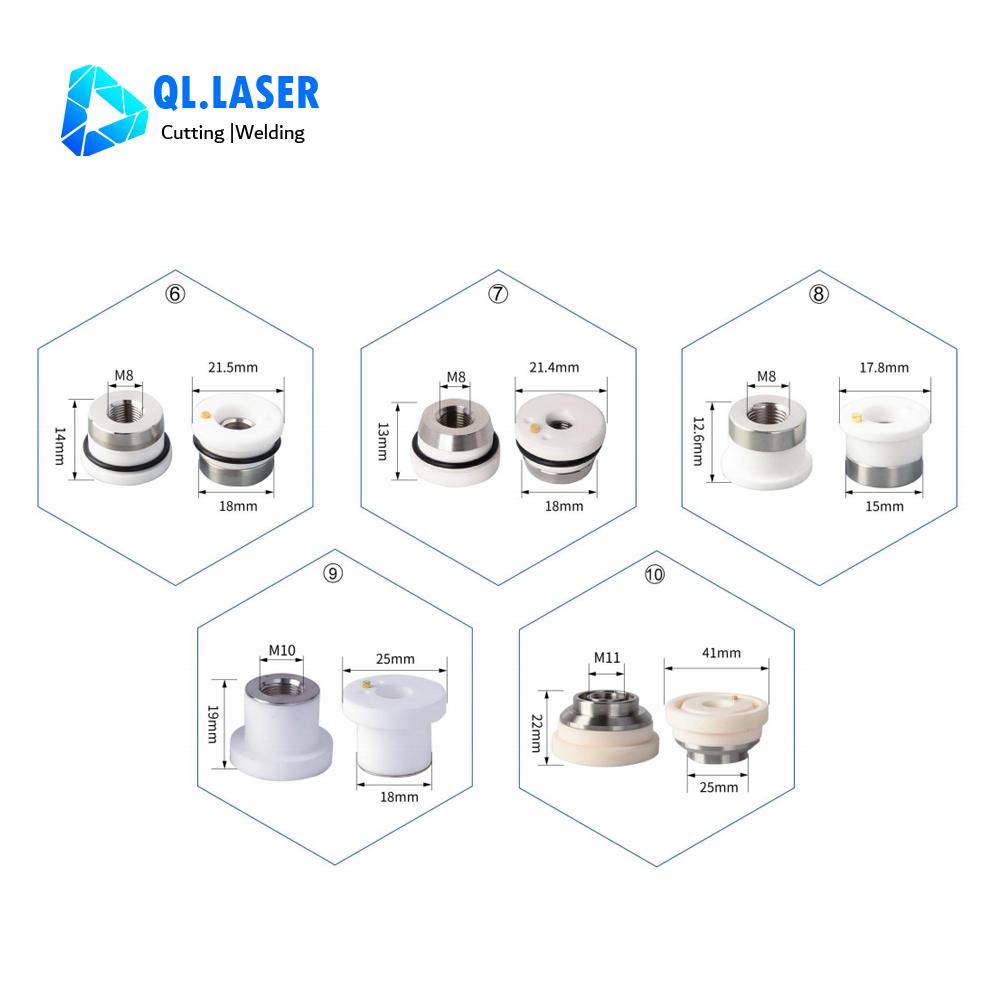

6 | 3D M8 One locating hole | 21.5 | 18 | 14 | M8 |
7 | 3D M8 Two locating holes | 21.4 | 18 | 13 | M8 |
8 | Ospri 3D M8 One locating hole | 17.8 | 15 | 12.6 | M8 |
9 | Ospri 3D M10 Two locating holes | 25 | 18 | 19 | M10 |
10 | Ospri | 41 | 25 | 22 | M11 |
No | Part Category | Upper Diameter (mm) | Bottom Diameter (mm) | Height (mm) | Thread |

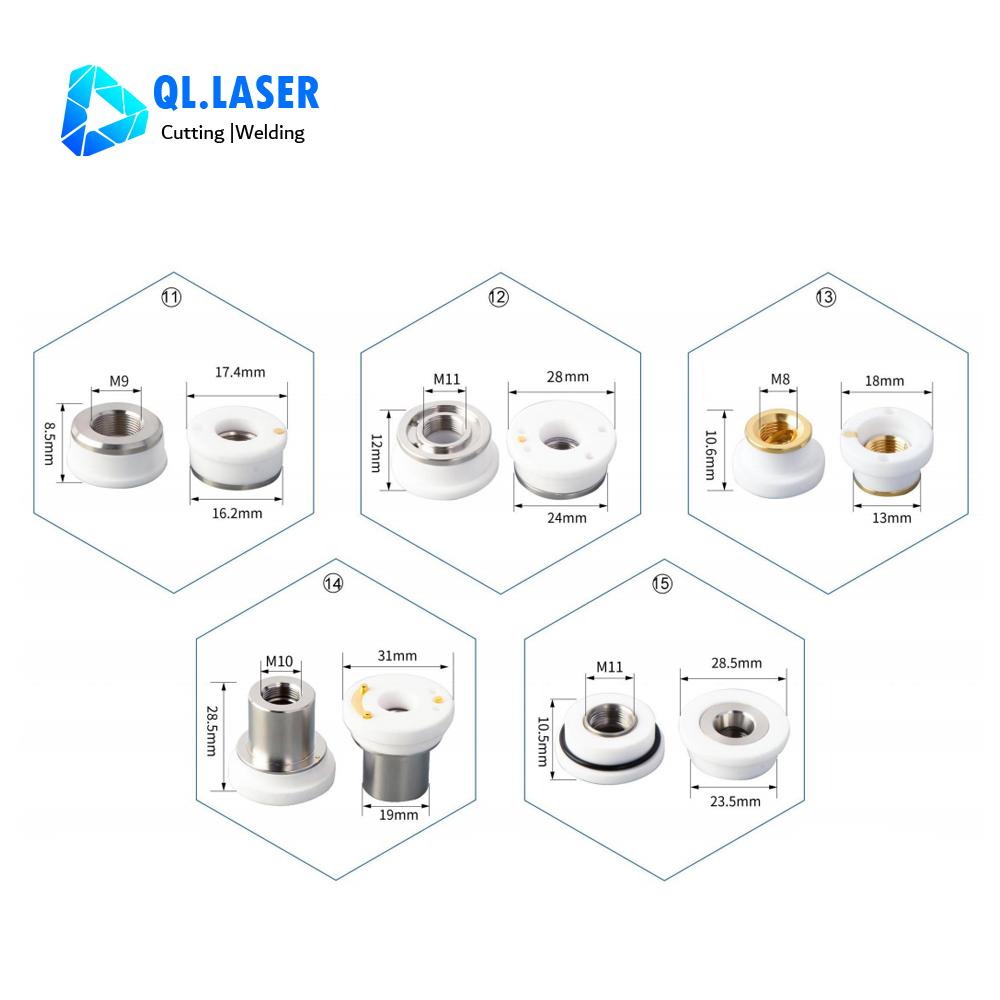

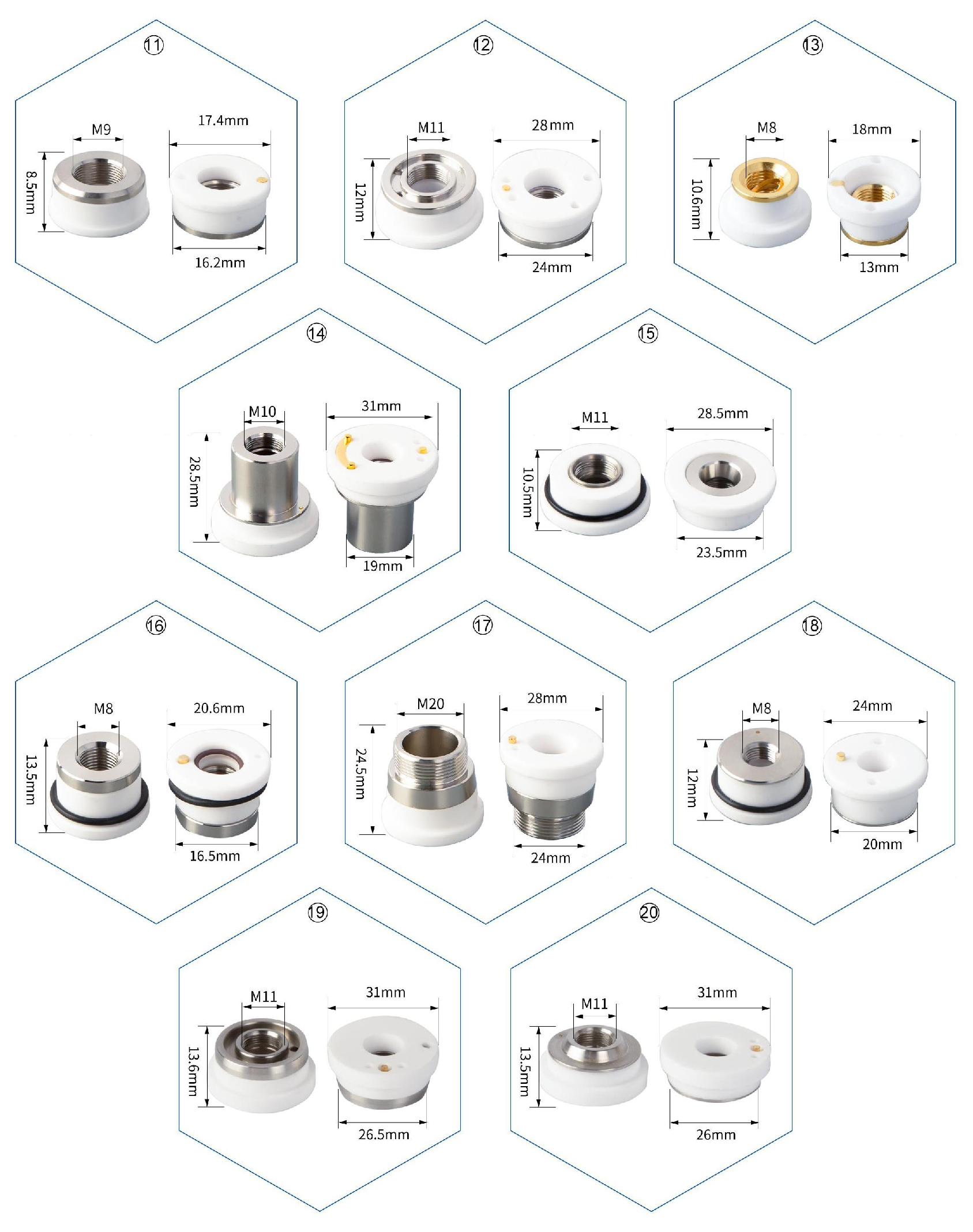

11 | Gangchun | 17.4 | 16.2 | 8.5 | M9 |
12 | Gangchun D28 | 28 | 24 | 12 | M11 |
13 | CKY | 18 | 13 | 10.6 | M8 |
14 | MAX D31 | 31 | 19 | 28.5 | M10 |
15 | IPG | 28.5 | 23.5 | 10.5 | M11 |
16 | Bodor | 20.6 | 16.5 | 13.5 | M8 |
17 | WSX | 28 | 24 | 24.5 | M20 |
18 | WSX MINI | 24 | 20 | 12 | M8 |
19 | WSX N63 | 31 | 26.5 | 13.6 | M11 |
20 | Precitec/Hans 2.0 | 31 | 26 | 13.5 | M11 |
No | Outer Diameter (mm) | Height (mm) | Ref Number |

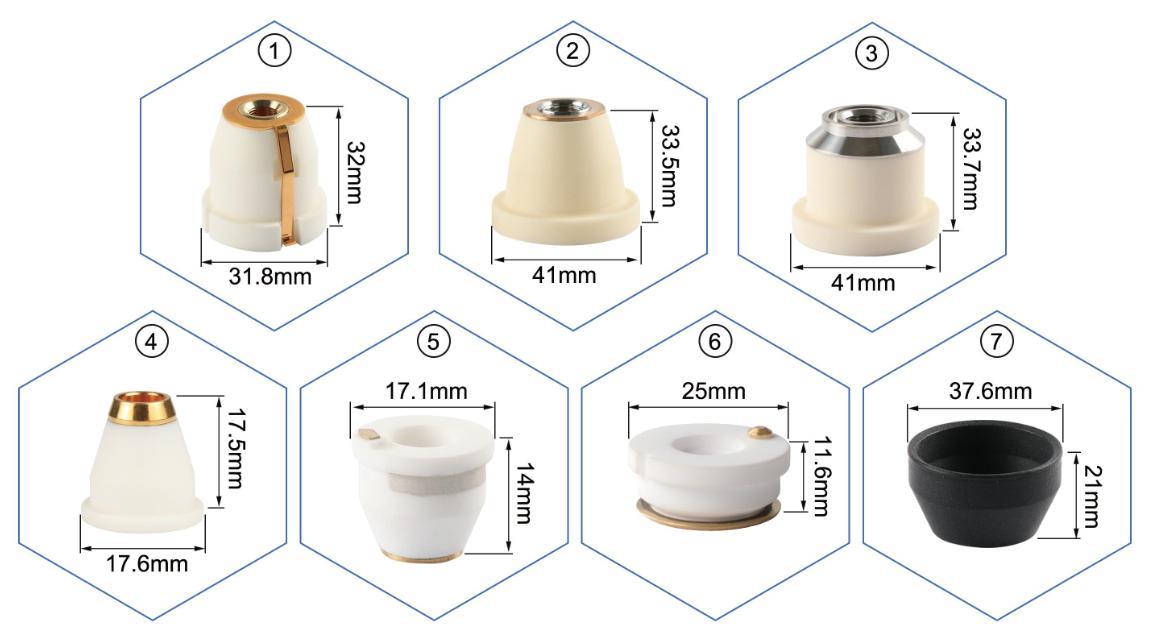

1 | 31.8 | 32 | 0260432 |
2 | 41 | 33.5 | 1755673/1349171 |
3 | 41 | 33.7 | 1906032 |
4 | 17.6 | 17.5 | 0936678/0913366/2509767 |
5 | 17.1 | 14 | 280408/092405/P0494-752-00001 |
6 | 25 | 11.6 | 258809/353188/243839/247894 |
7 | 37.6 | 21 | TR Cover(Black) 955826 |
