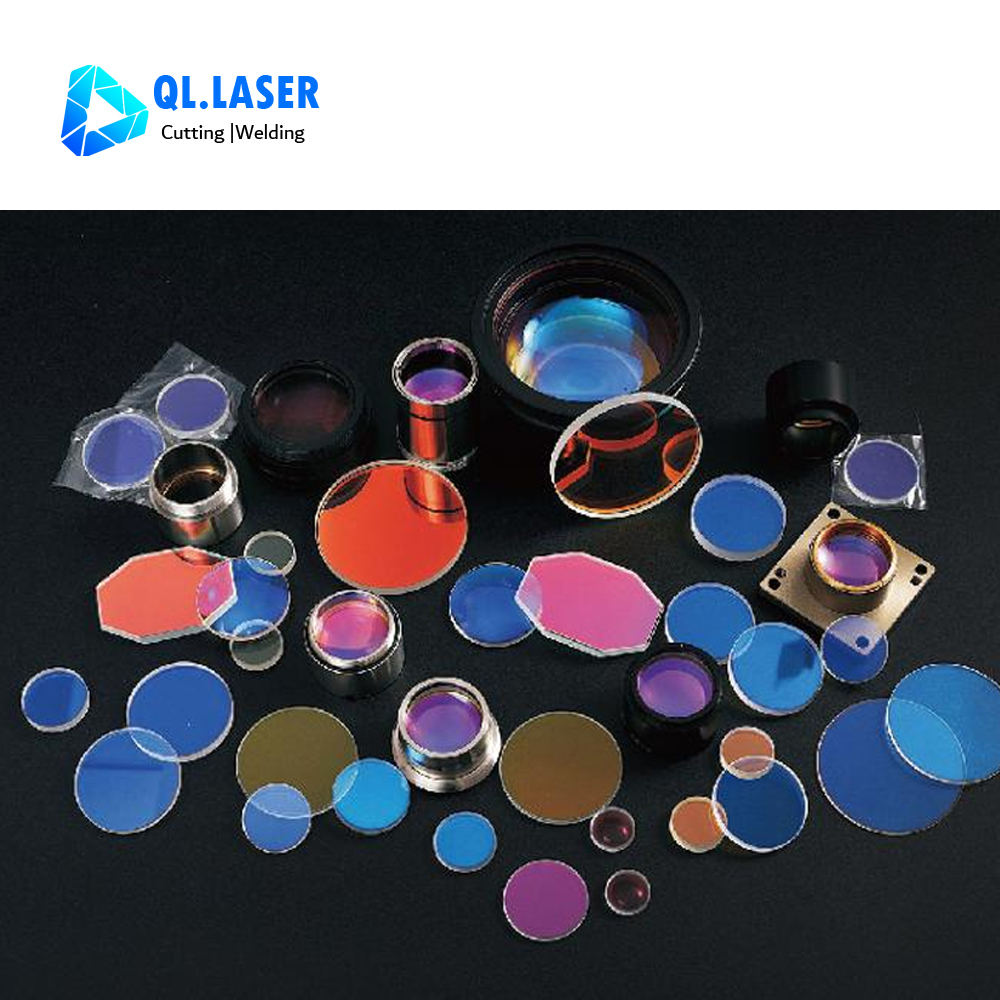

Laser Cutting Protective Lens Focus Lens Collimating Lens

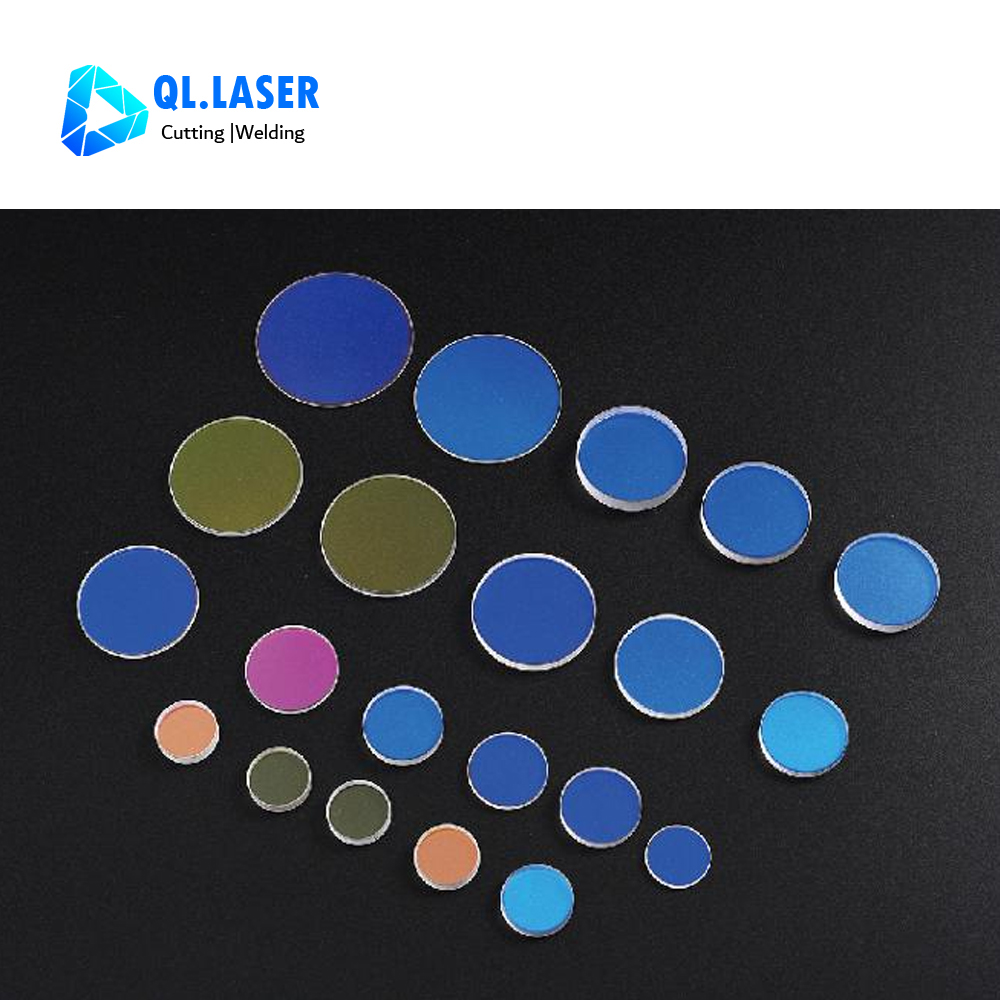

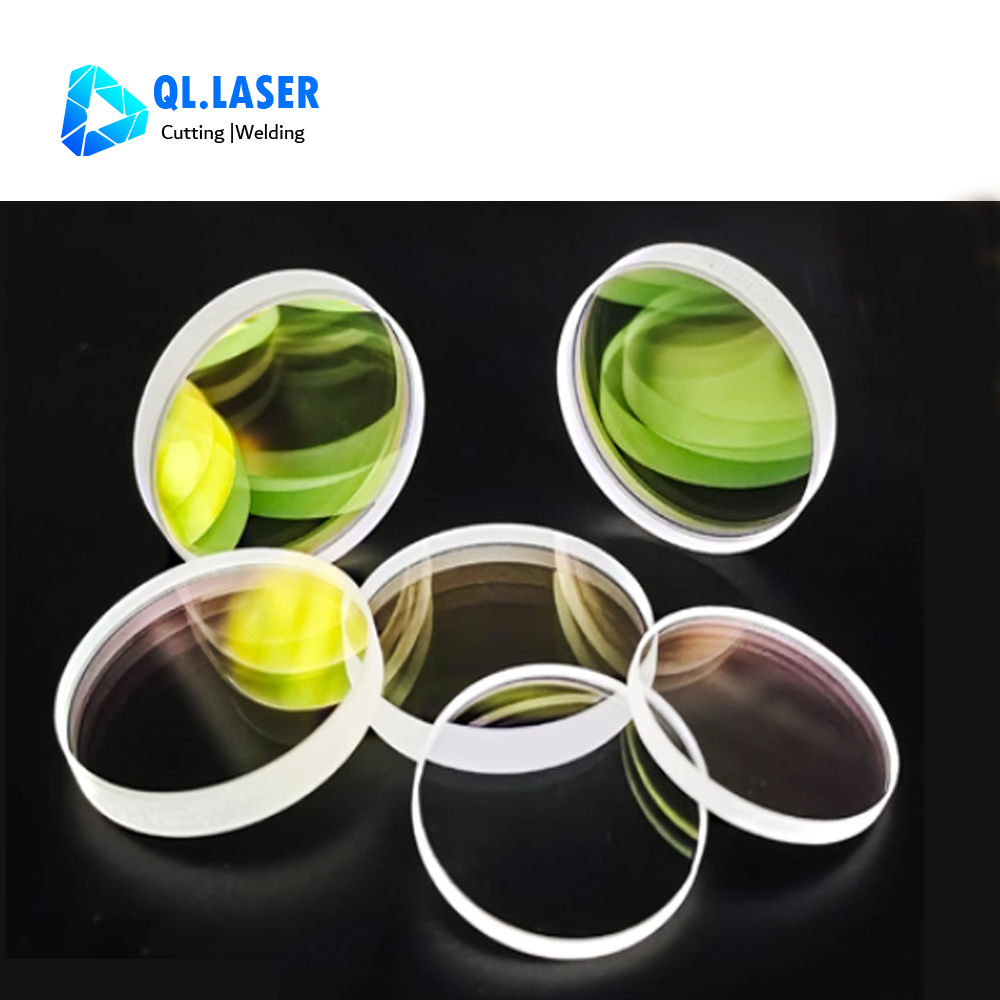

Fiber laser cutting is generally used for medium- to high- power metal material cutting. The typical optical path transmission sequence is as follows: the laser beam is collimated and expanded into a parallel beam through a collimating lens, then focused onto the working position using a focusing lens. A protective lens is placed after the focusing lens to prevent splatter from damaging the focusing lens during the cutting process. Additionally, in an L-shaped cutting head, the collimated beam is deflected 90 degrees by a 45-degree reflective mirror before entering the focusing lens for precision cutting.

Quantity:
Availability:





Inquire Add to Basket

Product Description

>> Product Advantage

1. Outstanding Performance

The Comprehensive Advantages of Laser Optical Components

Laser optical components set industry benchmarks with their high damage threshold, remaining intact under high-power laser exposure.

High smoothness and ultra-smooth surfaces achieve low scattering and high transmittance, ensuring maximum laser energy performance.

2. ISO-standardized Clean Production Process

This process reduces potential contamination introduced during production at the source and significantly lowers the probability of recontamination of optical components after activation. As a result, it demonstrates a slower damage growth rate during use.

3. Innovative Coating Design

Utilizes multilayer coating technology to evenly distribute the electric field, effectively avoiding high concentrations of electric field intensity. This significantly enhances the laser-induced damage threshold.

Using hafnium oxide as the coating material, known for its low absorption rate, not only improves coating performance but also ensures the stability and durability of components in high-power applications.

>> Fiber Collimation Lens

Part Category		Diameter (mm)	Focal Length (mm)
Fiber Collimation Lens	Monolithic	12	25
		12.7	40
		13	190
		15	200
		19	25
		19	30
		19	50
		19	75
		20	50
		20	63
		20	75
		20	100
		25	50
		25.4	80
		25.4	100
		28	60
		28	61
		28	65
		28	75
		28	100
		30	60
		30	70
		30	76
		30	80
		30	100
		36	76
	omposite / Biconvex / Meniscus	24.7	75
		25	75
		28	75
		28	80
		28	100
		30	50
		30	60
		30	100
		36	80
		36	100
		37	100
		38.1	100
		50	100

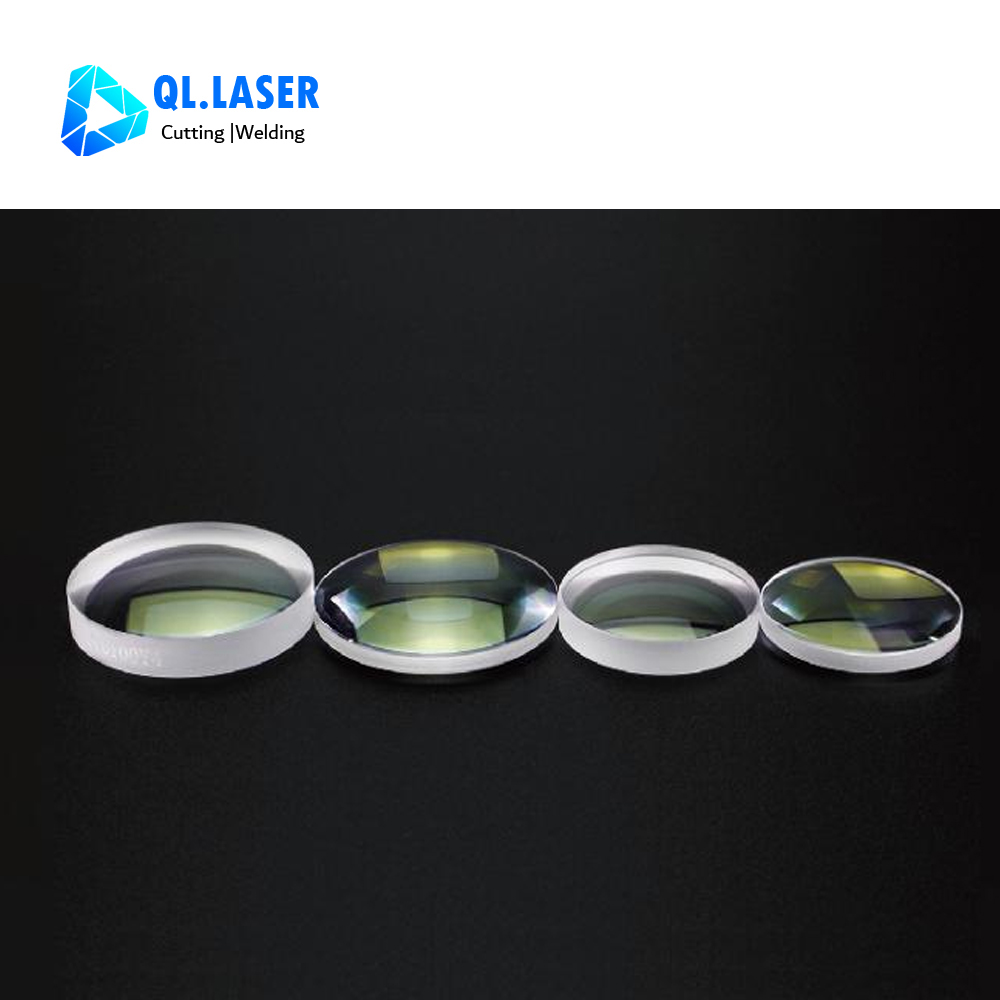

>> Fiber Focusing lens

Part Category		Diameter (mm)	Focal Length (mm)
Fiber Focusing lens	composite Biconvex Meniscus	24.7	150
		25	125
		28	125
		30	125
		30	128
		30	150
		30	155
		30	200
		36	125
		36	150
		36	250
		37	125
		37	150
		37	200
		38.1	150
		41.5	120
		41.5	150
		50	120
		50	150
		52	150
	Monolithic	18.5	220
		18.5	240
		18.5	260
		18.5	280
		18.5	300
		20	120
		22.5	150
		24	120
		25	125
		25	250
		25.4	120
		25.4	125
		25.4	150
		28	125
		28	150
		28	200
		28	250
		30	120
		30	125
		30	150
		30	230
		30	250
		30	280
		34	200
		35	150
		36	120
		36	147
		36	150
		36	180
		36	200
		36	250
		36	300
		38.1	190
		38.1	200
		38	200
		38	250
		38	300
		38	400
		40	200
		40	600
		41.5	120
		41.5	150
		50	150
		50	300
55		300
55		1200
