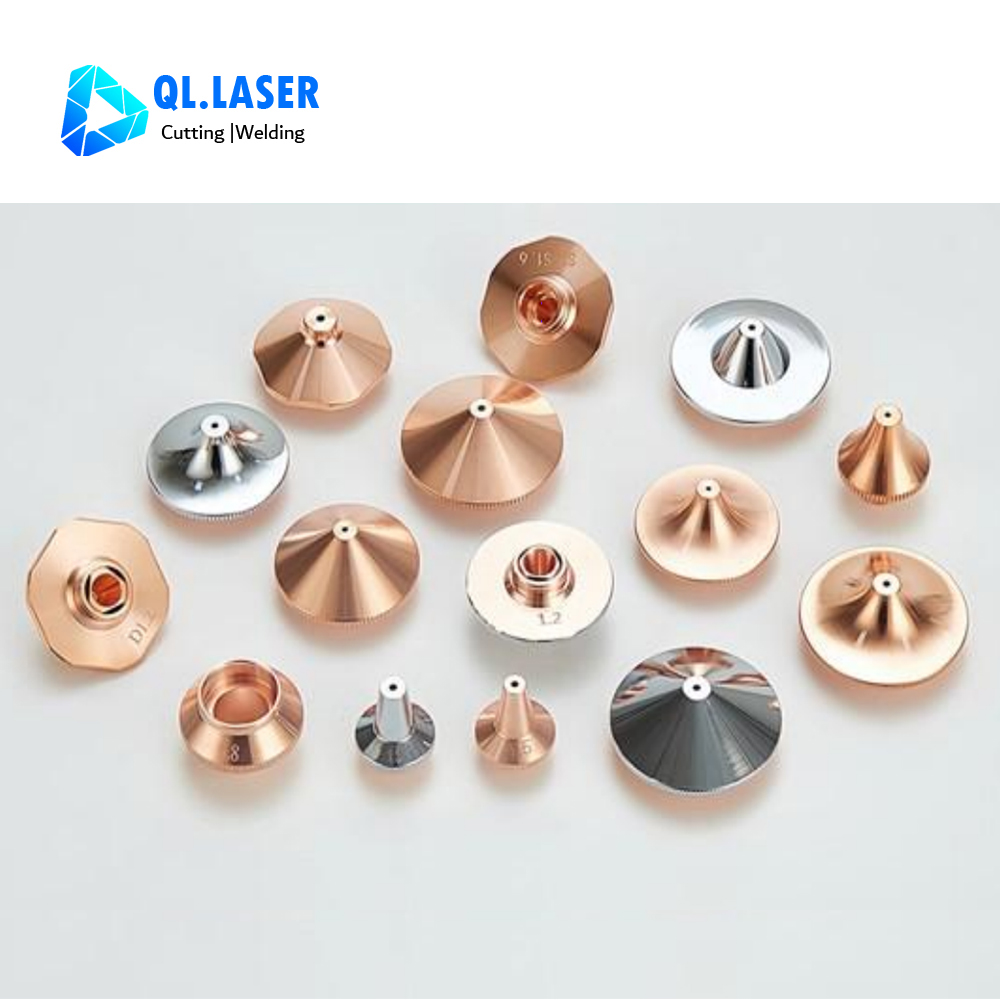

Laser Cutting Nozzle

Laser cutting nozzle is an important component of laser cutting equipment, mainly used to control gas flow characteristics and assist laser beam to achieve efficient cutting. Its design directly affects cutting quality, efficiency, and speed.

Quantity:
Availability:





Inquire Add to Basket

Product Description

>> Product Advantage

1. Precision Craftsmanship

Strict anti-oxidation process，Bright copper color，Long service life.

2. Premium Materials

High-quality T1 red copper material, Improved electrical conductivity,Ensures efficient and stable operation of the laser head.

3. High Concentricity

Fully automatic machinery, Computer-controlled, One-time processing molding

>> Laser Nozzle photos and size

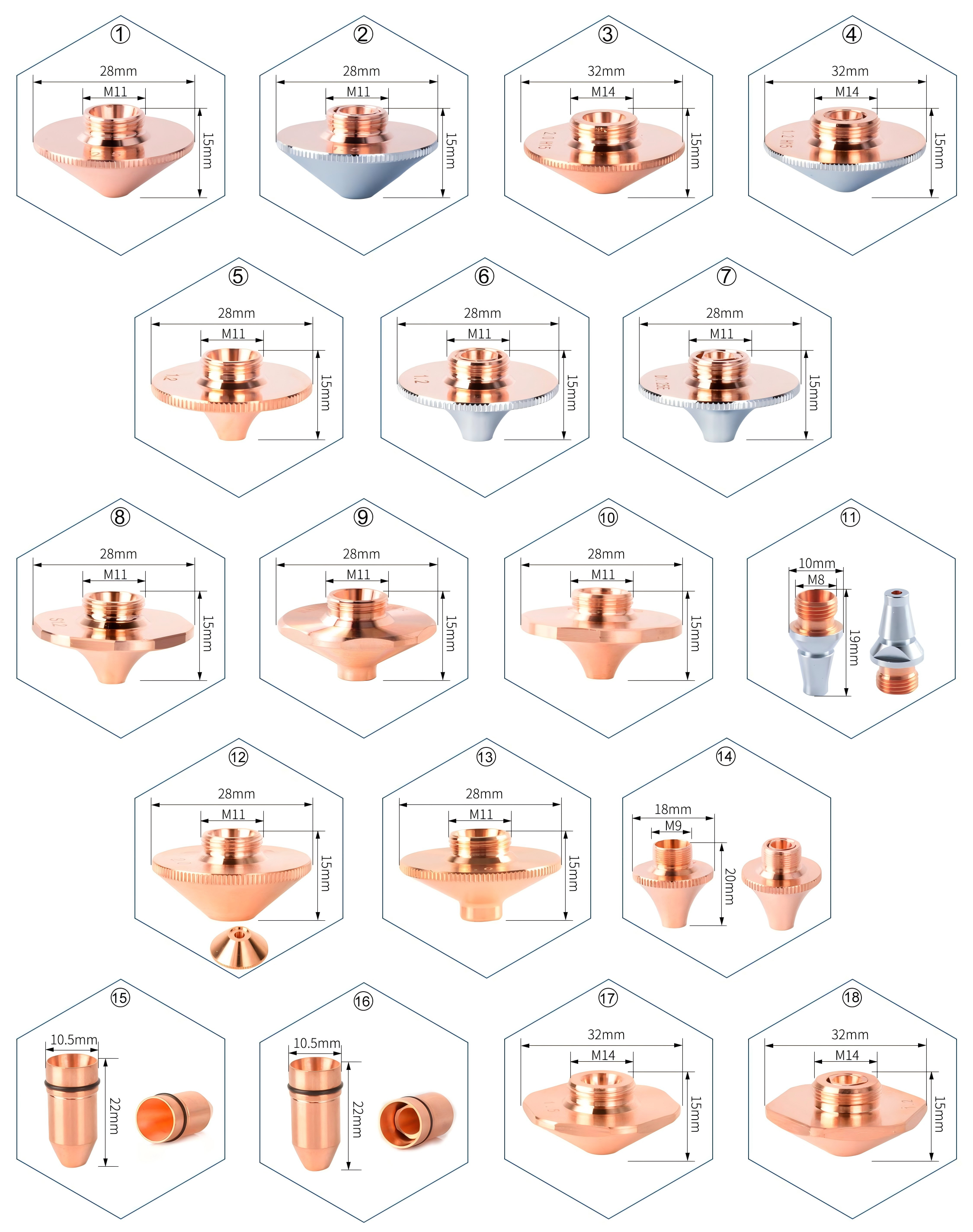

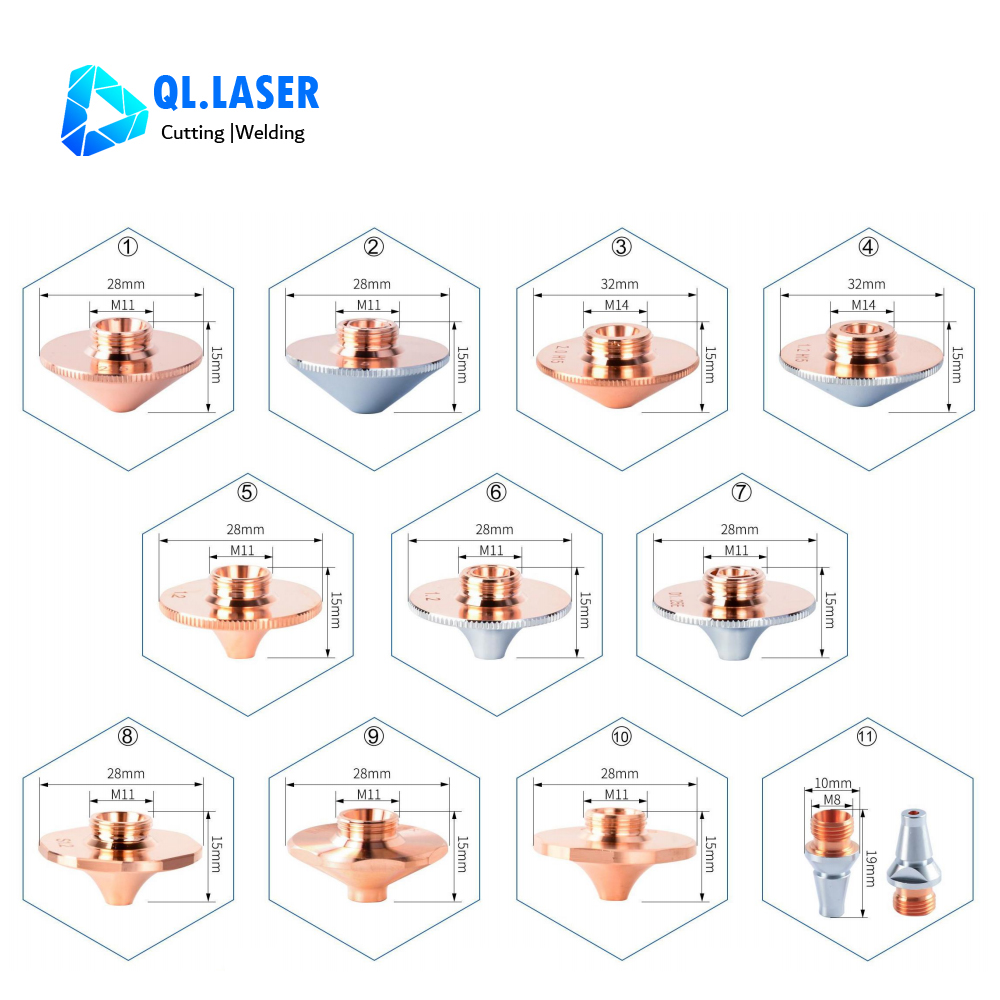

nozzle1

No	Part Category	Outer Diameter (mm)	Height (mm)	Thread (mm)	Single/Double Layer	Chrome/Plated	Caliber (mm)
1	Precitec/WSX/HSG	28	15	M11	Single	No	0.8-7.0
2	Precitec/WSX/HSG	28	15	M11	Double	Yes	0.8-5.0
3	Raytools	32	15	M14	Single	No	0.8-5.0
4	Raytools	32	15	M14	Double	Yes	0.8-6.0
5	SP	28	15	M11	Single	No	0.8-7.0
6	SP	28	15	M11	Double	Yes	0.8-5.0
7	DE	28	15	M11	Double	Yes	0.8-5.0
8	SP-S	28	15	M11	Single	No	1.0-7.0
9	Hans SB Convex	28	15	M11	Single	No	0.8-7.0
10	Hans ST-S	28	15	M11	Single	No	1.0-5.0
11	PRIMA 3D	10	19	M8	Single	Yes	2.0/2.5
12	High-pressure	28	15	M11	Single	No	2.0-7.0
13	WSX Convex Nozzle	28	15	M11	Single/Double	No	1.0-5.0
14	Gangchun 3D	18	20	M9	Single/Double	No	1.0-4.0
15	DNE/Quick	10.5	22		Single	No	0.8-4.5
16	DNE/Quick	10.5	22		Double	No	0.8-4.0
17	Bodor Hexagonal	32	15	M14	Single	No	0.8-5.0
18	Bodor Hexagonal	32	15	M14	Double	Yes	0.8-5.0

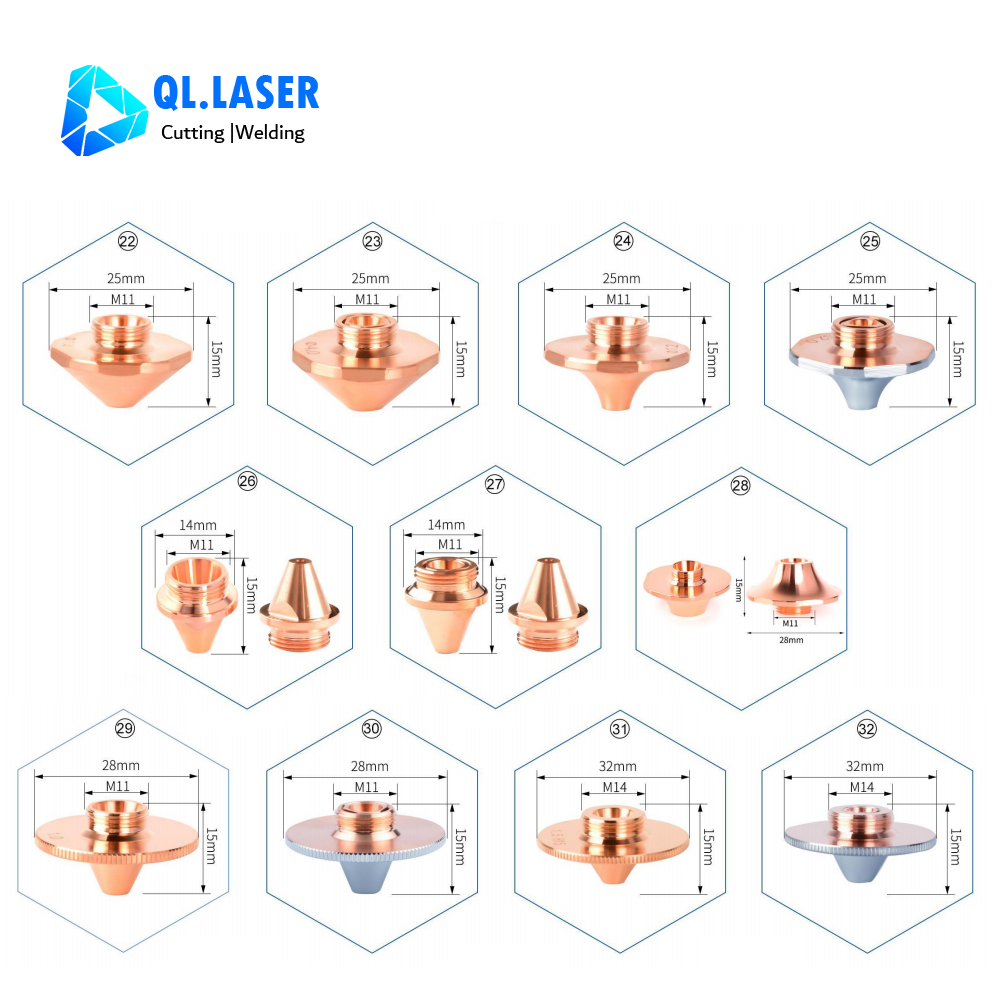

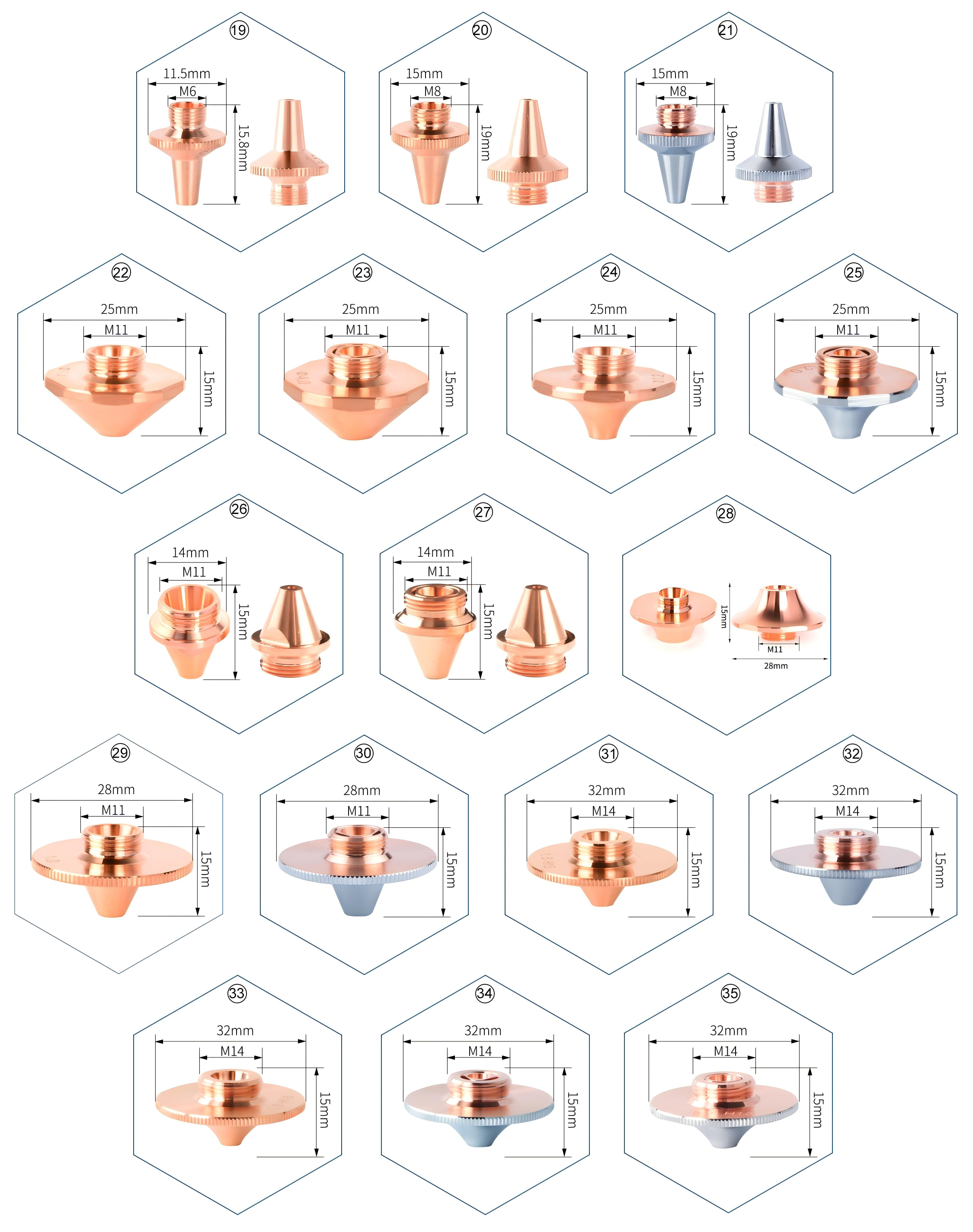

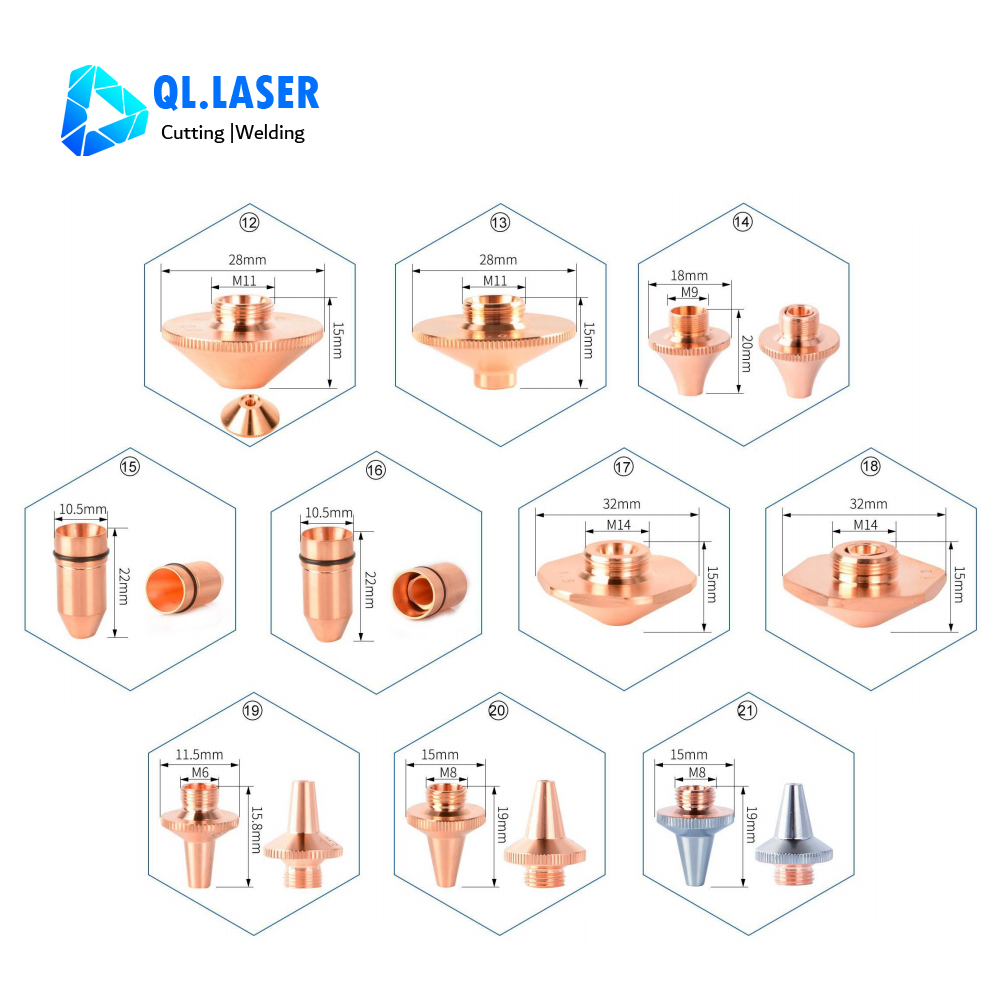

nozzle2

No	Part Category	Outer Diameter (mm)	Height (mm)	Thread (mm)	Single/Double Layer	Chrome/Plated	Caliber (mm)
19	Raytool/WSX/Ospri 3D	11.5	15.8	M6	Single	No	0.8-3.0
20	Raytool/WSX/Ospri 3D	15	19	M8	Single	No	0.8-5.0
21	Raytool/WSX/Ospri 3D	15	19	M8	Double	Yes	1.0-5.0
22	Bodor Hexagonal	25	15	M11	Single	No	1.0-5.0
23	Bodor Hexagonal	25	15	M11	Double	No	1.0-5.0
24	Bodor Hexagonal	25	15	M11	Single	No	1.0-4.0
25	Bodor Hexagonal	25	15	M11	Double	Yes	1.0-4.0
26	WSX Bevel	14	15	M11	Single	No	2
27	WSX Bevel	14	15	M11	Double	No	2
28	Hans Hexagonal High-pressure	28	15	M11	Single	No	1.5-7.0
29	Precitec/WSX/HSG	28	15	M11	Single	No	0.8-5.0
30	Precitec/WSX/HSG	28	15	M11	Double	Yes	0.8-5.0
31	Precitec/WSX/HSG	32	15	M14	Single	No	0.8-5.0
32	Precitec/WSX/HSG	32	15	M14	Double	Yes	0.8-5.0
33	SP	32	15	M14	Single	No	0.8-7.0
34	SP	32	15	M14	Double	Yes	0.8-5.0
35	DE	32	15	M14	Double	Yes	0.8-5.0

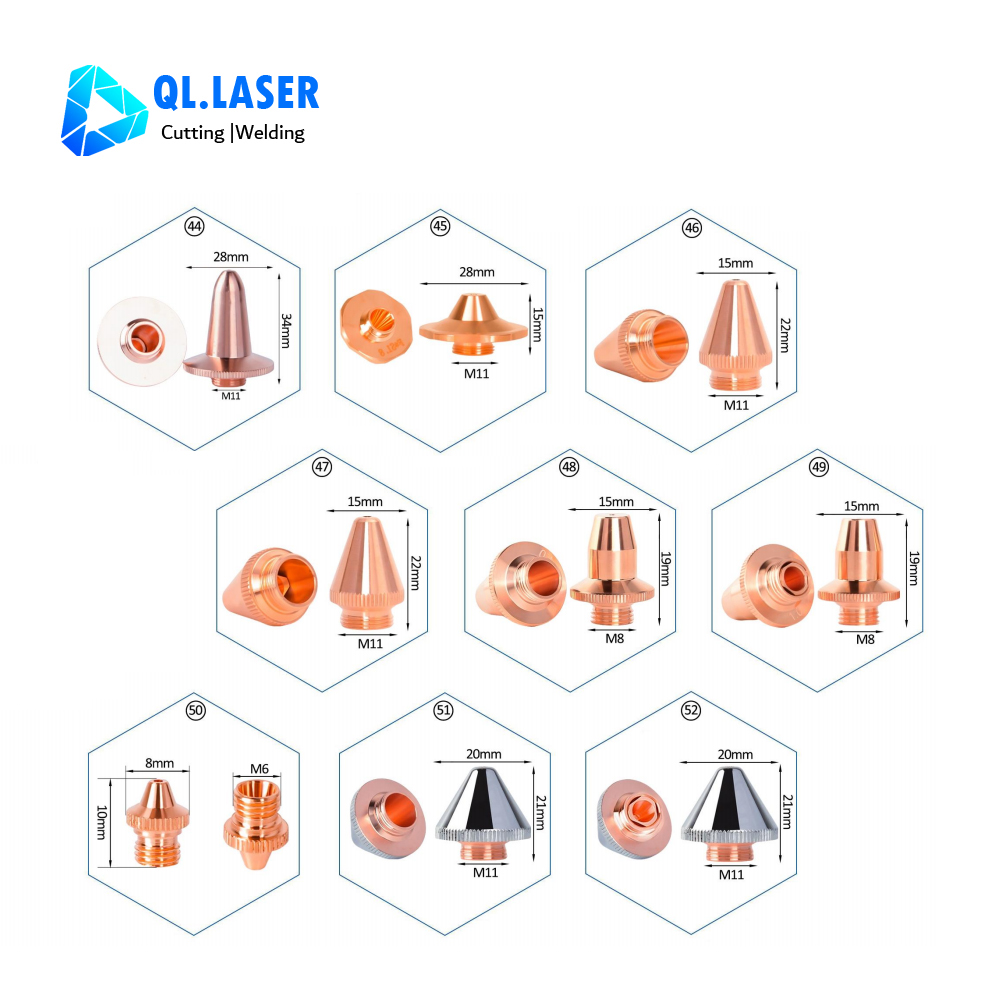

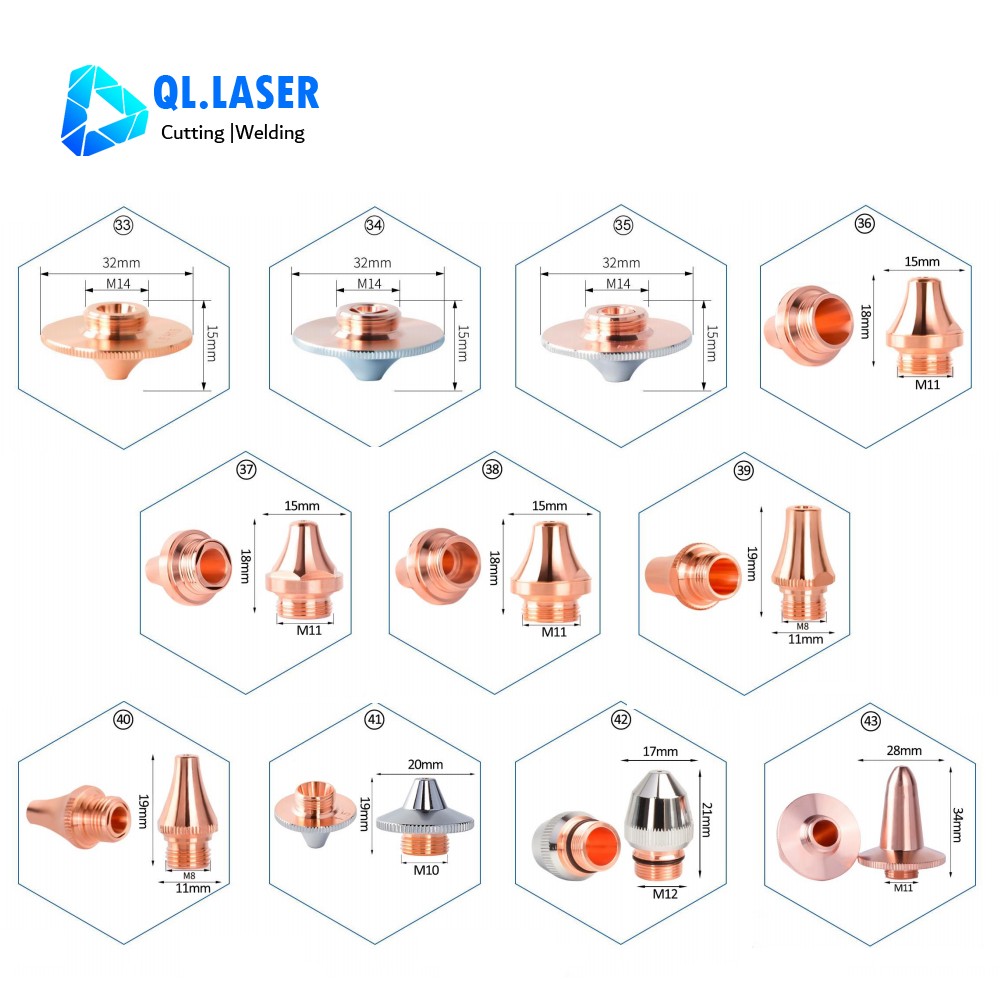

nozzle3

No	Part Category	Outer Diameter (mm)	Height (mm)	Thread (mm)	Single/Double Layer	Chrome/Plated	Caliber (mm)
36	Raytool 3D	15	18	M11	Single	No	1.0-5.0
37	Raytool 3D	15	18	M11	Double	No	1.0-4.0
38	Quick High-pressure with tap	15	18	M11	Single	Yes	1.5/1.7/1.8/2.2/2.3/2.5
39	BOCI 3D	11	19	M8	Single	No	1.0-5.0
40	BOCI 3D	11	19	M8	Double	No	1.2-5.0
41	Ospri M10	20	19	M10	Single	Yes	0.8-2.0
42	DNE D17	17	21	M12	Single	Yes	1.2/1.4/1.6/1.8
43	BOCI Bevel	28	34	M11	Single	No	1.2-5.0
44	BOCI Bevel	28	34	M11	Double	No	1.2-4.0
45	Precitec High-power	28	15	M11	Single	No	1.4-2.5
46	HG Bevel	15	22	M11	Single	No	1.2-3.5
47	HG Bevel	15	22	M11	Double	Yes	1.2-3.0
48	Ospri 3D	15	19	M8	Single	No	1.0-4.0
49	Ospri 3D	15	19	M8	Double	Yes	1.0-4.0
50	Precitec 3D	8	10	M6	Single	No	1.0/1.2/1.5/2.0
51	Hans Bevel	20	21	M11	Single	Yes	1.4-6.0
52	Hans Bevel	20	21	M11	Double	Yes	1.4-1.8

>> Amanda Laser Parts

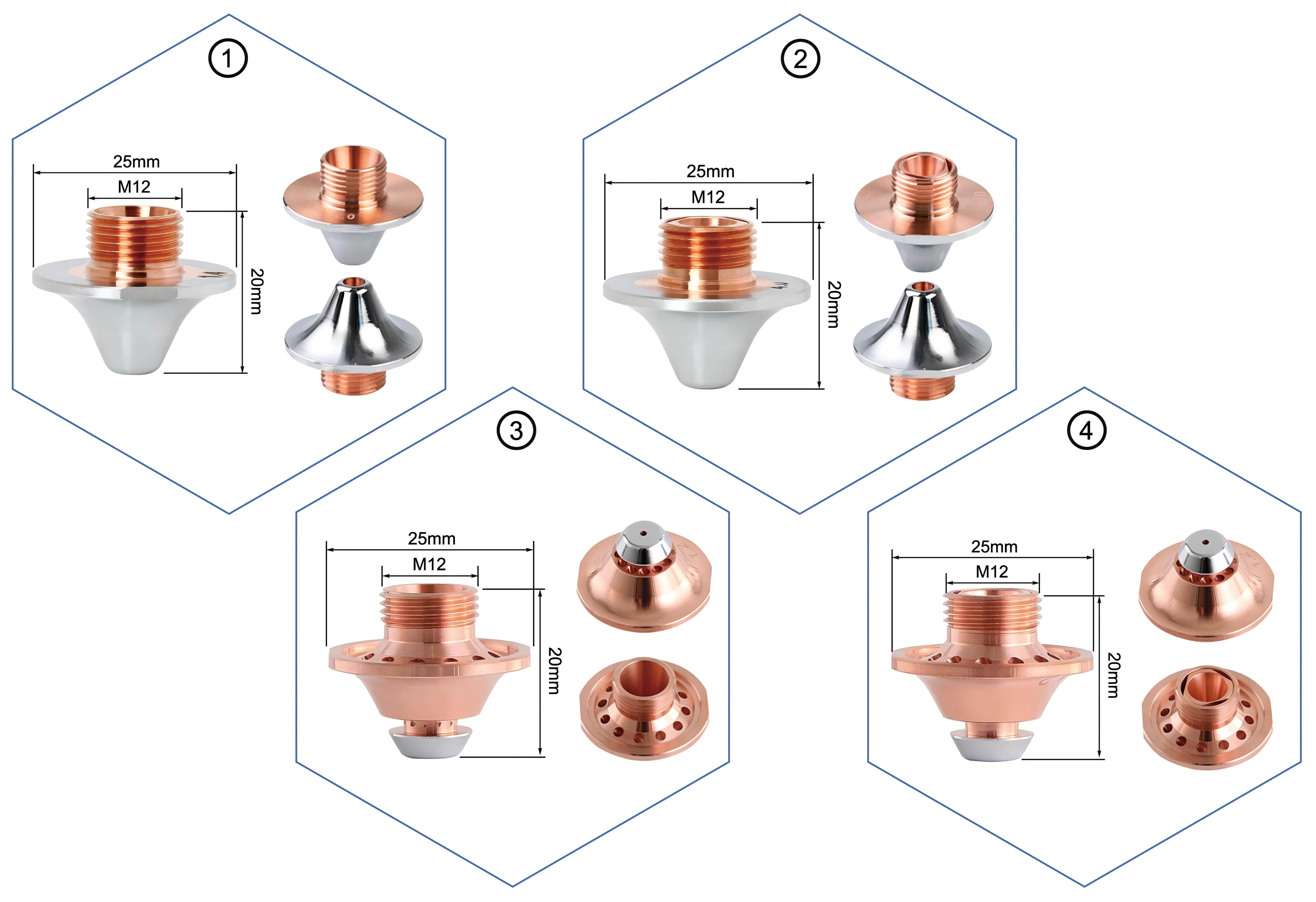

nozzle 4

No	Part Category	Outer Diameter (mm)	Height (mm)	Thread (mm)	Single/Double Layer	Chrome/Plated	Caliber (mm)
1	Amada® Single-Hole Flared Mushroom Nozzle	25	20	M12	Single	Yes	1.0-4.0
2	Amada® Double-Hole Flared Mushroom Nozzle	25	20	M12	Double	Yes	1.0-4.0
3	Amada® Single-Hole Nozzle FE FIBER CP	25	20	M12	Single	Partially	1.2/1.5
4	Amada® Double-Hole Nozzle FE FIBER CP	25	20	M12	Double	Partially	1.2/1.5

>> Mazak Laser Parts

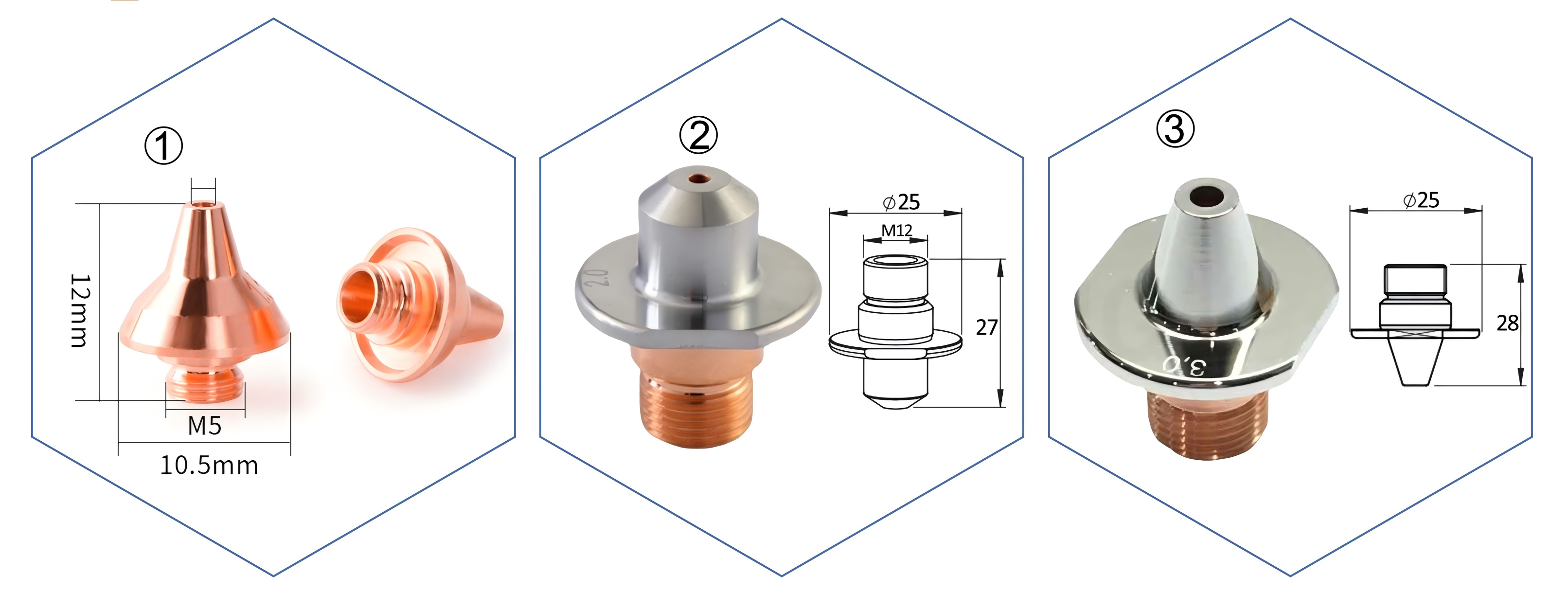

nozzle5

No	Part Category	Outer Diameter (mm)	Height (mm)	Thread (mm)	Single/Double Layer	Chrome/ Plated	Caliber (mm)
1	Mazak® Nozzle 3D	10.5	12	M5	Single	No	1.5/2.0/2.5/3.0
2	Mazak® CP Pencil Double Nozzles	27	25	M12	Single/Double	Yes	1.0-4.5
3	Mazak® Mazak Slim Nozzle	25	28	M12	Single/Double	Yes	1.0-4.5

>> Bystronic Laser Parts

nozzle6

No	Part Category	Ref No	Outer Diameter (mm)	Height (mm)	Thread (mm)	Single/Double Layer	Chrome/Plated
1	HK Classic Series Nozzle	HK10	13	17	M10	Single	No
		HK12	13	17	M10	Single	No
		HK15	13	17	M10	Single	No
		HK17	13	17	M10	Single	No
		HK20	13	17	M10	Single	No
		HK25	13	17	M10	Single	No
		HK30	13	17	M10	Single	No
2	H Classic Series Nozzle	H10	13	17	M10	Single	No
		H12	13	17	M10	Single	No
		H15	13	17	M10	Single	No
		H17	13	17	M10	Single	No
		H20	13	17	M10	Single	No
		H25	13	17	M10	Single	No
		H30	13	17	M10	Single	No
3	NK Classic Series Nozzle	NK1015	13	17	M10	Double	No
		NK1215	13	17	M10	Double	No
		NK1515	13	17	M10	Double	No
		NK1715	13	17	M10	Double	No
		NK2015	13	17	M10	Double	No
		NK2515	13	17	M10	Double	No
		NK2520	13	17	M10	Double	No
		NK2415	13	17	M10	Double	No
		NK3015	13	17	M10	Double	No
		NK3020	13	17	M10	Double	No
		NK4015	13	17	M10	Double	No

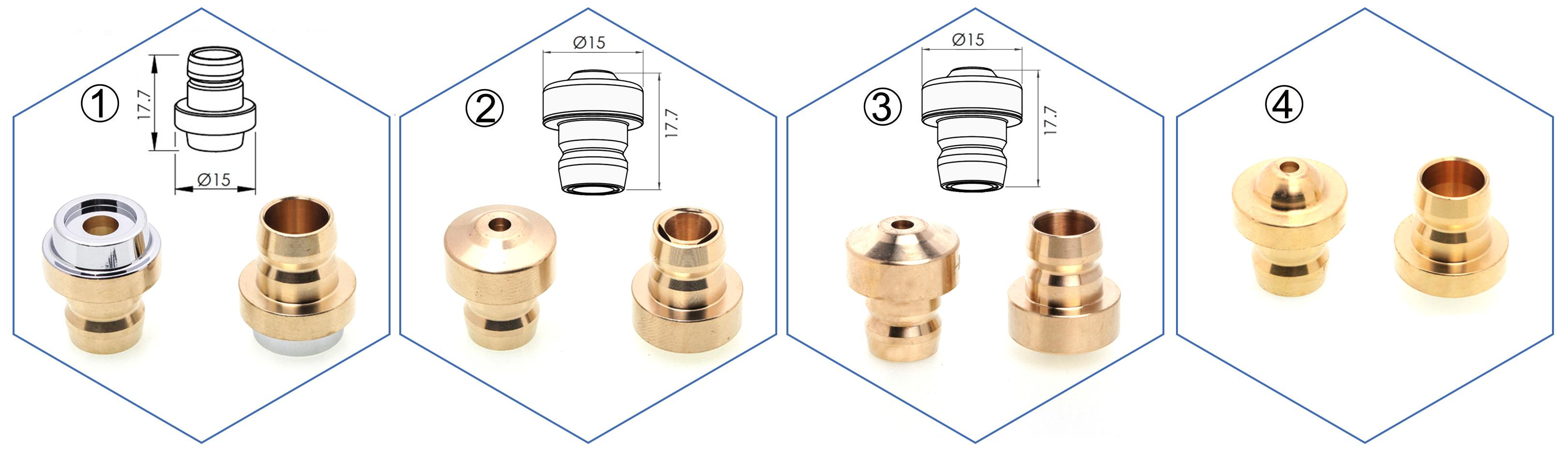

nozzle7

No	Part Category	Ref No	Outer Diameter (mm)	Height (mm)	OEM Number	Single/Double Layer	Chrome Plated
1	F Precision Series Nozzle	F20	15	17.7	10118050	Single	No
		F25	15	17.7	10118051	Single	No
		F30	15	17.7	10118057	Single	No
		F35	15	17.7	10118052	Single	No
		F40	15	17.7	10118053	Single	No
		F45	15	17.7	10118058	Single	No
		F50	15	17.7	10118055	Single	No
		F55	15	17.7	10118054	Single	No
		F60	15	17.7	10118056	Single	No
2	NK Precision Series Nozzle	NK1015	15	17.7	10097525	Double	No
		NK1215	15	17.7	10097528	Double	No
		NK1515	15	17.7	10097531	Double	No
		NK1715	15	17.7	10097533	Double	No
		NK1717	15	17.7	10119813	Double	No
		NK2015	15	17.7	10097534	Double	No
		NK2515	15	17.7	10097537	Double	No
		NK2520	15	17.7	10097549	Double	No
		NK3017	15	17.7	10097543	Double	No
		NK3020	15	17.7	10097551	Double	No
		NK3517	15	17.7	10097553	Double	No
		NK3530	15	17.7	10097552	Double	No
		NK4017	15	17.7	10097554	Double	No
3	HK Precision Series Nozzle	HK10	15	17.7	10097507	Single	No
		HK12	15	17.7	10097508	Single	No
		HK15	15	17.7	10097509	Single	No
		HK17	15	17.7	10097510	Single	No
		HK20	15	17.7	10097511	Single	No
		HK25	15	17.7	10097512	Single	No
		HK30	15	17.7	10097513	Single	No
		HK35	15	17.7	10097514	Single	No
4	H Precision Series Nozzle	H10	15	17.7	10117149	Single	No
		H12	15	17.7	10117150	Single	No
		H15	15	17.7	10117151	Single	No
		H17	15	17.7	10117153	Single	No
		H20	15	17.7	10097541	Single	No
		H25	15	17.7	10097542	Single	No
		H30	15	17.7	10117154	Single	No
		H35	15	17.7	10117152	Single	No

>> Trumpf Laser Parts

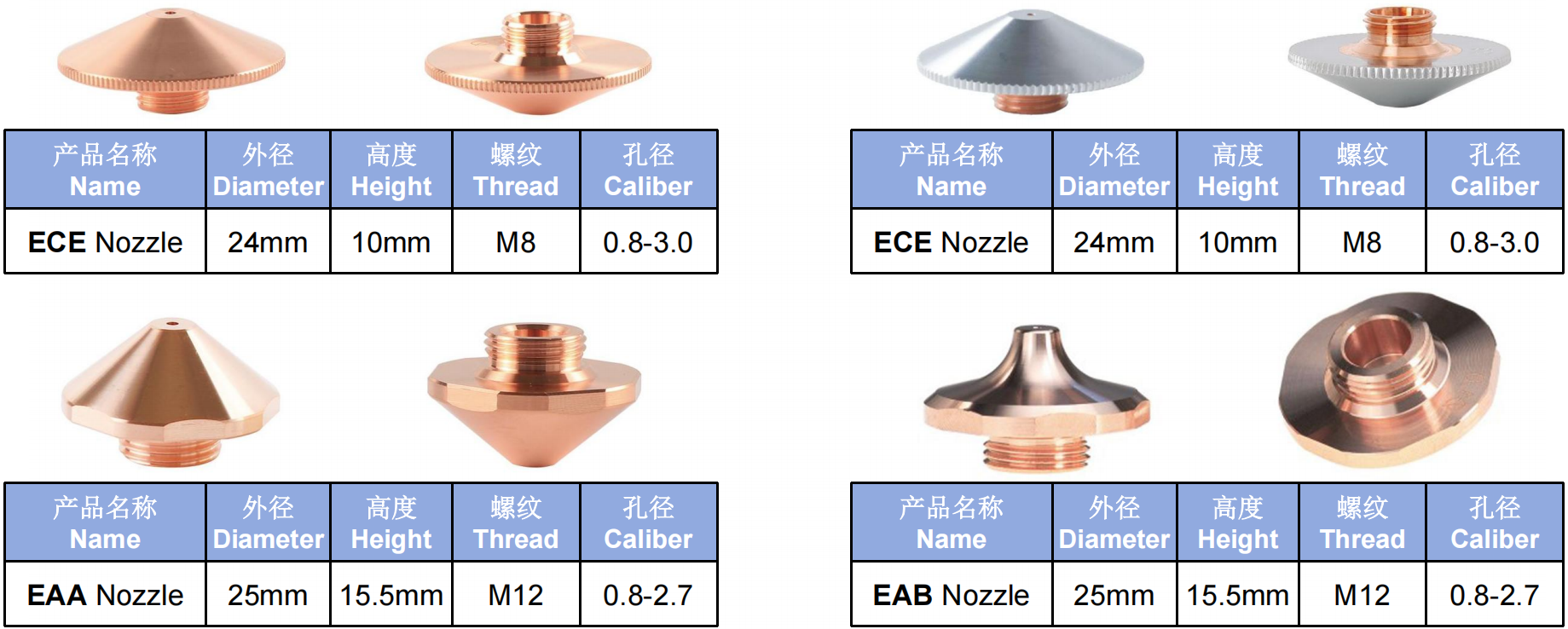

nozzle8

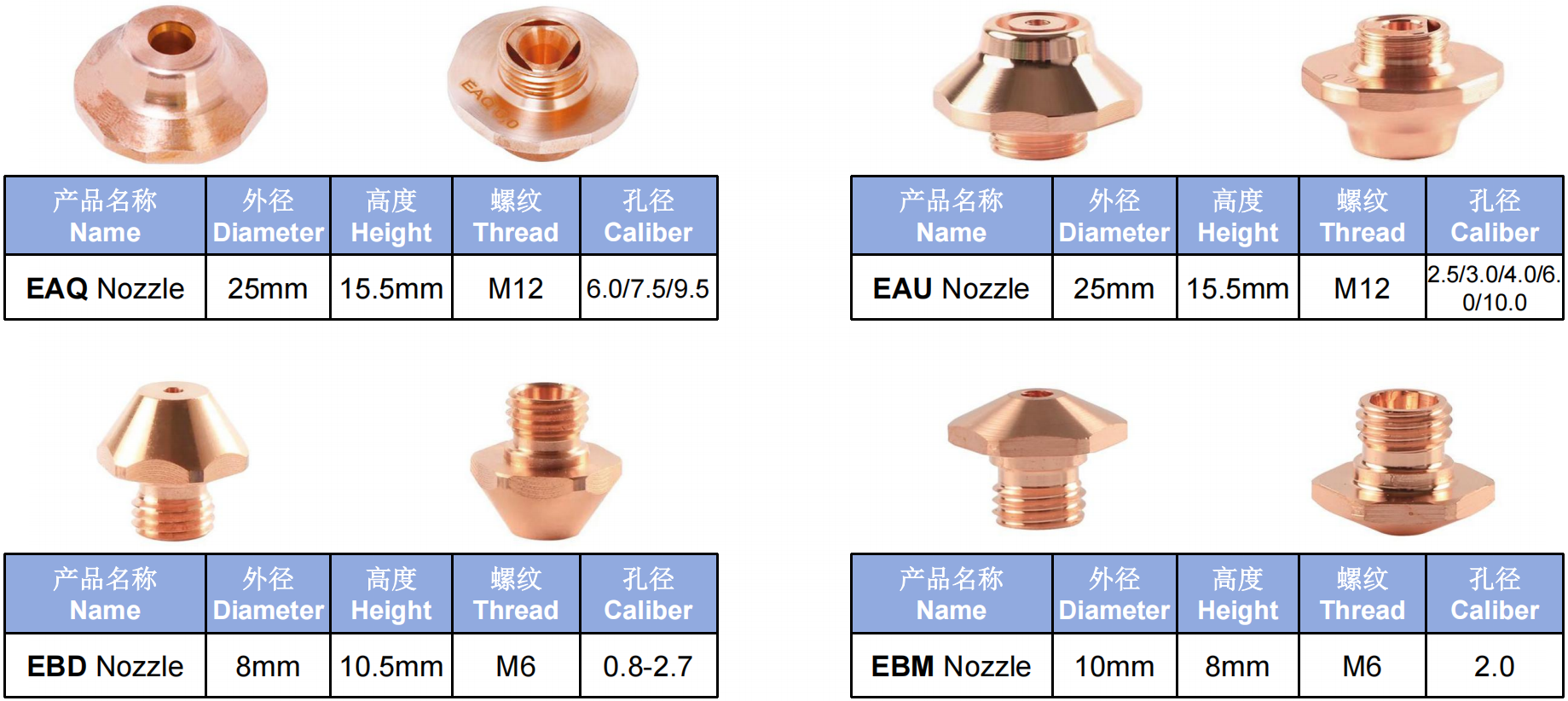

nozzle9

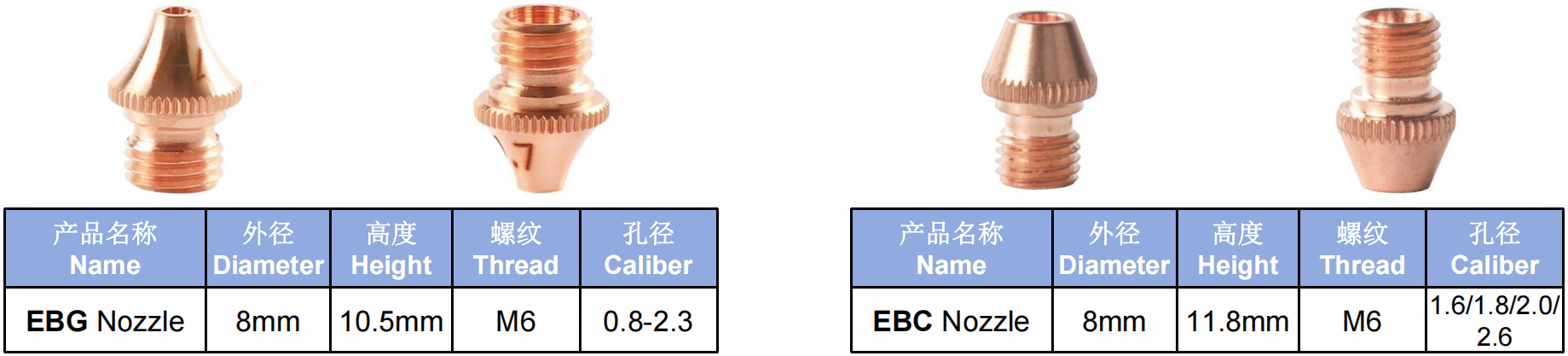

nozzle10
