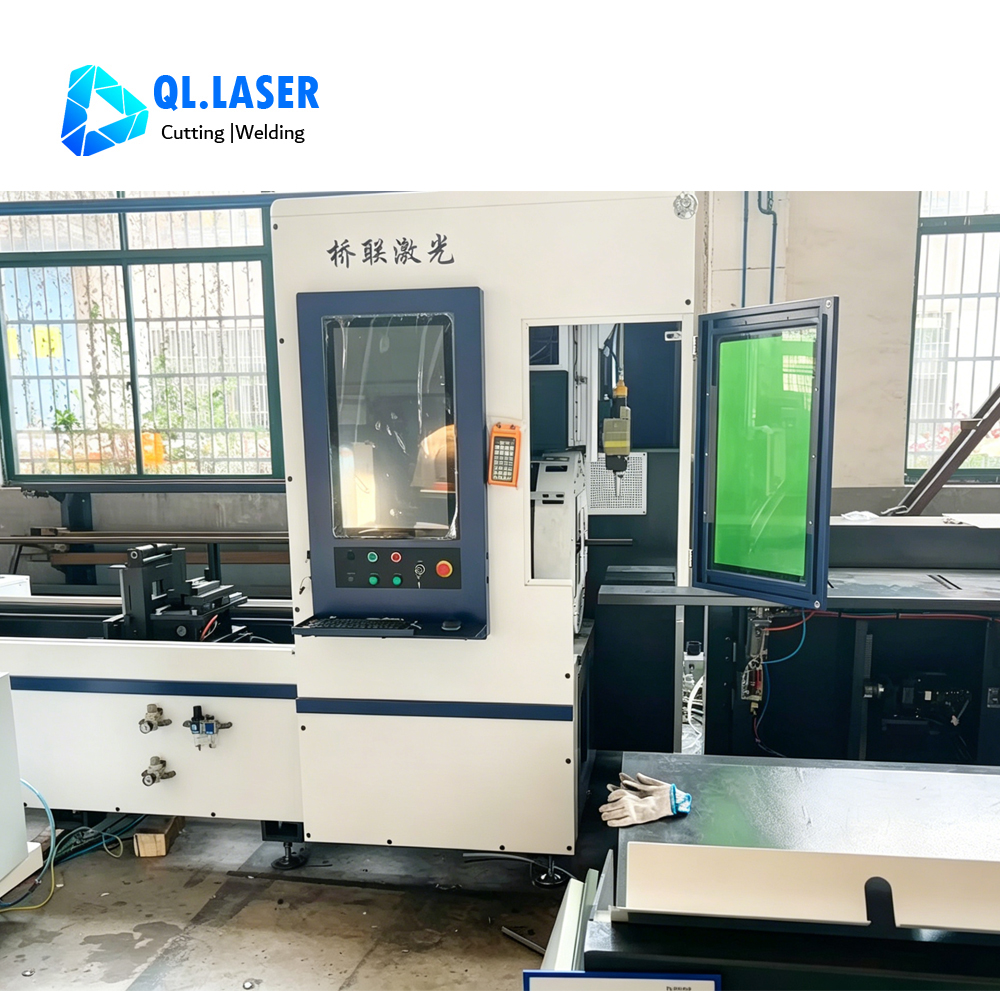

3000W Double Chuck Tube Laser Cutting Machine, 220mm, 6m Semi-automatic Loading Unloading, FSCUT3000DE, BLT310T with Follow-up Support System

1. 3000W Laser Power Stable Cutting Performance

This tube laser cutting machine adopts Max MFSC-3000W laser source, delivering stable and concentrated laser beam. It realizes fast, smooth and burr-free cutting on various metal tubes, ensuring high processing quality and long-term continuous working stability.

2. Double Chuck Clamping & 220mm Large Cutting Range

Designed with dual-chuck clamping structure for firm and stable positioning during high-speed operation. The maximum cutting diameter reaches 220mm, covering most specifications of industrial round tubes, square tubes and special-shaped metal tubes.

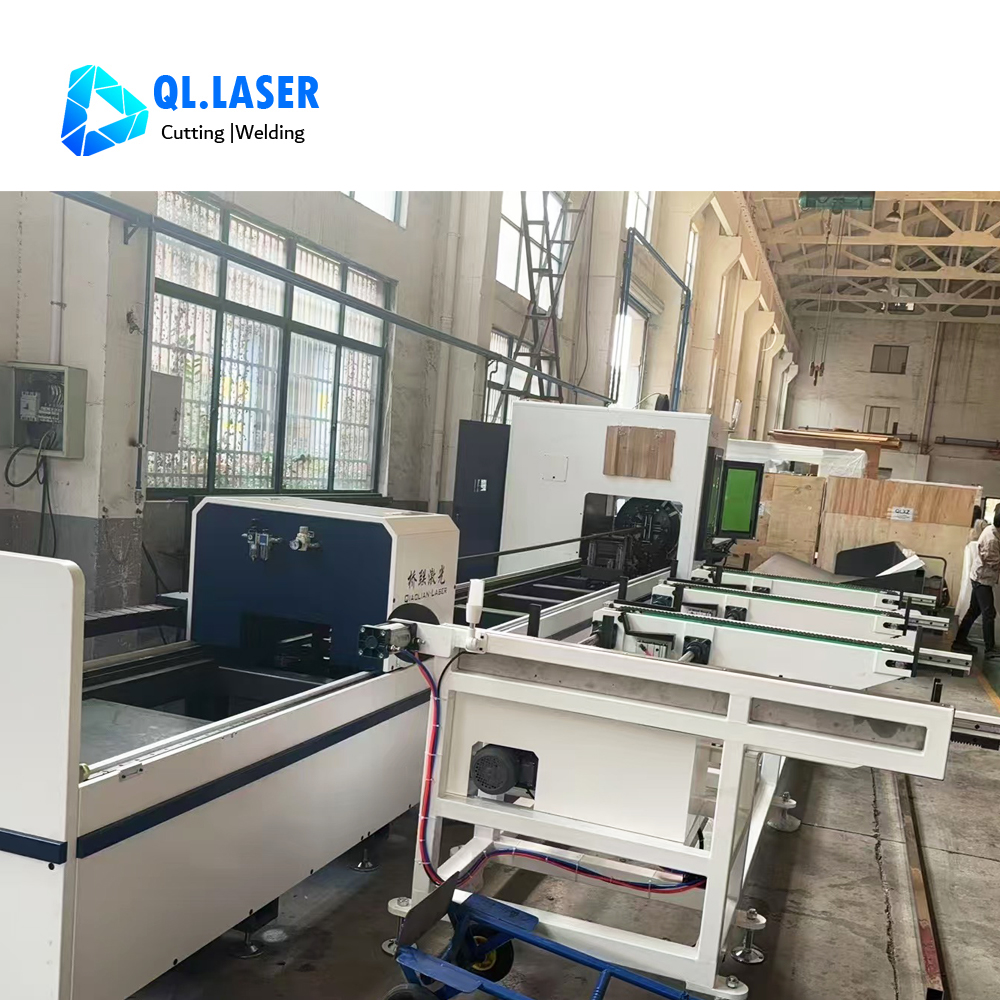

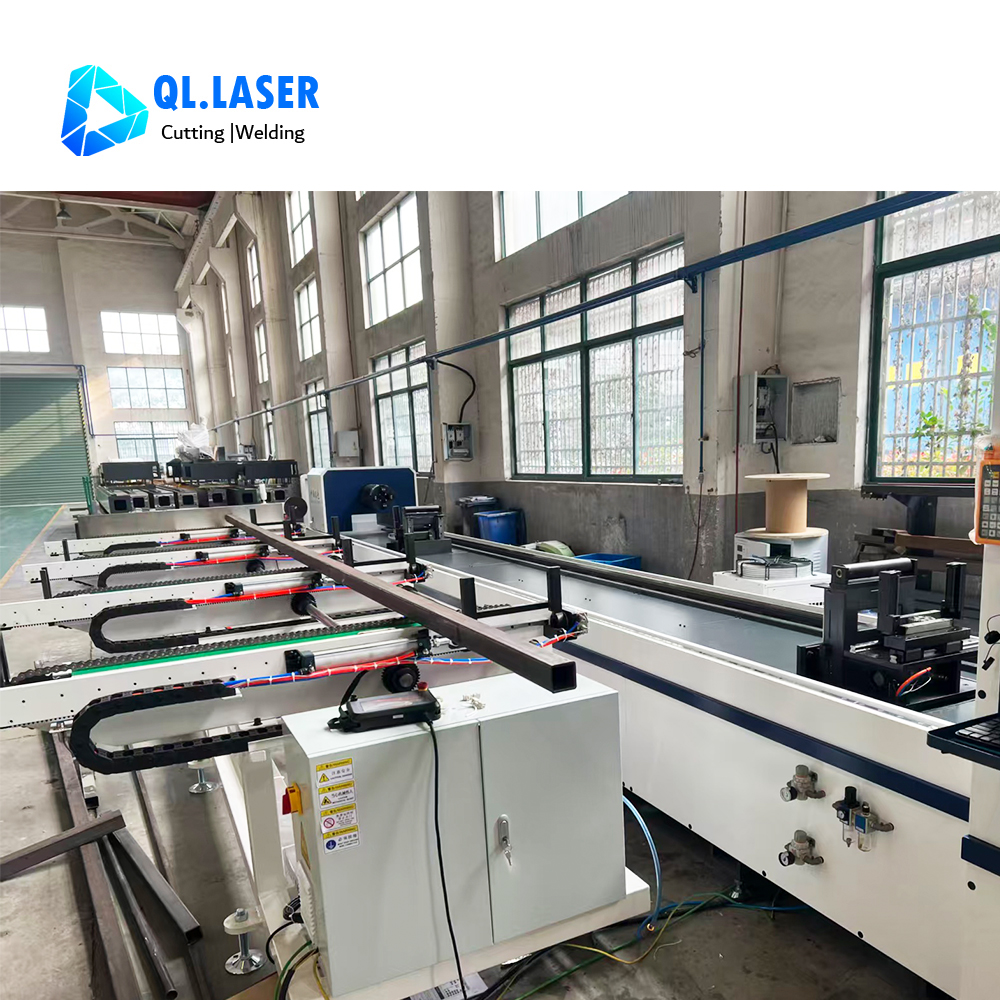

3. 6m Semi-automatic Loading & Unloading System

Equipped with professional 6-meter loading and unloading platform. The semi-automatic feeding and discharging structure reduces manual operation, improves batch production efficiency and greatly saves labor costs for tube processing enterprises.

4. Professional Follow-up Support System

The unique follow-up support system intelligently supports 6m long metal tubes in real time during cutting. It effectively solves workpiece sagging, vibration and deformation problems, significantly improving cutting accuracy and finished product yield.

5. Premium Original Configuration

Adopts original Cypcut FSCUT3000DE professional tube cutting system and high-performance BLT310T laser head. It supports intelligent nesting, automatic calibration and high-speed cutting, featuring sensitive response, stable operation and low failure rate.

6. Wide Industrial Material Compatibility

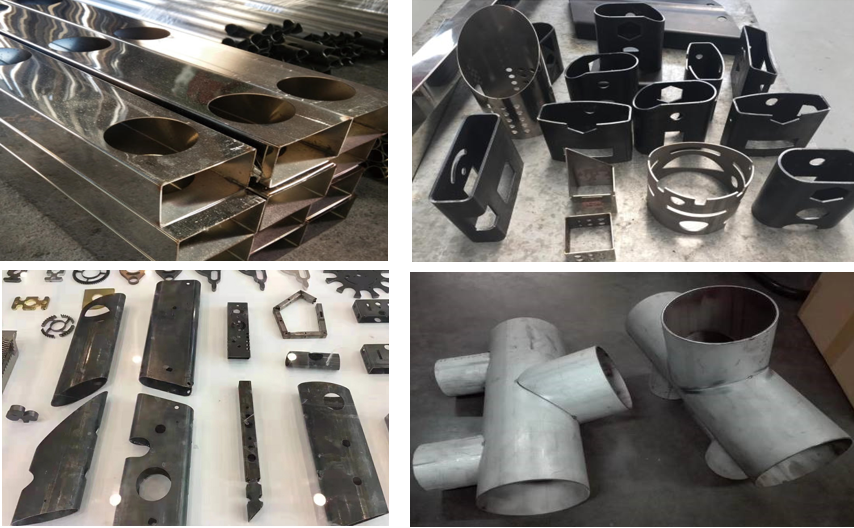

This tube laser cutting machine is widely applicable to carbon steel, stainless steel, aluminum alloy and other metal materials. It can process round tubes, square tubes, rectangular tubes and special-shaped tubes with strong industrial versatility.

1. Steel Structure Industry

Precision cutting of structural tubes, building support tubes and engineering tubular accessories for steel structure and construction projects.

2. Metal Furniture & Hardware Manufacturing

Custom processing of decorative metal tubes, furniture frame tubes, bathroom hardware tubes and various precision tubular parts.

3. Mechanical Equipment Manufacturing

Processing of mechanical frame tubes, equipment support tubes, conveyor tubular components and industrial mechanical accessories.

4. Professional Tube Fabrication

Suitable for batch production and customized cutting of various standard and special-shaped metal tubes for metal processing factories.

Q1: What tube lengths are suitable for this 3000W tube laser cutting machine?

A1: This tube laser cutting machine is customized for 6m standard long tubes, supporting 6m feeding and discharging. It can adapt to conventional short tubes and full-length 6m tubes, meeting most standard tube processing requirements in the metal processing industry.

Q2: What tolerances can this industrial tube laser cutting machine guarantee?

A2: The whole machine adopts high-precision transmission and intelligent calibration technology. It maintains stable cutting tolerance :PositionaI accuracy:±0.08mm, repeated positioning accuracy:±0.04mm, ensuring consistent workpiece size, which fully meets the requirements of precision matching and batch assembly production.

Q3: Is this tube laser cutting machine easy to operate for new workers?

A3: Equipped with user-friendly Cypcut FSCUT3000DE operating system, it features intuitive interface, one-click nesting and automatic cutting. New operators can master basic operation quickly, effectively lowering the threshold of manual operation and production training cost.

Q4: What daily maintenance does this tube laser cutting machine require?

A4: The equipment has low daily maintenance requirements. Regular cleaning of dust on the guide rail and laser head surface, checking gas path and circuit stability, and regular lens inspection can ensure long-term stable operation and extend machine service life.
