1. One Machine with Two Functions.For users, it will expand their scope of cutting materials and enhance their market competitiveness.
2. High precision cutting
Equipped with servo motors and precision guide rail systems, high-precision cutting can be achieved with errors controlled within ± 0.01mm. Compared to traditional plasma or flame cutting, laser beam has a higher energy density, a smooth and burr free cross-section, and can be directly used for subsequent processes such as welding.
3. The laser cutting equipment adopts aviation cast aluminum beam and annealing treatment technology, which has stronger rigidity and stability, reducing accuracy deviation caused by vibration.
4. Environmental Protection: Laser cutting does not require contact with the cutting surface, does not produce cutting waste, and does not cause pollution to the environment.
Model Number | JLNS3015 | JLNS4015 | JLNS6015 | JLNS4020 | JLNS6020 |
Fiber Laser power | 1500w 2000w 3000w 6000w 12000w | ||||
Sheet cutting size | 3m*1.5m | 4m*1.5m | 6m*1.5m | 4m*2m | 6m*2m |
Tube cutting size | size：20-220mm, length 6m | ||||
Cutting material | Carbon steel ,Stainless steel ,Galvanized sheet, Aluminum,Brass,Red copper... | ||||
Tube type | round tube, square tube, rectangular tube | ||||
PositionaI accuracy (mm/m) | X /Y axle : ±0.03, Z axle :±0.01 | ||||
repeated positioning accuracy (mm) | X /Y axle : ±0.01, Z axle :±0.005 | ||||
Rapid positioning speed (m/min) | X /Y axle : 80, Z axle :30 | ||||
Acceleration speed(G) | 1 | ||||
| Materia Laser power | Carbon steel | stainless steel | Aluminum | Brass | Red copper |
1500w | 12mm | 5mm | 4mm | 2mm | |
2000w | 16mm | 6mm | 5mm | 4mm | 2mm |
3000w | 18mm | 8mm | 6mm | 5mm | 3mm |
6000w | 22mm | 18mm | 16mm | 12mm | 6mm |
12000w | 35mm | 25mm | 25mm | 14mm | 8mm |

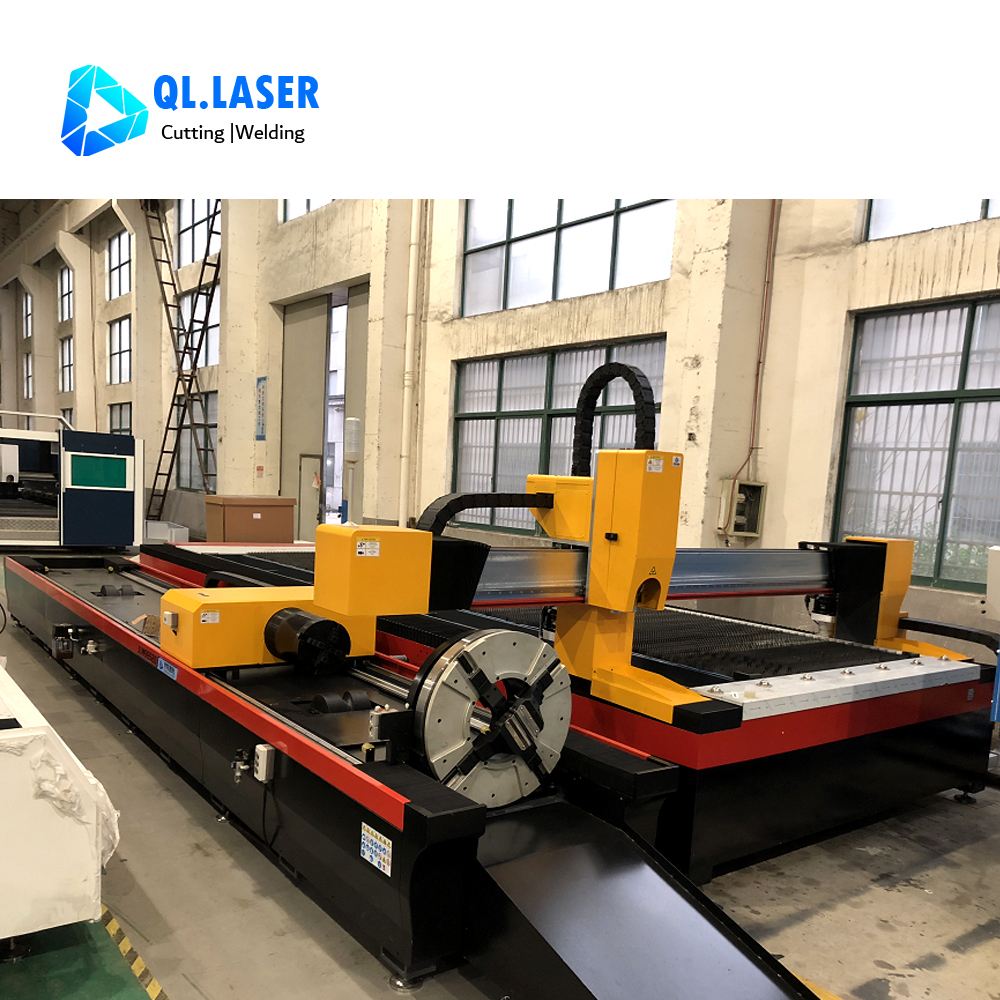

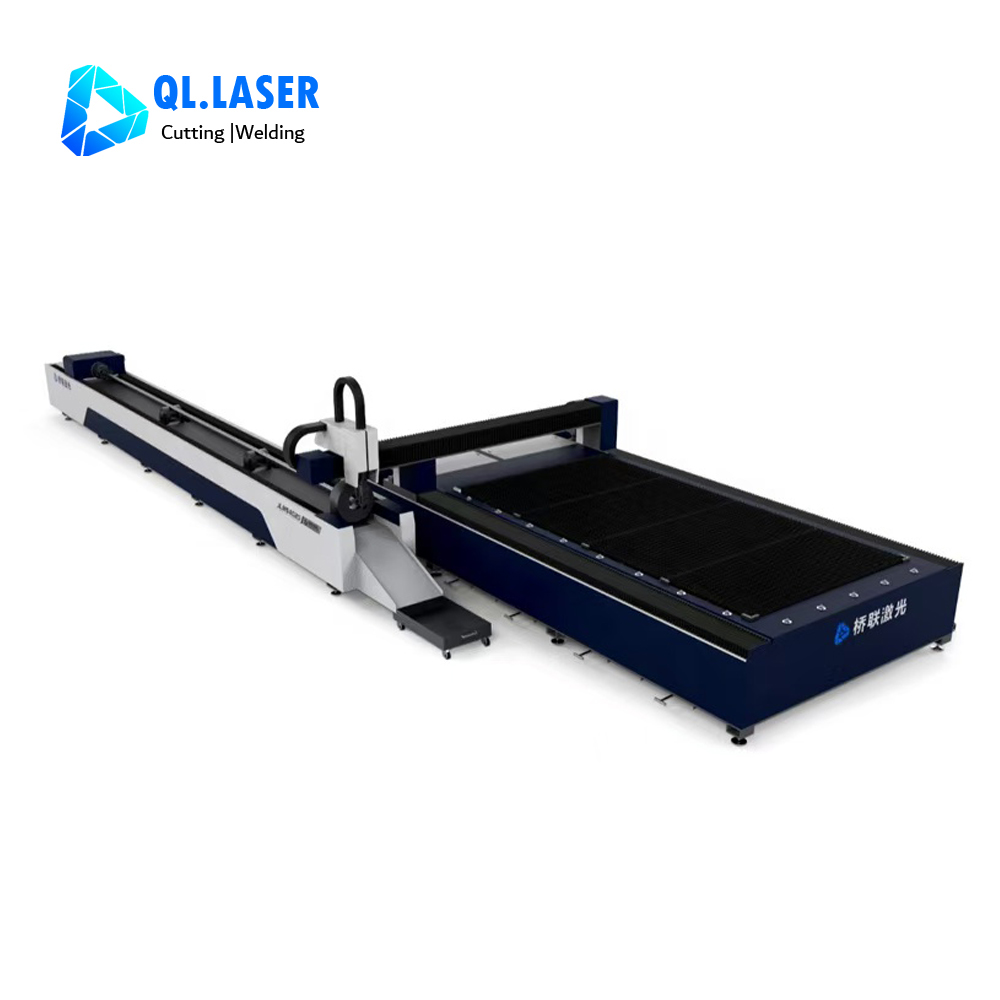

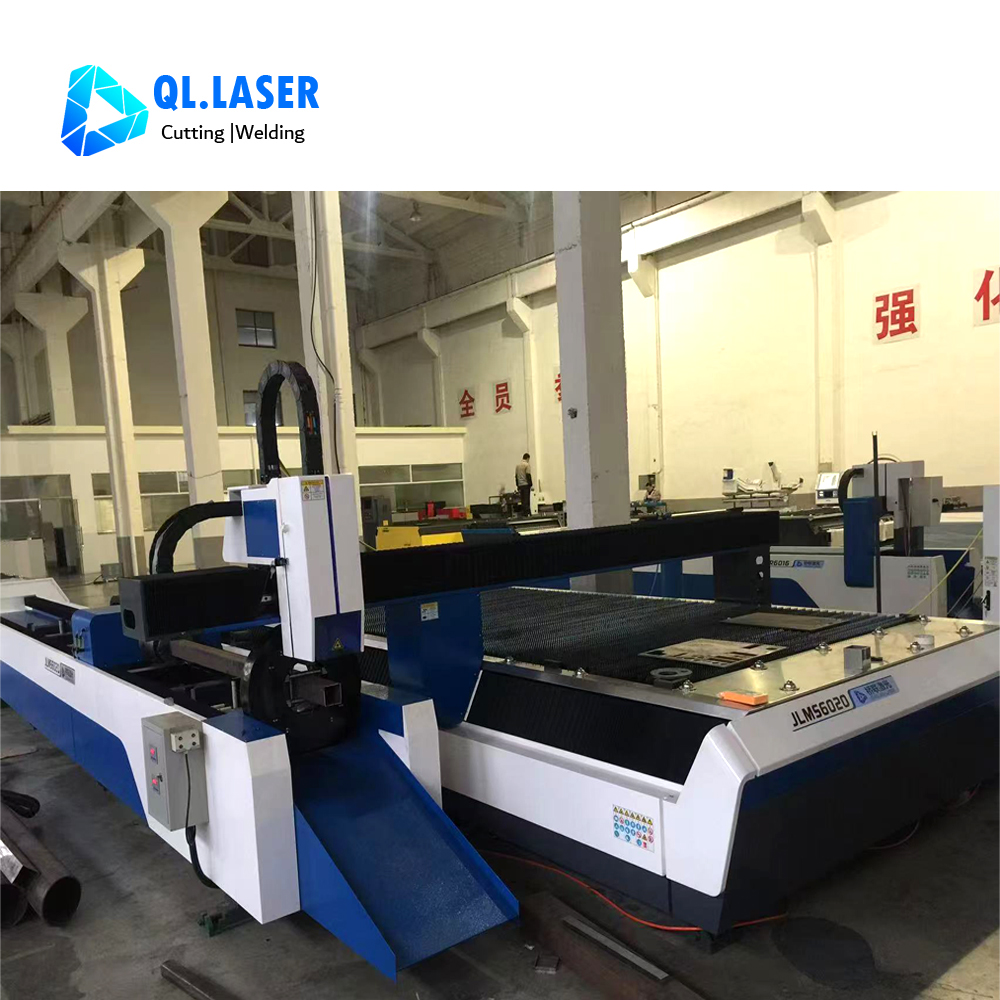

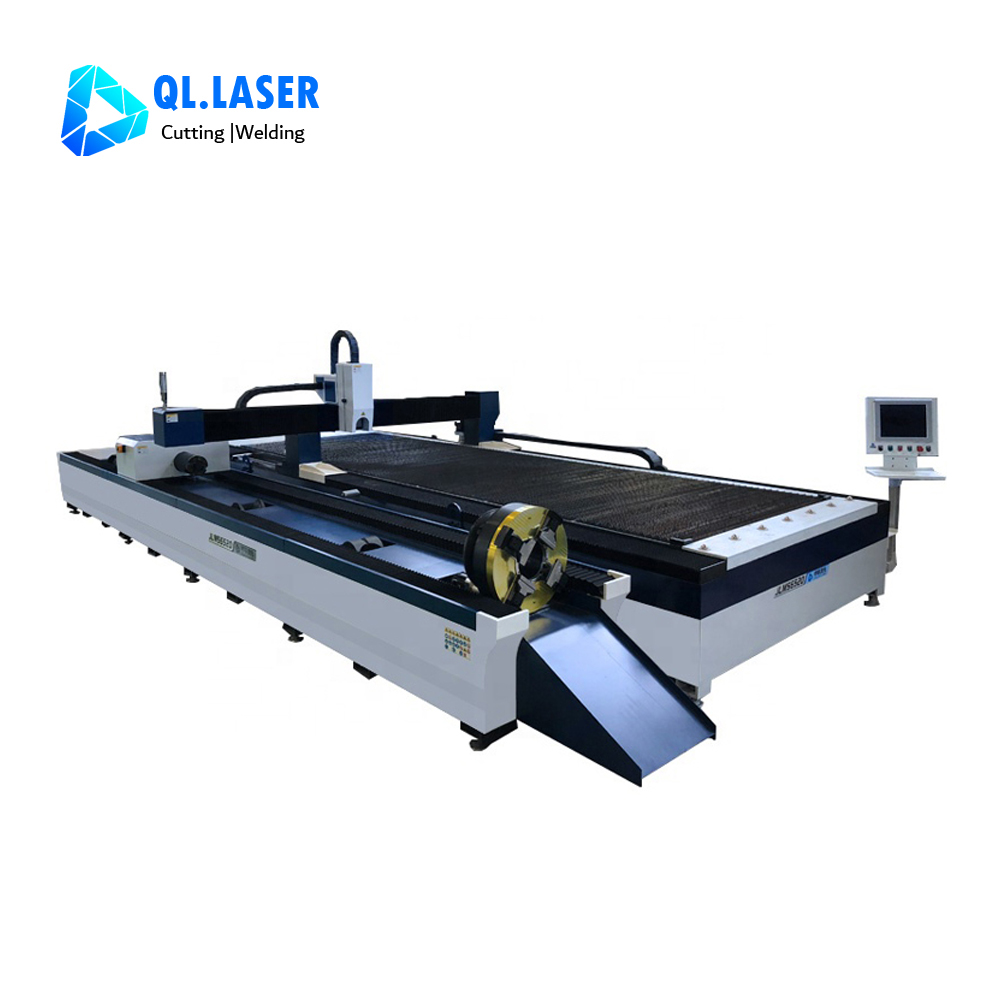

Single table sheet tube laser cutting machine is mainly used for cutting metal sheets and pipes, and is widely used in sheet metal processing, automotive parts, mechanical equipment manufacturing, electronic and electrical fields, pipeline processing etc.
1. Why does this sheet tube laser cutting machine can not cut H beam?
Controller dont have cut H Beam function. And this laser cutting head is for sheet ,not for H beam.
2. Does this machine can cut bevel for pipe?
No, this machine no bevel cutting function for pipe.
3. Does this machine cut by air ?
Yes, it can use air to cut. It is same with plate laser cutting machine.
