Motion control and machine vision technology in one IPC,without the software to switch back and forth, and directly controls all the external axes and tools to obtain the absolute coordinates of the welding seams, which greatly reduces the risk of collision welding torch.
The digital twin scene inside the system and the actual welding scene in the workshop 1:1 reduction, real-time synchronization, dynamic tracking. The completion degree of the components and the completion time required for the welding can be simulated in advance in the system.
Lead into the 3D model of the workpiece to automatically identify and extract the welding seams information.Click on the model to edit the weld seams, reducing the difficulty of operation, employees to use easily.
Content | Parameters | Unit |
Degrees of Freedom (number of axes) | 7 | / |
ambient temperature | -10~45 | ℃ |
Maximum end load | 6 | Kg |
Scope of work (recommended) | W2000*L12000*H650 | mm |
Peak total power | 45 | Kw |
Rated input voltage | 380±10%,3phase | V |
Rated input frequency | 50 | Hz |

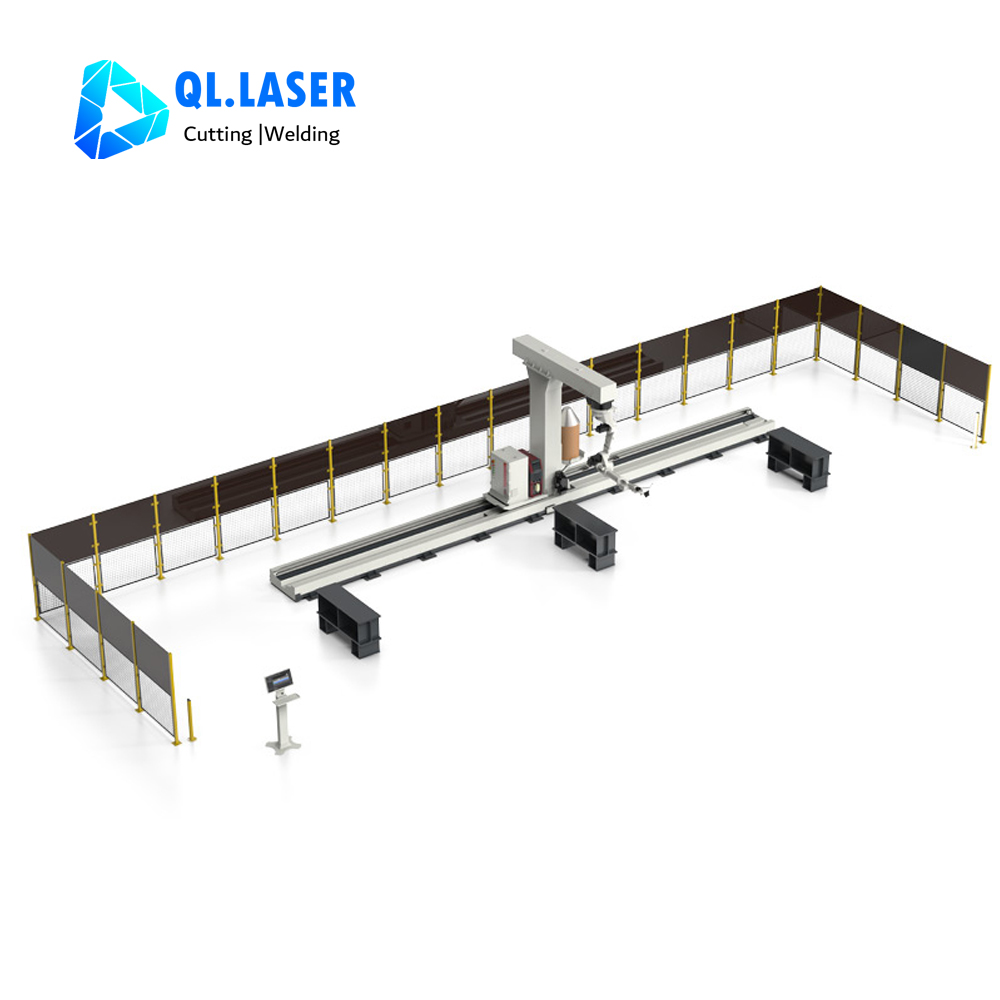

Land occupation area | 3000*15000 | mm |

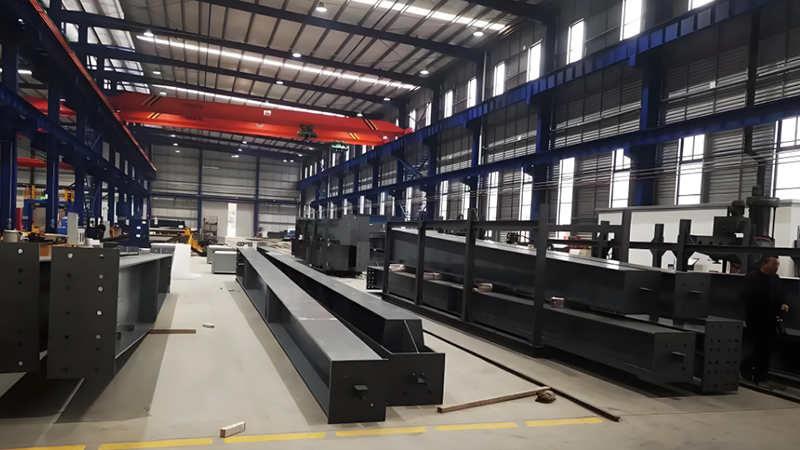

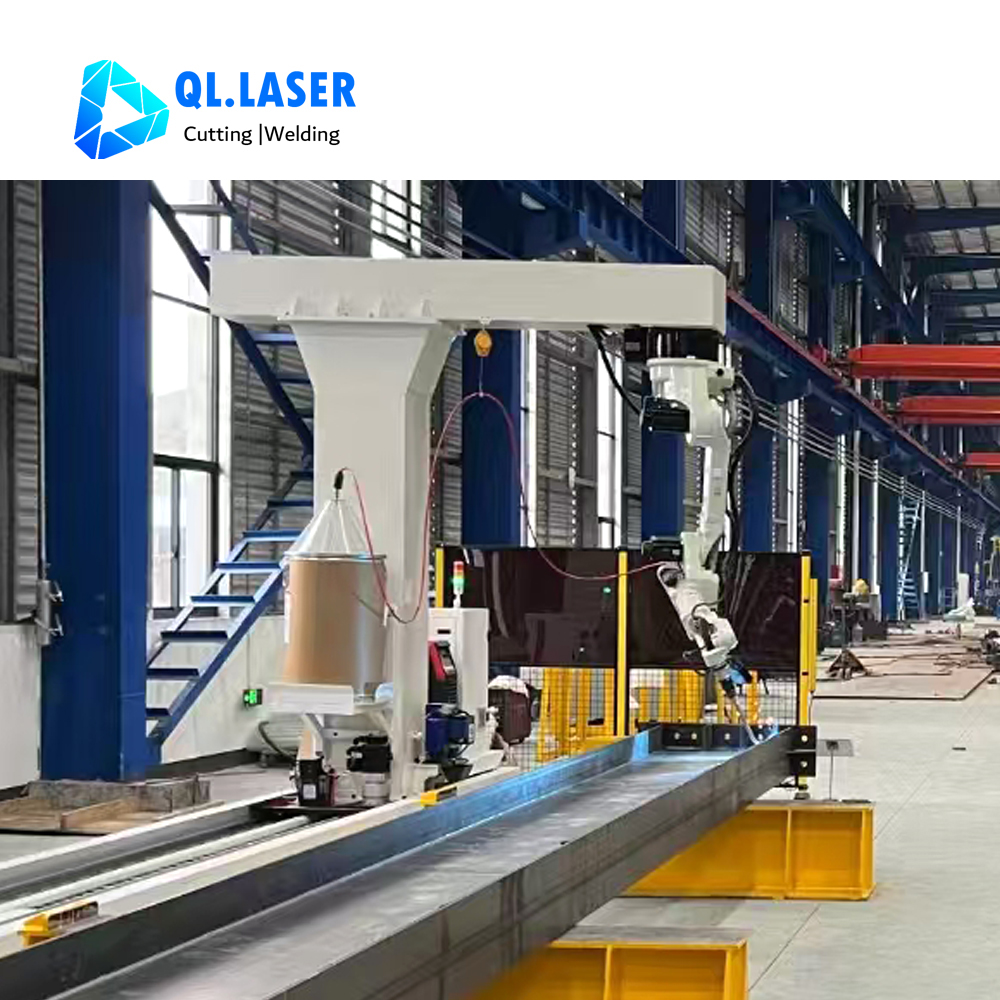

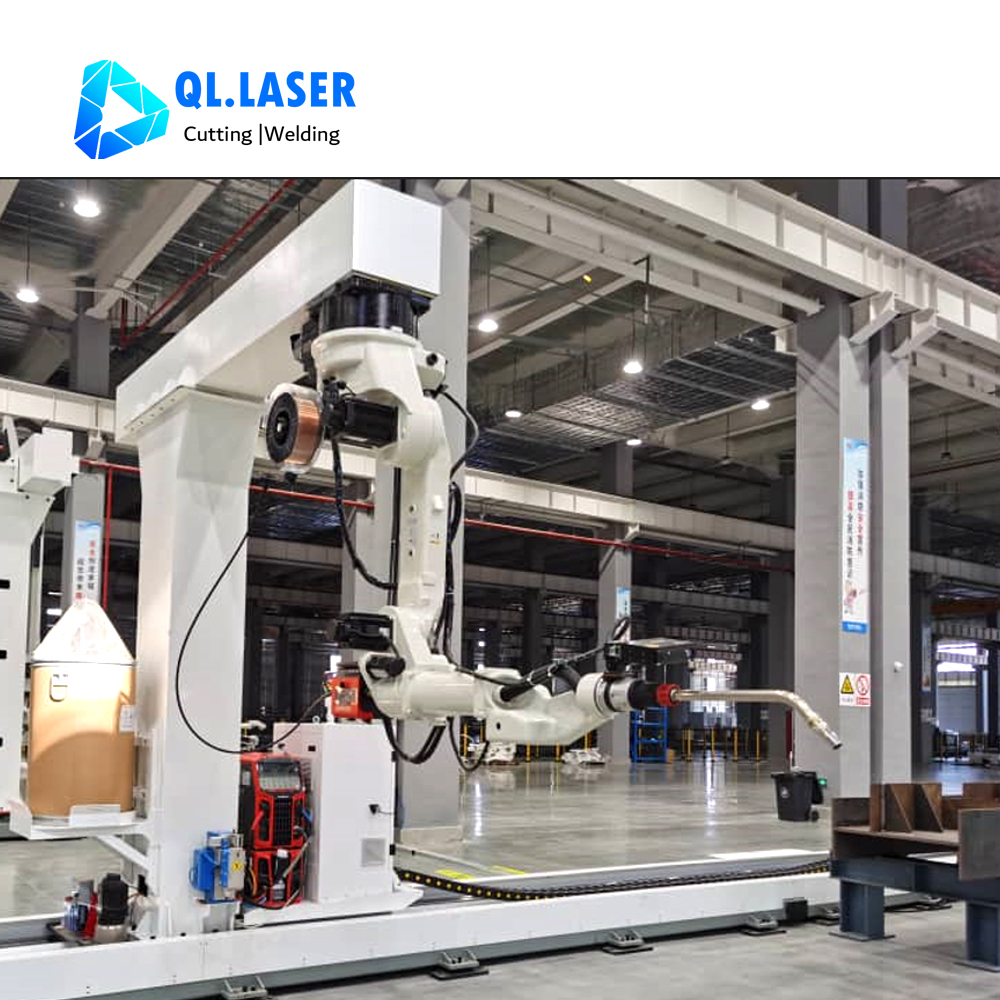

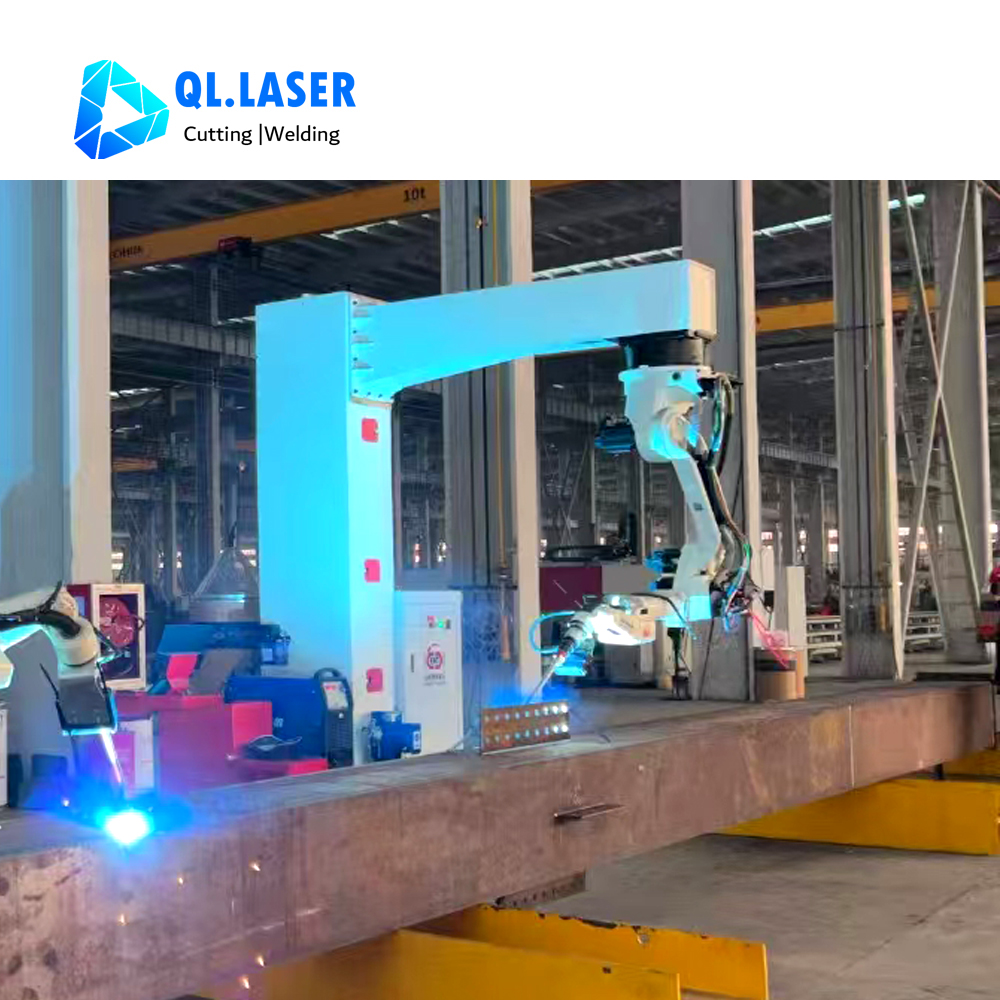

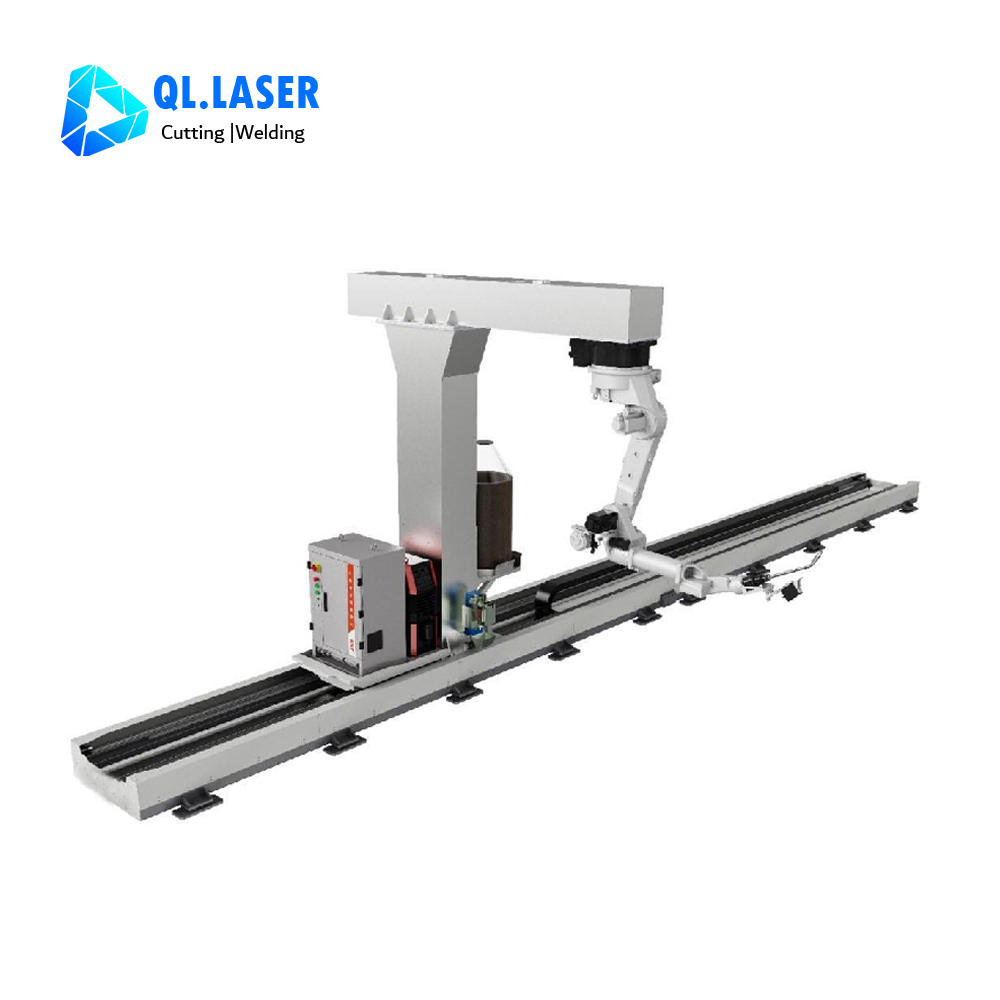

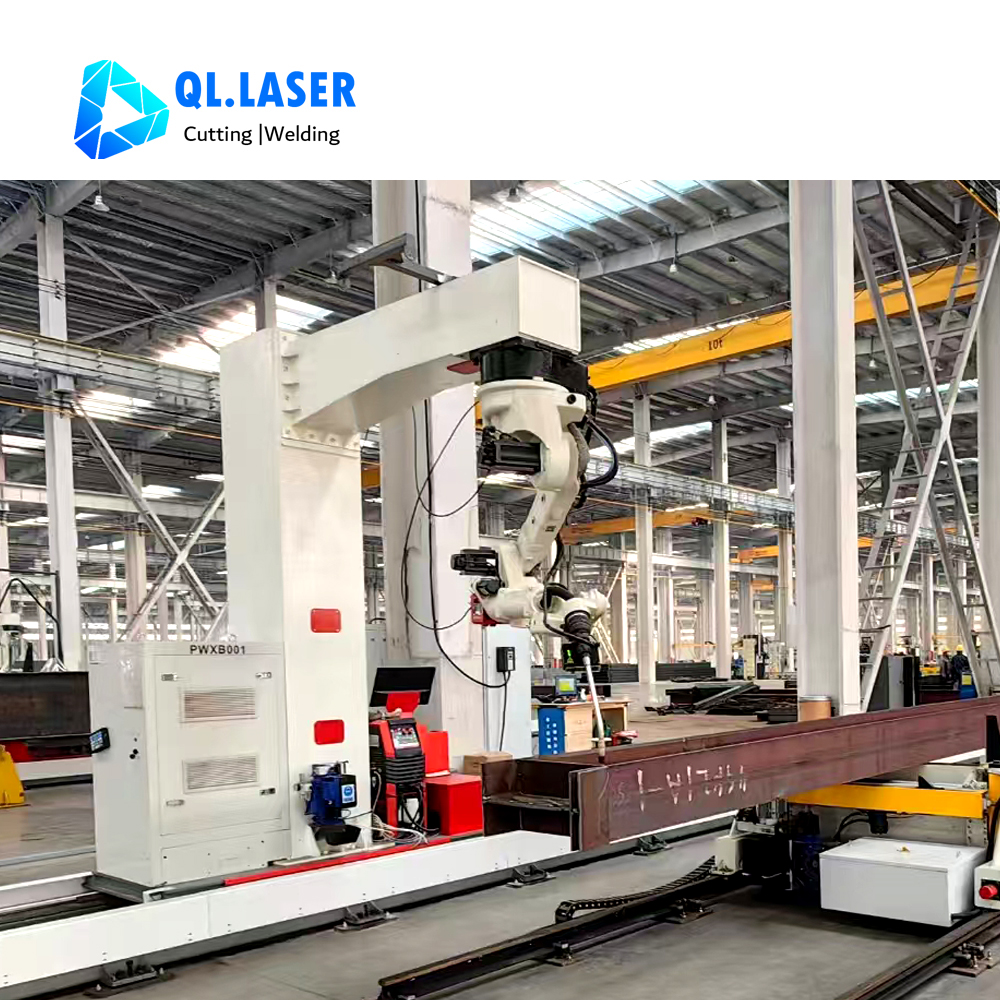

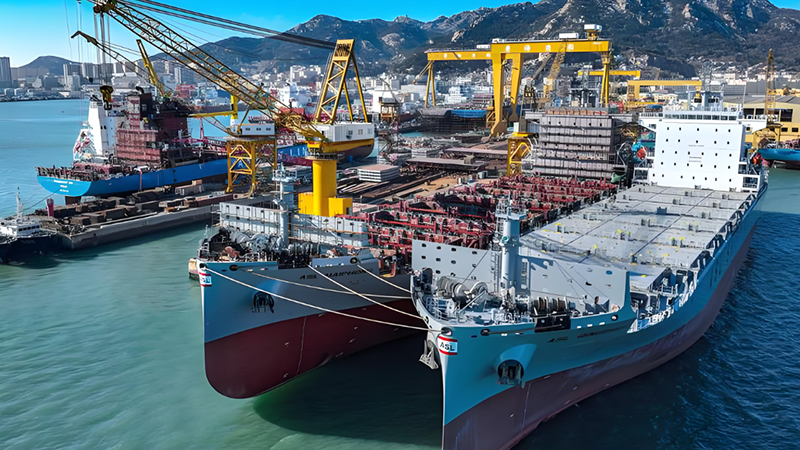

The 7-axis cantilever welding workstation is mainly used in the steel structure and shipbuilding industries.
 |  |

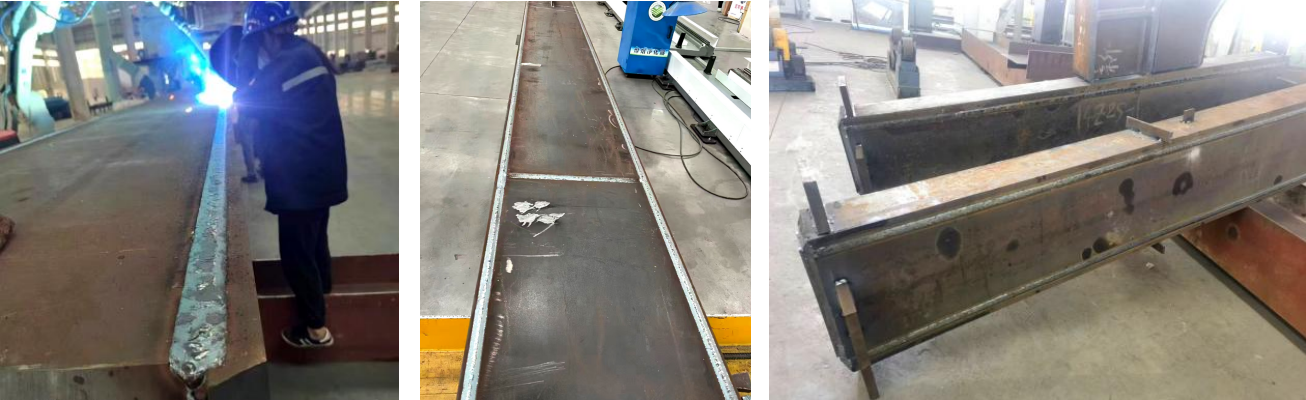

1. What thickness plates does this machine can weld ?
It weld normal 6mm and above carbon steel.
2. Does this machine can weld stainless steel?
No. It can not weld stainless steel. Only weld carbon steel.
3. What is this machine delivery time?
Delivery time 15-30days after receive deposit.
