| Quantity: | |
|---|---|

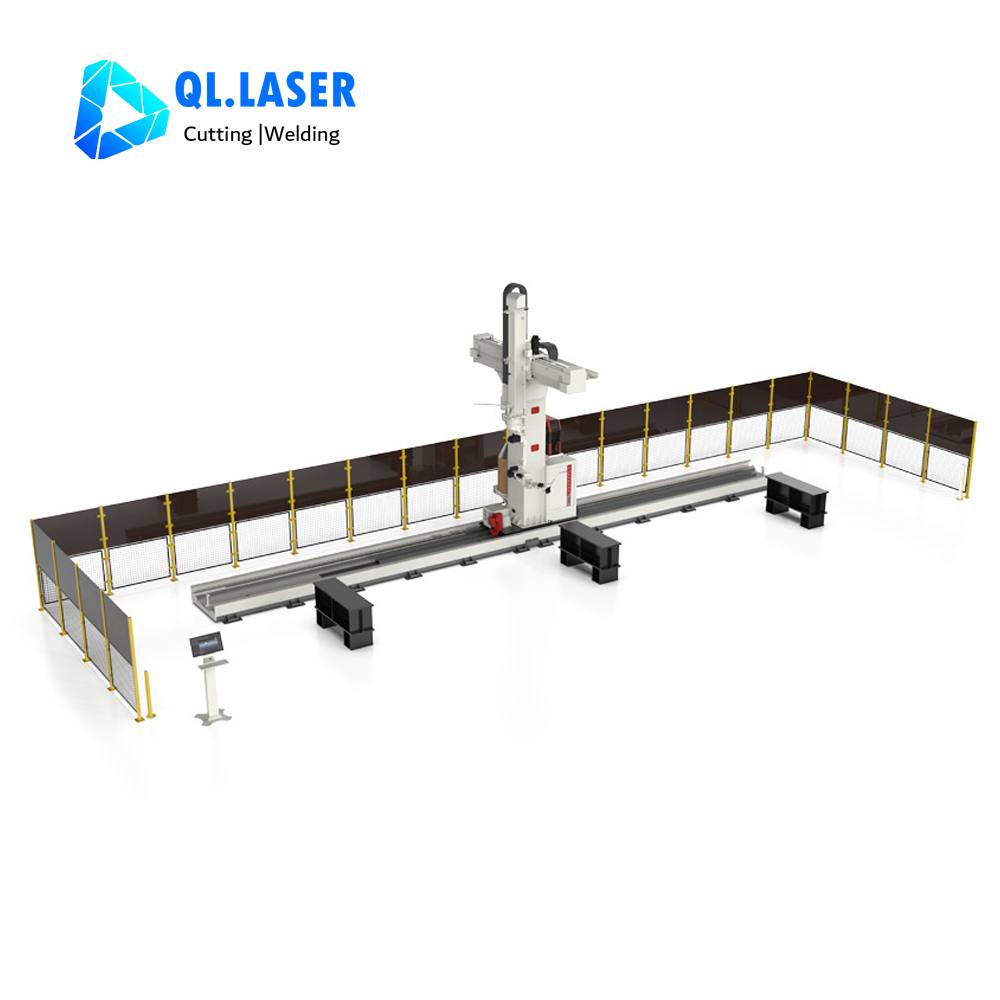

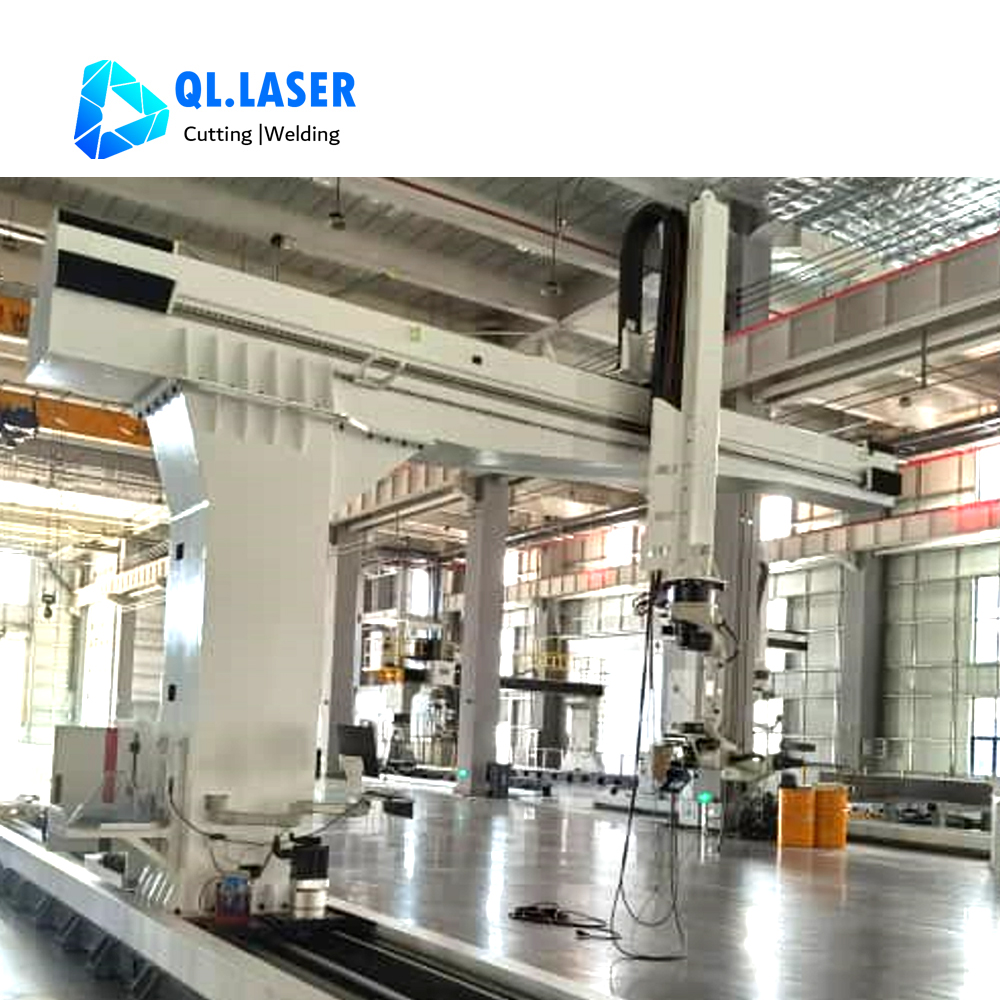

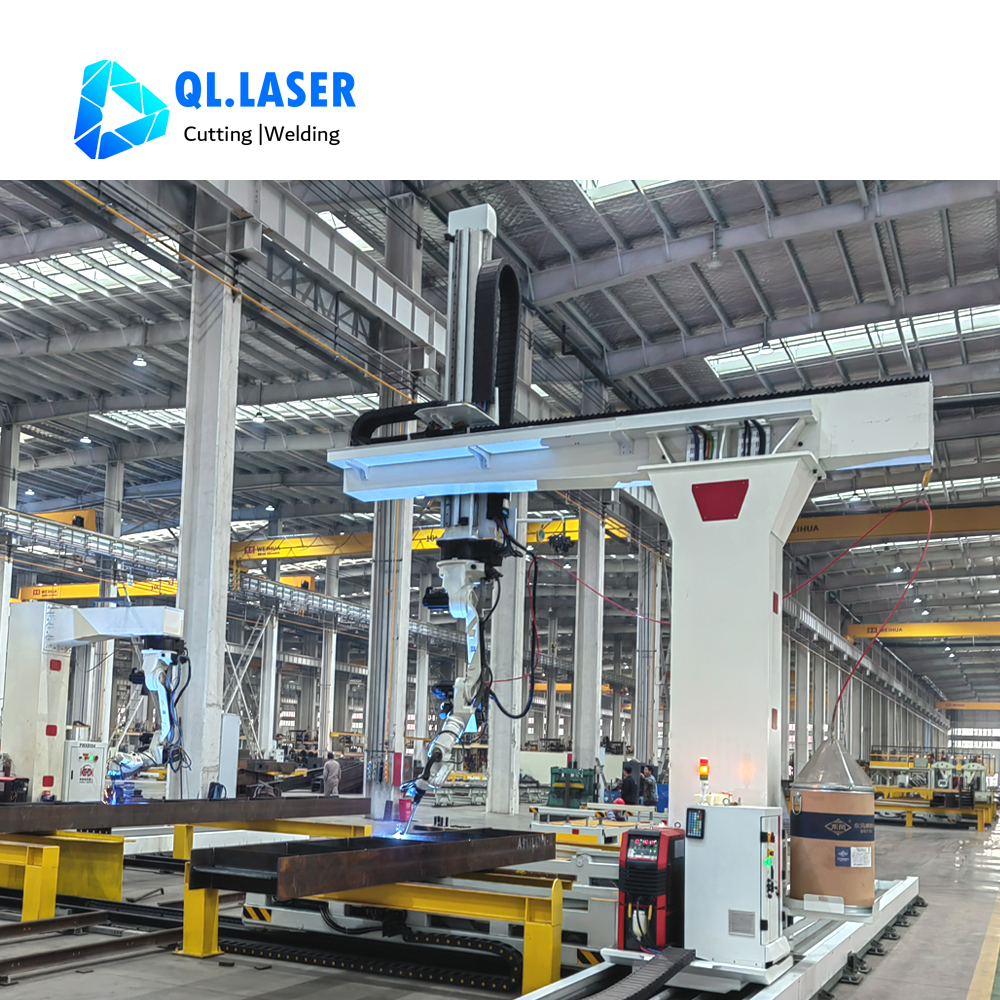

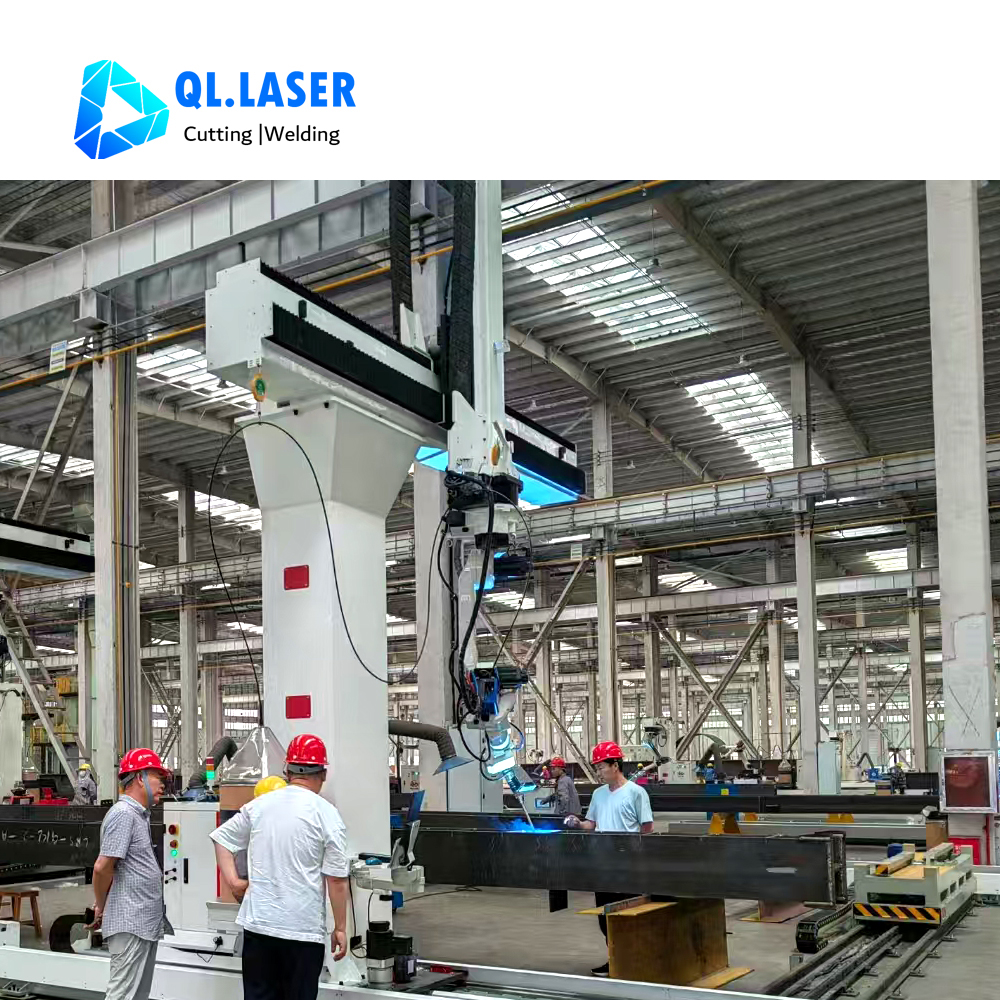

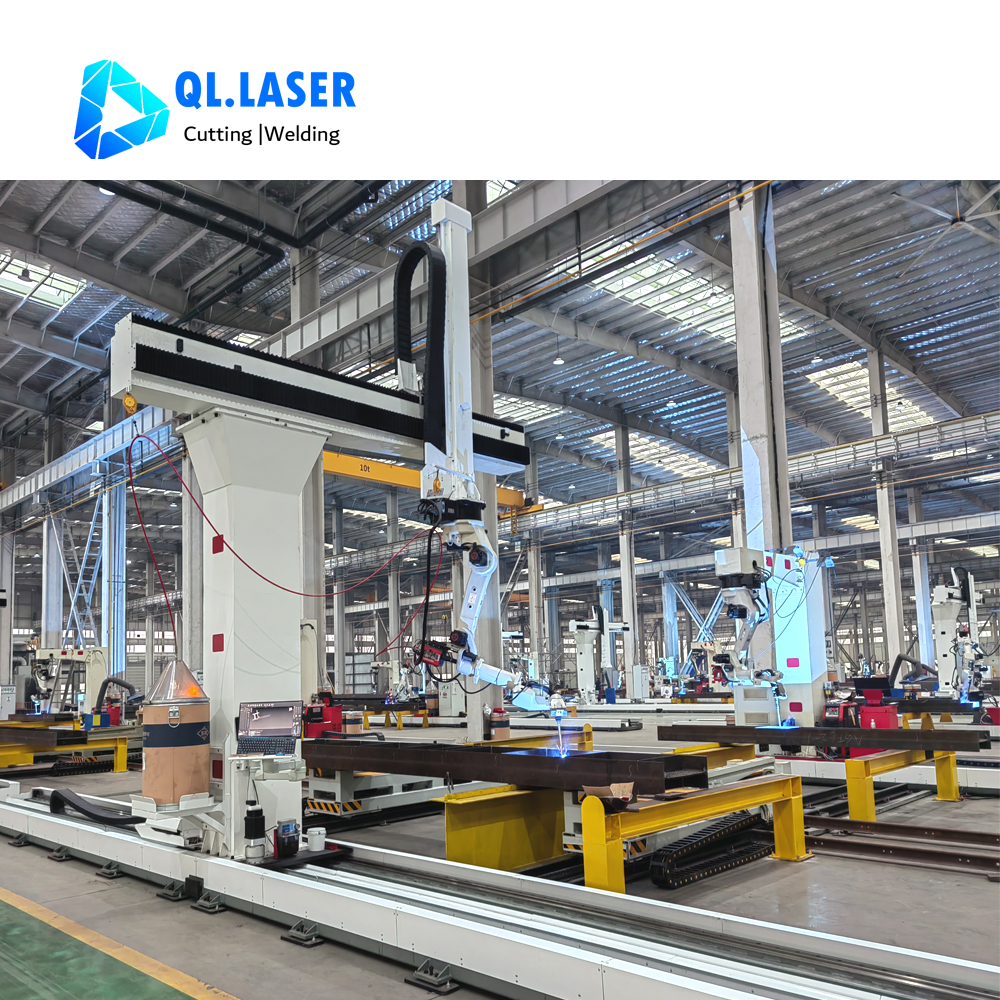

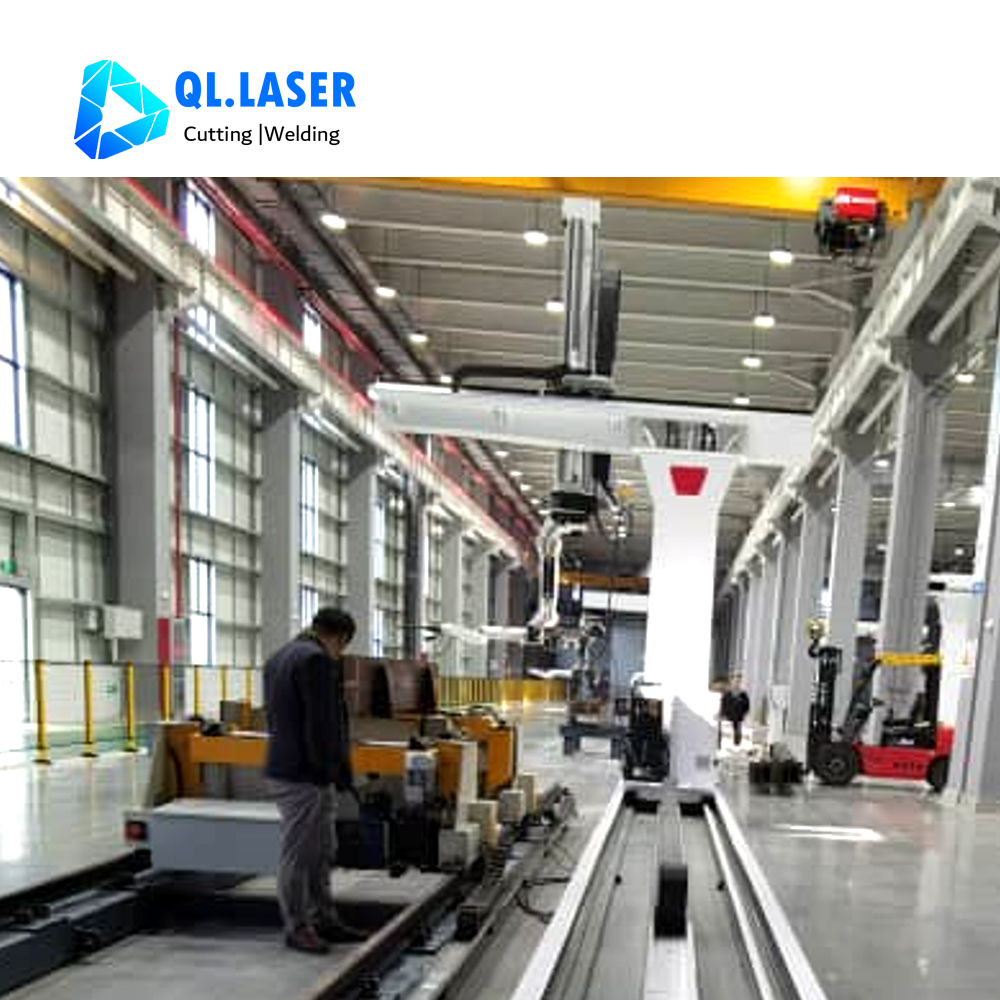

The 9-axis design (usually consisting of a 6-axis robot body and 3-axis guide rails) enables precise welding of all positions (flat, vertical, horizontal) and complex spatial welds, solving the interference problem of traditional 6-axis robots at certain angles.
equipped with advanced technologies such as visual recognition, reverse reconstruction, and adaptive trajectory planning. For example, the 3D point cloud vision system can automatically identify the position of the weld seam and generate optimized welding paths. The system also supports reverse modeling without drawings and digital twin functions.
According to actual application data, its welding efficiency is 3-4 times that of traditional manual welding, with a welding qualification rate of up to 99.6%, and can significantly reduce reliance on skilled welders
such as vertical position welding,over angle welding, intermittent welding, multi layer multi channel and flat welding.
Content | Parameters | Unit |
Degrees of Freedom (number of axes) | 9 | / |
ambient temperature | -10~45 | ℃ |
Maximum end load | 6 | Kg |
Scope of work (recommended) | W3100*L14000*H1500 | mm |
Peak total power | 45 | Kw |
Rated input voltage | 380±10%,3phase | V |
Rated input frequency | 50 | Hz |
Land occupation area | 3000*15000 | mm |

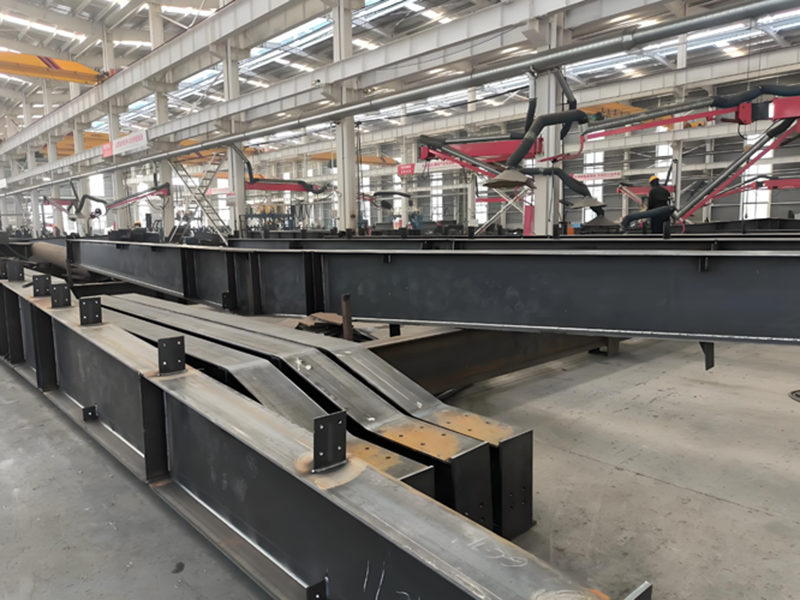

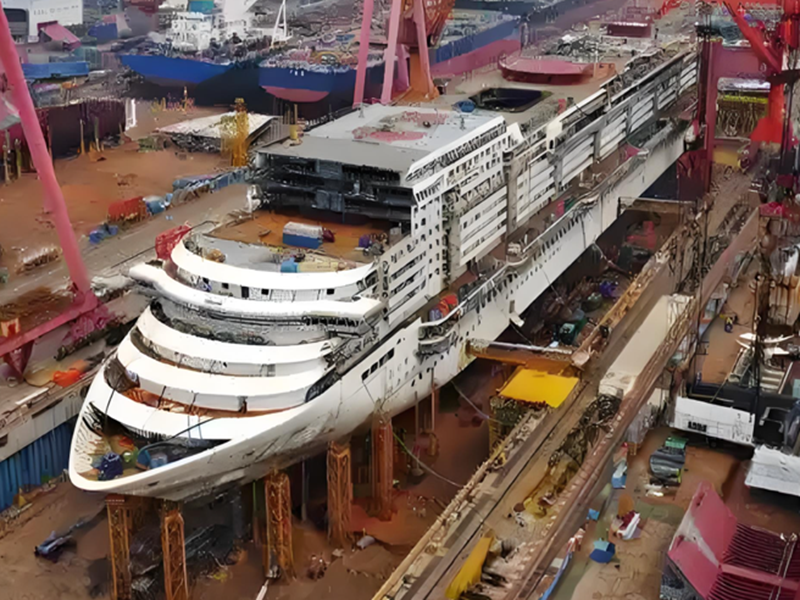

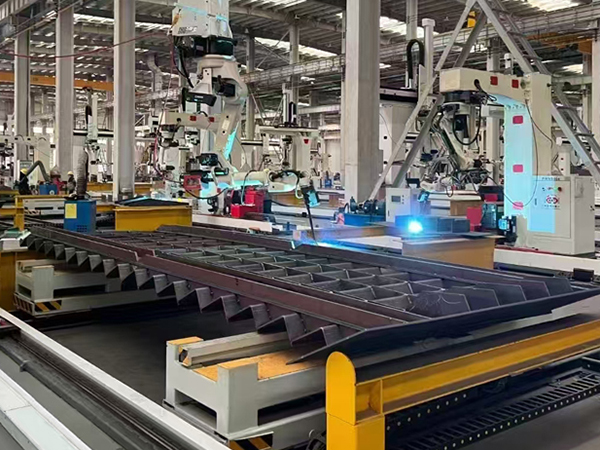

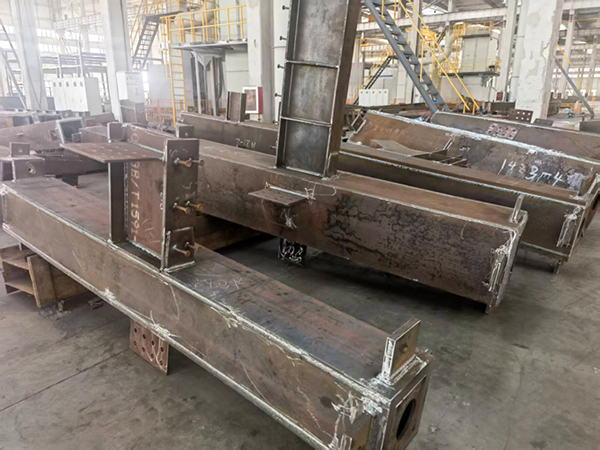

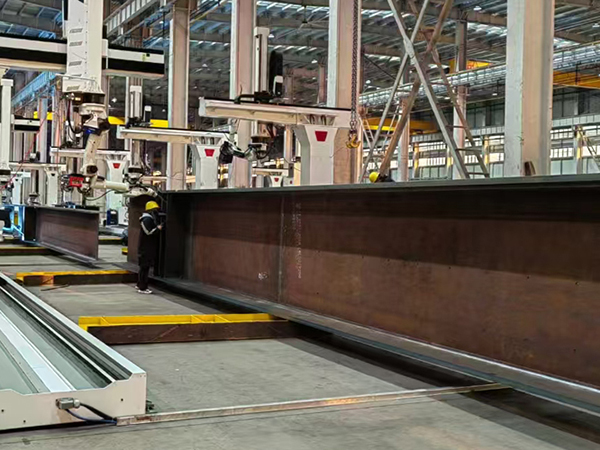

9-axis intelligent welding robots are mainly used in complex welding scenarios for large cross-section and long workpieces, such as H-beams, steel structures, shipbuilding, etc.
 |  |
 |  |  |  |
1. Does this welding robot have 3D scanning function?
Yes, this machine use BOCHU FSWELD3800 controller with camera, it has 3D scanning function
2. Can you do OEM for us?
Yes, we can do OEM for you.
3. Do you provide onsite install and training?
Yes, our engineer will go to your company to install machine and training.
