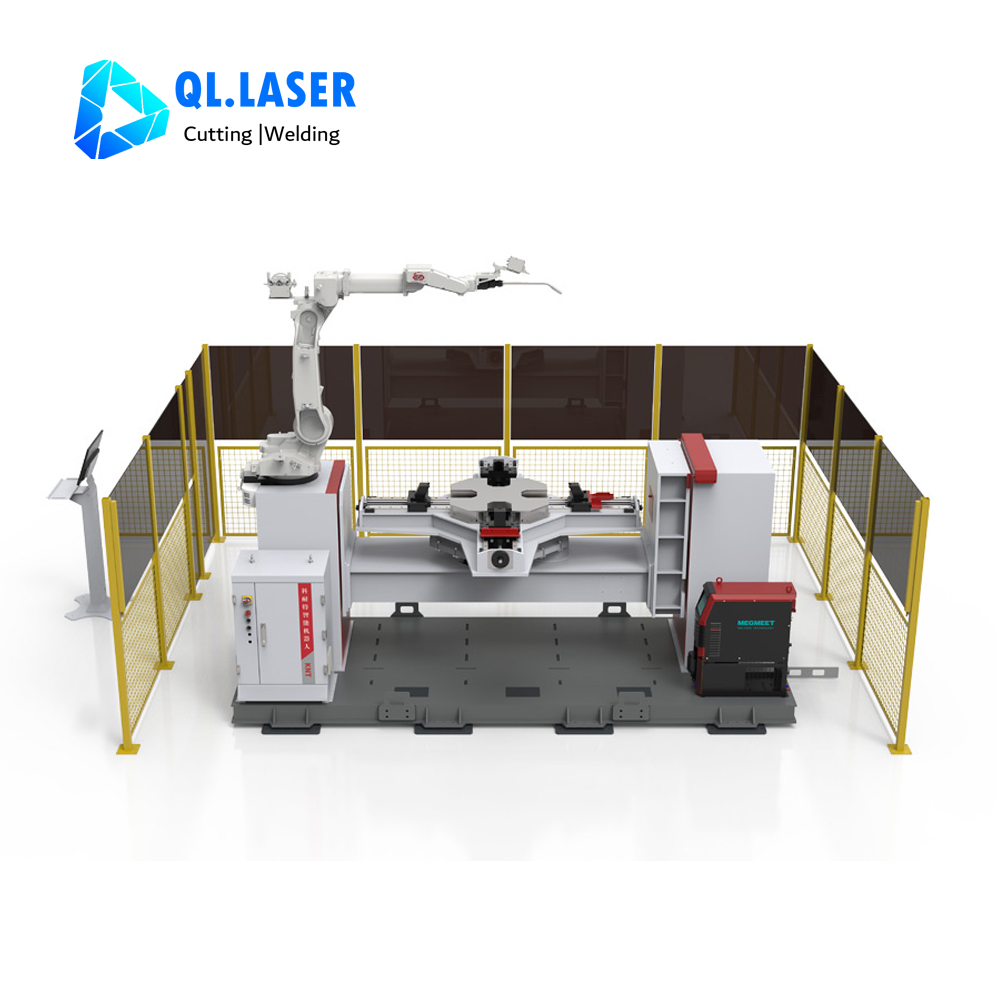

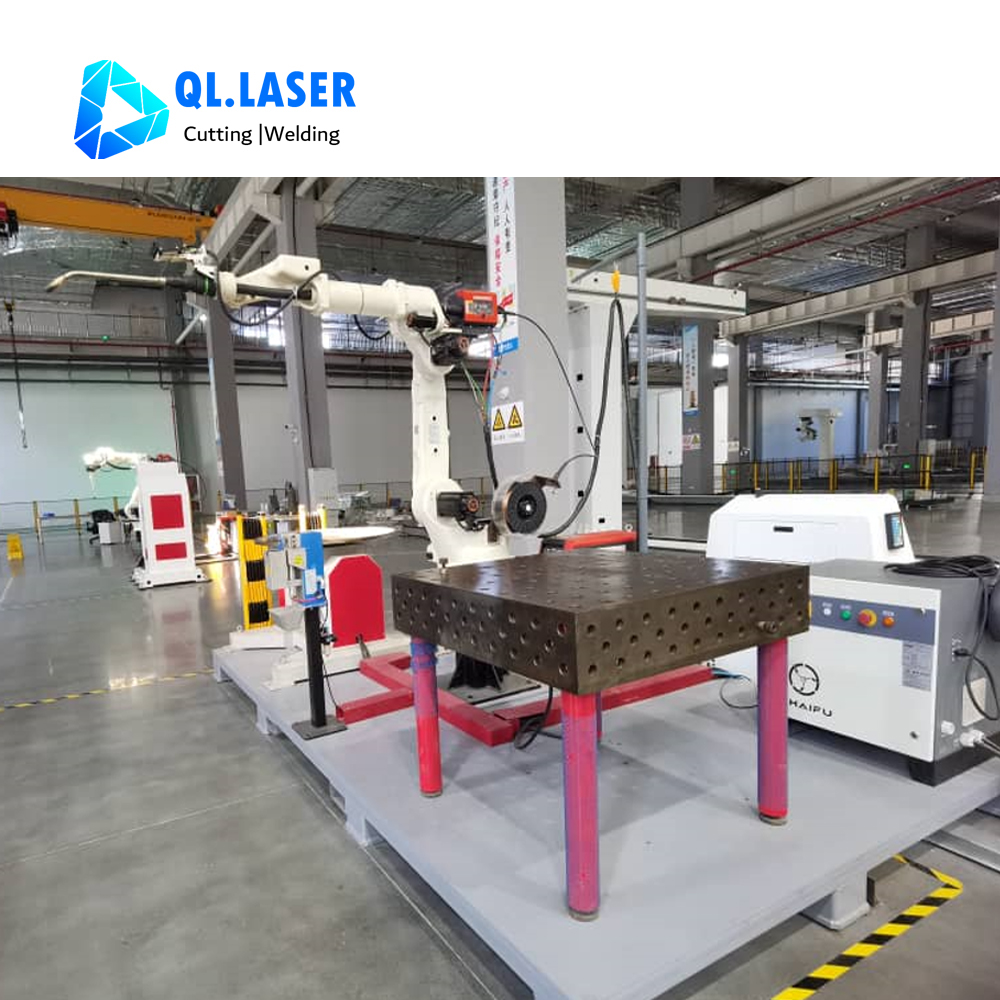

1. Intelligent welding robot, free teaching, free programming, 3D drawings lead in directly, automatic finding welding line, operating easily.
2. Smooth integration with mainstream 3D modeling software such as Tekla and SolidWorks; Support one click direct import of. ifc. step. stp format model files.
3. Parametric modeling
Regular workpieces such as H-beams, I-beams, power tower legs, and cow legs can be modeled without drawings; The operator measures the main parameters of the workpiece, such as length, width, height, and number of ribs, and inputs the data into the software interface to immediately obtain the model.

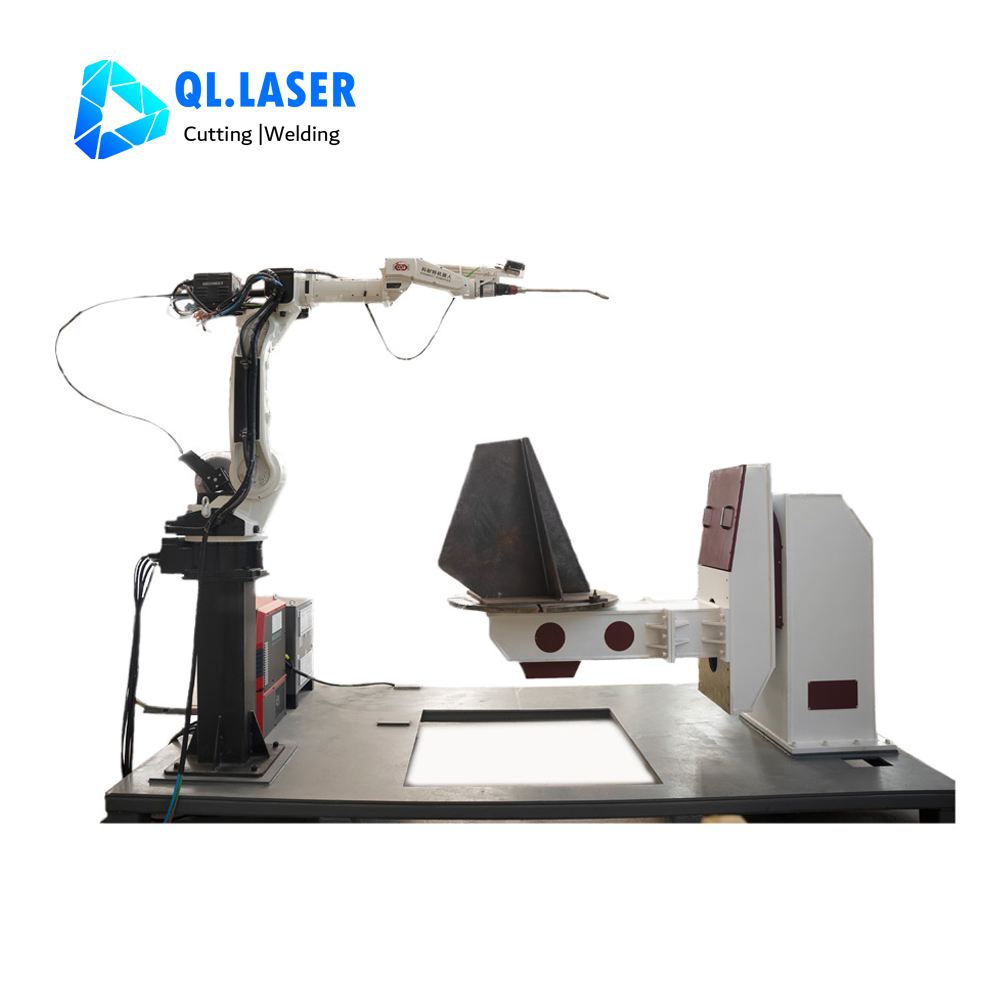

4. Equip different positioners according to customer needs.

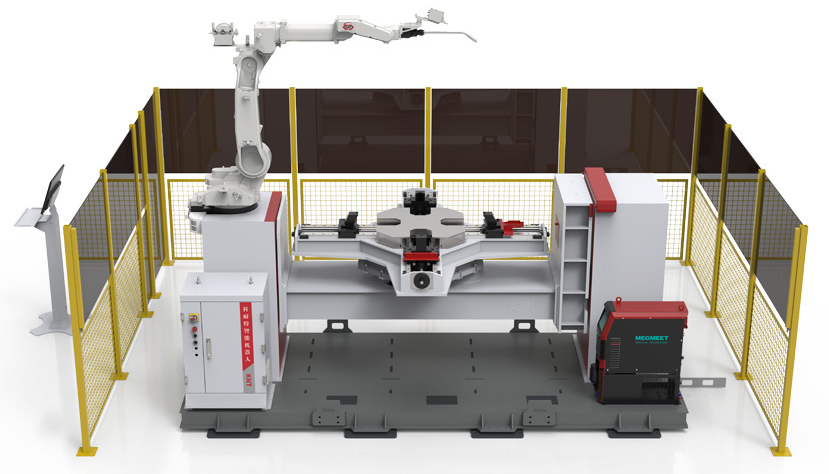

Content | Parameters | Unit |
Degrees of Freedom (number of axes) | 6+2 | / |
ambient temperature | -10~45 | ℃ |
Maximum end load | 6 | Kg |
Scope of work (recommended) | W1000*L1000*H600 | mm |
Peak total power | 40 | Kw |
Rated input voltage | 380±10% 3phase | V |
Rated input frequency | 50 | Hz |
Land occupation area | 2400*4000 | mm |

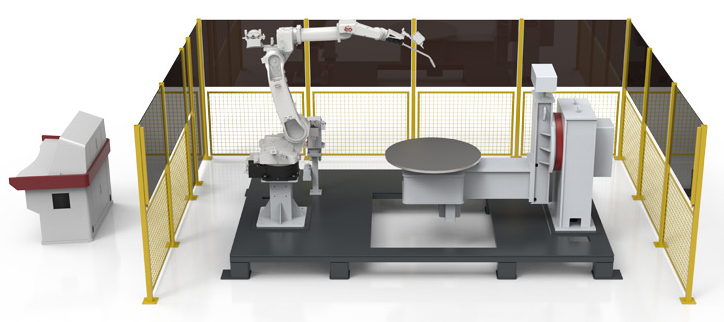

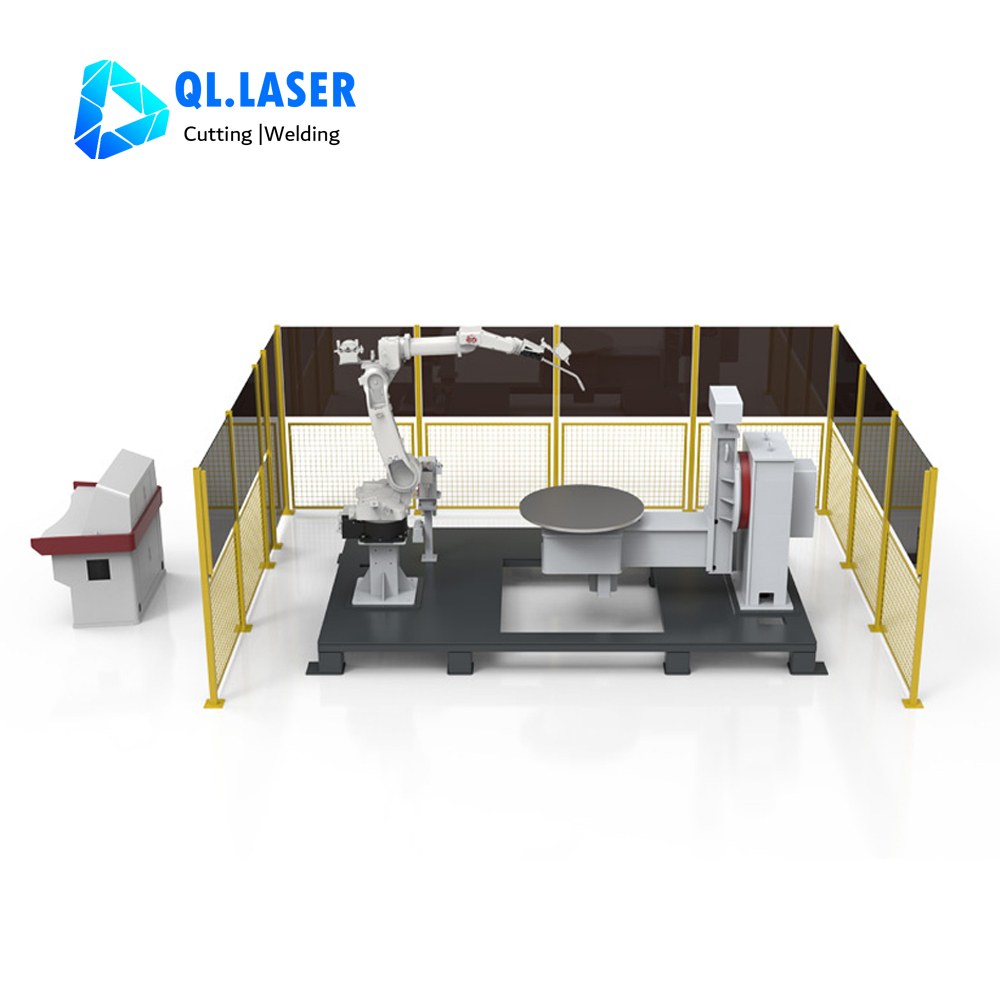

Content | Parameters | Unit |
Degrees of Freedom (number of axes) | 6+2 | / |
ambient temperature | -10~45 | ℃ |
Maximum end load | 6 | Kg |
Scope of work (recommended) | W1200*L1200*H600 | mm |
Peak total power | 40 | Kw |
Rated input voltage | 380±10% 3phase | V |
Rated input frequency | 50 | Hz |
Land occupation area | 2400*4000 | mm |

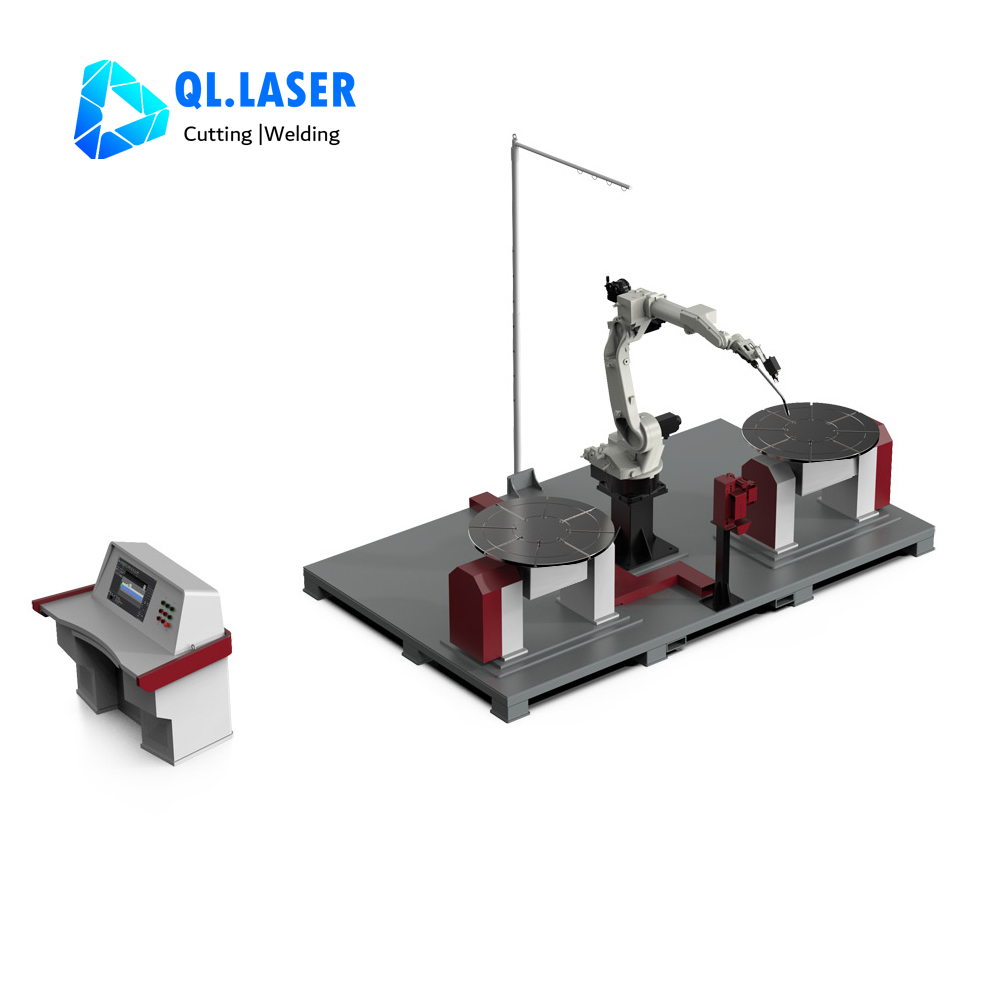

Content | Parameters | Unit |

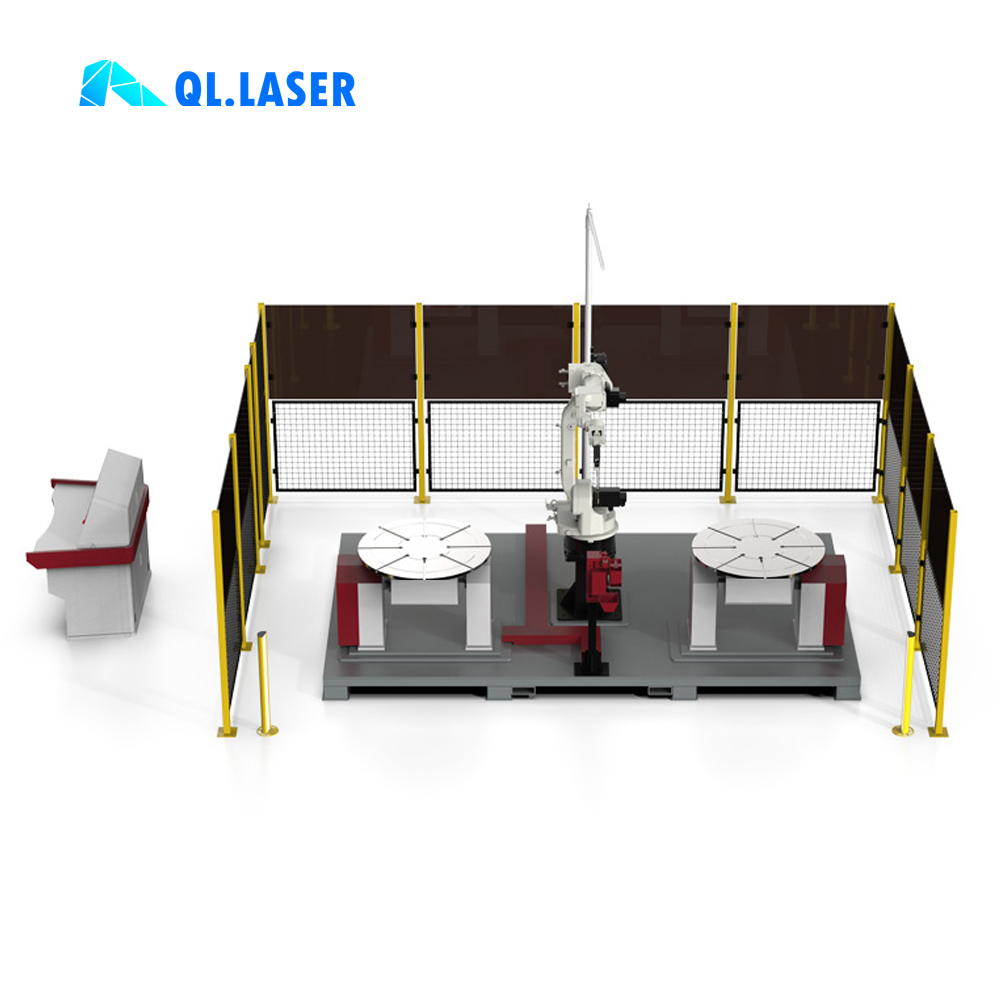

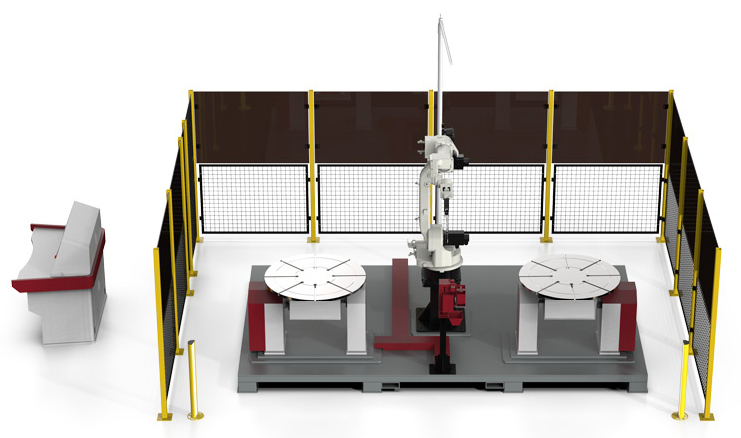

Degrees of Freedom (number of axes) | 6+2+2 (Can be equipped with 2sets dual axis positioner) | / |
ambient temperature | -10~45 | ℃ |
Maximum end load | 6 | Kg |
Scope of work (recommended) | W1000*L1000*H600 | mm |
Peak total powe | 45 | Kw |
Rated input voltage | 380±10% 3phase | V |
Rated input frequency | 50 | Hz |
Land occupation area | 2400*4000 | mm |

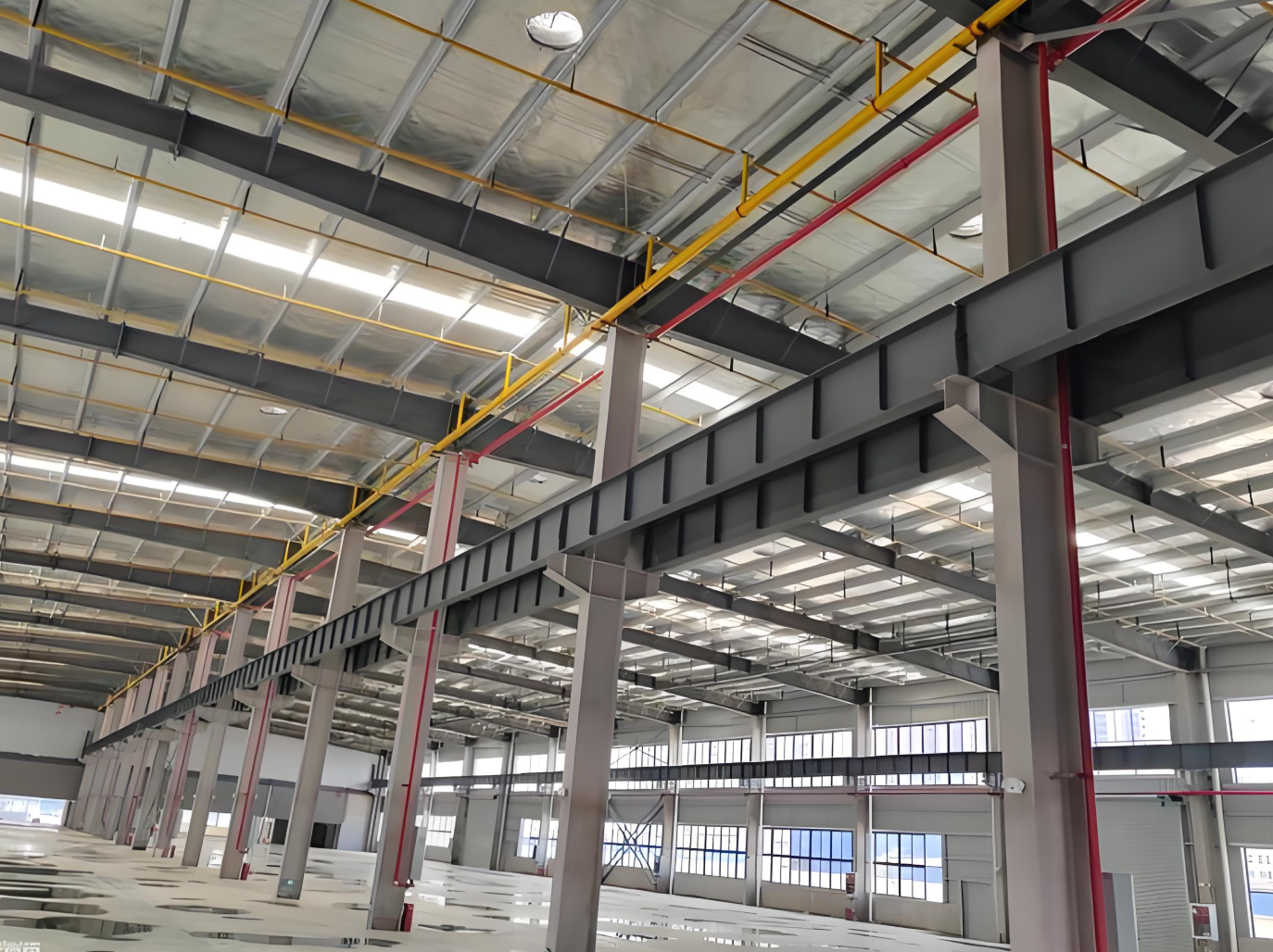

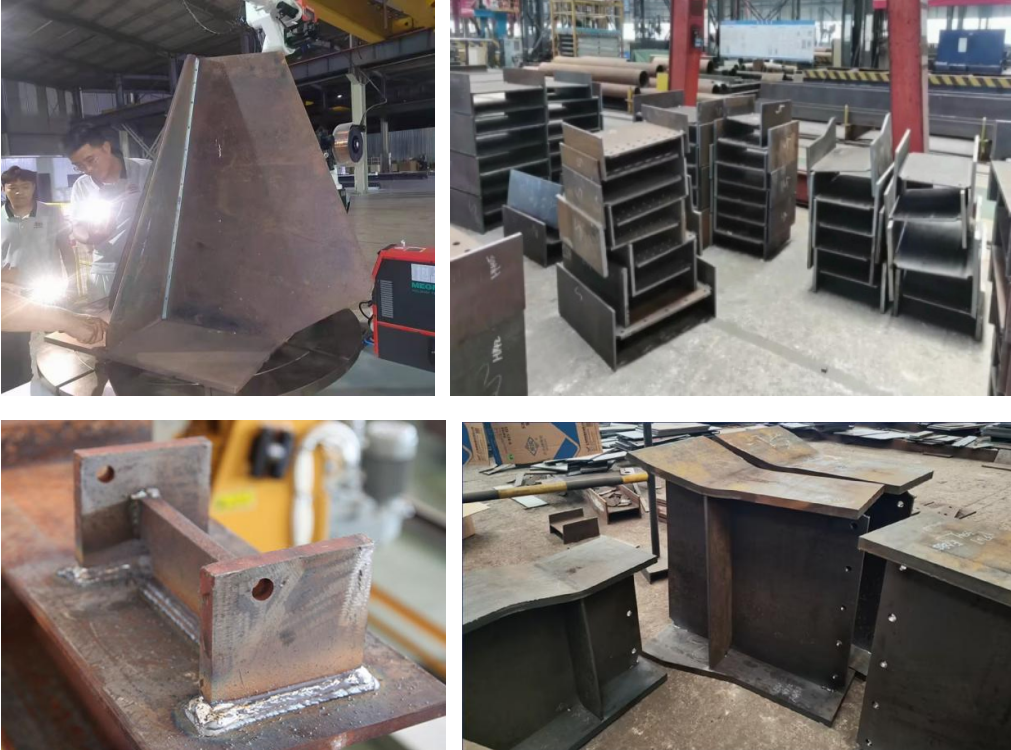

BW series intelligent welding robots are mainly used in the steel structure industry, such as large cow legs, tower legs, etc.
1. How to choose positioner?
According to your workpiece size to choose positioner.
2. Is this robot complex to operate?
This machine is easy to operate.ifc stp,step format drawing can input welding software directly.
3. Does the machine includes safety protection?
Safety protection is optional.
