1. Efficient and precise
By using visual scanning positioning technology, welding programs can be quickly generated and the weld trajectory can be automatically tracked, which is several times more efficient than traditional manual methods.
2. Automation and Intelligence
Adjust welding parameters through an intelligent control system to automatically adapt to changes in weld offset or width. Support teaching free programming, simplify the operation process, and reduce the requirement for workers' skills.
3. Stability and compatibility

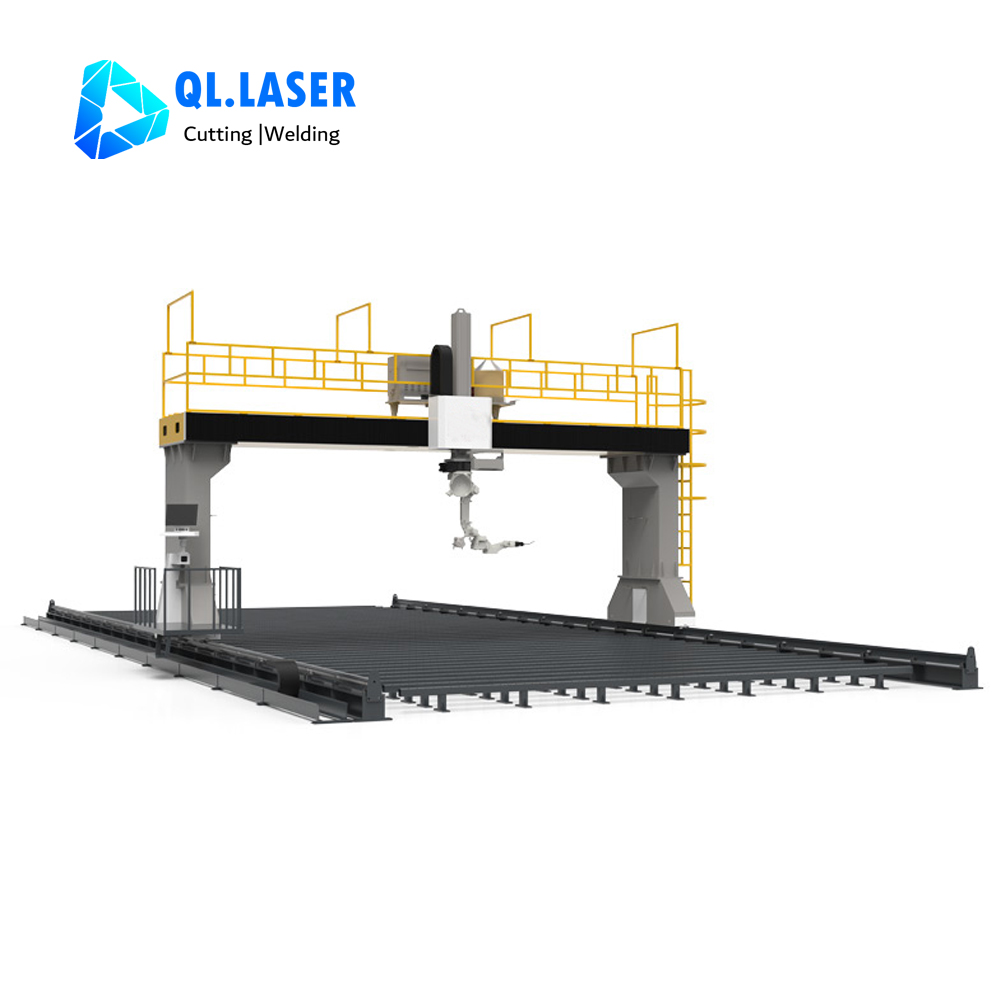

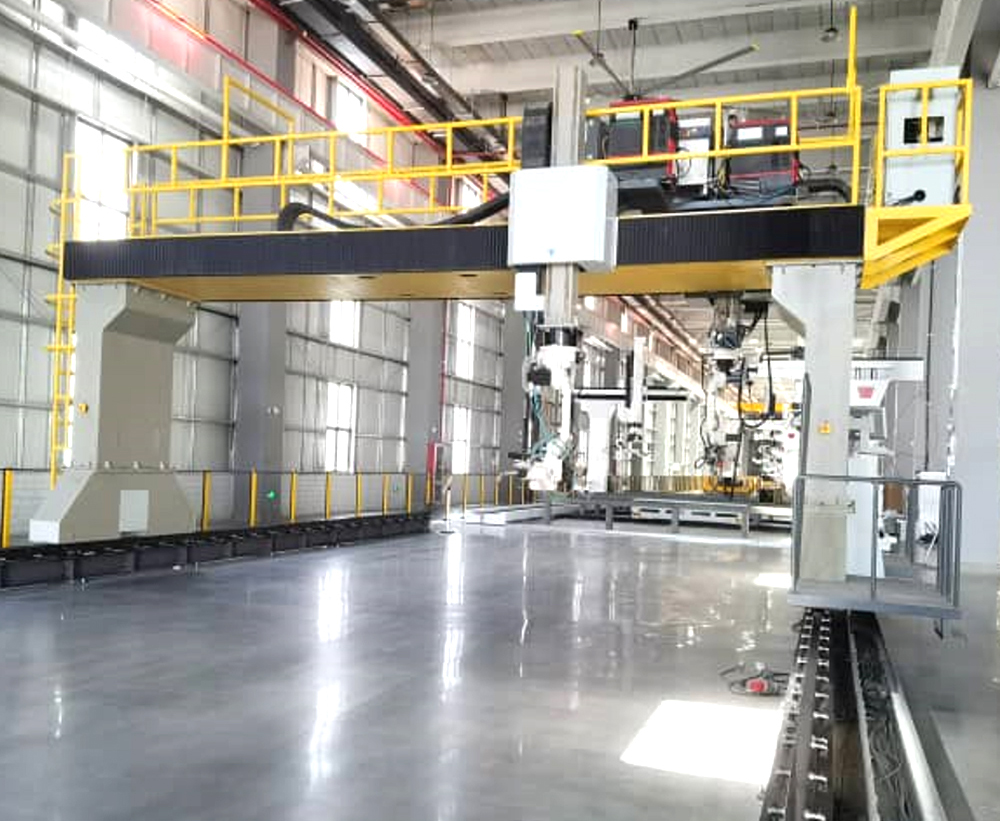

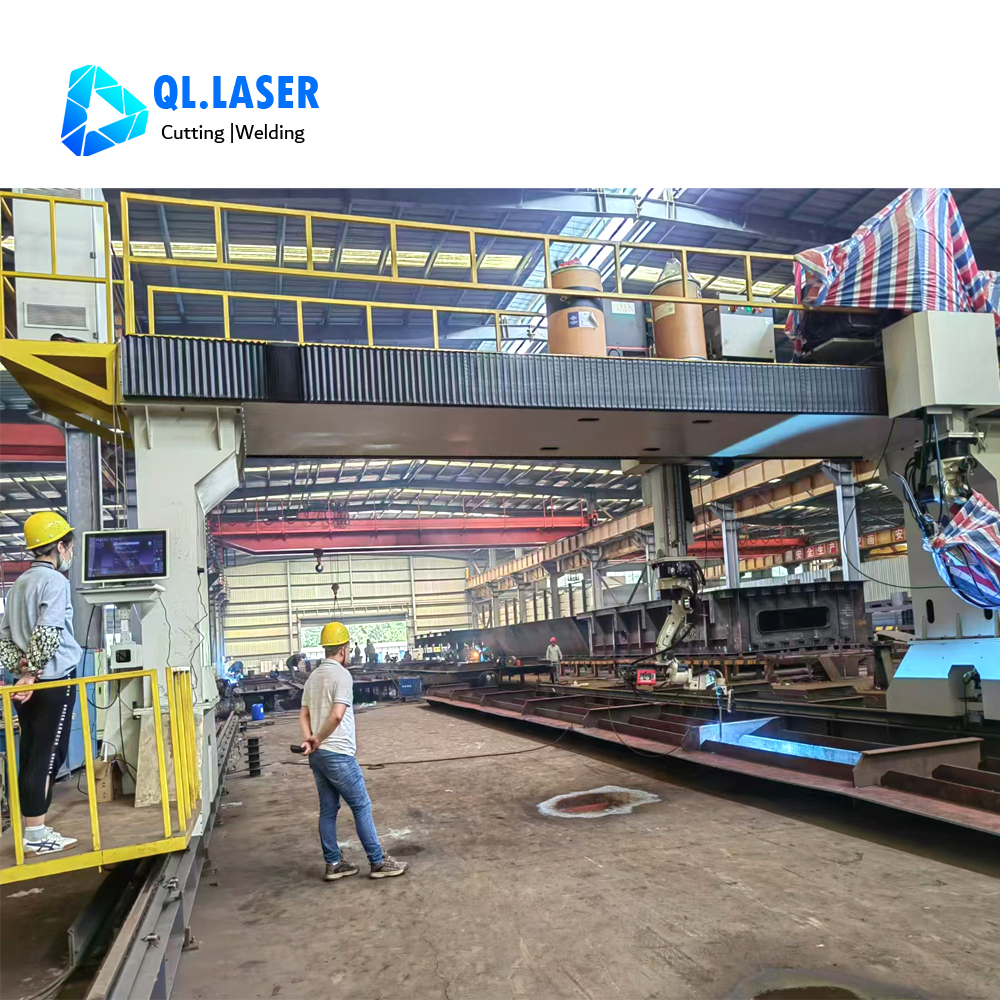

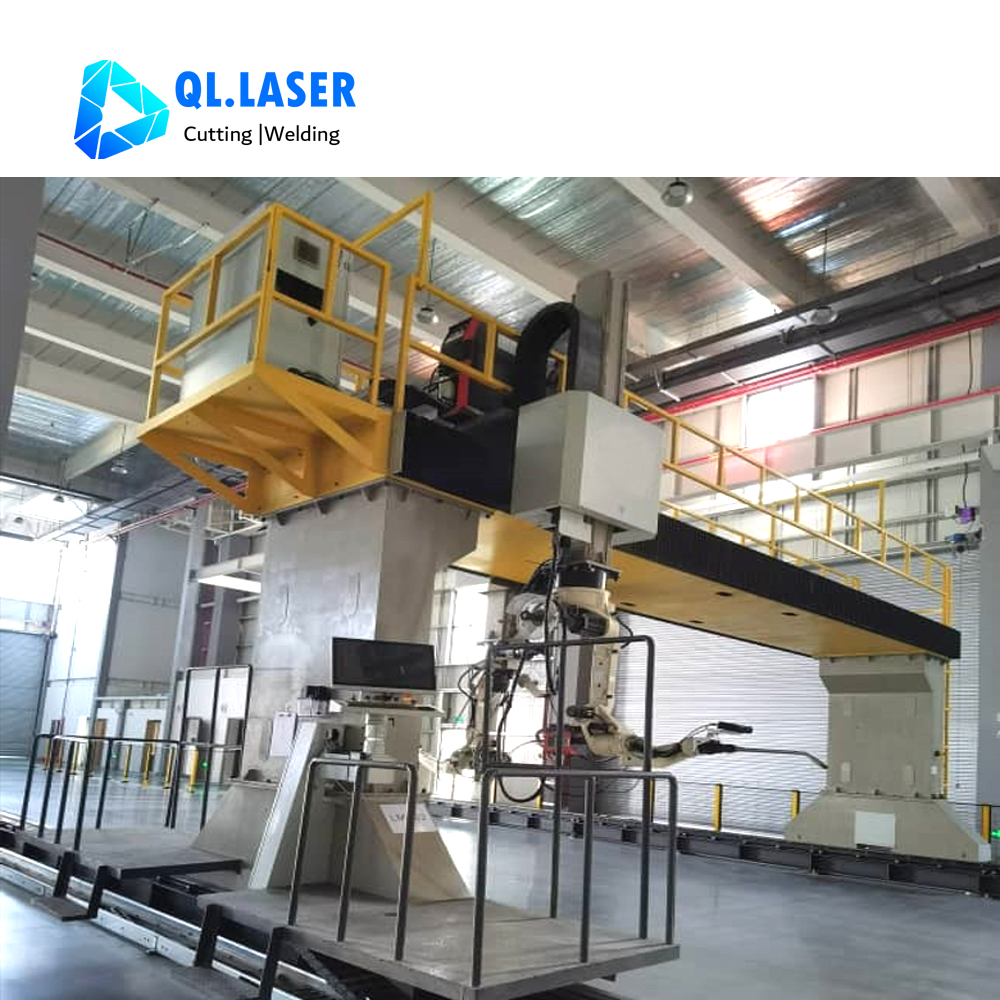

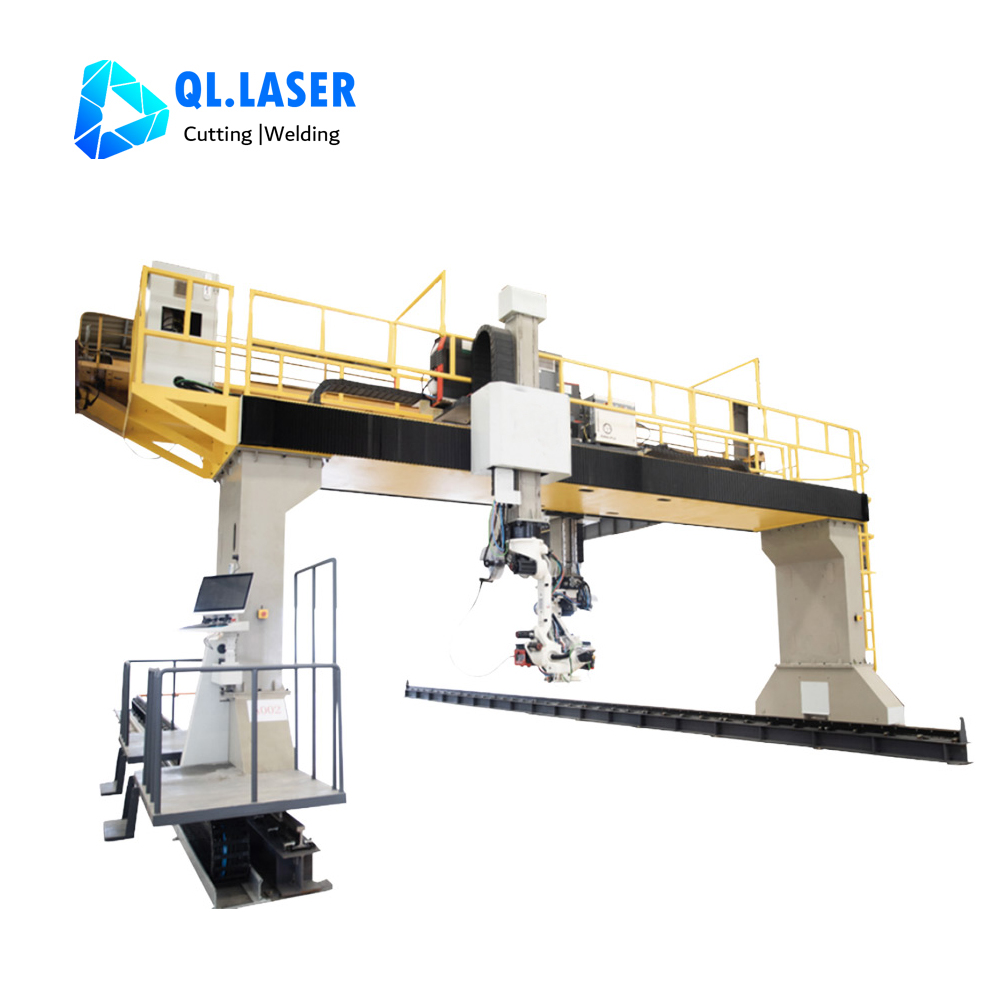

The gantry structure is suitable for welding ultra wide and ultra long workpieces. Visual sensors can cope with various errors and ensure the accuracy of weld formation.
4. Safety and efficiency
Support continuous operations, replacing manual labor in harsh environments such as smoke, dust, and noise, reducing labor intensity and minimizing human errors.
Content | Parameters | Unit |
Degrees of Freedom (number of axes) | 9 | / |
ambient temperature | -10~45 | ℃ |
Maximum end load | 6 | Kg |
Scope of work (recommended) | W8000*L20000*H2000 (other size can be customized) | mm |
Peak total power | 60 | Kw |
Rated input voltage | 380±10%,3phase | V |
Rated input frequency | 50 | Hz |
Land occupation area | 10000*22000 | mm |

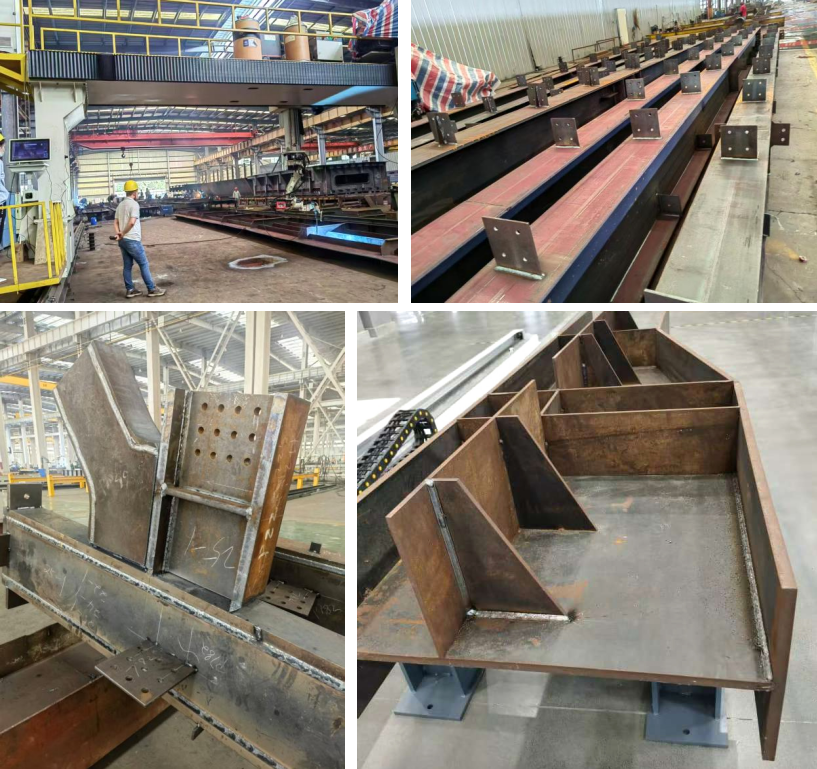

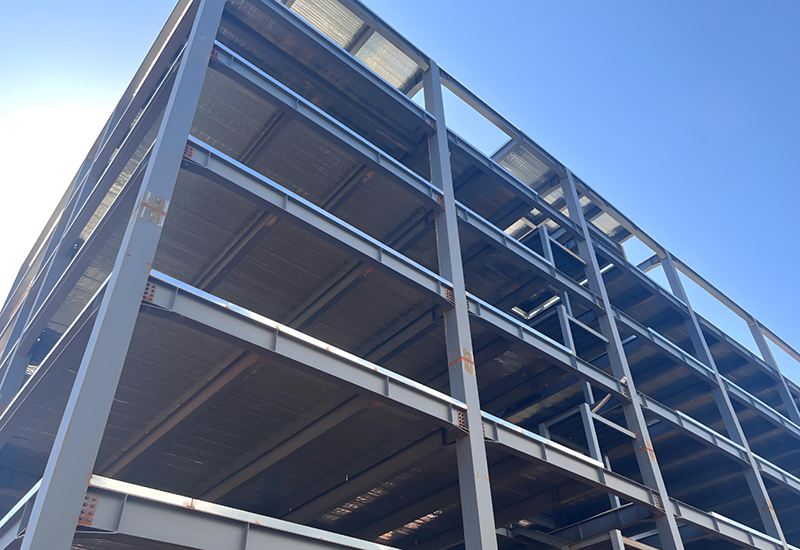

The gantry welding robot is suitable for fields such as steel structures and ships, and can weld large components such as U-rib plates and bridge plate units.
 |  |
1. Does this welding robot machine can use 2robot together?
Cannot. Only use 1 robot.
2. What is delivery time for this gantry robot ?
Delivery time：30working days after receive deposit.
3. What is your after-service ?
We provide onsite install and training .and also provide online service.
