1.Visual positioning tracking module

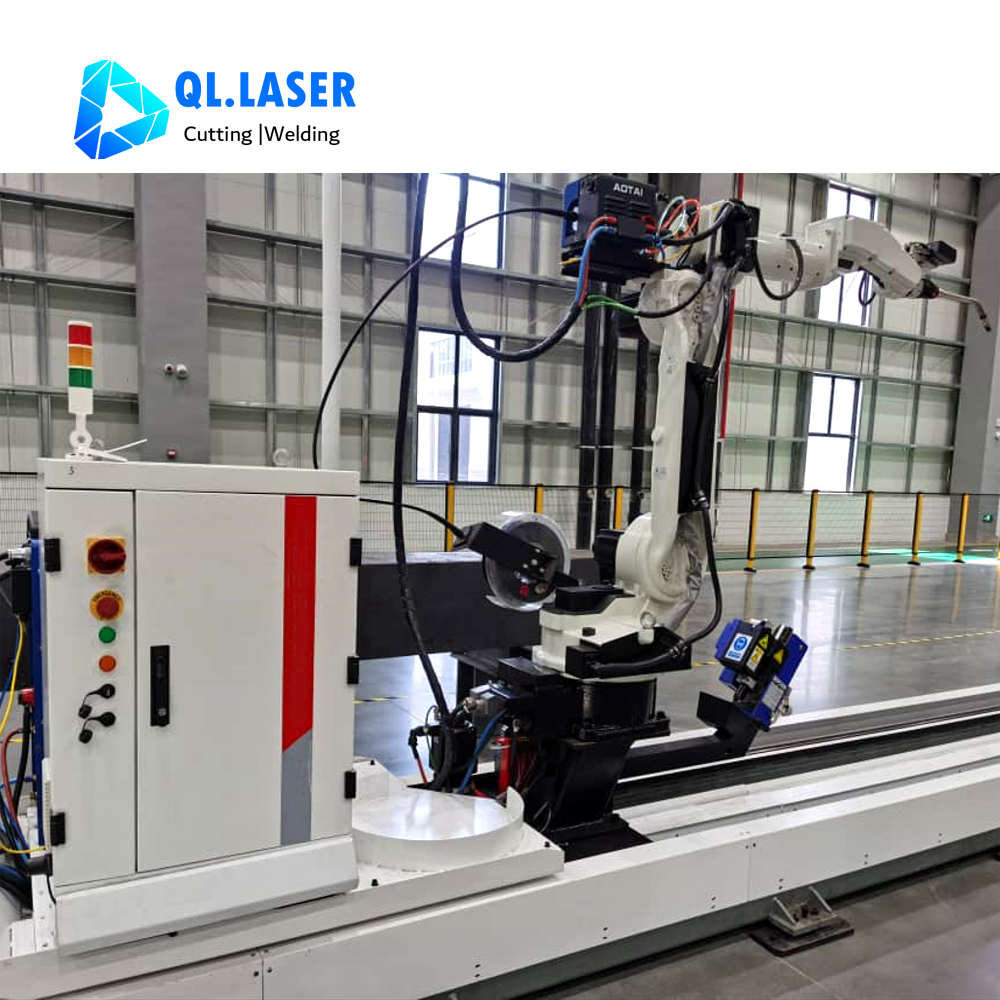

After illuminating the mark spot on the workpiece by the camera, the welding position and height are corrected by the laser displacement sensor.
2.With its own welding process library

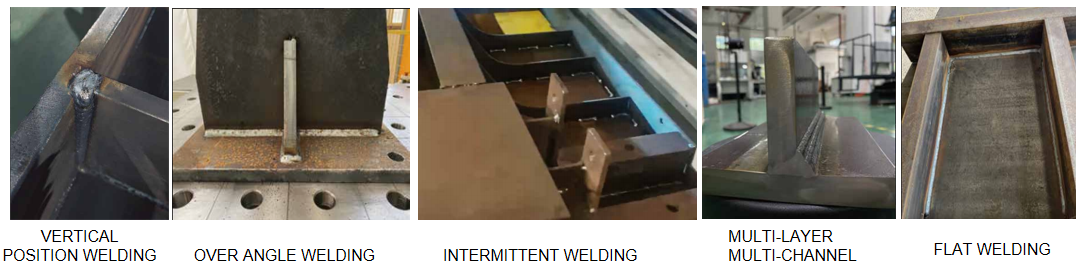

Our intelligent robot provides you with a variety of welding processes, such as flat angle welding, vertical welding, flat welding, multi-layer multi-channel, intermittent welding, continuous welding, cover angle welding and other welding processes.

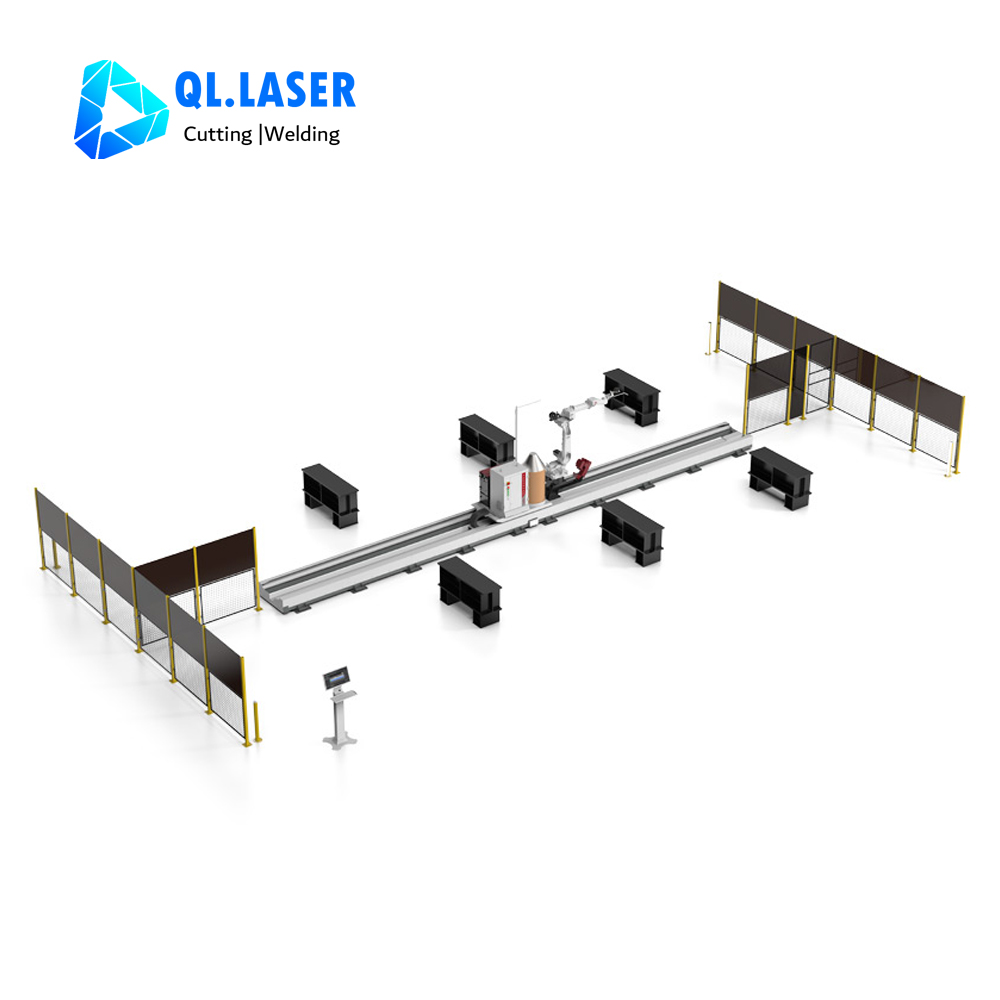

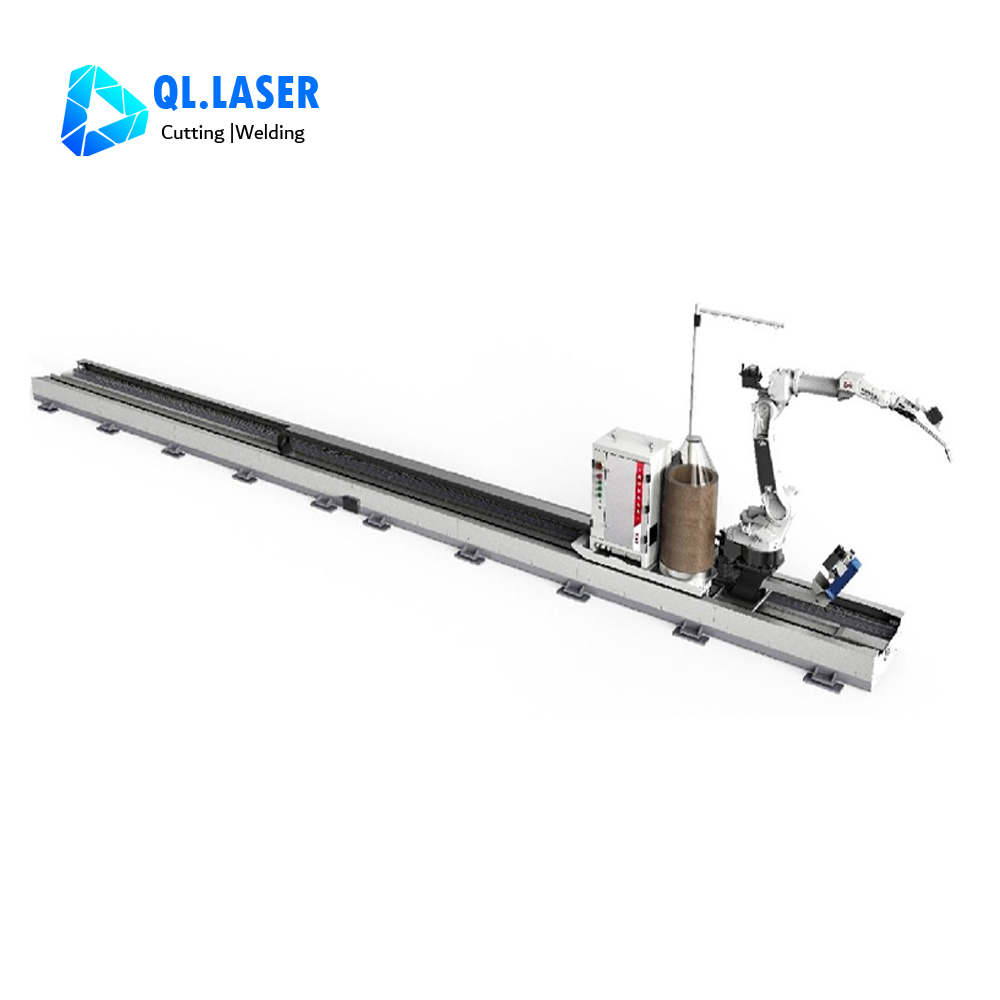

3. Ground rail structure, which can be welded on both sides of the track.
4. The length of the track can be increased according to customer needs.
Content | Parameters | Unit |
Degrees of Freedom (number of axes) | 7 | / |
ambient temperature | -10~45 | ℃ |
Maximum end load | 6 | Kg |
Scope of work (recommended) | W1200*L12000*H650 | mm |
Peak total power | 45 | Kw |
Rated input voltage | 380±10%,3phase | V |
Rated input frequency | 50 | Hz |
Land occupation area | 1500*15000 | mm |

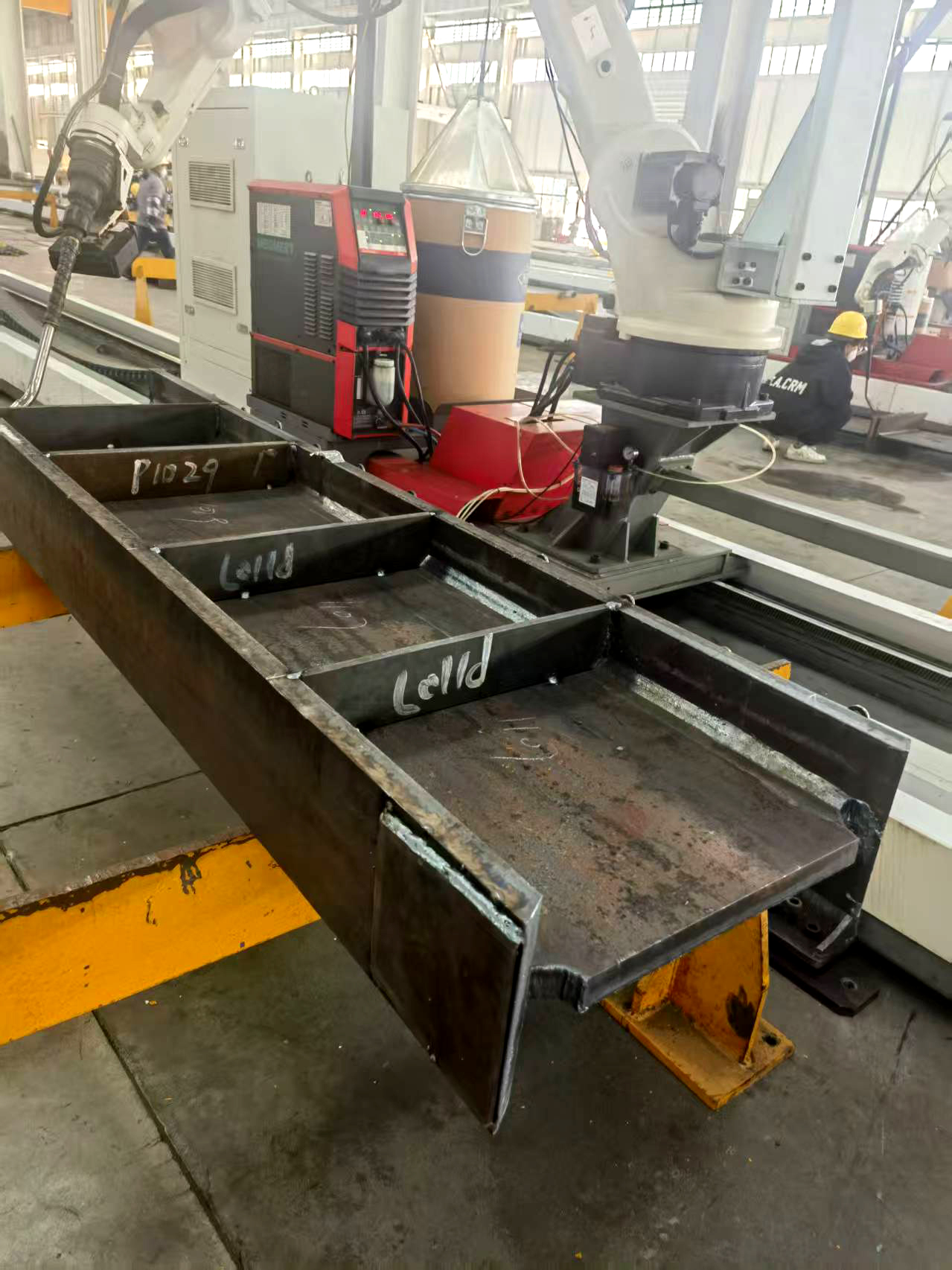

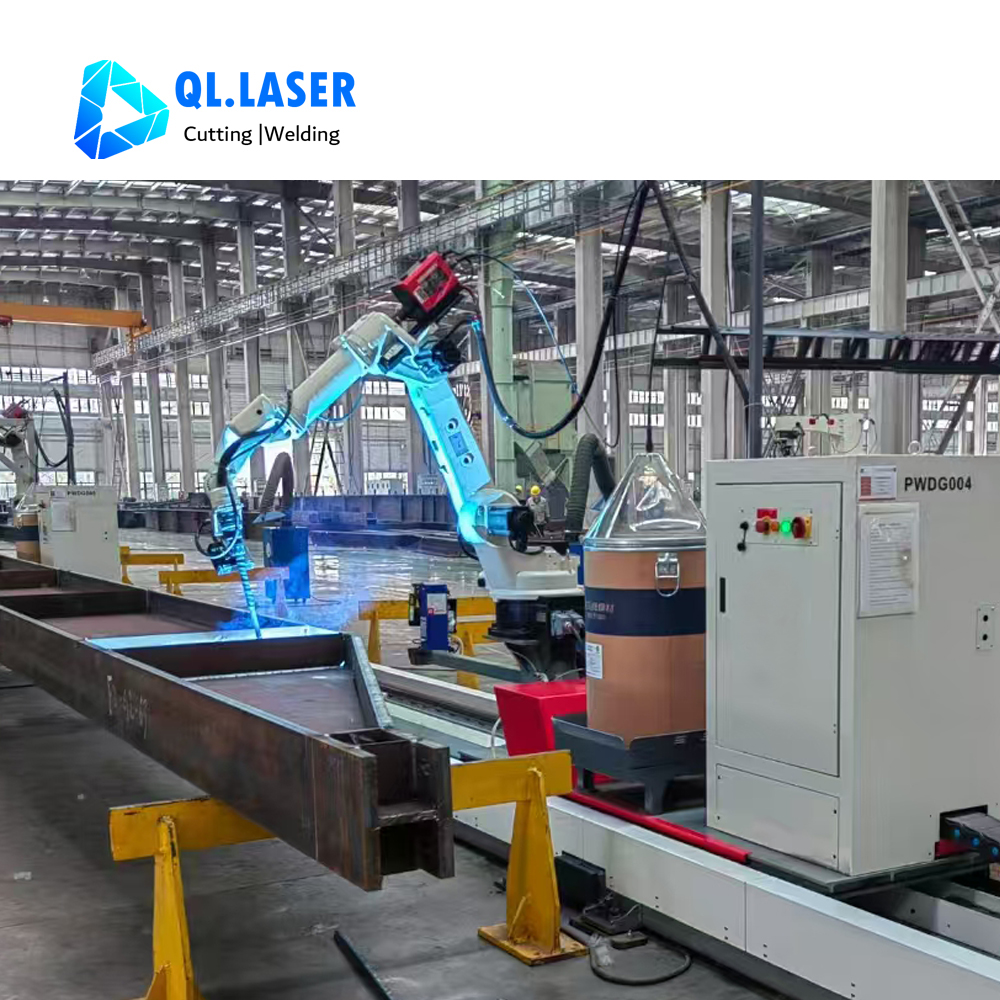

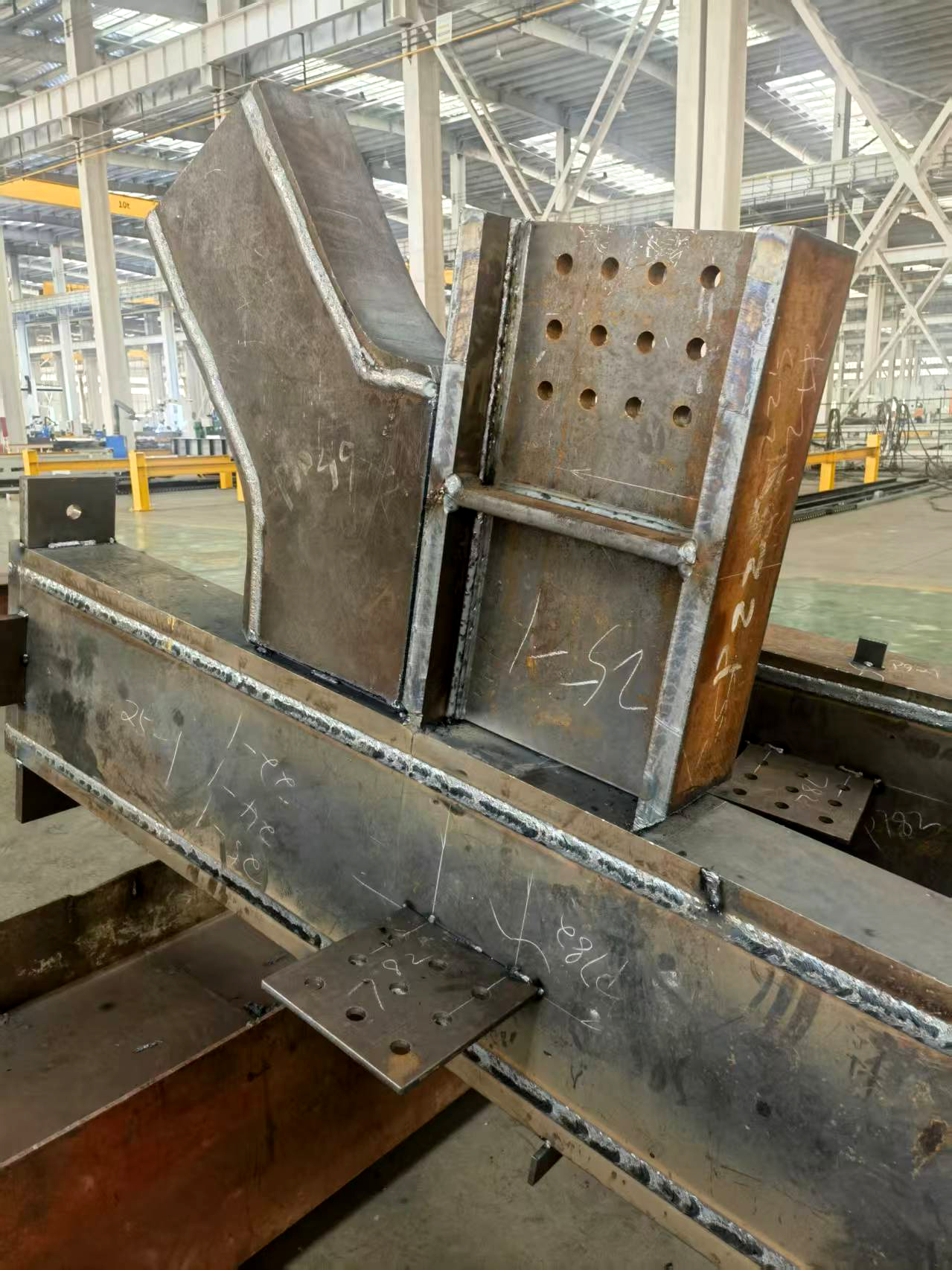

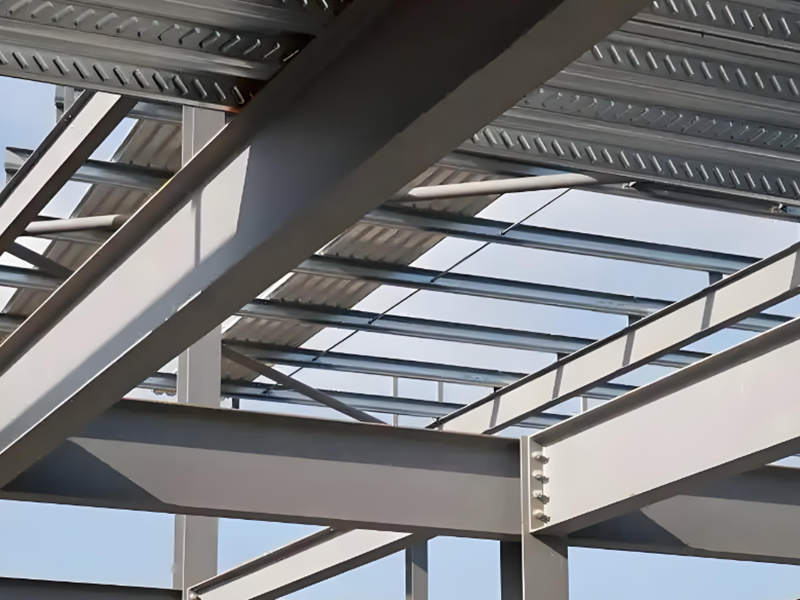

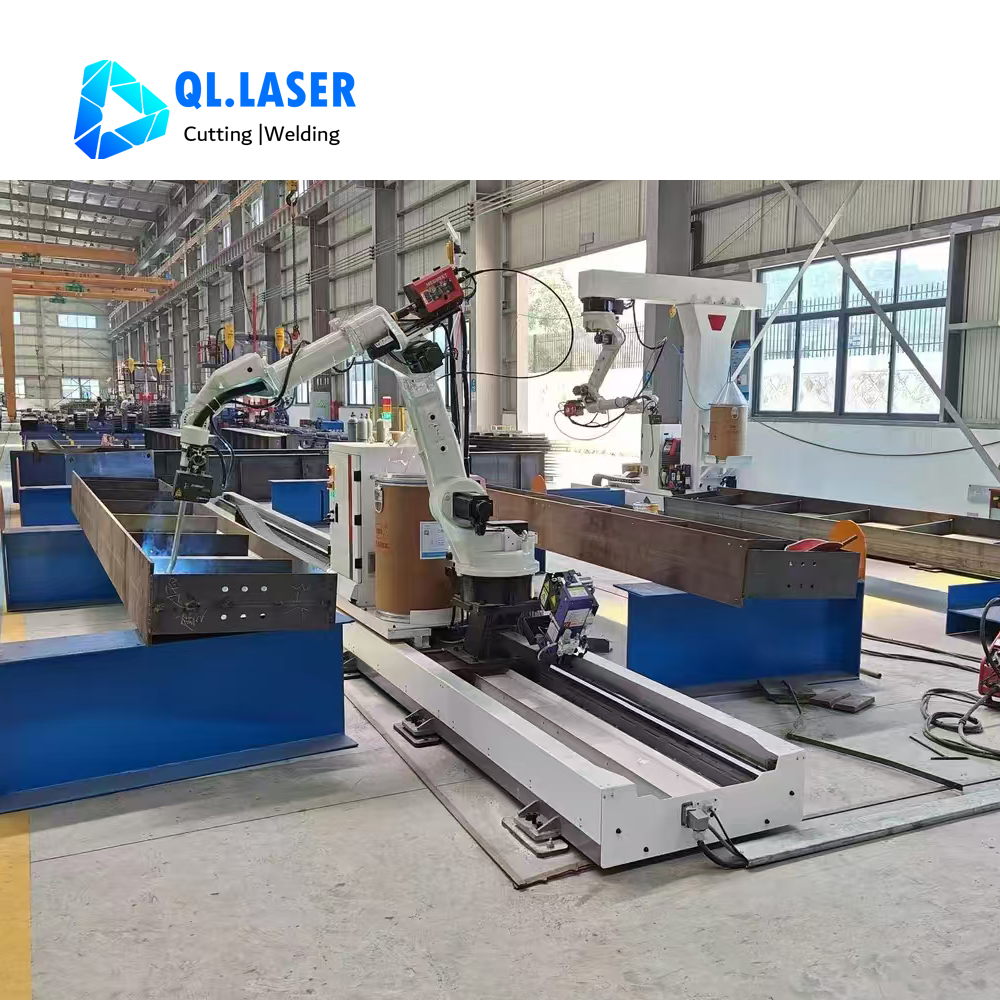

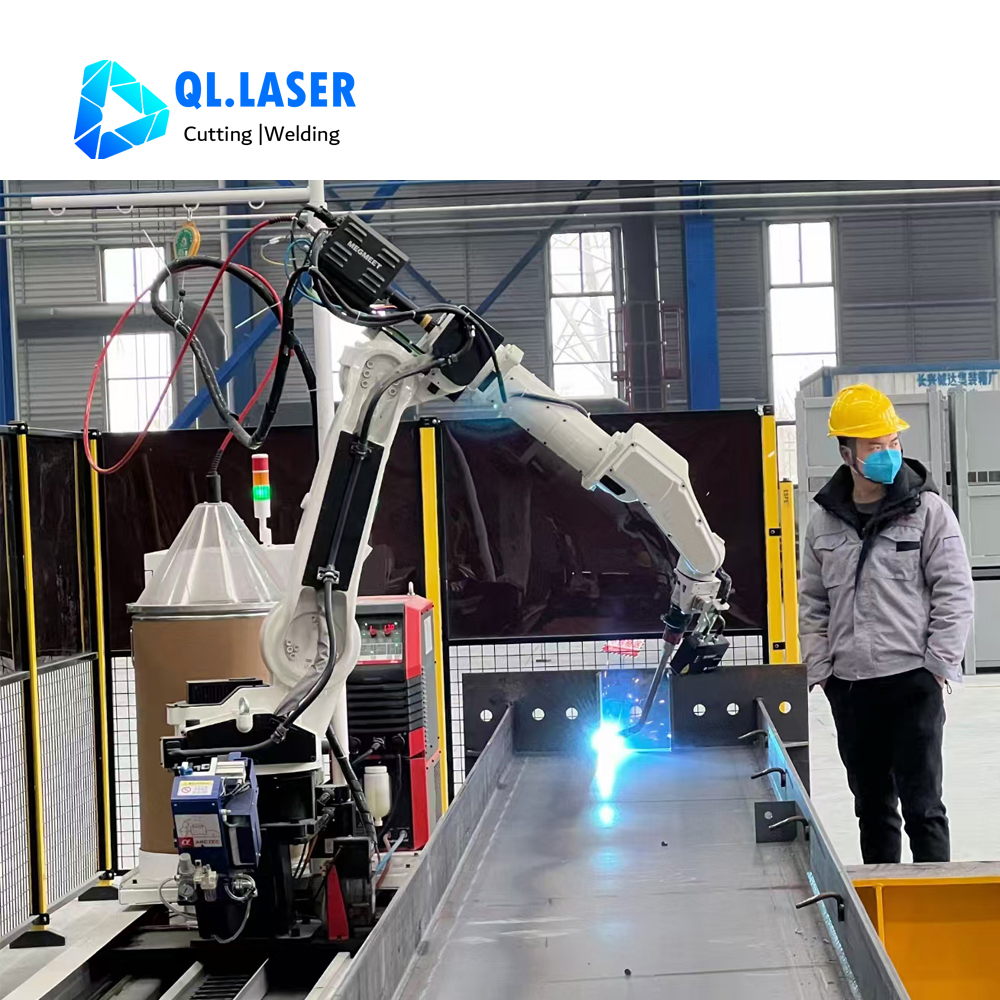

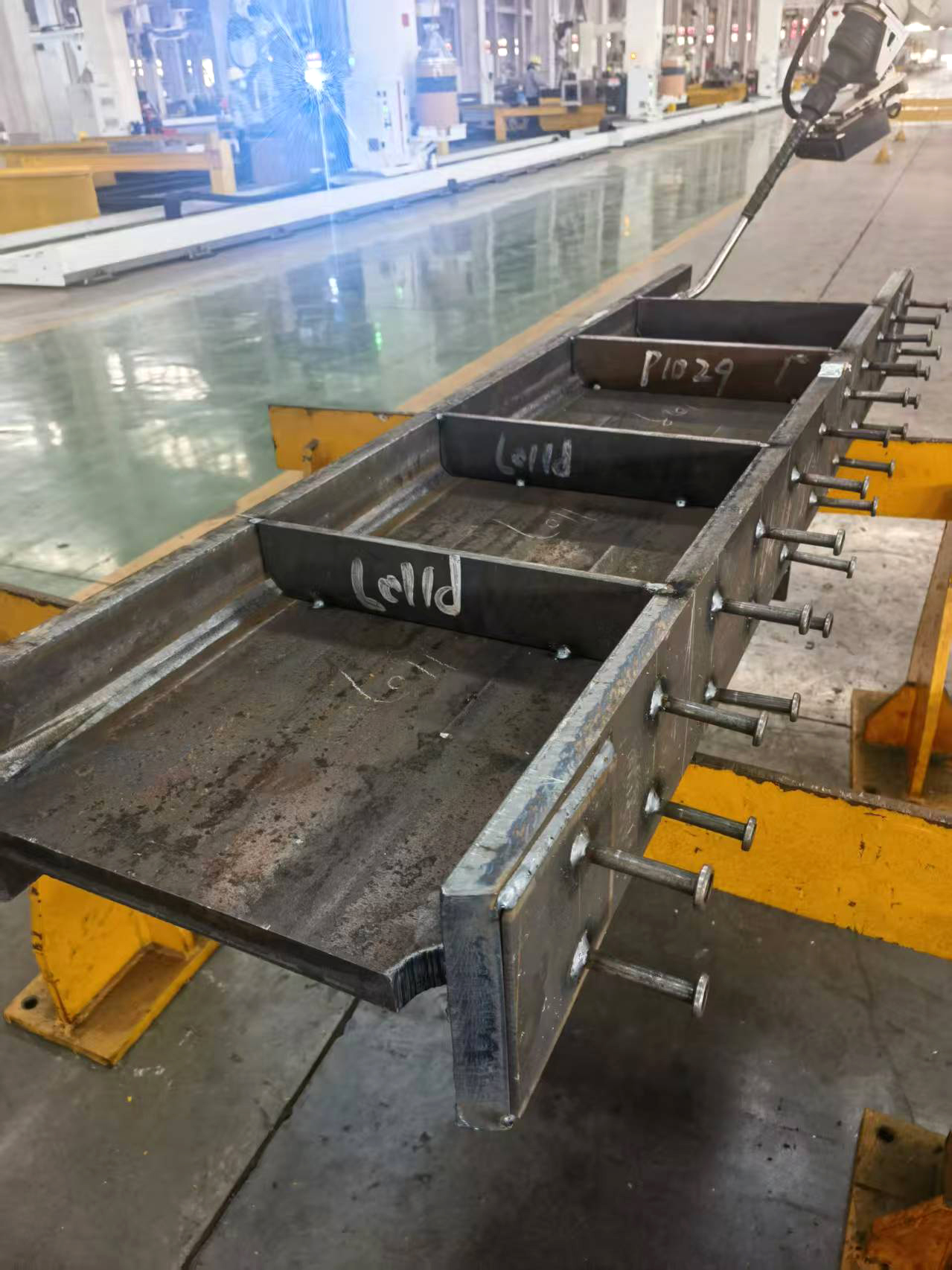

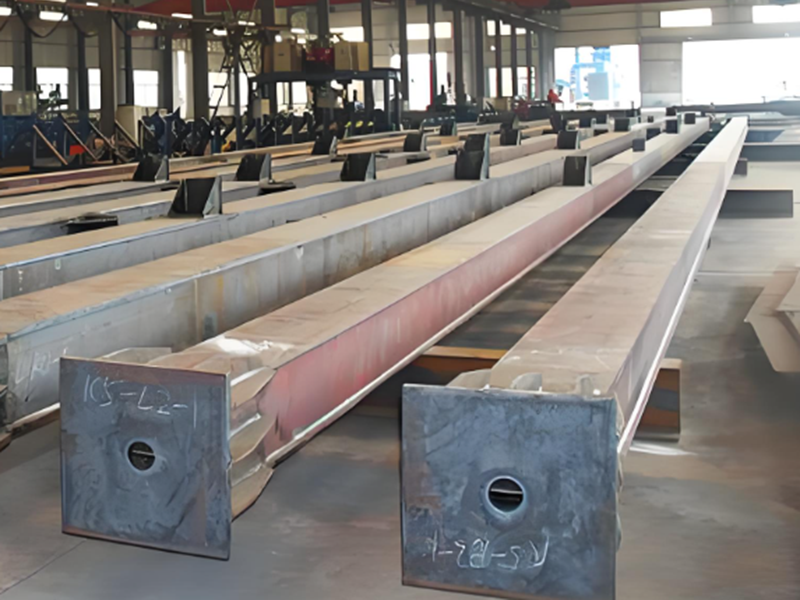

The 7-axis rail type robot welding workstation is mainly used in the steel structure industries. It suitable for open components such as H-beams and box columns.
 |  |
 |  |  |
1. What welding source do you use?
We use MEGMEET welding source. AOTAI also can be choosed.
2. Does this machine can use KUKA robot?
Yes, KUKA robot is optional.
3. What is payment for this robot welding machine?
Payment:30% in advance, 70% balance before shipping.
