Q35Y
QL Laser

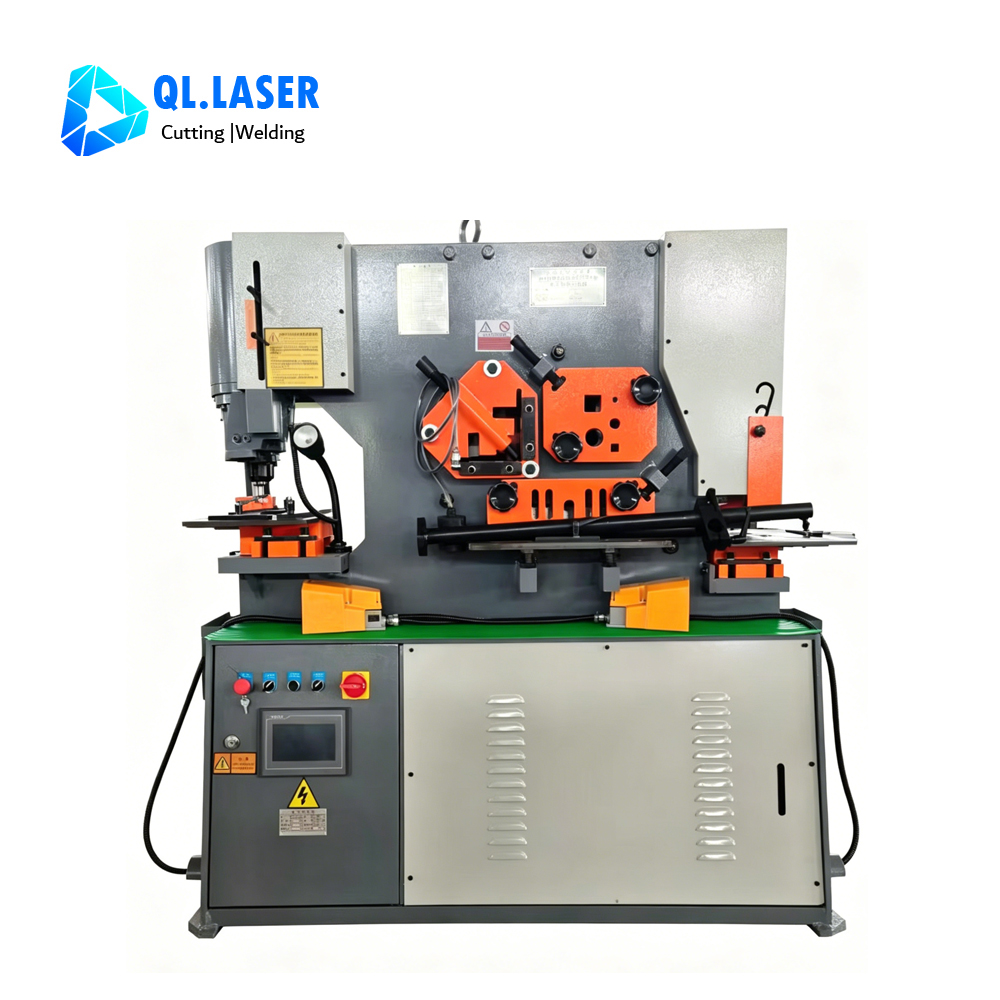

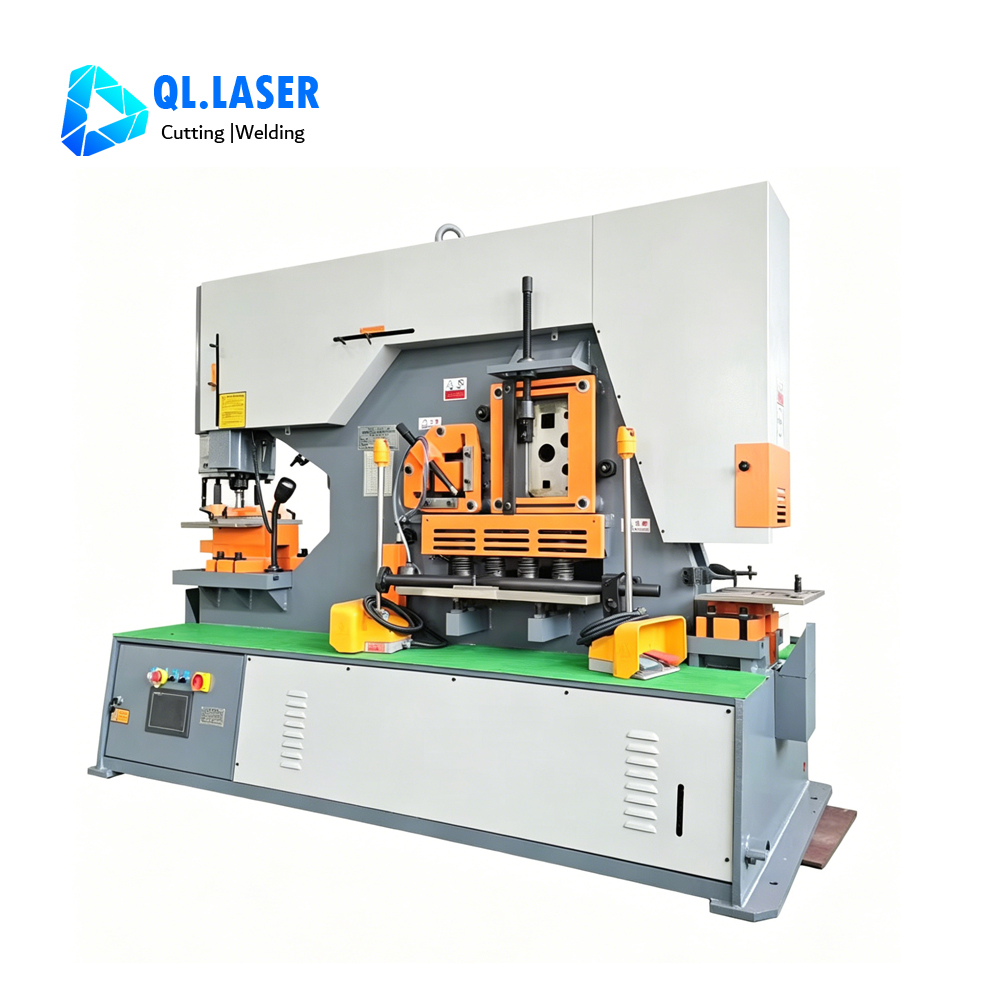

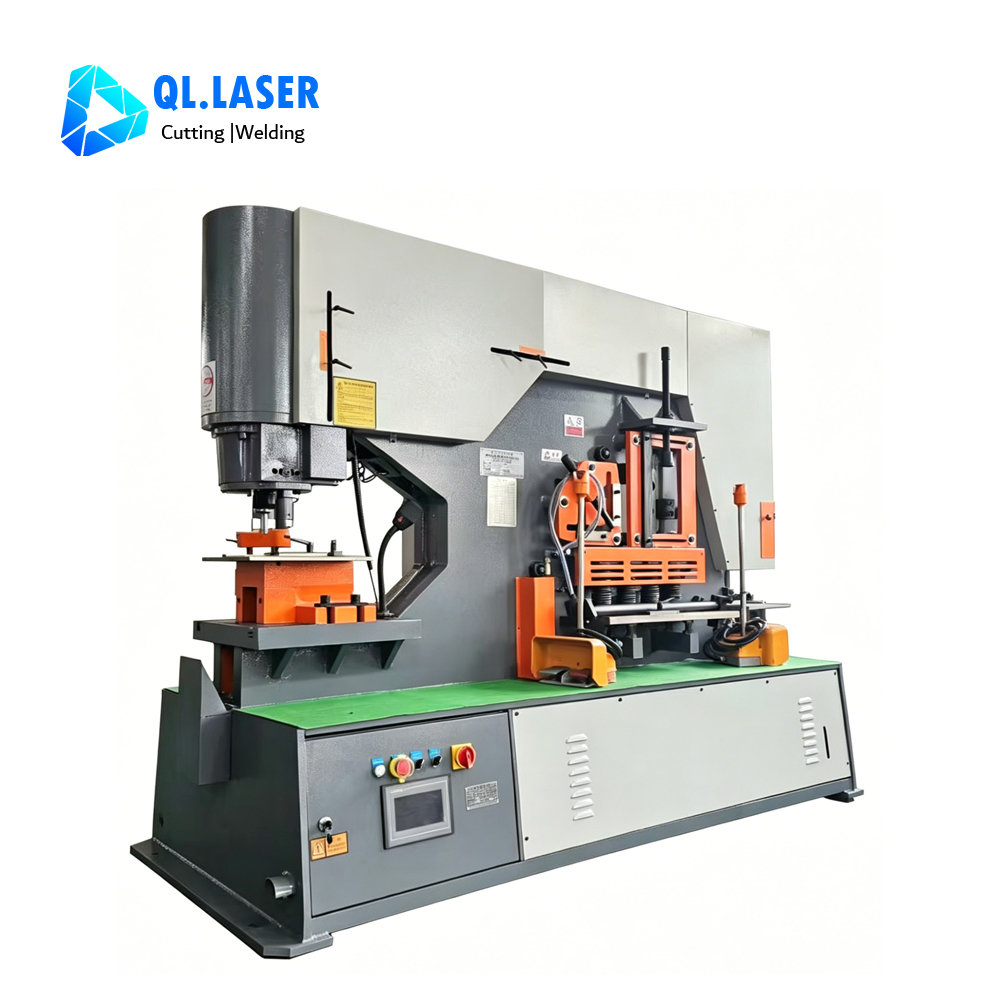

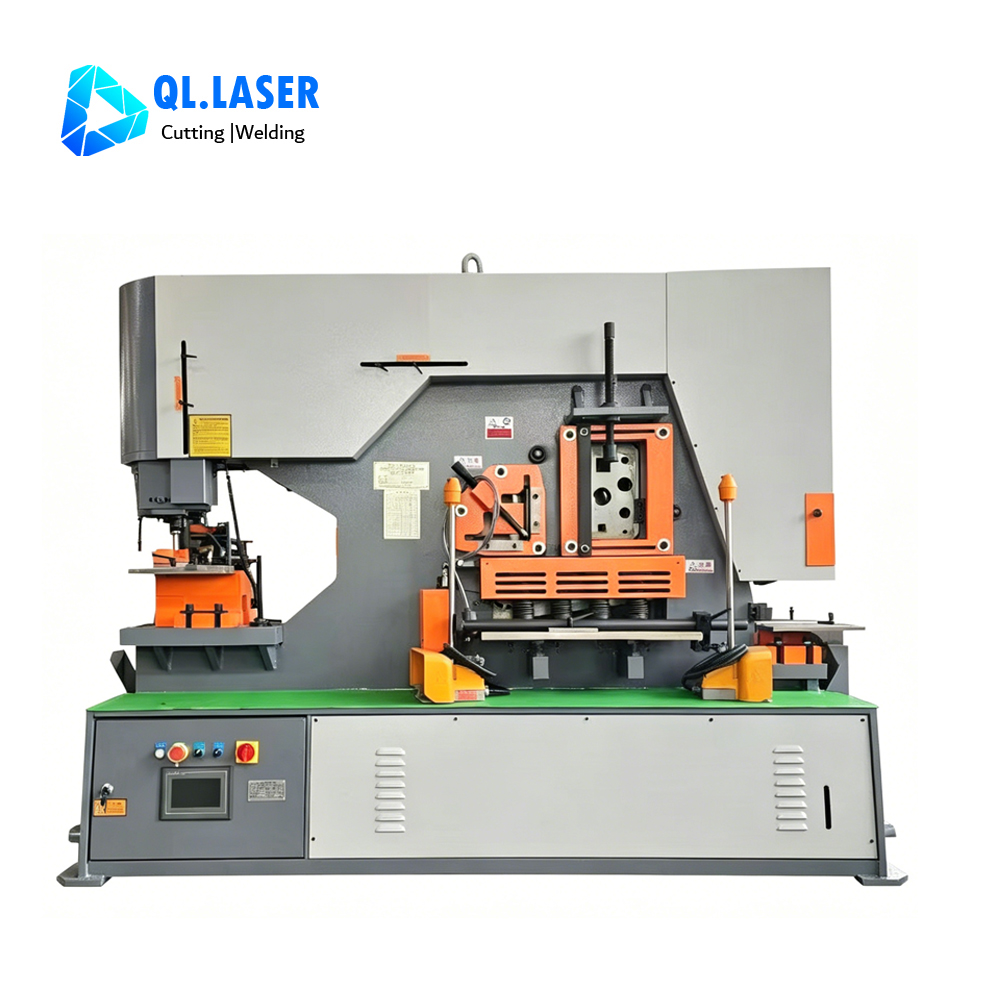

Designed for streamlined metal prefabrication, our hydraulic ironworker centralizes six independent machining functions onto one compact frame to cut down repeated workpiece clamping and transfer time. Unlike scattered single-purpose metal cutters, this integrated hydraulic equipment synchronizes independent working stations to operate simultaneously without mutual interference, drastically boosting daily output for metal workshops.
All-in-one multi-station integrated design
This hydraulic ironworker integrates punching, flat plate shearing, angle steel cutting, channel steel cutting, bar cutting and V-notching. One machine replaces 4–6 separate metalworking machines and saves over 60% factory floor space.
Stable hydraulic system with overload pressure relief protection
Equipped with integrated hydraulic manifold block for steady cutting and punching force. The built-in safety valve automatically releases pressure under overload to protect the machine frame and molds from damage.
Optional CNC digital touch screen control
CNC version stores dozens of processing programs and supports automatic positioning baffles to guarantee consistent dimensional accuracy for mass orders. Standard pedal-button models offer lower investment for small-batch jobs.
High-rigidity stress-relief welded frame
The whole machine adopts thick steel plate integral welding and high-temperature stress relief annealing. It maintains stable machining precision for over 10 years under long-term heavy-load operation without frame deformation.

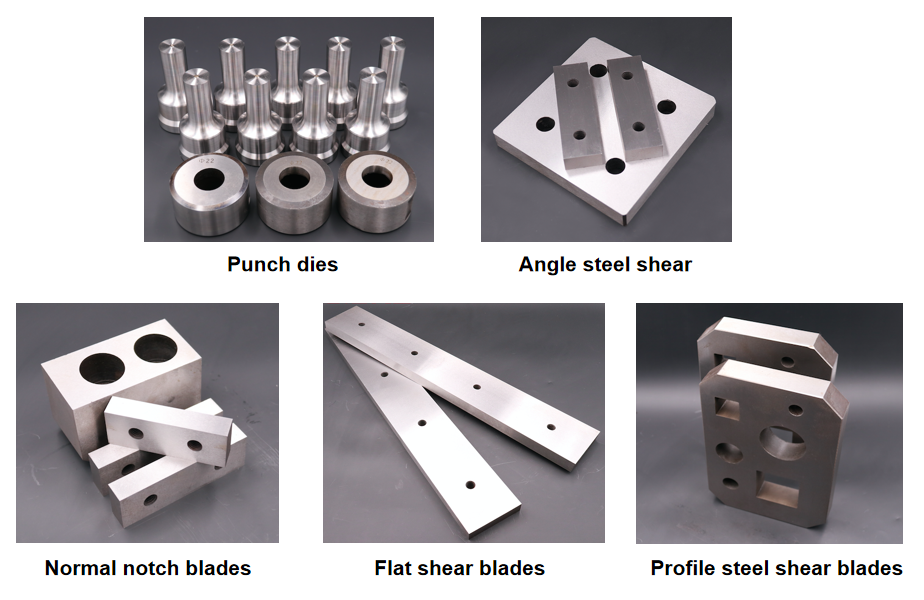

Quick-change wear-resistant alloy molds & blades
All punches and shear blades are made of high-hardness alloy steel with four reusable cutting edges. Mold replacement takes less than 30 seconds and produces smooth cutting surfaces with minimal burrs.
Customizable OEM & global export compatibility
We support OEM customization of tonnage, machine color, extra bending station, logo and international voltage (220V/380V). Products fit industrial standards for Europe, Russia, Southeast Asia and more than 70 countries worldwide.
| Q35Y-16 | Q35Y-20 | Q35Y-25 | Q35Y-30 | Q35Y-40 | Q35Y-50 | |
| Pressure (Ton) | 65 | 90 | 120 | 160 | 200 | 250 |
| Max. shearing thickness (Flat bar) (mm) | 16 | 20 | 25 | 30 | 35 | 50 |
| Material tensile strength (N/mm²) | ≤450 | ≤450 | ≤450 | ≤450 | ≤450 | ≤450 |
| Flat bar shearing capacity (mm) | 16×250 | 20×330 | 25×330 | 30×330 | 35×400 | 40×400 |
| 8×400 | 10×480 | 16×600 | 20×600 | 25×700 | 30×750 | |
| Max stroke length (mm) | 80 | 80 | 80 | 80 | 80 | 80 |
| Cycles/Min (Max stroke length) (spm) | 12 | 12 | 10 | 10 | 10 | 10 |
| Throat depth (mm) | 300 | 355 | 400 | 600 | 600 | 600 |
| Punching thickness (mm) | 16 | 20 | 25 | 30 | 35 | 40 |
| Max. Punching diameter (mm) | 25 | 30 | 35 | 38 | 40 | 40 |
| Motor power (kw) | 4 | 5.5 | 7.5 | 11 | 15 | 18 |
| Overall dimensions L×W×H (mm) | 1650×800× 1800 | 1830×860× 1800 | 2200×1000× 2100 | 2650×1050× 2300 | 2860×1150× 2400 | 3000×1440× 2450 |
| N.W (kg) | 1600 | 2300 | 3800 | 6300 | 8800 | 12800 |
Steel Structure Construction
Process connecting plates, steel trusses and prefabricated building frame components with batch punching and profile cutting.
Power & Photovoltaic Support Manufacturing
Fabricate high-voltage transmission tower angle steel, photovoltaic brackets and transformer base parts including 45° miter cuts.
Municipal & Bridge Traffic Engineering
Produce bridge stiffener plates, highway guardrail bases and overpass structural connectors with thick steel processing capacity.
General Machinery & Storage Rack Production
Manufacture warehouse shelf uprights, engineering equipment brackets, elevator fittings and small non-standard metal hardware.
