JWM3015-6000W
QL Laser
Model | JWM3015-6000W |
Laser power | MAX laser power source MFSC-6000W |
CNC Controller | Bochu FSCUT4000E EtherCAT Bus System |
Laser cutting head | Intelligent auto focus laser cutting head BLT421S |
Effective cutting size | 3000-1500mm |
Cutting material | MS,SS,Galvanized sheet, Aluminum, Brass,Red copper |
| Laser chiller | Tongfei/Hanli |
Servo motor and Driver | Inovance/Yaskawa |
Linear Guide | Rexroth |
Cutting software | CypcutE |
Nesting software(Optional) | CypNest |
Electronic pieces | Schneider |

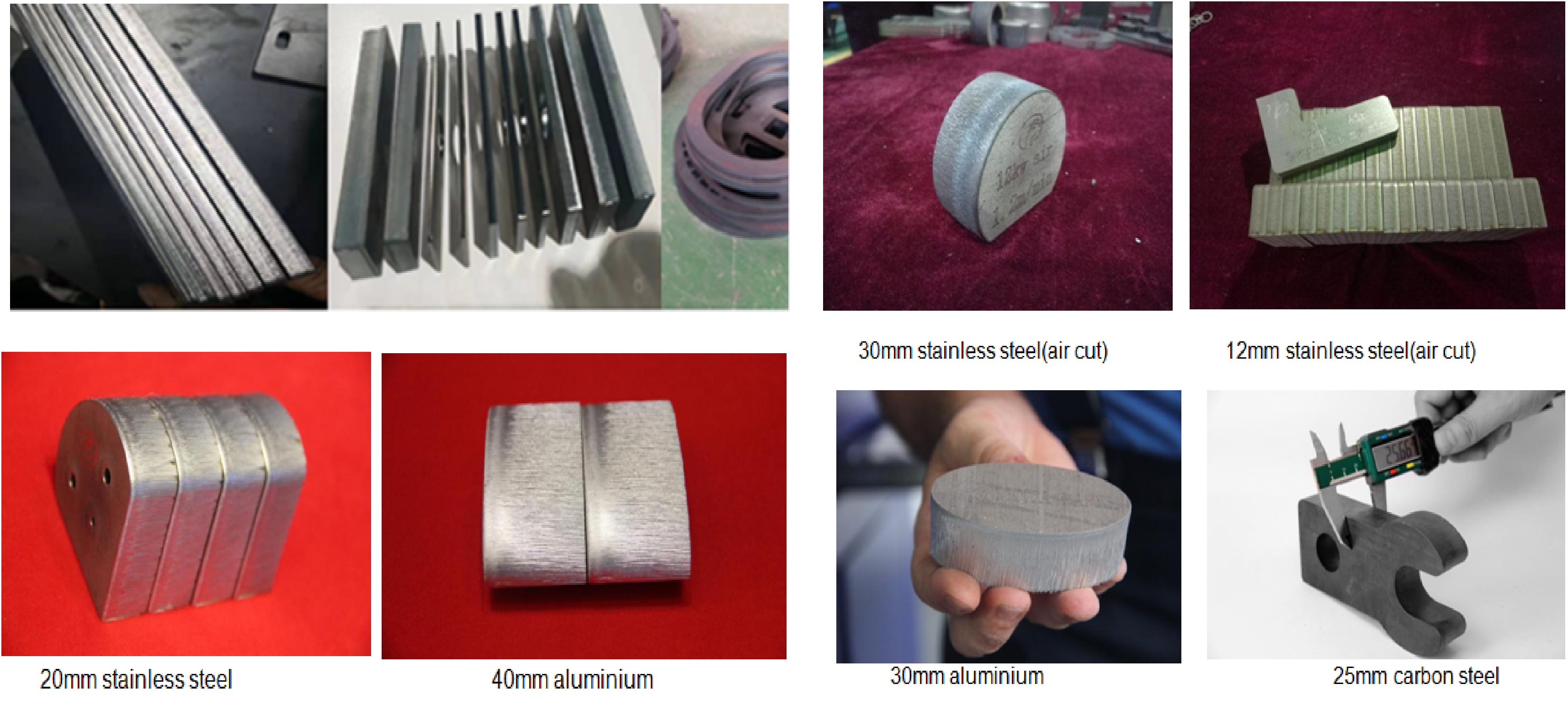

| Material | Cabon steel | Stainless steel | Aluminium | Brass | Red copper | |
| Thickness | Speed(m/min) Air /N2 | Speed(m/min) O2 | Speed(m/min) N2/Air | Speed(m/min) N2/Air | Speed(m/min) N2 | Speed(m/min) high pressure O2 |
| 1 | 45-60 | 45-60 | 40-50 | 40-50 | 25-35 | |
| 2 | 20-35 | 25-35 | 20-25 | 15-25 | 12-18 | |
| 3 | 13-24 | 3.6-4.5 | 17-24 | 14-16 | 8-14 | 7-10 |
| 4 | 10-20 | 3.2-3.5 | 10-16 | 8-10 | 8-9.5 | 5-7 |
| 5 | 9-13 | 2.6-3.2 | 7-12 | 5-8 | 5-6.5 | 3-4 |
| 6 | 6.5-9 | 2.5-2.8 | 6-8.5 | 3.5-5.5 | 3.5-4.5 | 2.5-3.5 |
| 8 | 2.2-2.5 | 3-4.8 | 2.5-3.5 | 1.5-1.8 | 1.5-2 | |
| 10 | 2.0-2.2 | 1.6-2.5 | 1.5-2.5 | 0.8-1 | ||
| 12 | 1.8-2.0 | 1-1.8 | 0.8-1.3 | 0.6-0.7 | ||
| 14 | 1.4-1.7 | 0.8-1.2 | 0.7-1.1 | |||
| 16 | 0.9-1.2 | 0.6-0.95 | 0.5-0.8 | |||
| 18 | 0.7-1.0 | 0.4-0.7 | 0.4-0.6 | |||
| 20 | 0.6-0.8 | 0.4-0.6 | 0.4-0.55 | |||
| 22 | 0.55-0.65 | 0.4-0.5 | ||||
| 25 | 0.4-0.6 | 0.1-0.2 | ||||
| Note: During air and nitrogen cutting of carbon steel and stainless steel, efficiency and stability will be improved, but as the thickness increases, slag formation is more likely to occur. The above data parameters may vary during actual bulk cutting due to the influence of factors such as the machine tool, system, cutting head, air pressure, and materials. The parameters marked in red in the table are proofing parameters, which are greatly influenced by various factors during actual processing and are only suitable for small batch production. Mass production is not recommended. It is recommended to use higher power lasers. Red Copper needs to be cut with high-pressure oxygen, as air or nitrogen can easily cause damage to the laser. | ||||||

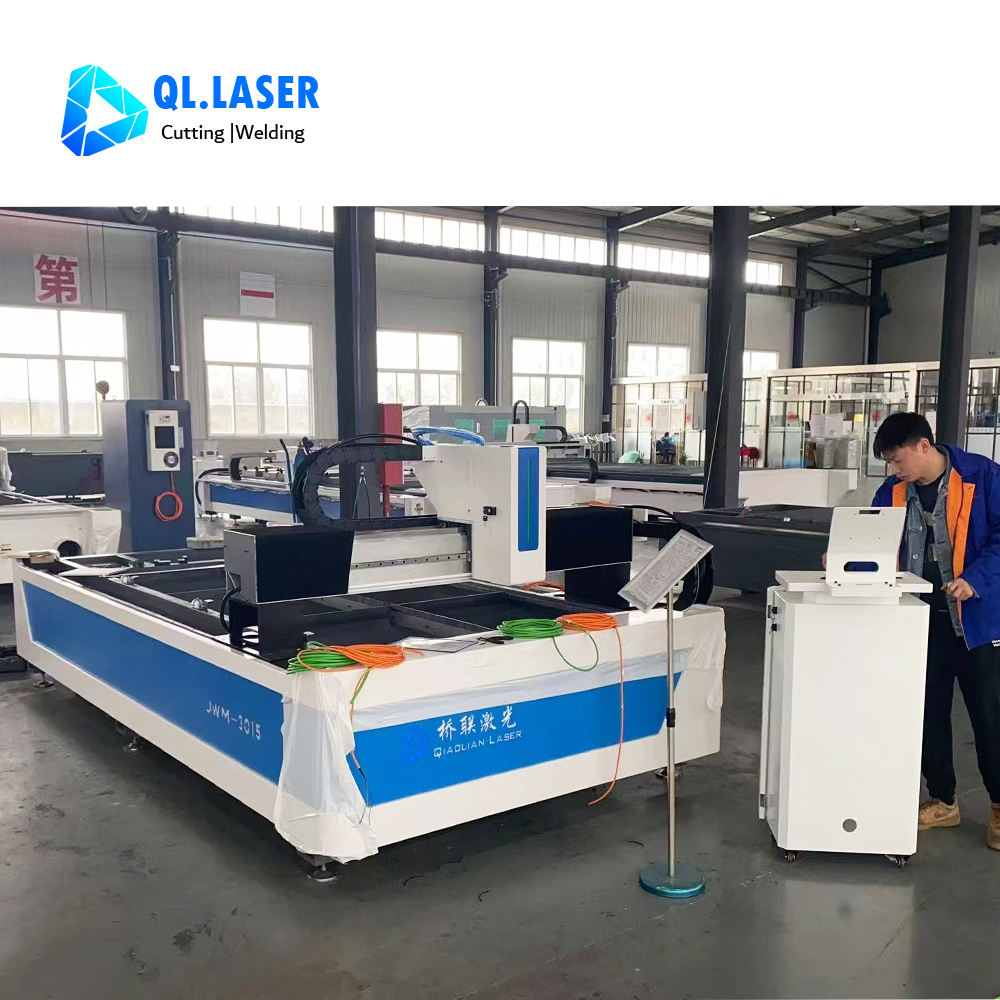

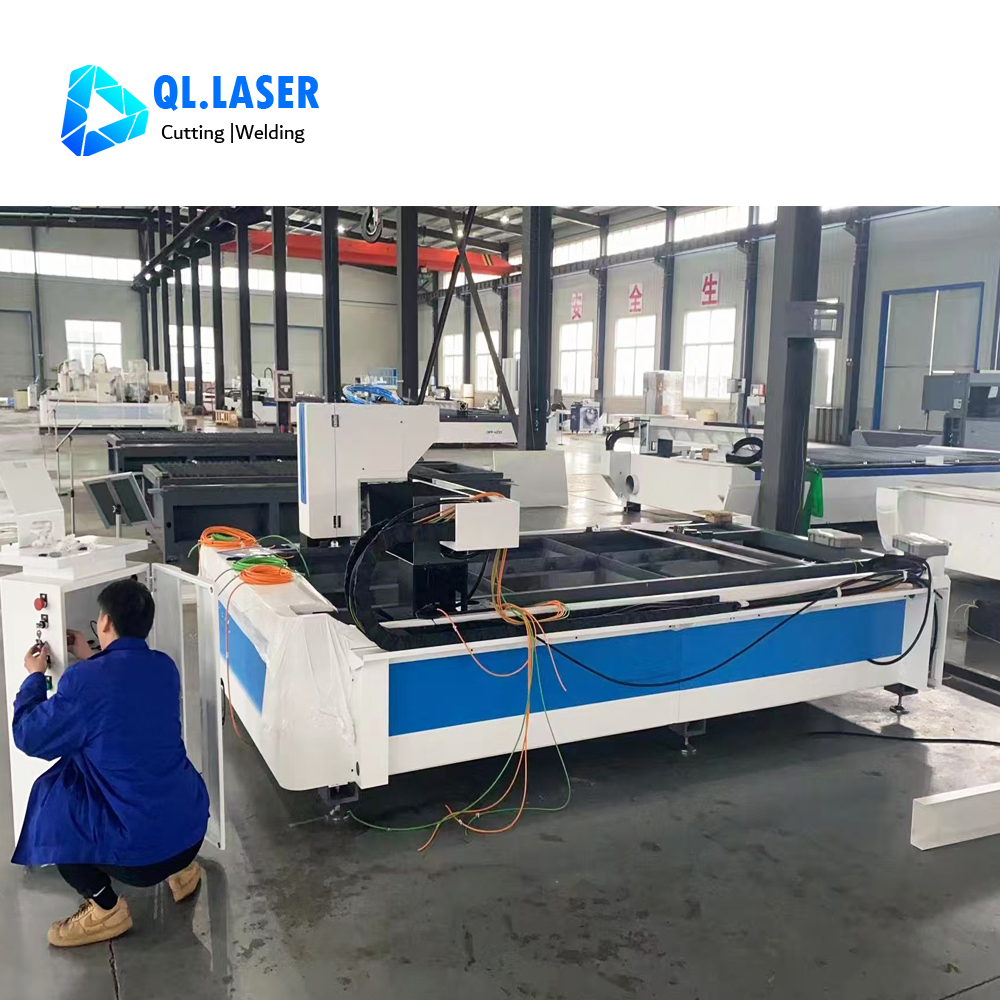

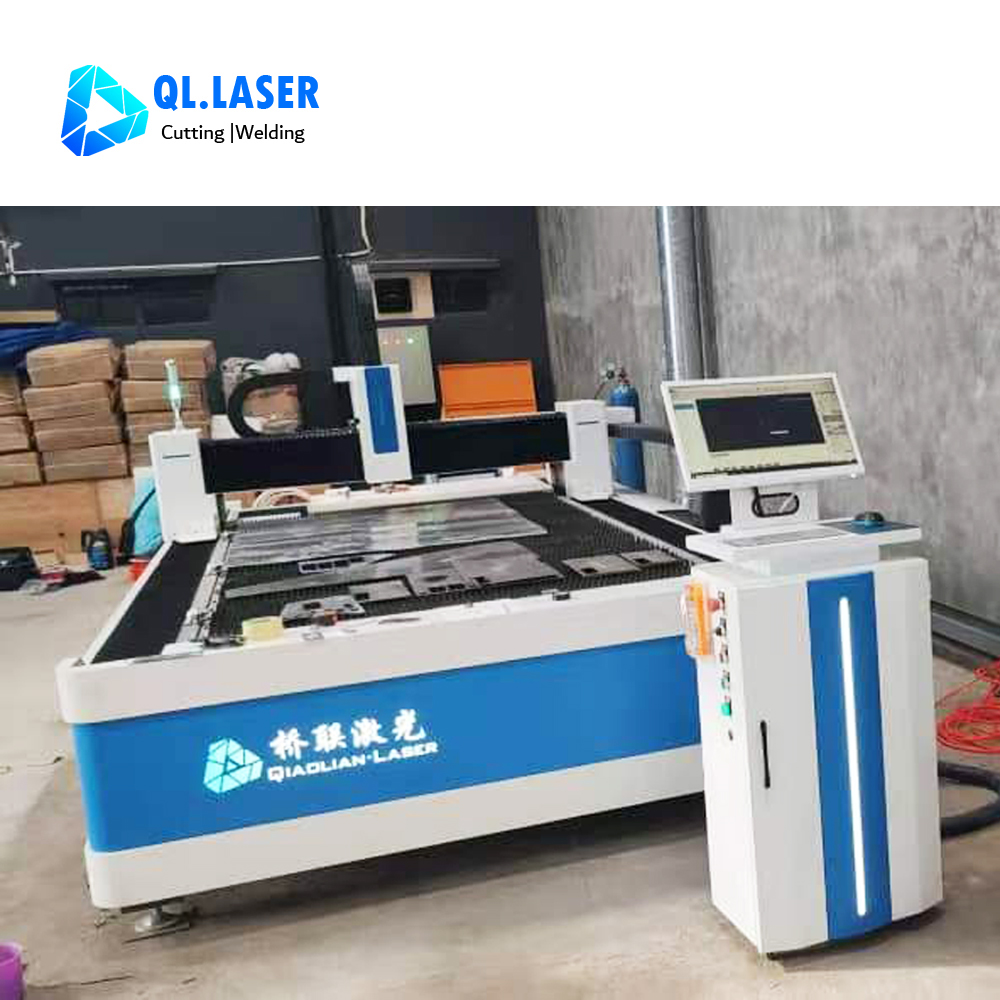

This 6000W 3000×1500mm single table fiber laser cutting machine is widely used in sheet metal processing, machinery parts manufacturing, hardware processing, construction metal accessories, advertising metal production and other industrial fields. It is an ideal choice for small and medium-sized enterprises to improve processing efficiency, reduce labor costs and ensure product quality.
Q1: What materials can this 6000W laser cutting machine process?
A1: It can stably process common metal materials such as carbon steel, stainless steel, aluminum alloy and copper, fully meeting the needs of various industrial processing scenarios.
Q2: Is the FSCUT4000E control system easy to operate for beginners?
A2: Yes, the FSCUT4000E system has a simple and intuitive interface, with simple programming steps and detailed operation guidance, no professional technical foundation is required for quick mastery.
Q3: Do I have to equip the 22KW 15bar air compressor?
A3: No, the air compressor is an optional configuration. The machine can be used normally without it, and the air compressor is only for supporting air cutting when needed.
Q4: What after-sales support is provided for this laser cutter?
A4: We provide global remote technical guidance, timely supply of spare parts, and professional maintenance advice to ensure the long-term stable operation of the equipment.
