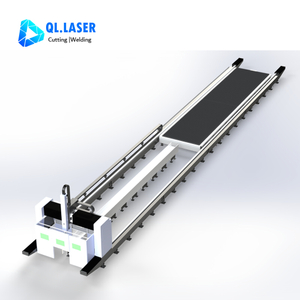

H Beam And Plate Fiber Laser Cutting Machine

JCT2612 2-chuck Clamping tube laser cutting machine

40KW Exchange Table Fiber Laser Cutting Machine 6020 with Bevel Cutting

High Power 40KW 6020 Laser Cutting Machine with Bevel & Exchange Table

6020 40KW Fiber Laser Cutter with Exchange Worktable and Bevel Function

Industrial 40KW 6020 Laser Cutting Machine Bevel Cutting Exchange Worktable

40KW 6020 Fiber Laser Cutting Machine with Bevel Cutting & Auto Exchange Table

Large Format 6020 40KW Bevel Fiber Laser Cutter with Exchange Worktable

40KW Shuttle Table Cnc Laser Cutting Machine with Bevel Cutting Function Size 2m-6m

Experience precise and efficient metal cutting with our CNC laser machine. Featuring a shuttle table and bevel cutting function, this machine offers versatility and accuracy for sizes ranging from 2m to 6m. Boost your productivity with this advanced cutting solution.

Quantity:
Availability:





Inquire Add to Basket

Model:
JLMT6020-40000W
Brand:
QL Laser

Product Description

I. Introduction

Introducing the 40KW Shuttle Table CNC Laser Cutting Machine with Bevel Cutting Function, available in sizes ranging from 2m to 6m. This cutting-edge machine is designed to meet the demands of precision cutting in various industries. With its advanced technology and high power output, it ensures efficient and accurate cutting operations. The shuttle table feature enhances productivity by allowing continuous cutting without interruptions. Experience the versatility and reliability of this CNC laser cutting

machine, equipped with bevel cutting function for added precision in your cutting projects. Upgrade your cutting capabilities with this professional-grade machine that delivers exceptional performance and quality results.

II. Product advantage

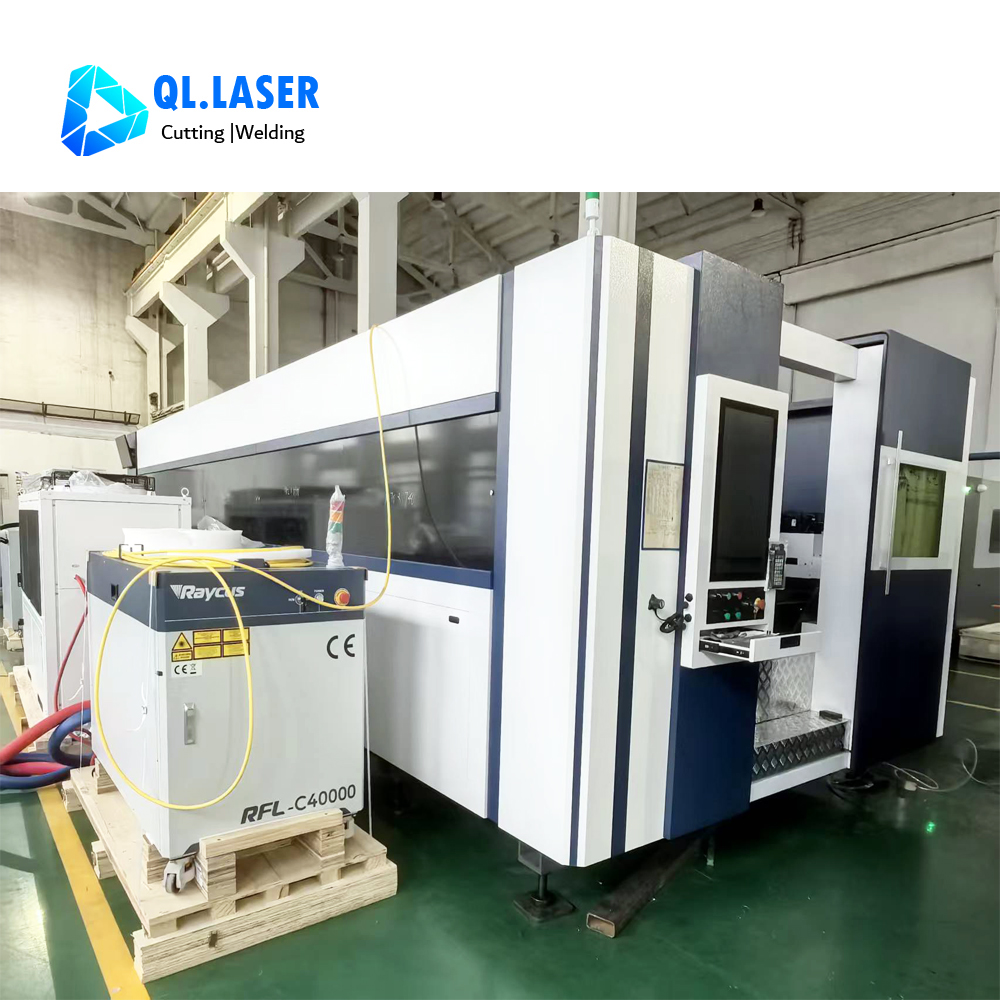

40KW Raycus Laser Source with CE Certification
Equipped with original Raycus 40KW fiber laser, stable output, long service life and CE compliance, ensuring reliable thick‑plate cutting performance and international market qualification.

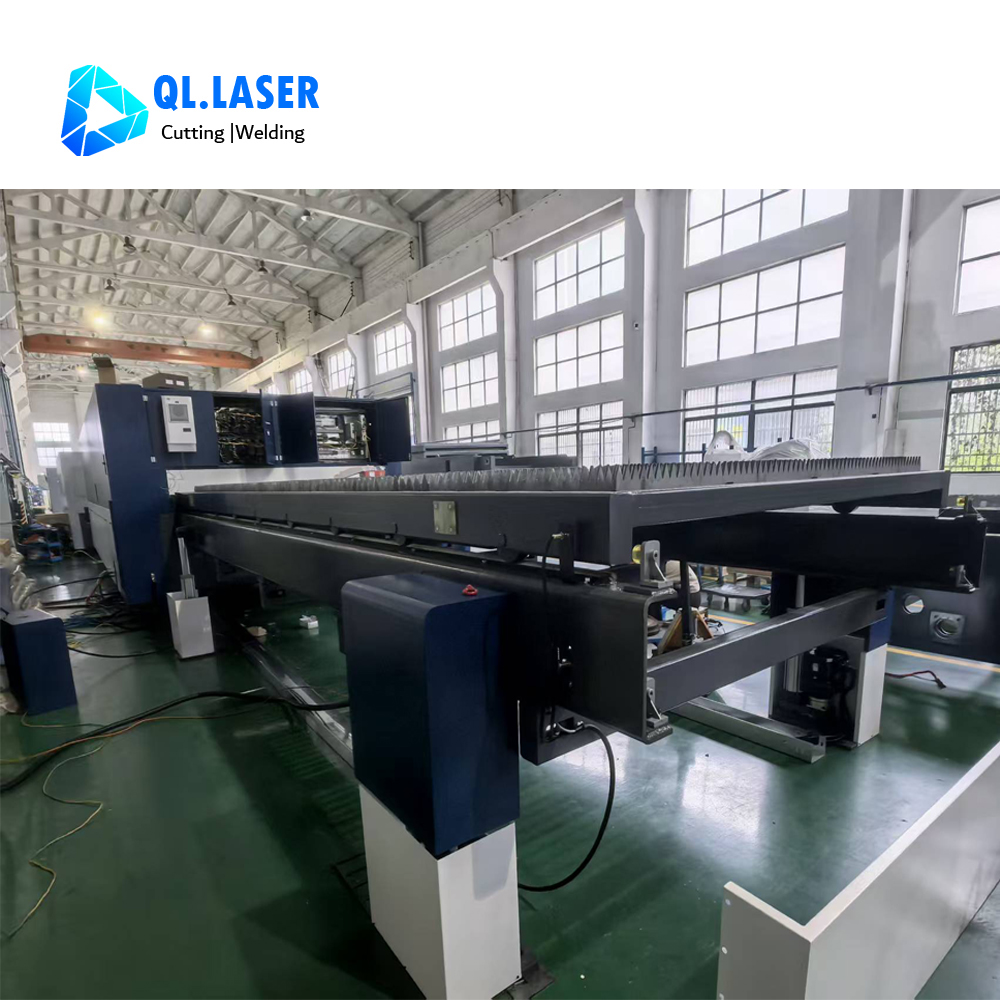

6020 Large Working Format & Electric Lifting Exchange Table
6000×2000mm large working area with electric lifting auto exchange table, realizing continuous loading and unloading, greatly improving production efficiency and reducing downtime.
Professional Bevel Cutting Function
Supports multi‑angle bevel cutting for V/Y/K/X/A bevels, one‑time forming for weld preparation, no secondary grinding, saving labor and shortening processing cycles.
Bochu FSCUT9100 Intelligent Control System
Adopts high‑end Bochu FSCUT9100 CNC system, powerful nesting function, fast response, stable operation, easy programming and high cutting accuracy.
BLT4102 High‑Performance Bevel Cutting Head
Original BLT4102 cutting head with stable anti‑collision protection, precise angle adjustment, high‑quality bevel edge and long‑term continuous heavy‑duty cutting.
High‑Efficiency & Heavy‑Duty Industrial Cutting Solution
Integrates high power, intelligent system, auto exchange table and bevel function, suitable for thick carbon steel, stainless steel and alloy steel processing, widely used in metal fabrication, machinery and steel structure industries.

III. Configuration

Model	JLMT6020-40000W
Laser power	40kW Raycus laser power source with CE
CNC system	Bochu FSCUT9100 EtherCAT Bus System
Laser cutting head	Intelligent auto focus laser cutting head BLT4102 ( for plate and bevel function)
Effective cutting size	6000-2000mm for straight cut, 5500-1500mm for bevel cut
Cutting material	Mild steel,Inox steel,Galvanized sheet, Aluminum, Brass,Red copper
AB axis swing mechanism	Bochu
Laser chiller	Tongfei
Linear Guide	Rexroth
Cutting software	FACut
Nesting software	CypNest

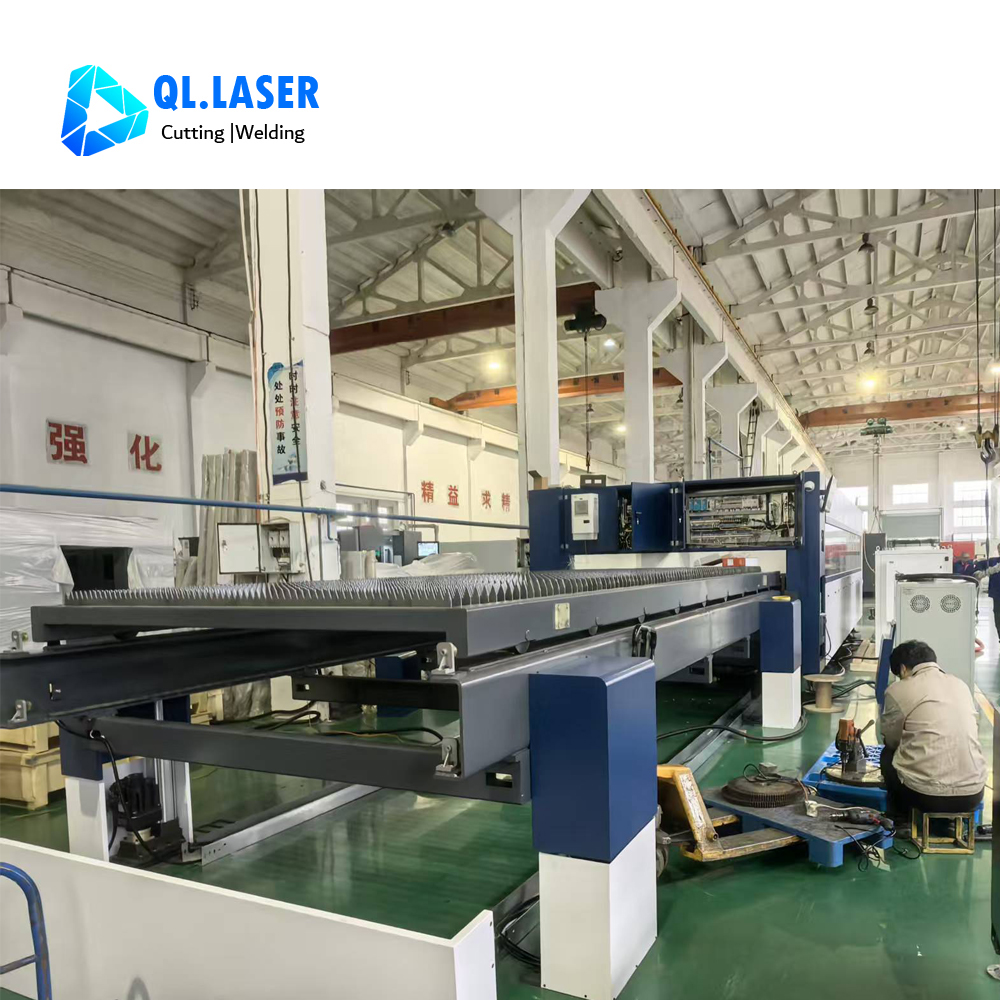

Exchange table	Electric lifting exchange table(controlled by servo motor)

IV. 40000W Laser power cutting parameters

Material	Cabon steel		Stainless steel		Aluminium		Brass	Red copper
Thickness	Speed (m/min) O2	Speed (m/min) N2/Air	Speed (m/min) N2/Air	Speed (m/min) Air	Speed (m/min) N2/Air	Speed (m/min) Air	Speed (m/min) N2	Speed (m/min) high pressure O2
5		28-32	25-30	30-34	25-30	25-30	25-30	15-18
6		25-28	22-25	25-30	20-25	20-25	20-25	10-15
8	2.5-2.8	22-24	20-23	22-25	18-22	18-22	18-22	6-10
10	2.2-3.5	16-20	16-21	17-23	14-17	14-17	10-14	3.5-4.2
12	1.9-3.4	14-17	12-14	13-16	11-13	11-13	8-11	2.4-3.2
14	1.8-3.3	11-13	10-12	12-14	9-11	9-11	6-8	1.5-2
16	1.6-3.2	8-9.5	9-11	9-11.5	7-9	7-9	5-7	1-1.5
20	1.3-3.0	6.3-7.2	7-8	7-8.5	4-5	4-5	3-4	0.6-1
25	1.2-2.4	4.2-5.2	4.2-5.2	4.5-5.5	3-3.5	3-3.5	2.5-3
30	1.1-1.5	3-3.7	3-3.7	3.2-4	1-1.6	1-1.6	2-2.5
40	1.0-1.1	1.5-2	1.7-2.3	1.8-2.5	0.9-1.4	0.9-1.4
50	0.8-1.0		0.5-1.3	0.7-1.4	0.5-1	0.5-1
60	0.2-0.6		0.3-0.4	0.3-0.5	0.15-0.4	0.15-0.3
70	0.15-0.3		0.13-0.17	0.2-0.3	0.12-0.2
80	0.1-0.2		0.12-0.14	0.2-0.3	0.1-0.18
90			0.11-0.13	0.13-0.2	0.09-0.17
100			0.1-0.15	0.1-0.15	0.08-0.15
120			0.07-0.12
130			0.05-0.1
150			0.03-0.07

V. Main Applications

This 40KW high‑speed 6020 fiber laser cutting machine with bevel function and electric lifting exchange table is widely used in heavy‑duty metal fabrication industries for high‑precision thick‑plate cutting and weld‑ready bevel processing.

Steel Structure ManufacturingIdeal for cutting thick carbon steel, structural steel components with one‑step bevel cutting, improving welding efficiency and structural stability.
Machinery Equipment Parts ProcessingPerfect for heavy machinery frames, base parts, thick metal brackets and mechanical components requiring multi‑angle bevel edges.
Automotive Heavy‑Duty ComponentsApplied to truck frames, vehicle chassis parts and thick metal automotive accessories with high‑precision bevel cutting.
Sheet Metal & Metal Fabrication IndustrySuitable for batch production of thick‑plate metal parts, supported by electric lifting exchange table for non‑stop working.
Engineering & Construction IndustryUsed for construction steel plates, support frames, metal connectors and building structural components with bevel preparation.
Energy & Pipeline Equipment ManufacturingProcesses thick steel plates for energy equipment, pressure vessel accessories and pipeline parts with stable bevel cutting quality.

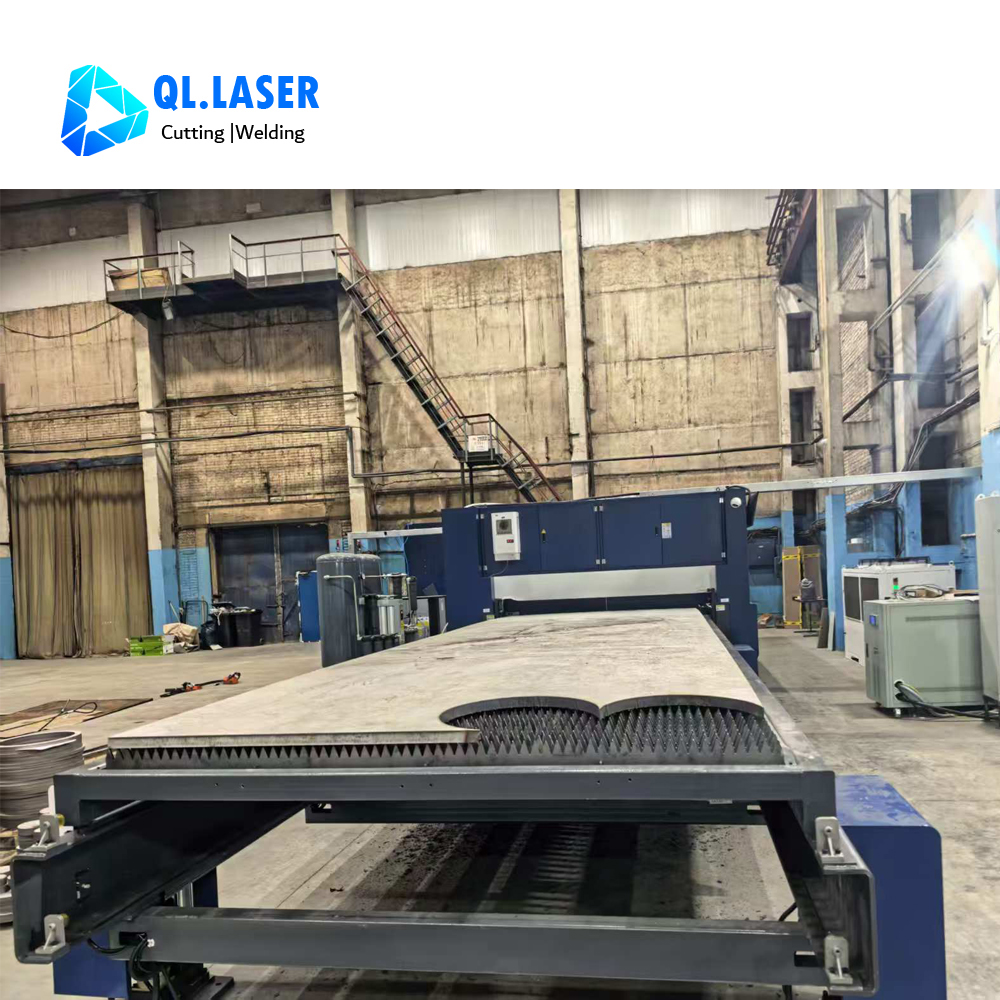

VII.Cutting Samples

VII.FAQ:

Q1: How long is the service life of this 40KW 6020 bevel laser cutting machine?

A: The whole machine is designed for heavy‑duty industrial use. The Raycus laser source has a long service life, and key components support long‑term stable continuous cutting under high‑power working conditions.

Q2: Can the bevel angle be adjusted freely during production?

A: Yes. The BLT4102 cutting head supports flexible adjustment of bevel angles, which can be set directly in the Bochu system to meet different welding process requirements.

Q3: What after‑sales support do you provide for this 6020 exchange table laser machine?

A: We provide overseas technical guidance, remote troubleshooting and spare‑parts supply to ensure long‑term stable operation of the equipment.
