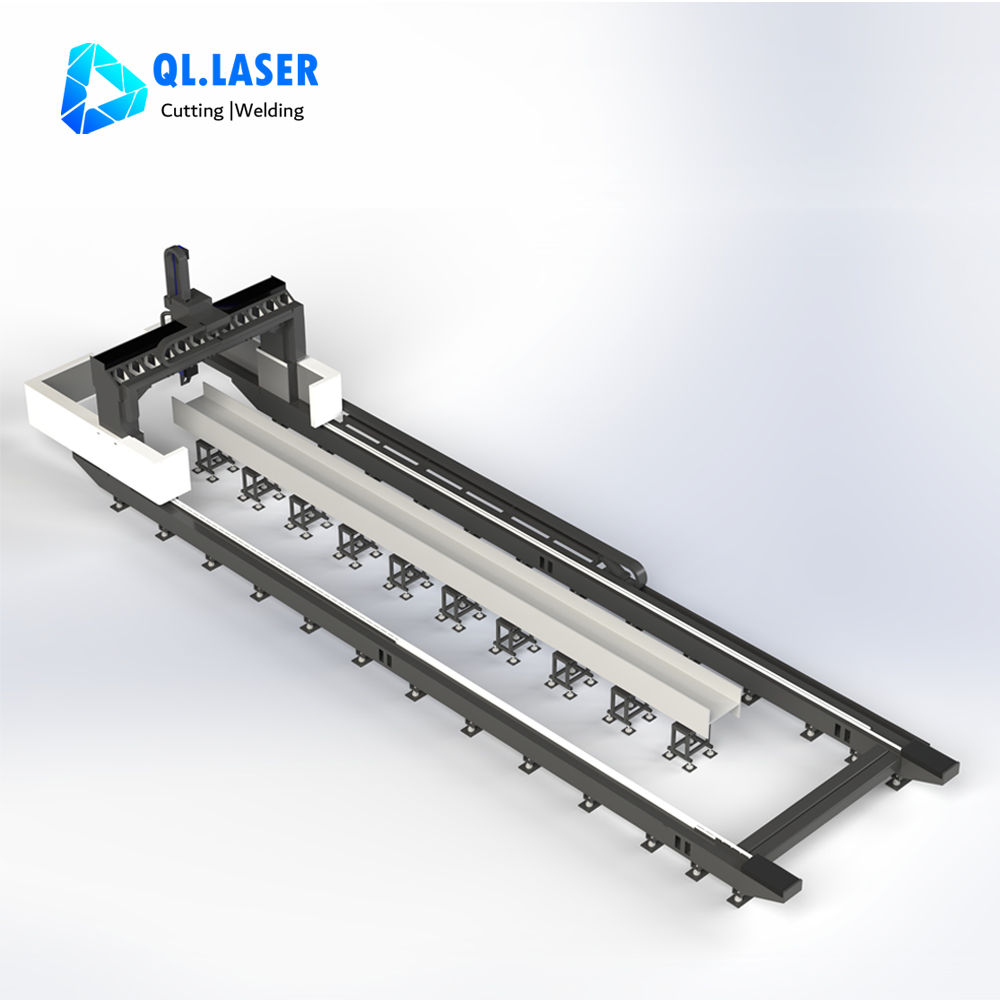

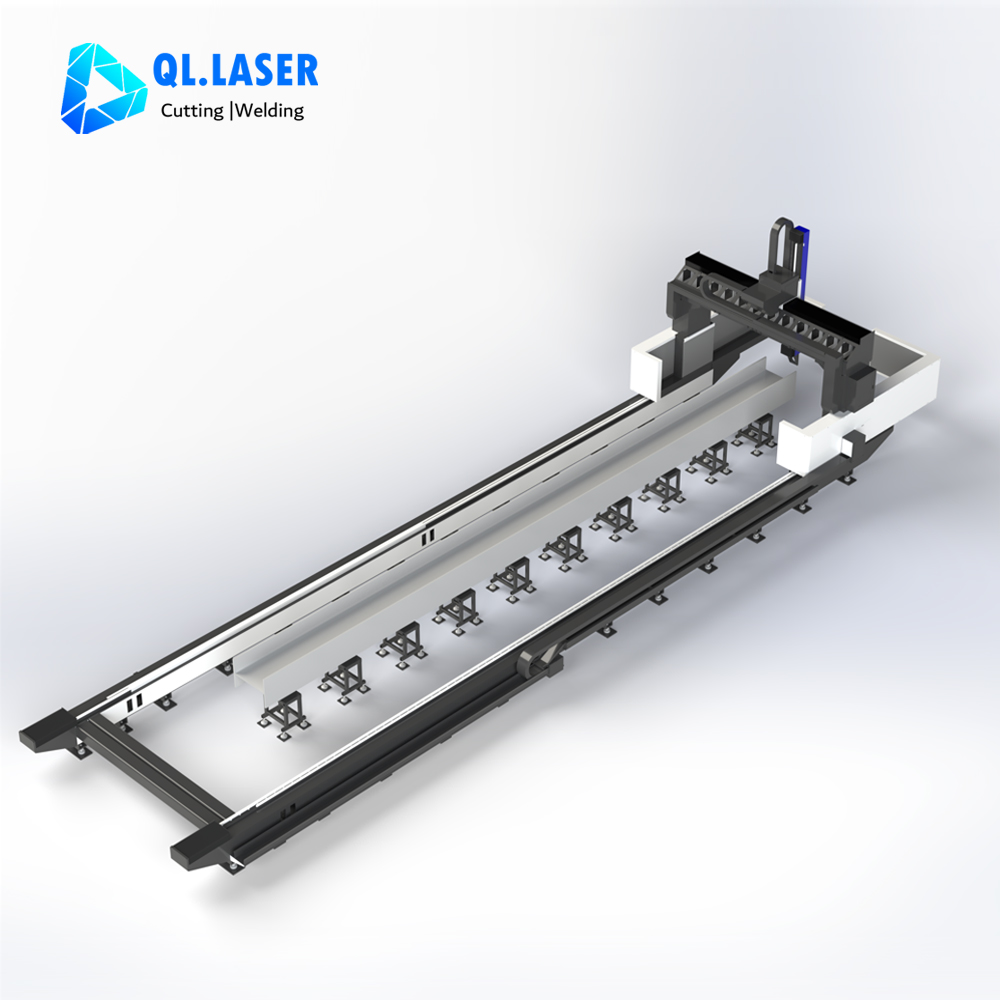

1. 3 in 1 Cutting
Support H beam cutting,I beam ,Channel steel and 2D cutting. plane bevel cutting and pipe cutting is optional.

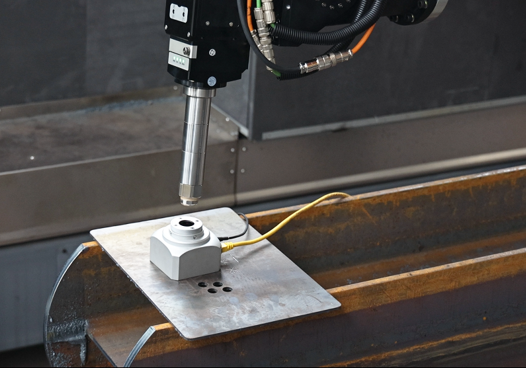

2. Vision Calibration
Quick calibrate rotation axis parameter. High precision, short processing time, and easy maintenance.

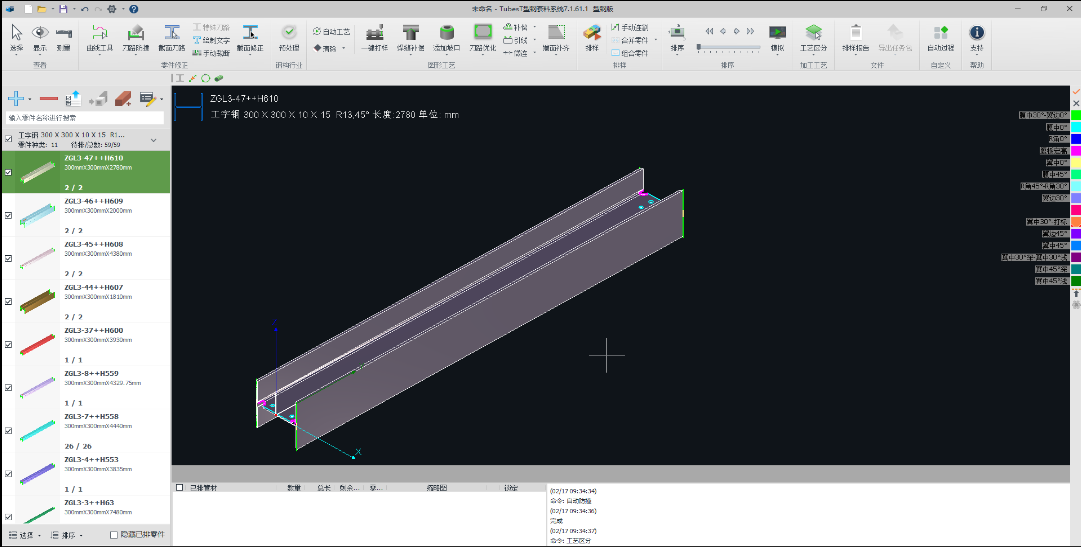

3. Professional Nesting
Combines Tekla with TubesT Structural Steel Version, offering efficient drawing and nesting.

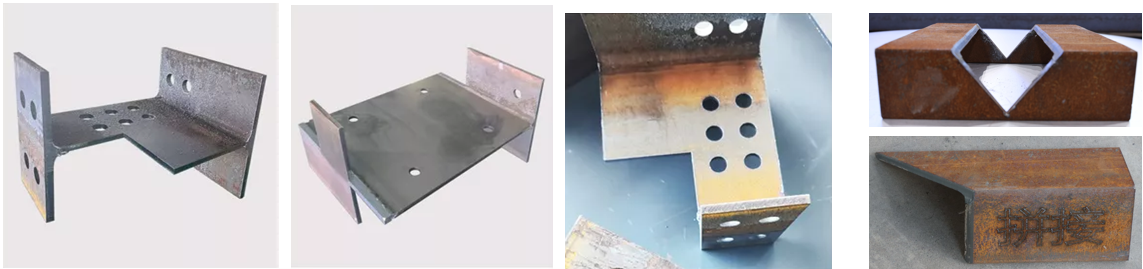

4. Flexible Processing

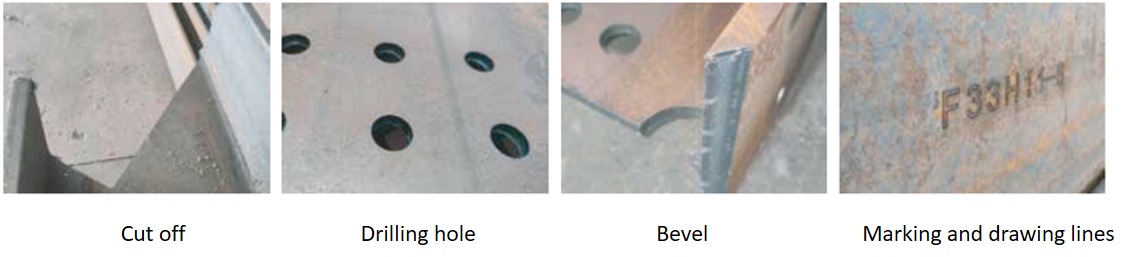

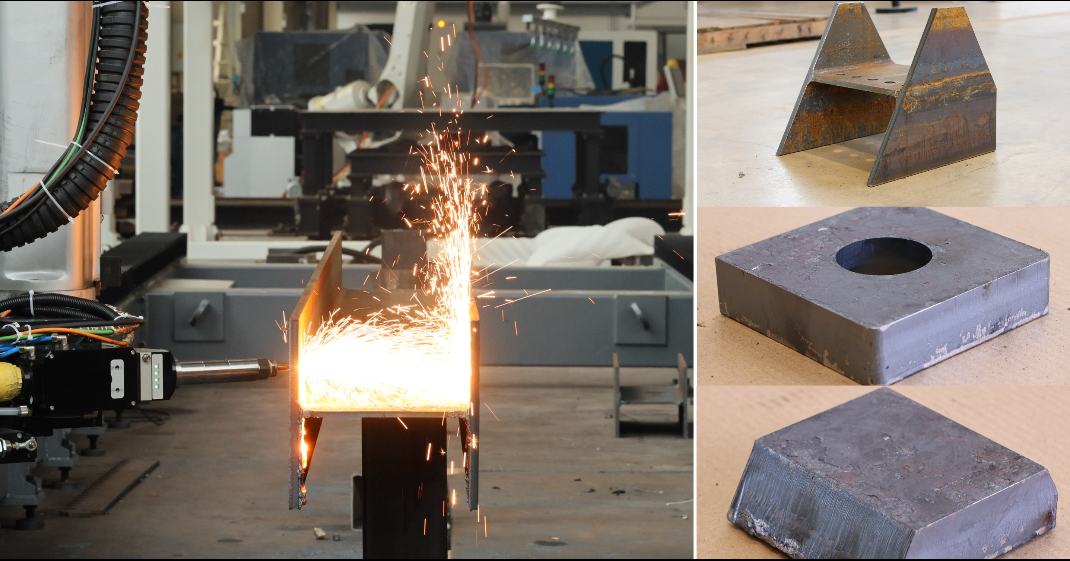

Cutting and bevel cutting of flanges and webs,scallop and deburring,bolt holes processing and marking structural steel cutting demands. Combined with BLT laser head,stable and precise.

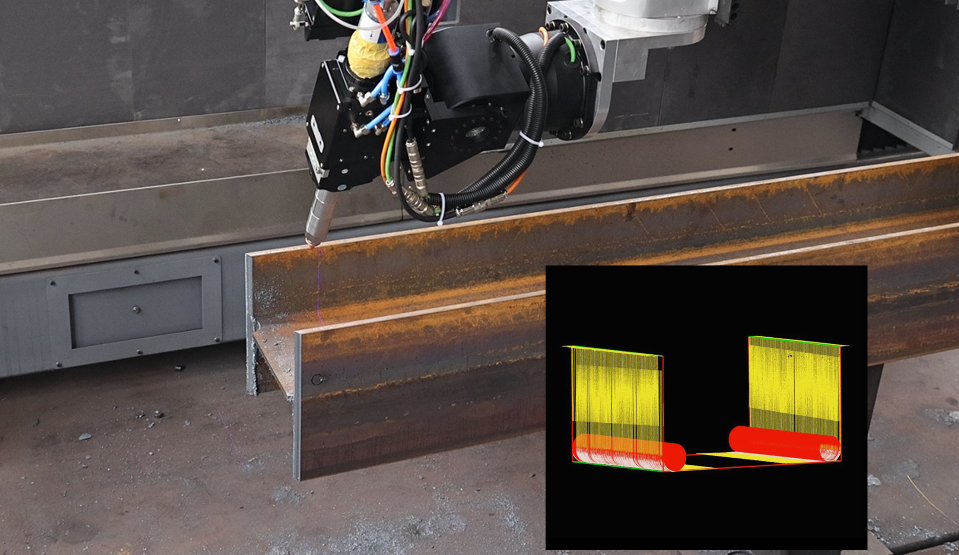

5. Laser Profiling
BCW laser profiler real-time measures and make compensation for error between drawing and material position.
Items | Technical parameters | |
Fiber Laser power | 12kw /20kw/30kw/40kw | |
Controll system | BOCHU FSCUT9200 EtherCAT Bus System | |

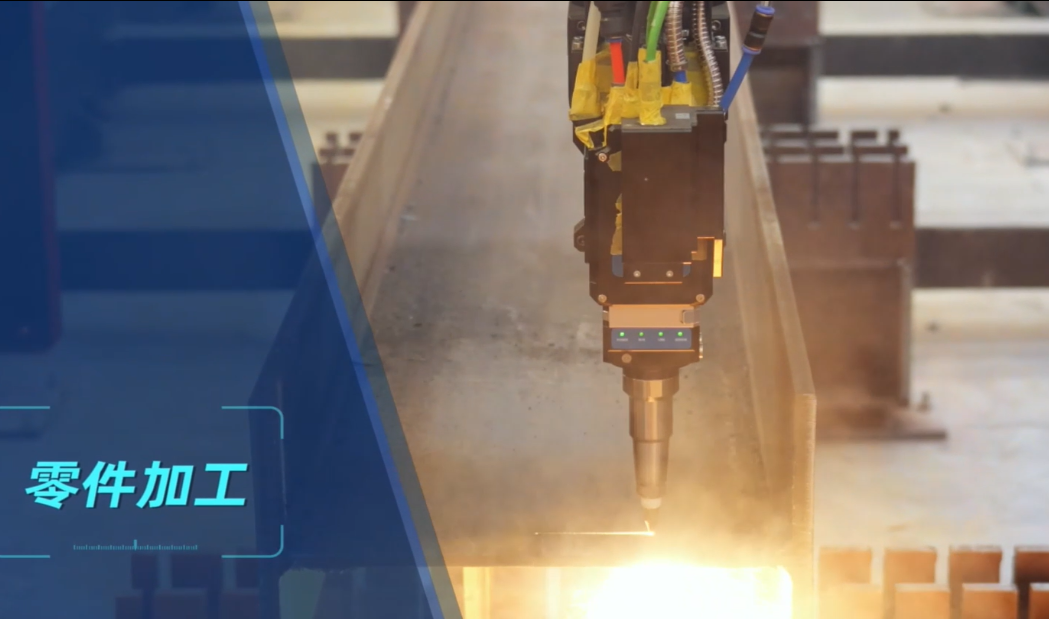

Laser cutting head | BOCI Intelligent special laser cutting head for section steel | |
Nesting software | Tubes T for section steel | |
Voltage stablizer | Feixiangda/Xinbaoming | |
Structural Steel Cutting range (mm) | Height within 500mm(can be extend) | |
Width within 700mm(can be extend) | ||
Wall thickness 30mm | ||
Effective travel | X axle(mm) | 2500 |
Y axle (mm) | 12200 (1 workstation) or 24200mm (2 workstation) | |
Z axle (mm) | 1000 | |
PositionaI accuracy | X /Y axle (mm/m) | ±0.25 |
Repeated positioning accuracy | X/Y axle (mm) | ±0.05 |
X/Y/Z Maximum speed | 30m/min | |
A-axis swing angle | ±90 ° | |
B-axis swing angle | ±45 ° | |
IP Grade | IP54 | |

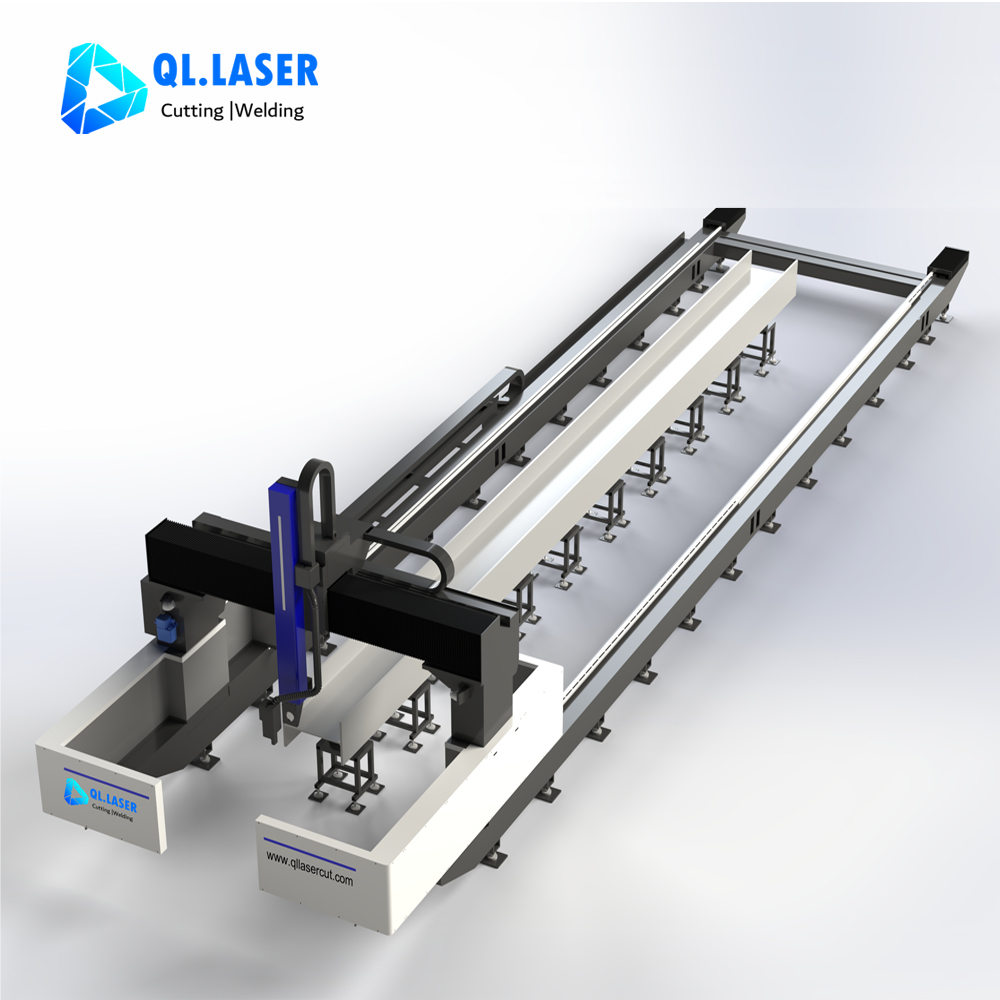

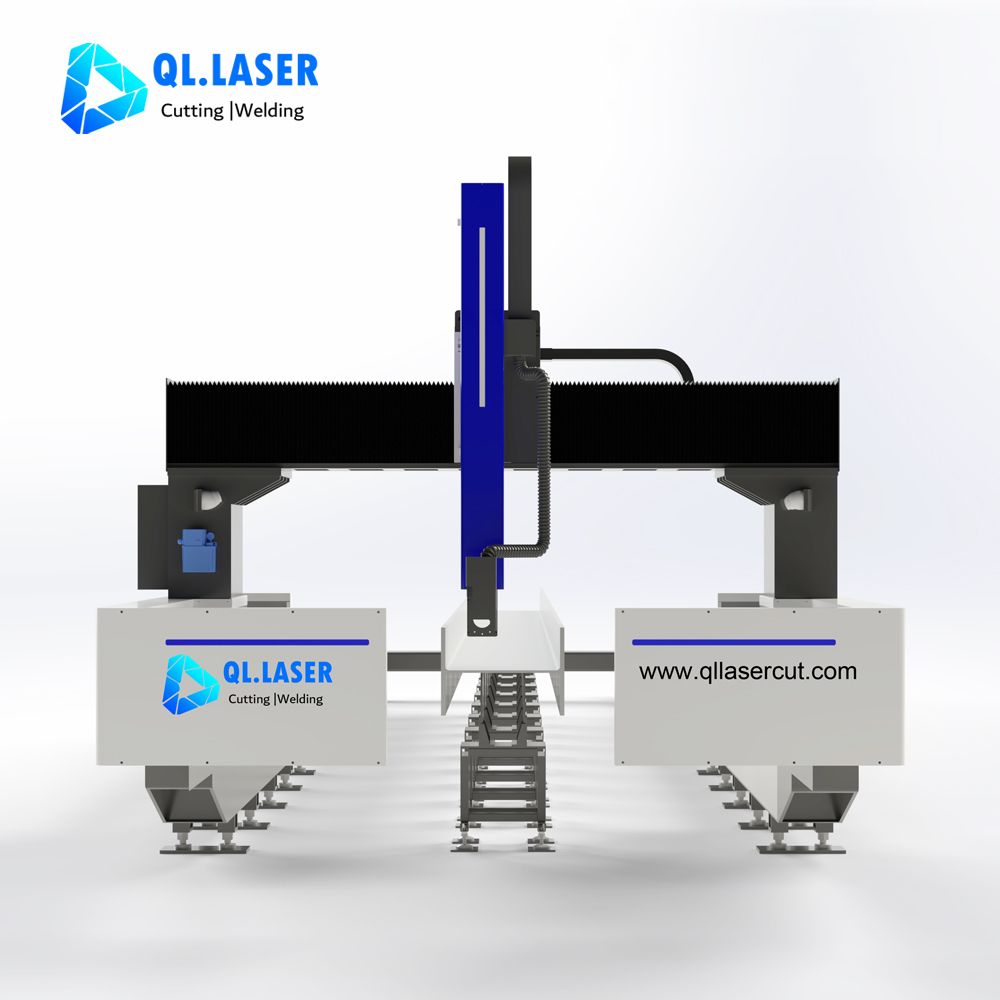

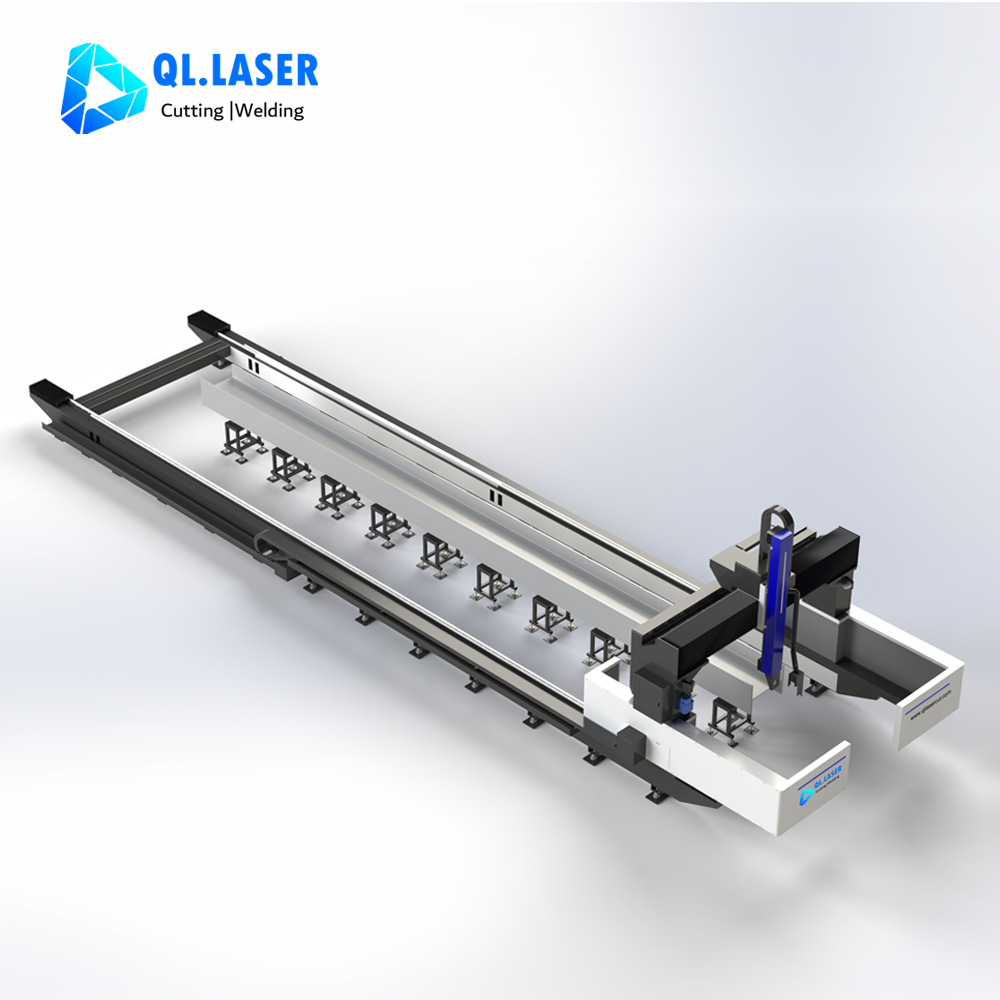

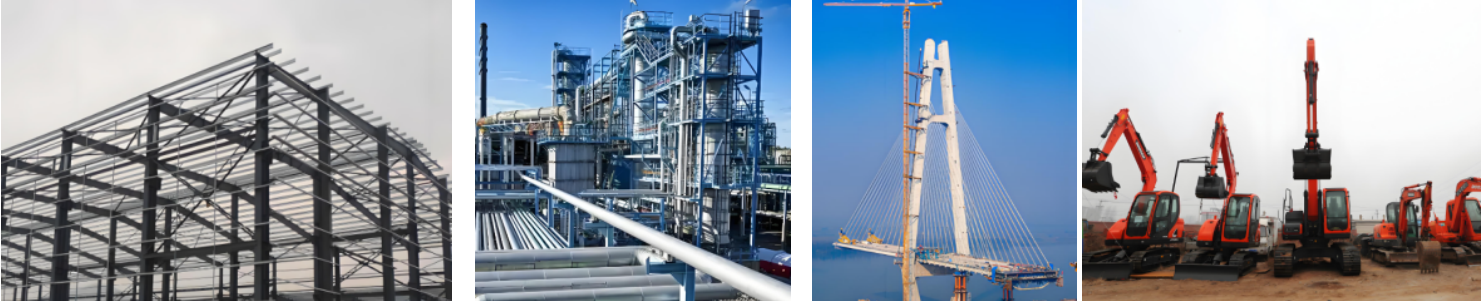

Structural steel laser cutting machine is mainly used in steel structures, petrochemical industry, Bridge industry and engineering machinery etc.
1. How large H-beams can your laser machine cut?
Our H beam laser cutting machine cut H beam with web size 500mm 600mm 700mm and this size can be extend and wing size within 500mm. If more than 500mm, can be customized.
2. How can I use this machine to cut flat with bevel?

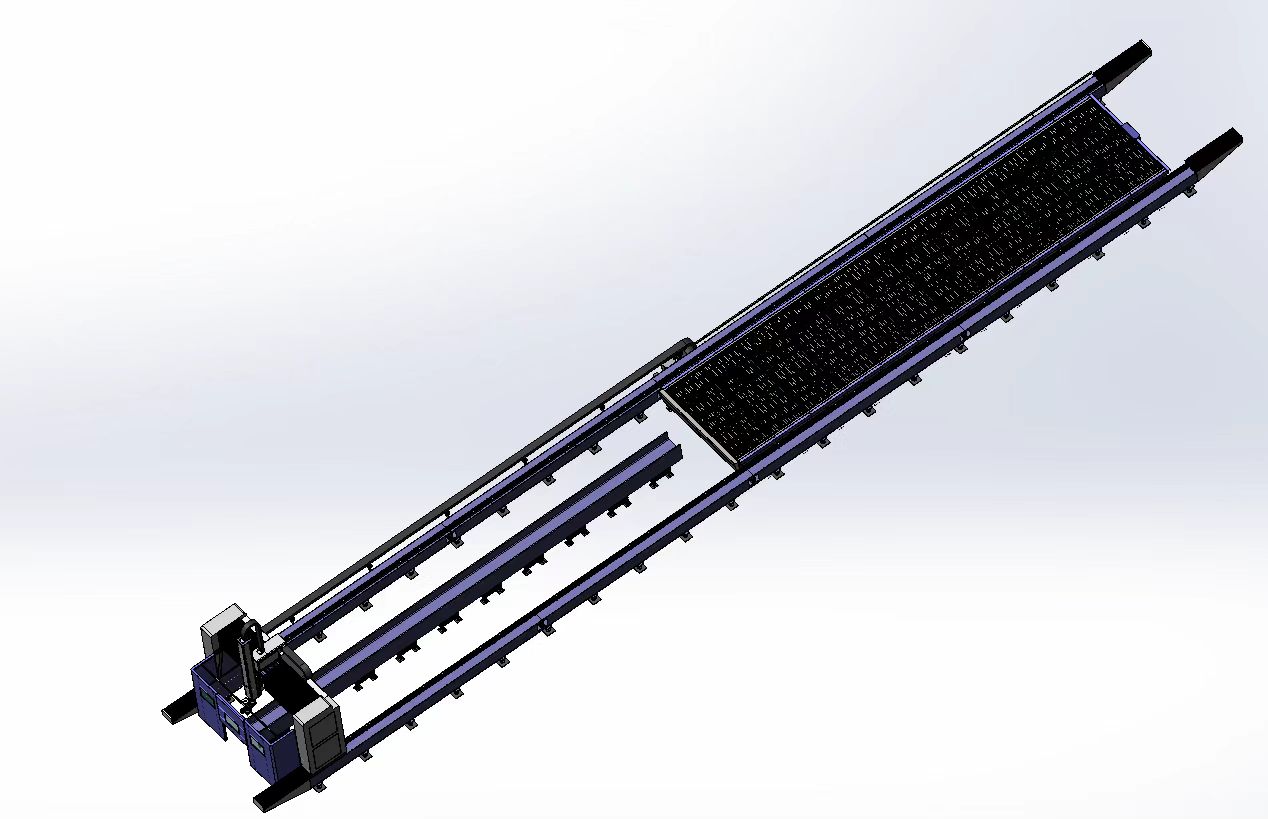

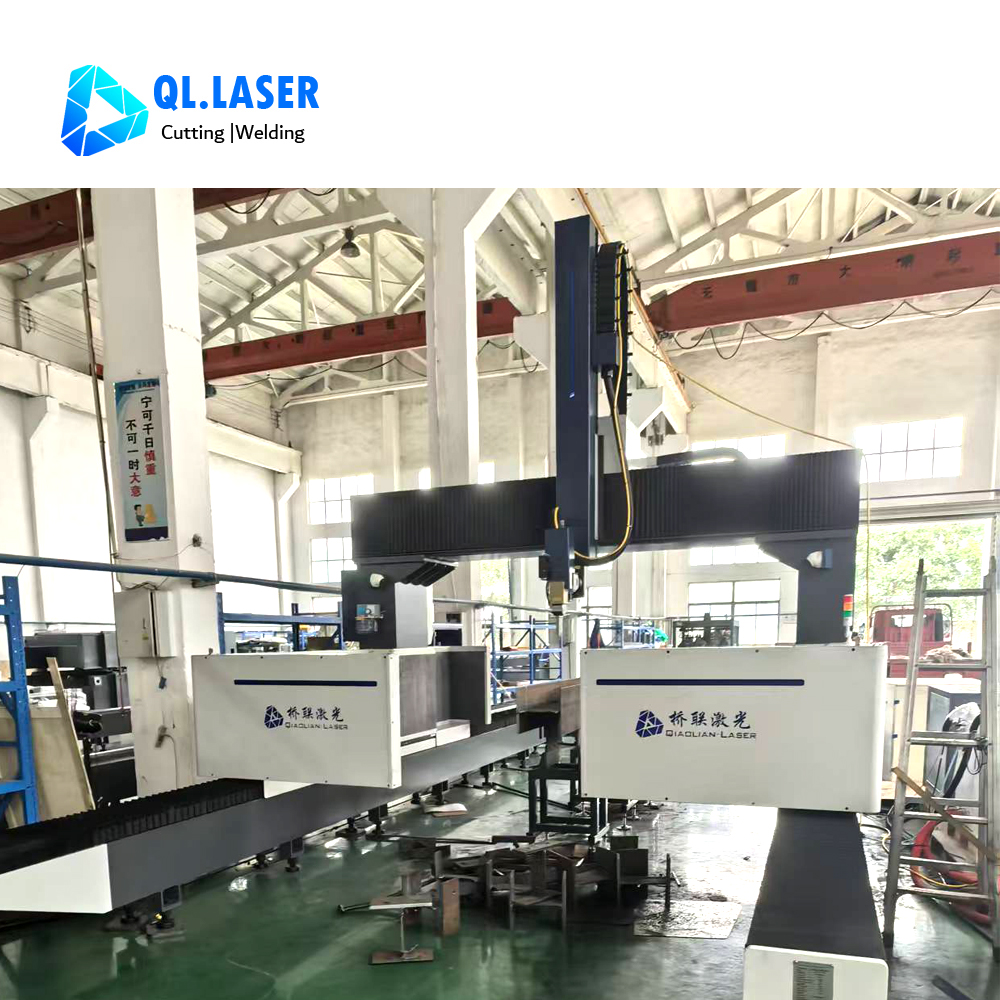

If you cut both H beam and flat with bevel, you need this machine with two workstations. One workstation is for H beam ,the other workstation for flat. Attached photo for reference.
3. Can I still cut round tube and square tubes?
Yes, this function is optional .you need to tell us the round tube and square tube size and length, we will add a rotating device and workstation also need to be extended.
