| Quantity: | |
|---|---|

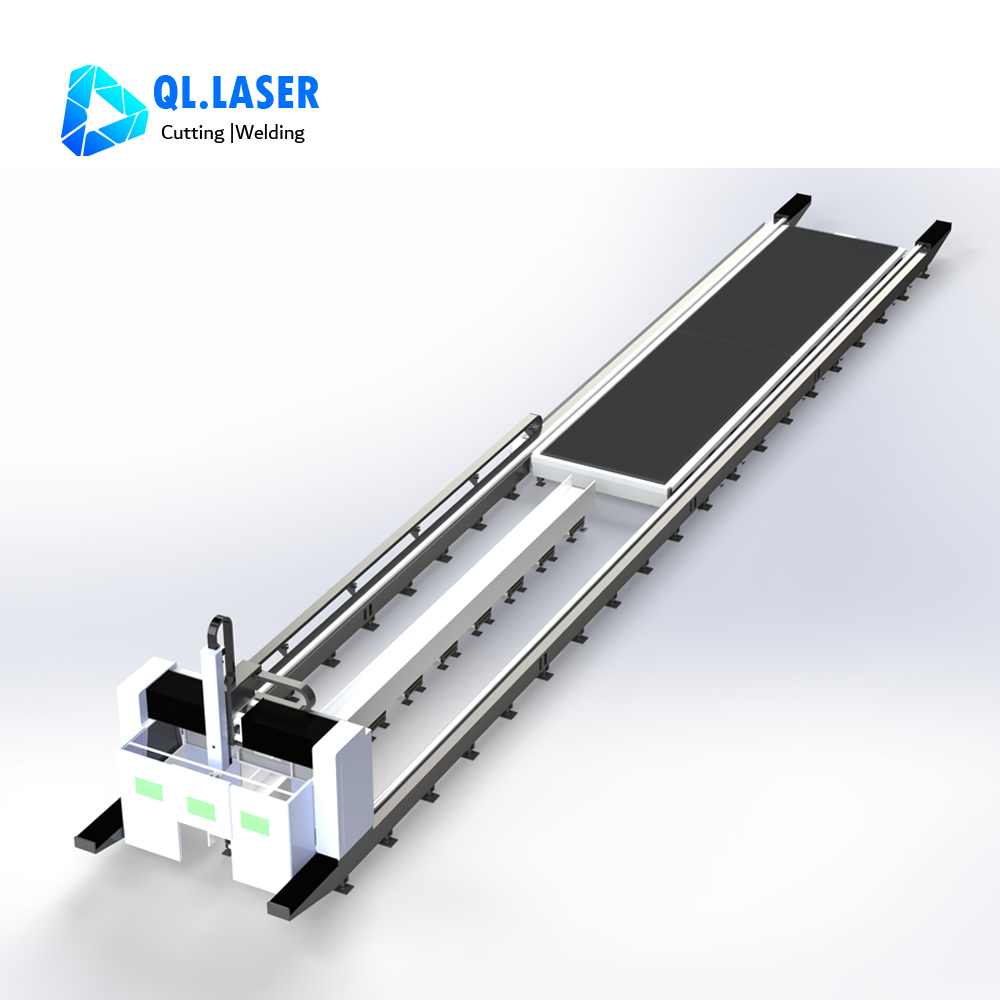

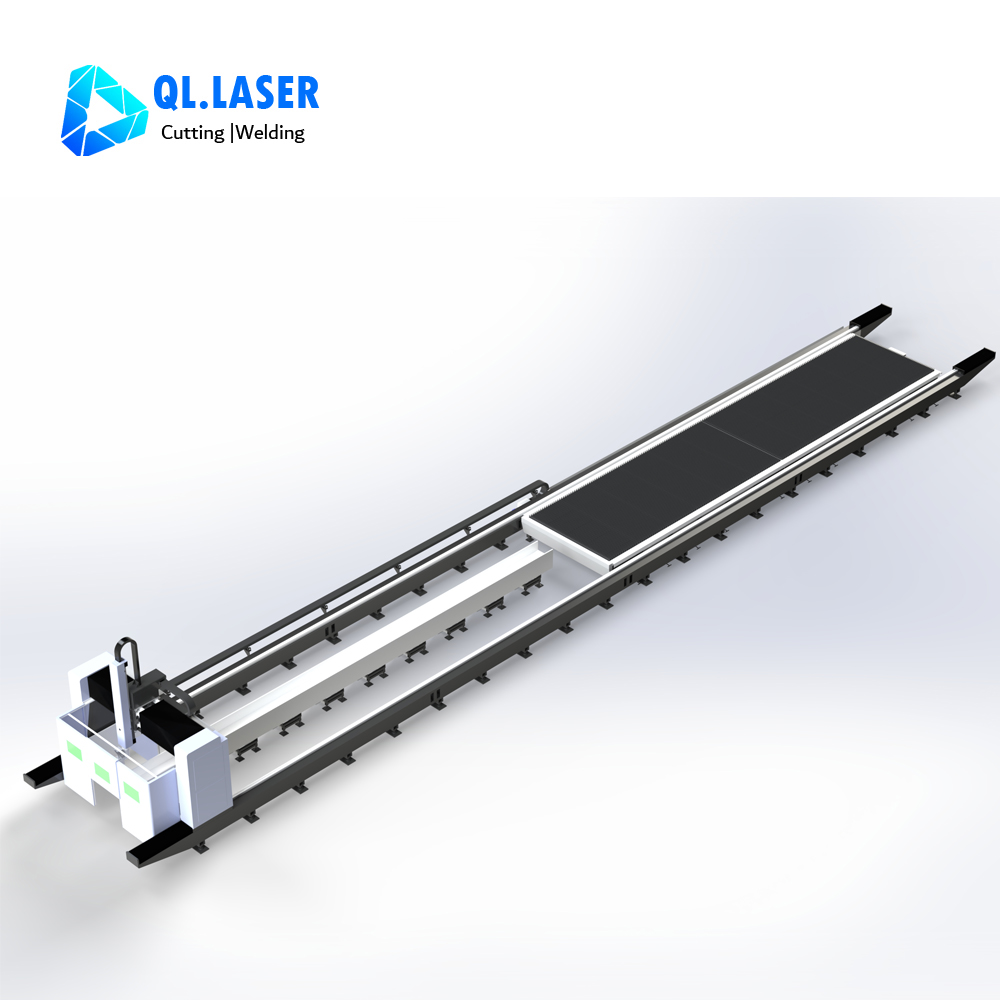

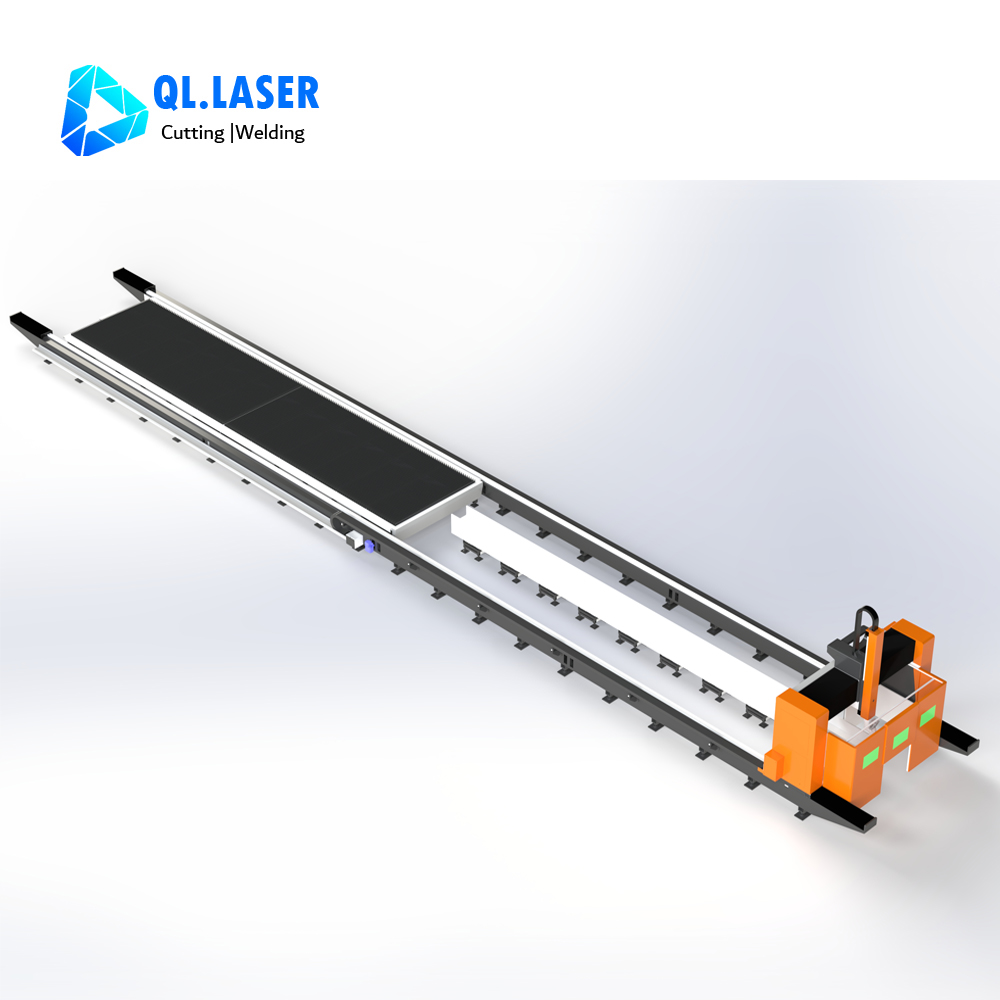

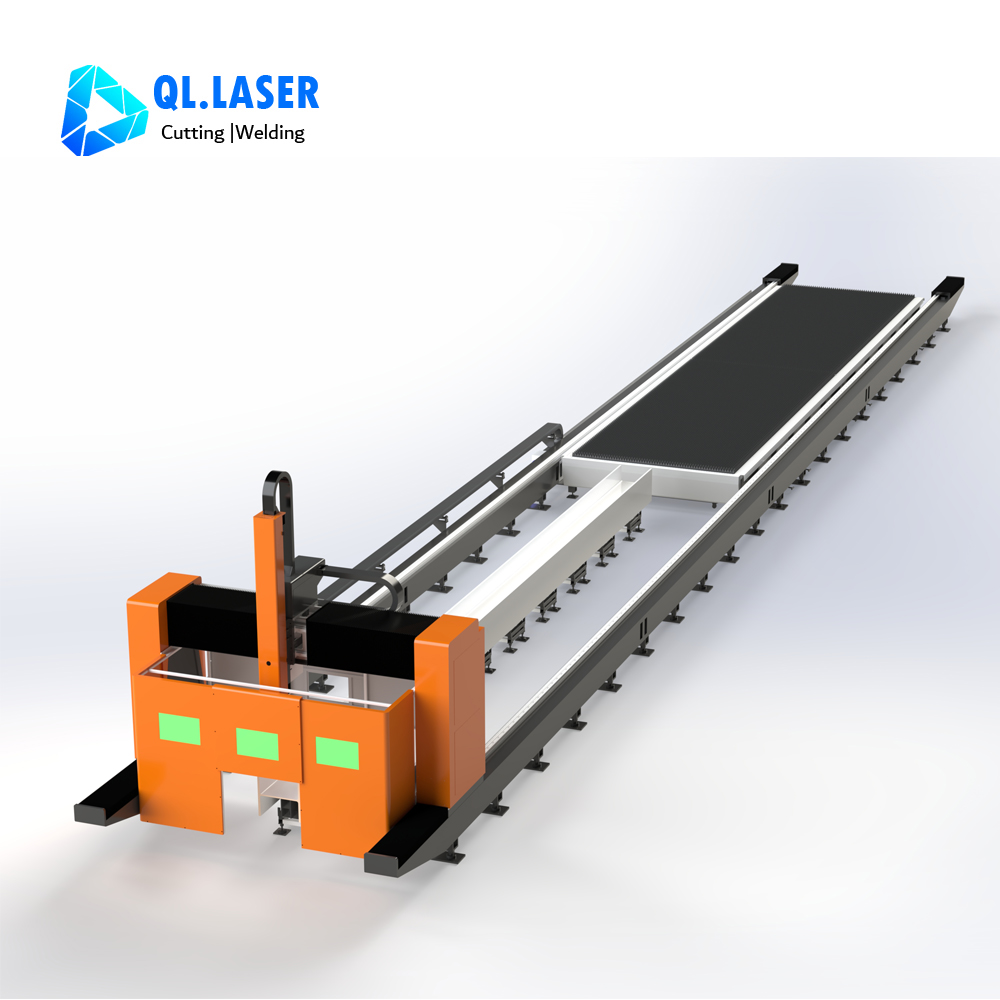

1. A machine can simultaneously cut steel sections and flat plates, expanding the range of cutting materials and saving investment equipment costs.as well as save space.
2. This machine cutting H beam function: cut off, drilling holes, bevel,marking and drawing lines, cutting lock mouth.
3.Vision Calibration function
Quick calibrate rotation axis parameter. High precision, short processing time, and easy maintenance.
4.Professional Nesting
Combines Tekla with TubesT Structural Steel Version, offering efficient drawing and nesting. And also provide Cypnest software for steel plate cutting.
5. Laser Profiling
BCW laser profiler real-time measures and make compensation for error between drawing and material position.
Items | Technical parameters | |
Fiber Laser power | 12kw /20kw/30kw/40kw | |
Controll system | BOCHU FSCUT9200 EtherCAT Bus System | |
Laser cutting head | BOCI Intelligent special laser cutting head for section steel | |
Nesting software | Tubes T for section steel and Cypnest for steel plate | |
Voltage stablizer | Feixiangda/Xinbaoming | |
Structural Steel Cutting range (mm) | Height within 500mm(can be increased) | |
| Width within 1000mm(can be increased) | ||
| Length:12000mm（can be increased) | ||
Wall thickness 30mm | ||
| Steel plate cutting range(mm) | Width:2500mm | |
| Length:12000mm(can be increased) | ||
Effective travel | X axle(mm) | 2500 |
Y axle (mm) | 2500mm (2 workstation) | |
Z axle (mm) | 1300 | |
PositionaI accuracy | X /Y axle (mm/m) | ±0.25 |
Repeated positioning accuracy | X/Y axle (mm) | ±0.05 |
X/Y/Z Maximum speed | 30m/min | |
A-axis swing angle | ±90 ° | |
B-axis swing angle | ±45 ° | |
IP Grade | IP54 | |
H beam and Plate fiber laser cutting machine is mainly used in steel structures,shipbuilding industry , Bridge industry and engineering machinery etc.
1. Can we use 12m machine for both H Beam and steel plate?
Not suggest, because H beam cutting table and steel plate cutting table is different. And cutting table need to be fixed on the ground and also need to connect with the Y rail.You can not easy to remove current cutting table when cutting another material. So need 25m machine. 12.5m is for H beam, another 12.5m for steel plate.
2. Can i use air to cut H Beam and steel plate ?
You can use air to cut steel plate and use oxygen to cut H Beam.
3. What is the difference between H-beam cutting machine and laser pipe cutting machine in cutting H-beams?
The H-beam laser cutting machine can cut H-beams in a wide range of sizes, with cutting web up to 1000mm and wing up to 500mm ( can be increased) .The tube laser cutting machine cut H-beam web cannot exceed 500mm, and the wing cannot exceed 400mm. When the web reaches 500mm, the price of the tube laser cutting machine is much higher than that of the H-beam laser cutting machine. And the maximum power of the tube laser cutting machine can only reach 20KW, while the power of the H-beam laser cutting machine can reach 40kw.
