| Quantity: | |
|---|---|

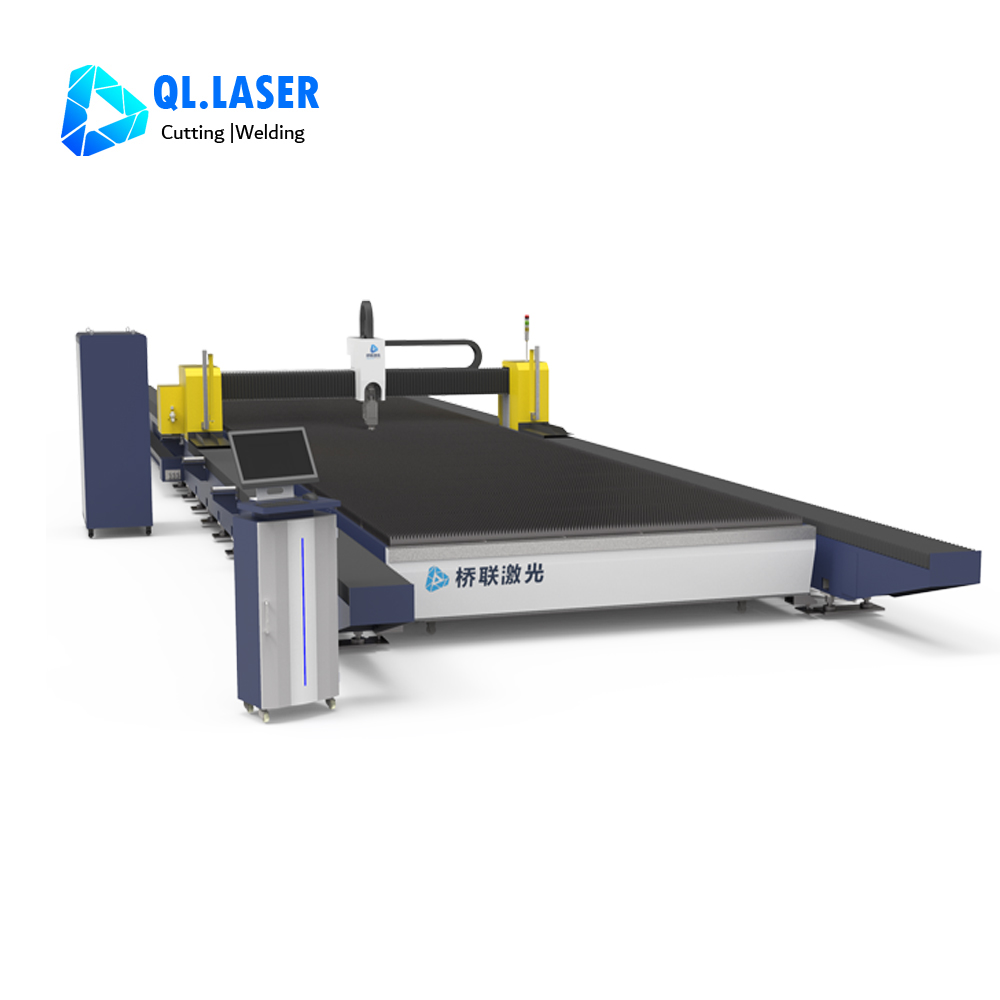

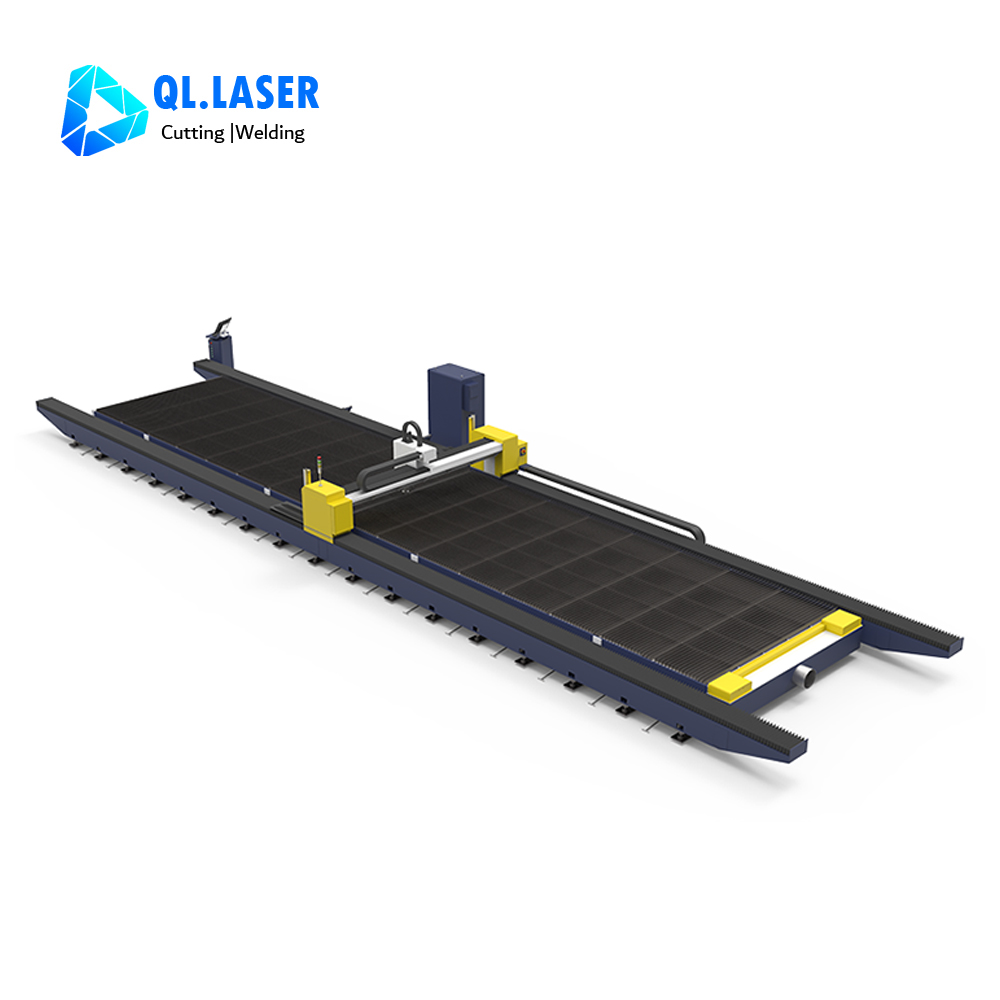

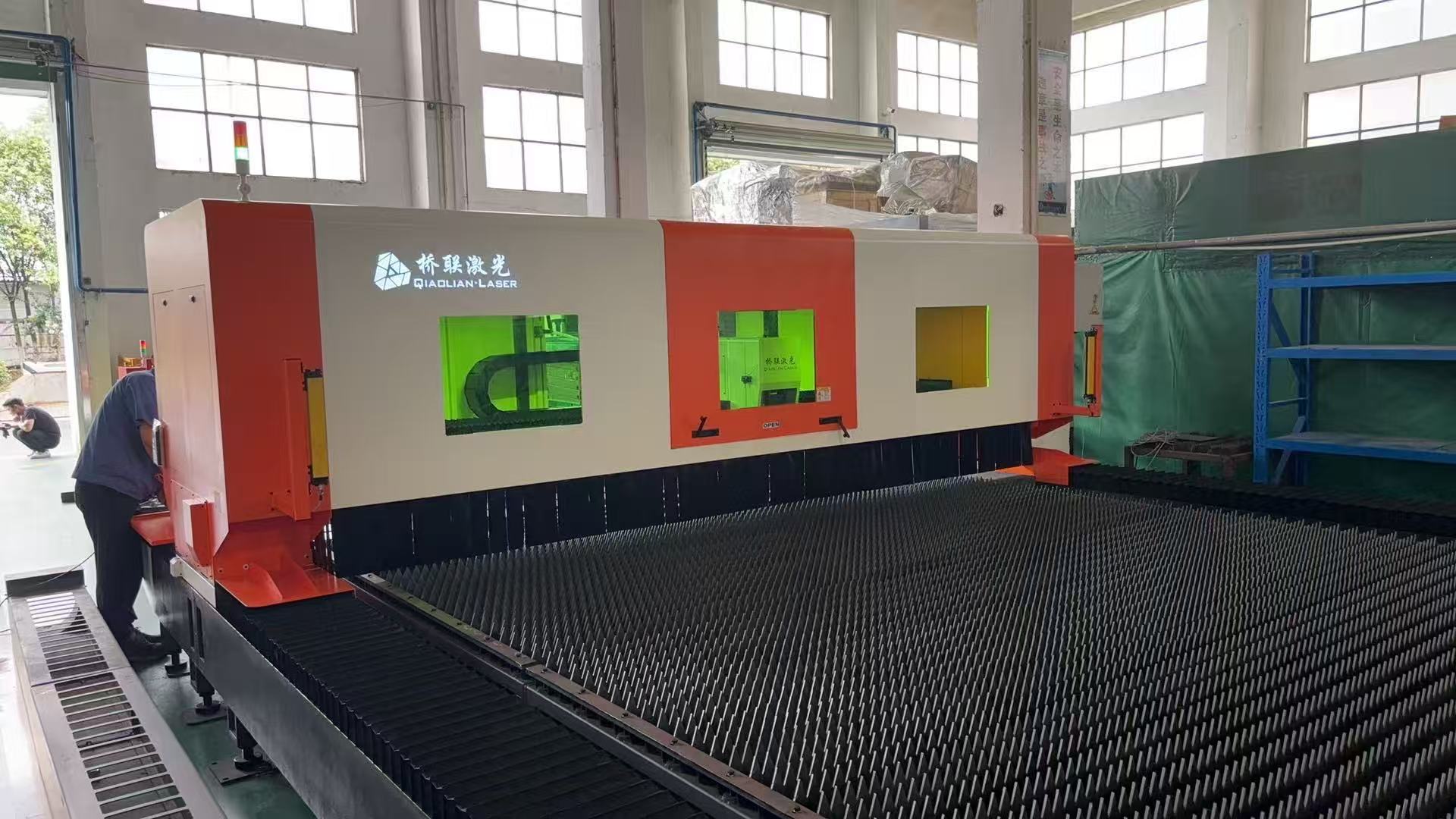

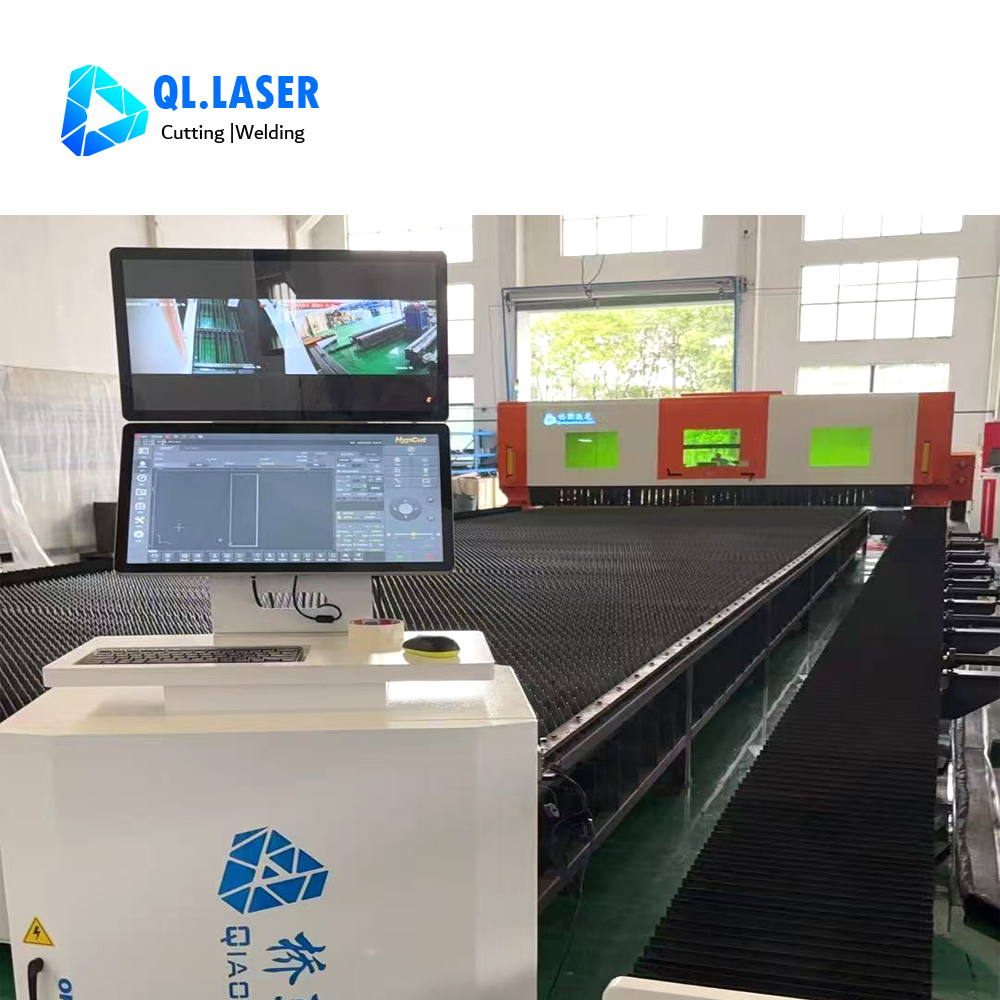

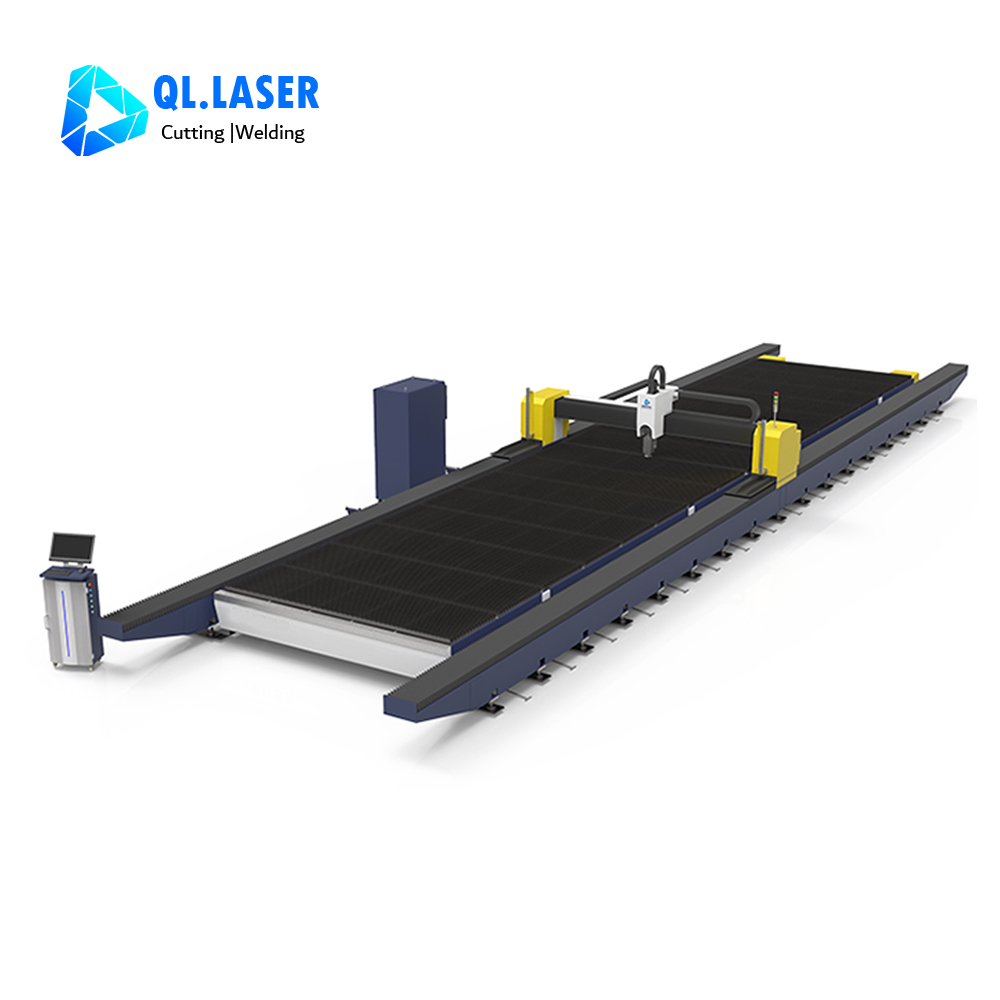

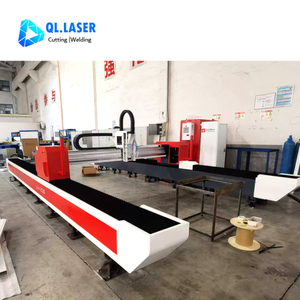

1. The gantry structure separates the cutting table from the two side guide rails, effectively protecting the guide rails when cutting thick plates. Split structure, convenient for transportation, saves packaging and transportation costs.

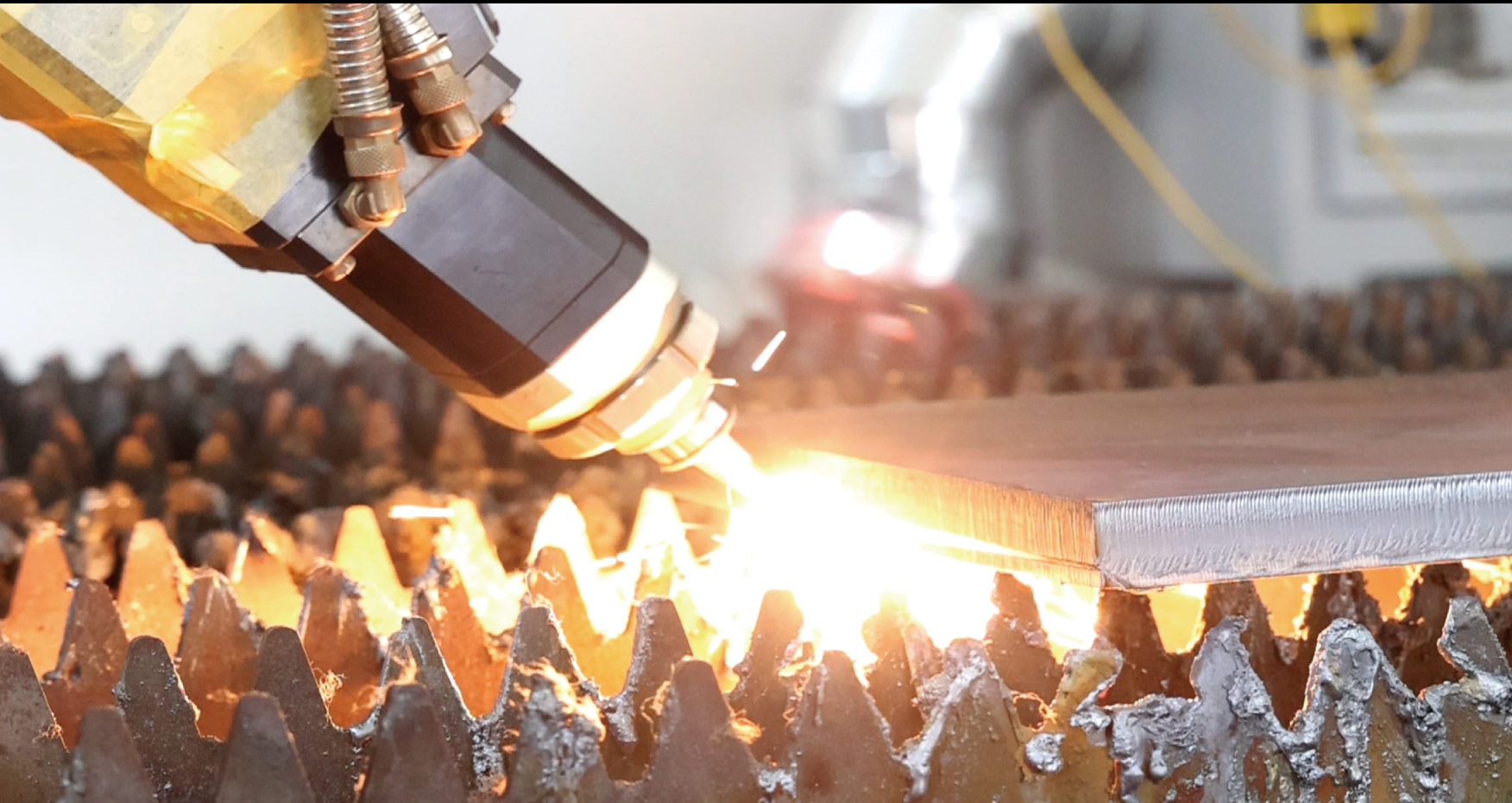

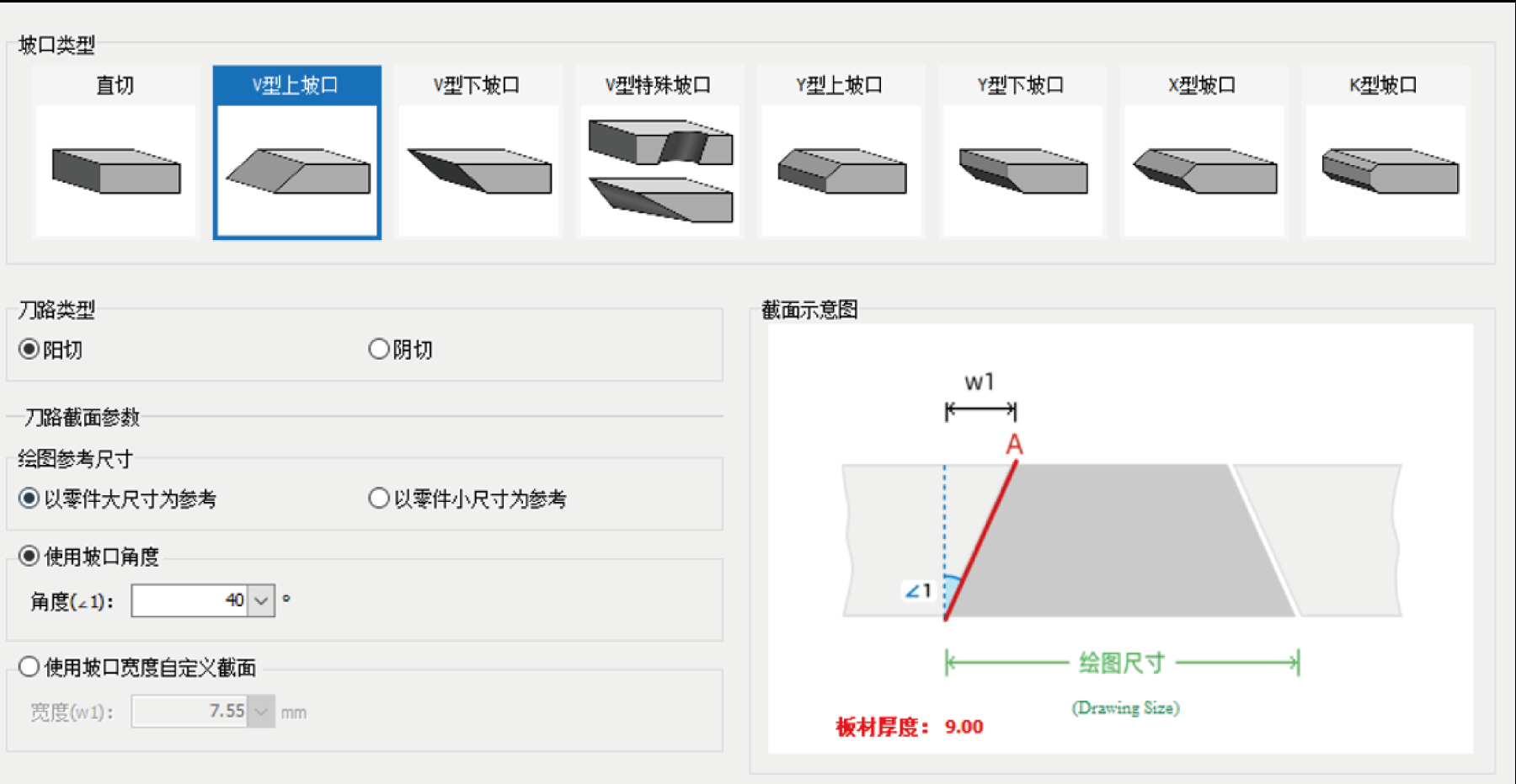

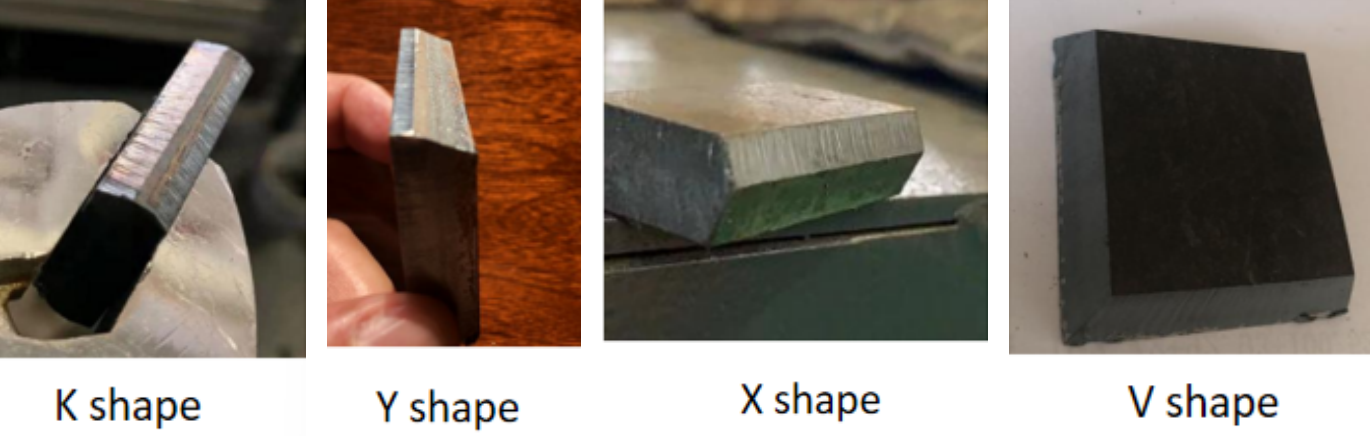

2. Bevel cutting function can be optional. Support V/Y/X/K bevel, and special types of gradient bevel upper-circle-lower-square bevel.
 |  |

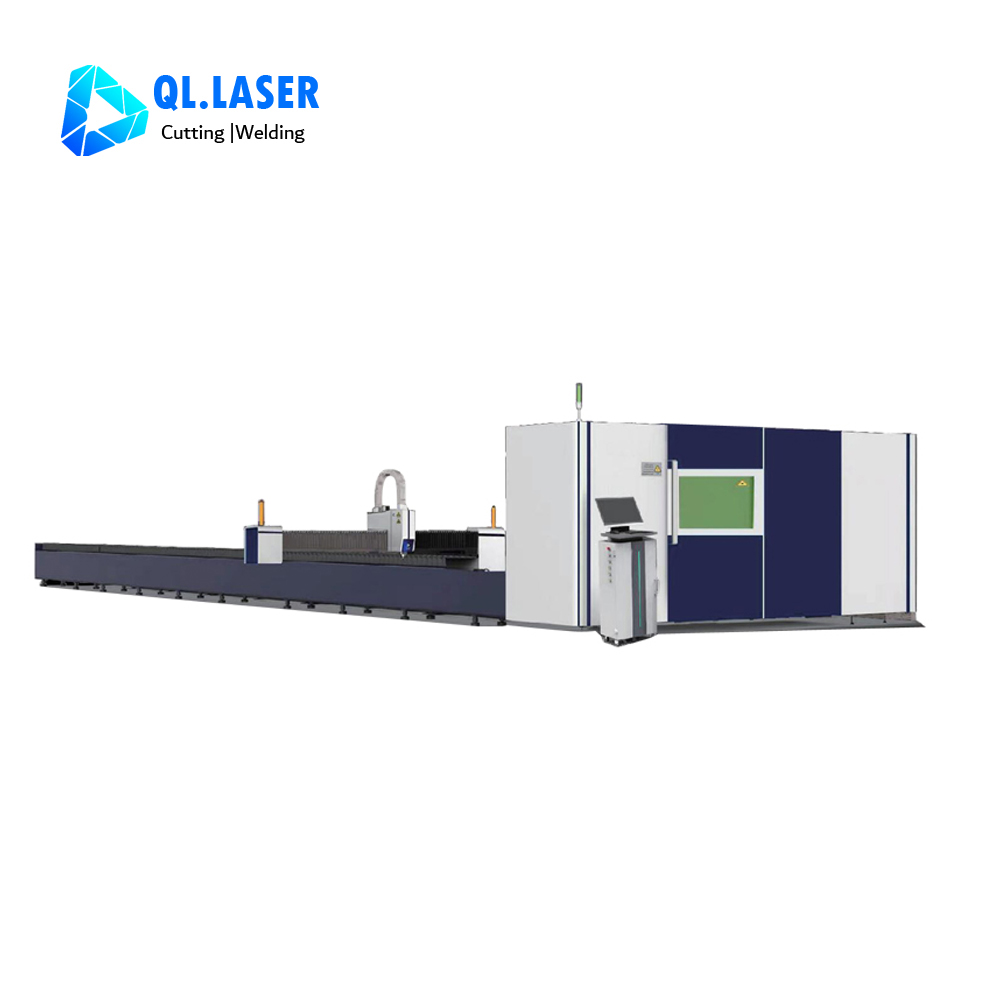

3. Crossbeam cover or front cover can be optional. Installing the crossbeam cover meets the environmental requirements of some countries, making the machine more aesthetically pleasing.

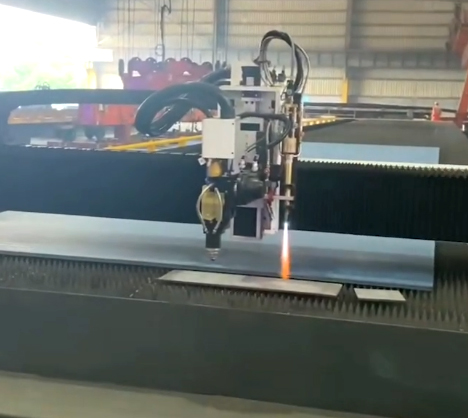

4. Flame marking function can be optional.
5. The gantry laser cutting machine is equipped with high-power lasers and air compressors to achieve air cutting of medium plates, as well as thick plate cutting, improving efficiency.
Model | JLH6025 | JLH8025 | JLH8030 | JLH12025 | JLH12025 | JLH12030 | JLH12035 | JLH24040 |
Laser power | 6kw 12kw 15kw 20kw 30kw 40kw 60kw 80kw Raycus / Max | |||||||
Effective cutting size | 6m*2.5m | 8m*2.5m | 8m*3m | 12m*2.5m | 12m*2.5m | 12m*3m | 12m*3.5m | 24m*4m |
Cutting material | Carbon steel ,Stainless steel ,Galvanized sheet, Aluminum, Brass,Red copper, etc. | |||||||
PositionaI accuracy (mm/m) | X /Y axle : ±0.03, Z axle :±0.01 | |||||||
repeated positioning accuracy(mm) | X /Y axle : ±0.01, Z axle :±0.005 | |||||||
Rapid positioning speed (m/min) | X /Y axle : 80, Z axle :30 | |||||||
Acceleration speed(G) | 0.8 | |||||||
IP Grade | IP54 | |||||||
Other size can be customized. | ||||||||

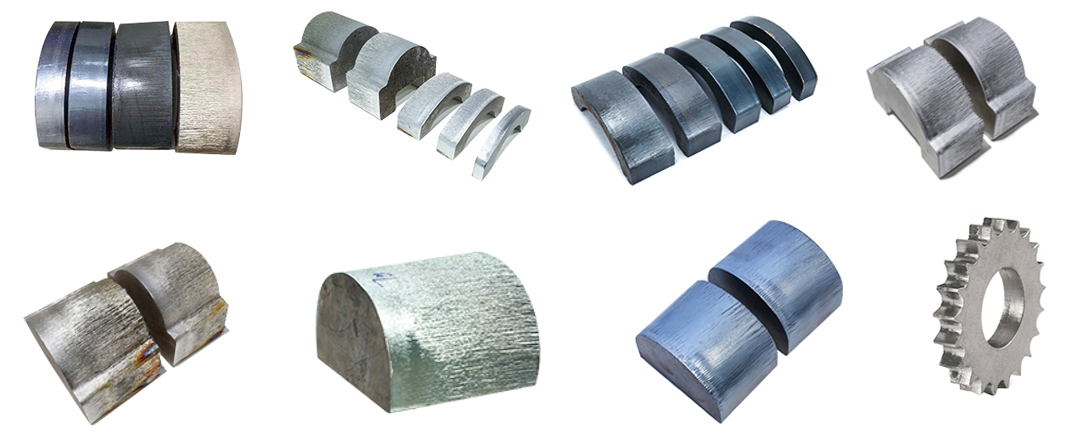

| Materia Laser power | 6kw | 12kw | 15kw | 20kw | 30kw | 40kw | 60kw |
Carbon steel(mm) | 22 | 35 | 35 | 50 | 50 | 70 | 100 |
Stainless steel(mm) | 18 | 25 | 30 | 40 | 50 | 70 | 100 |
Aluminum(mm) | 16 | 25 | 30 | 30 | 30 | 70 | 60 |
Brass(mm) | 12 | 14 | 16 | 18 | 20 | 25 | 25 |
Red copper(mm) | 6 | 8 | 10 | 10 | 12 | 16 | 20 |

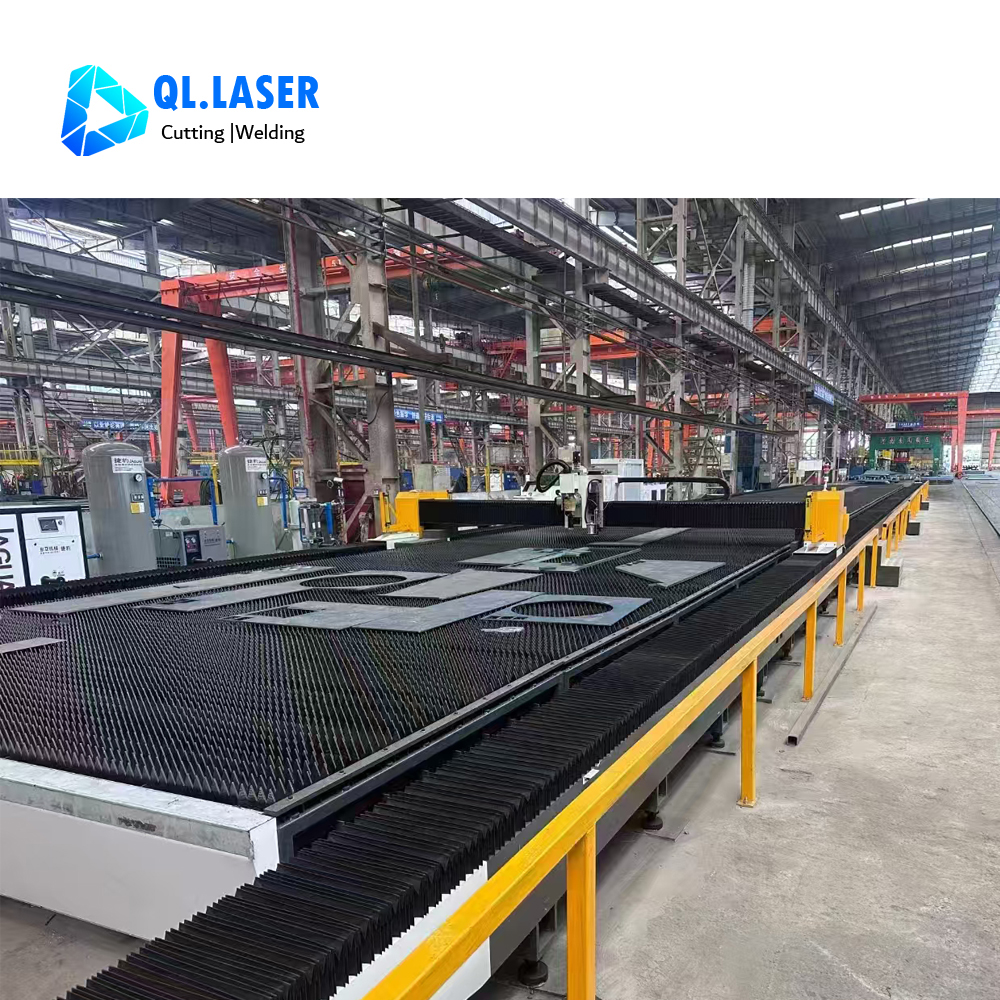

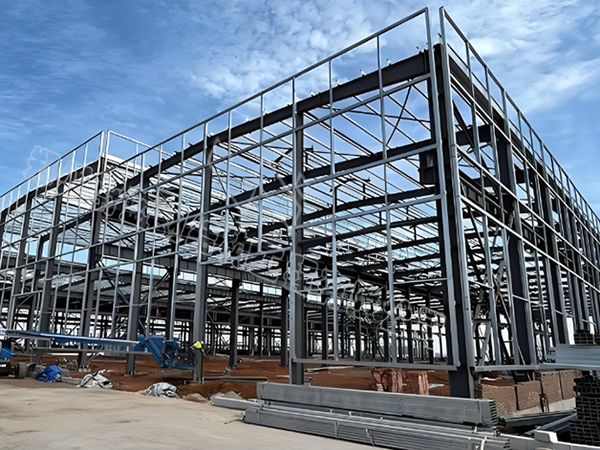

High power gantry laser cutting machine is widely used in high-speed rail industry, bridge construction, shipbuilding industry, steel structure and other industries.
 |  |  |  |

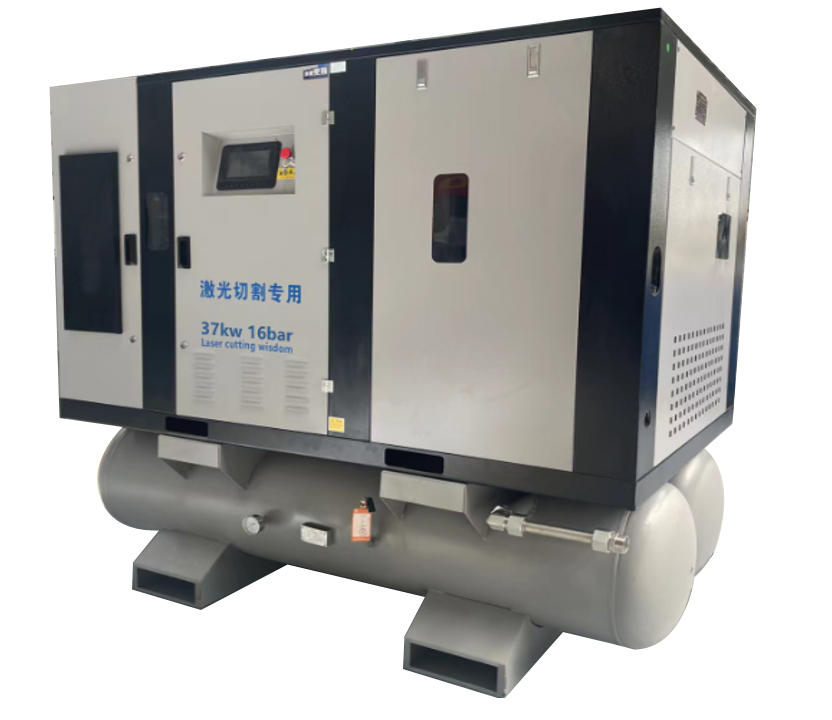

37kw/16bar Technical parameter table of air compressor (single stage compression) | ||
Screw air compressor | Power | 37kw |
Volume Flow(m³/min) | 3.5m³/min | |
Pressure(Mpa) | 1.58Mpa | |
Start Method | Frequency Conversion | |
Cooling method | Air Cooling | |
Electricity | 380V/50Hz | |
freeze dryer | Free Air Deliver | 3.8m³/min |
Pressure(Mpa) | 1.6Mpa | |
Inlet Temperature | ≤80℃ | |
Ambient Temperature | ＜45℃ | |
Pressure Dew-Point | 2-10℃ | |
Outlet diameter | G1 | |
Electricity | 220V 50Hz | |
Module drying machine | Free Air Deliver | 3.8m³/min |
Pressure(Mpa) | 1.6Mpa | |
Electricity | 220V 50Hz | |
Fine filter*8pcs | Free Air Deliver | 8.5m³ |
Pressure(Mpa) | ≤2.0 | |
Exhaust dust content | 0.01um | |
Outlet diameter | RP3/4 | |
Air Tank *2 pcs | Gas storage tank capacity | 450L |
Maximum working pressure | 1.6Mpa | |
Air intake | G1.5" | |
Air outlet | G1.5" | |
Temperature design | 150℃ | |
Safety valve interface | RC1/2 | |
Discharge valve interface | RC1/2 | |
Size | φ500*2000mm | |
Size | 2300*1250*1860mm | |
Weight | 900kg | |
1. Can we make cutting table by ourself?
Yes. If you make cutting table by yourself, we will provide drawings.
2. Do you provide on-site installation training services?
Yes. Need to pay extra cost, including round-trip tickets, visa, engineer's salary, meals and accommodation.
3. How long does it take to install and train this machine?
Total about 15-20days. Need 2engineers. One electrical engineer and one mechanical engineer.
