| Quantity: | |
|---|---|

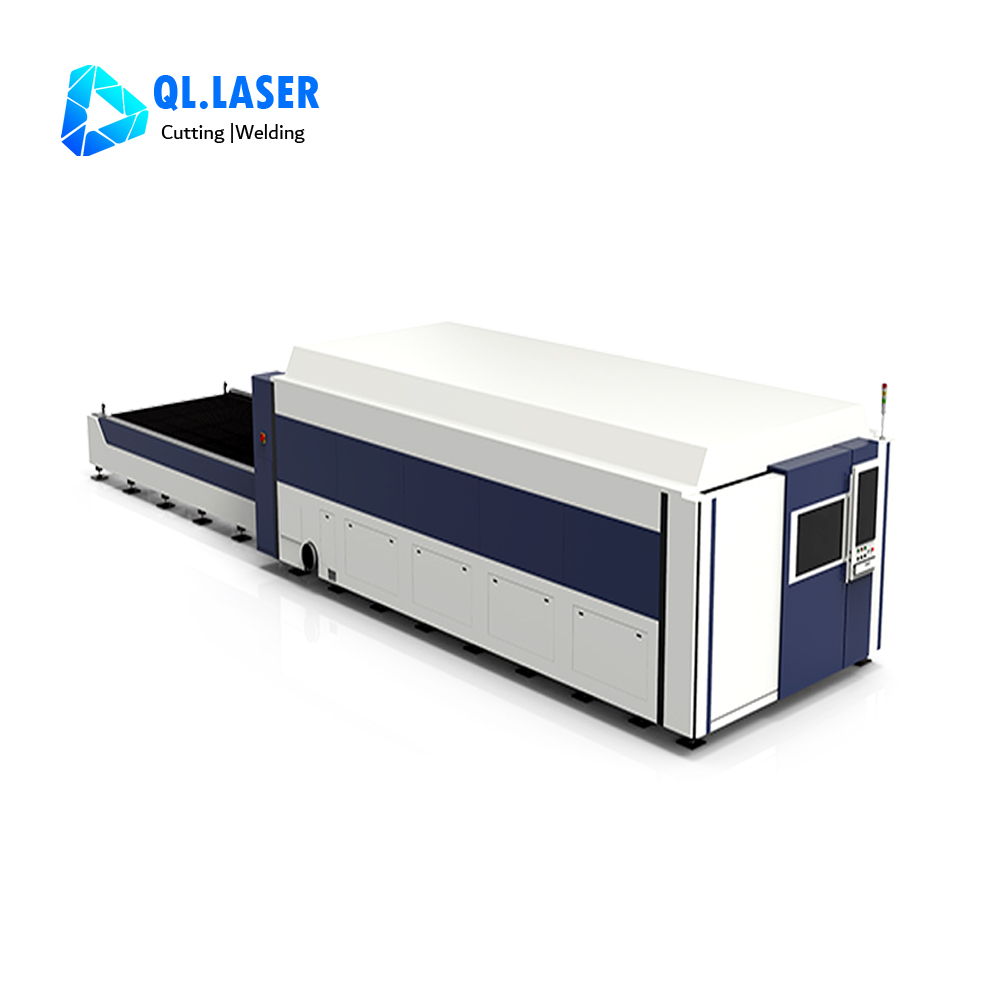

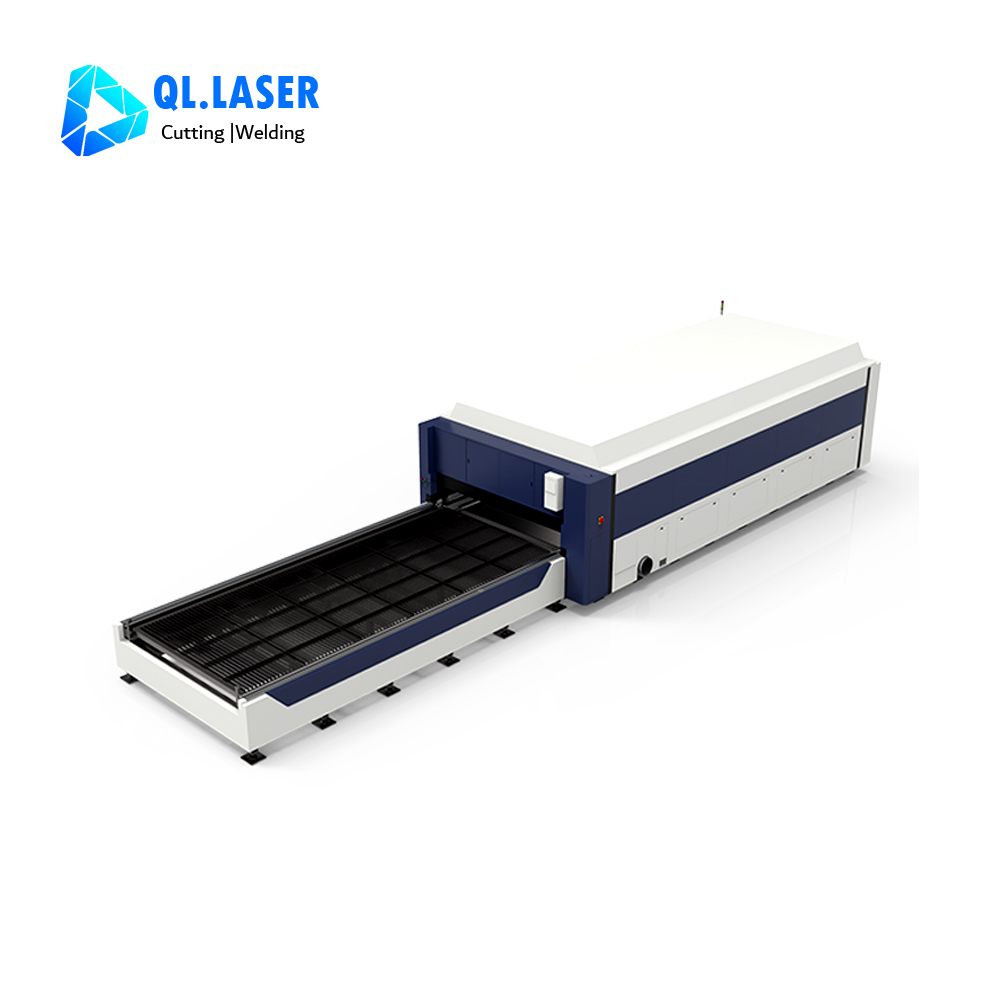

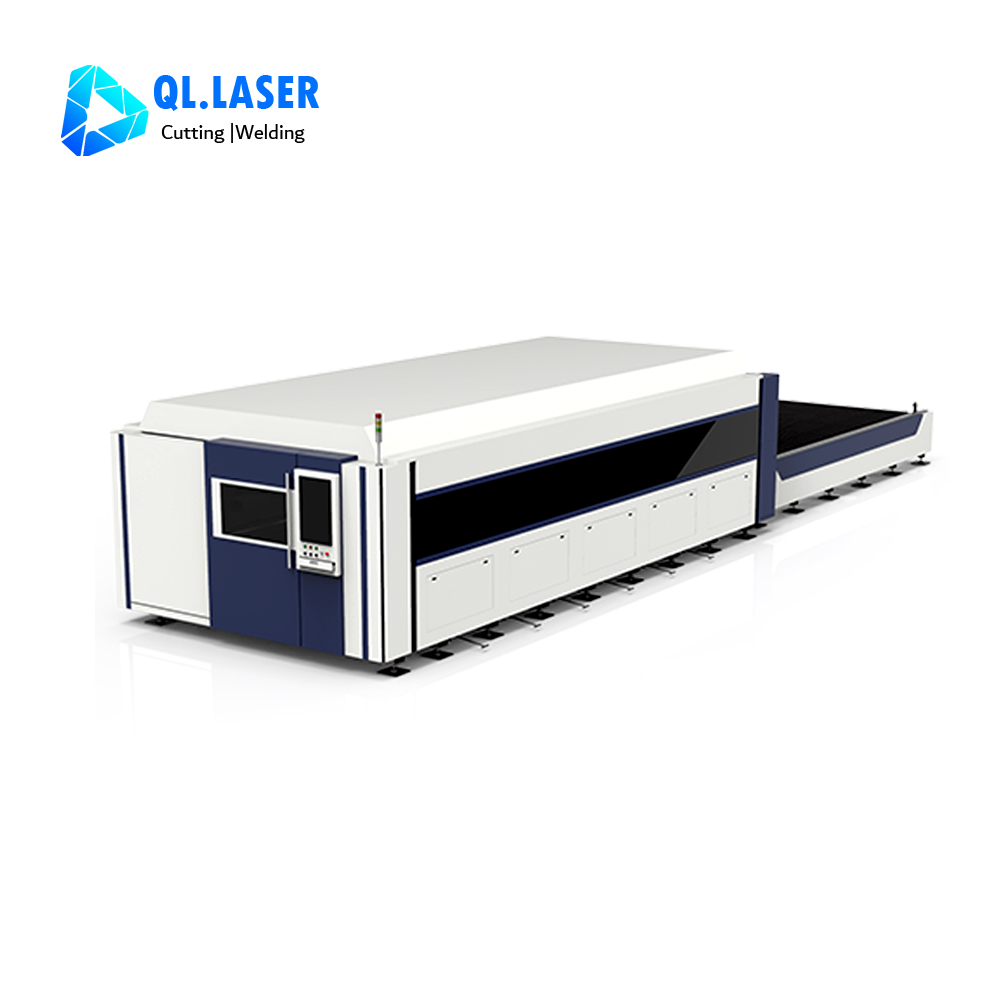

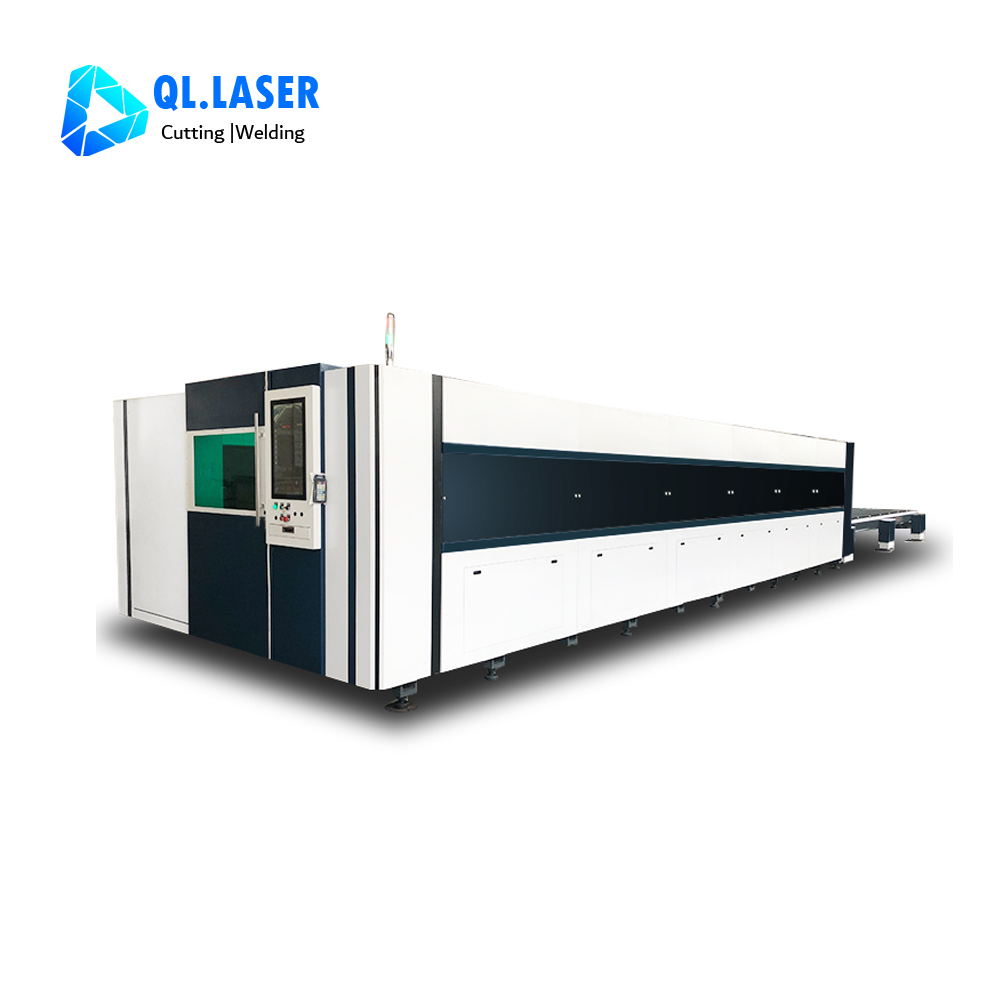

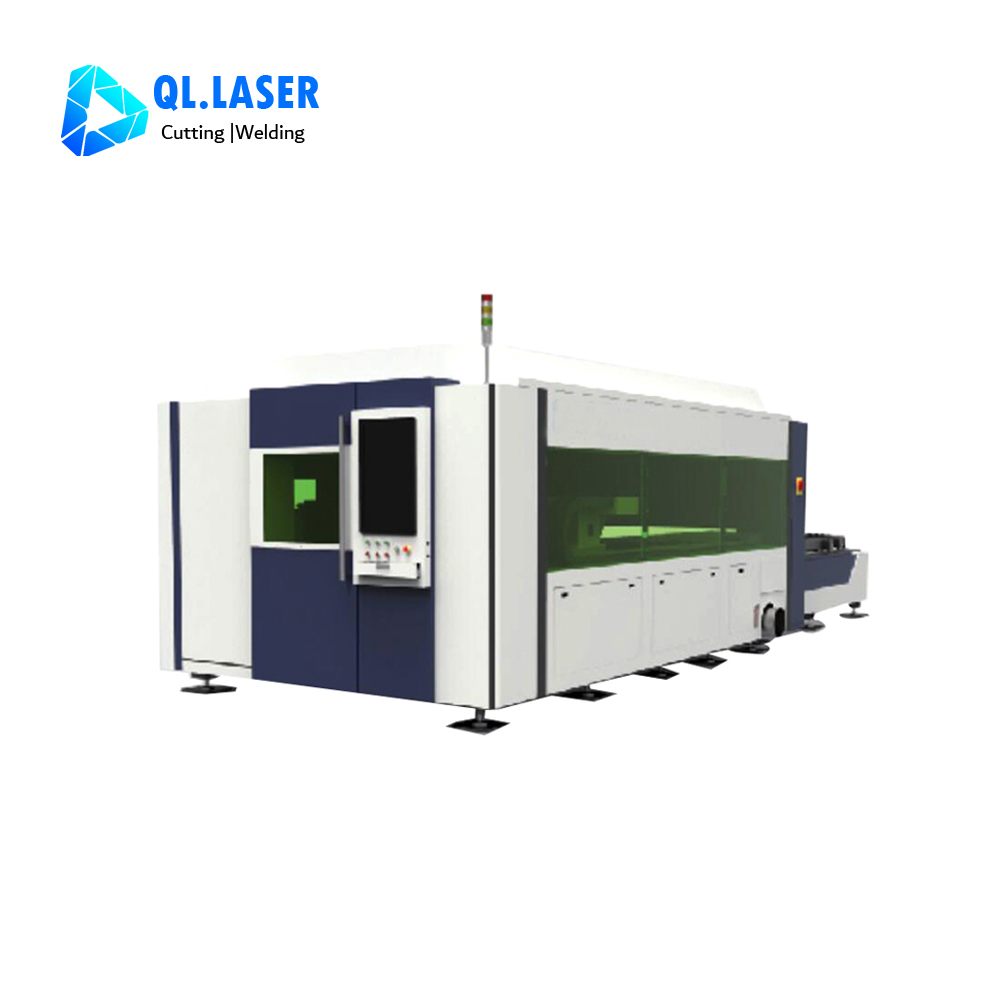

1. Equipped with two cutting tables to save loading and unloading time.

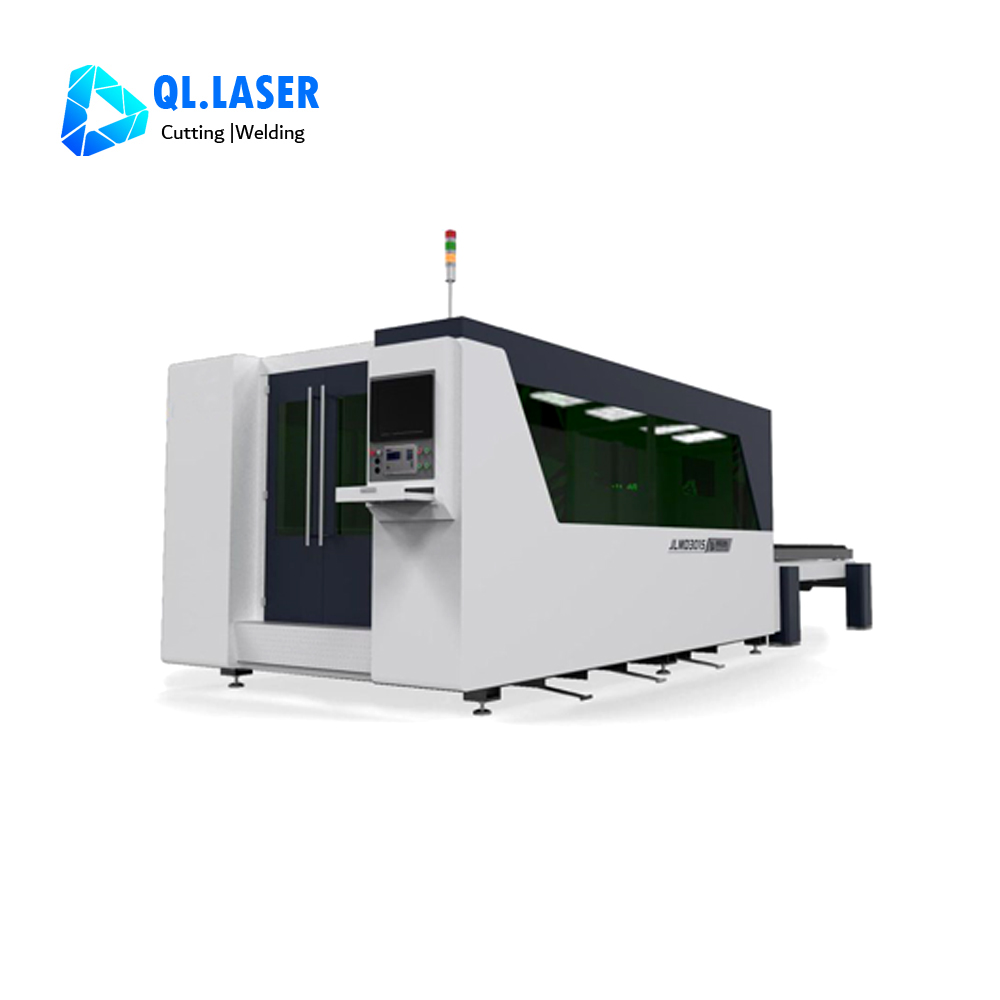

2. The fully enclosed structure not only meets environmental requirements, but also improves safety, enhances machine dynamics and acceleration.
3. The machine is equipped with cameras, allowing operators to have a clear understanding of the cutting area and improving operational convenience.

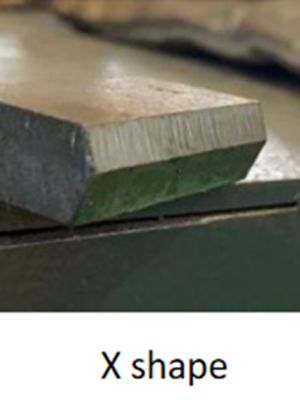

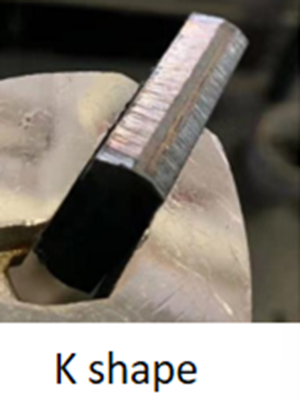

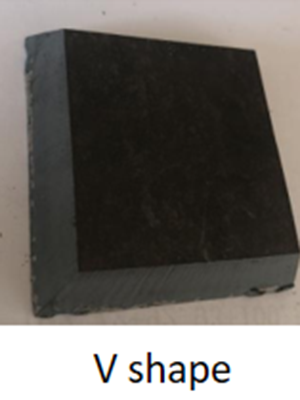

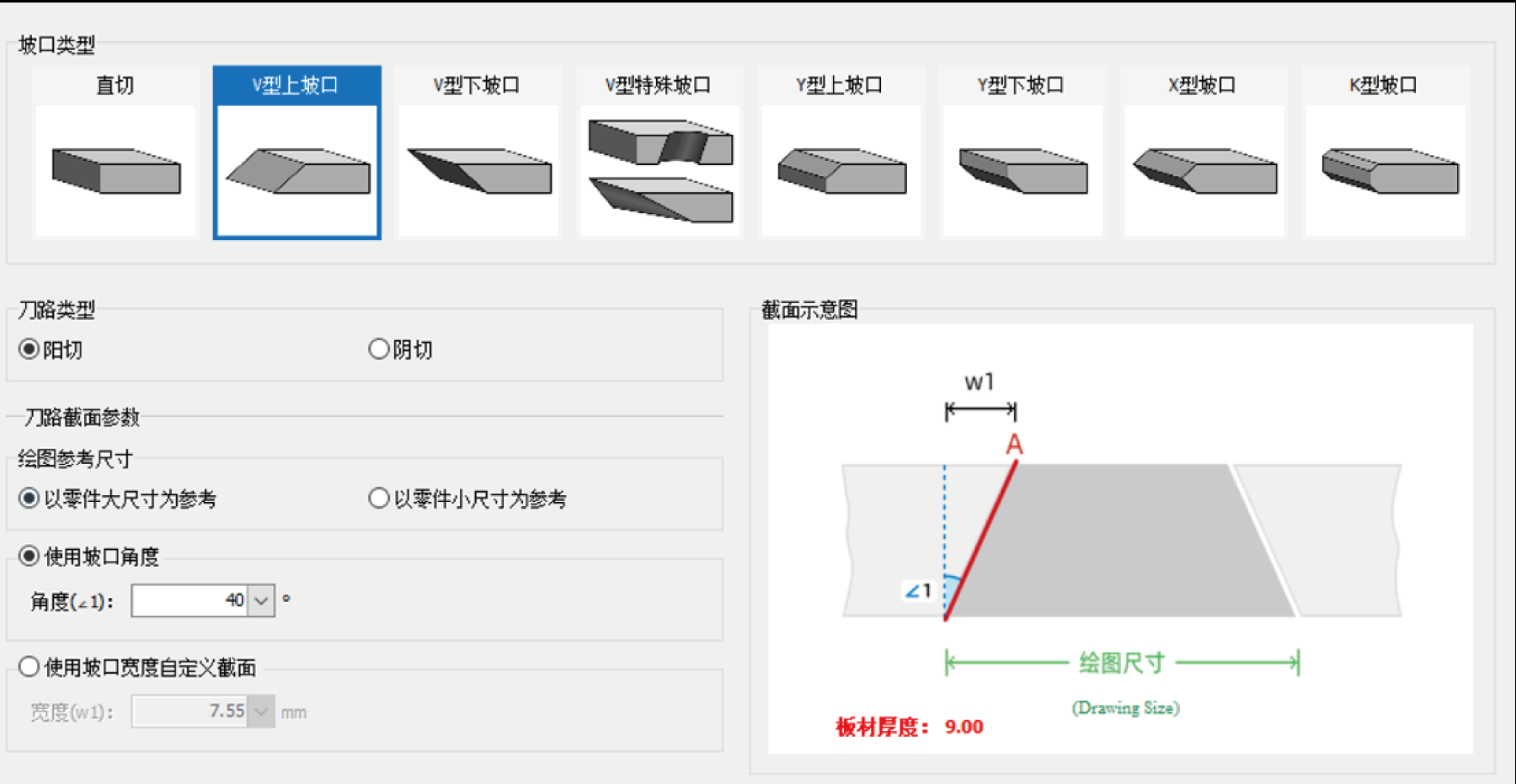

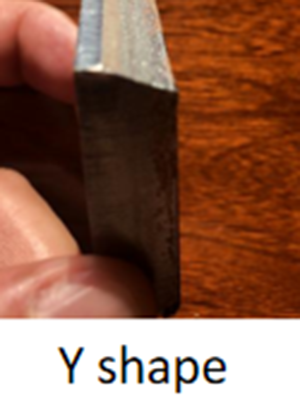

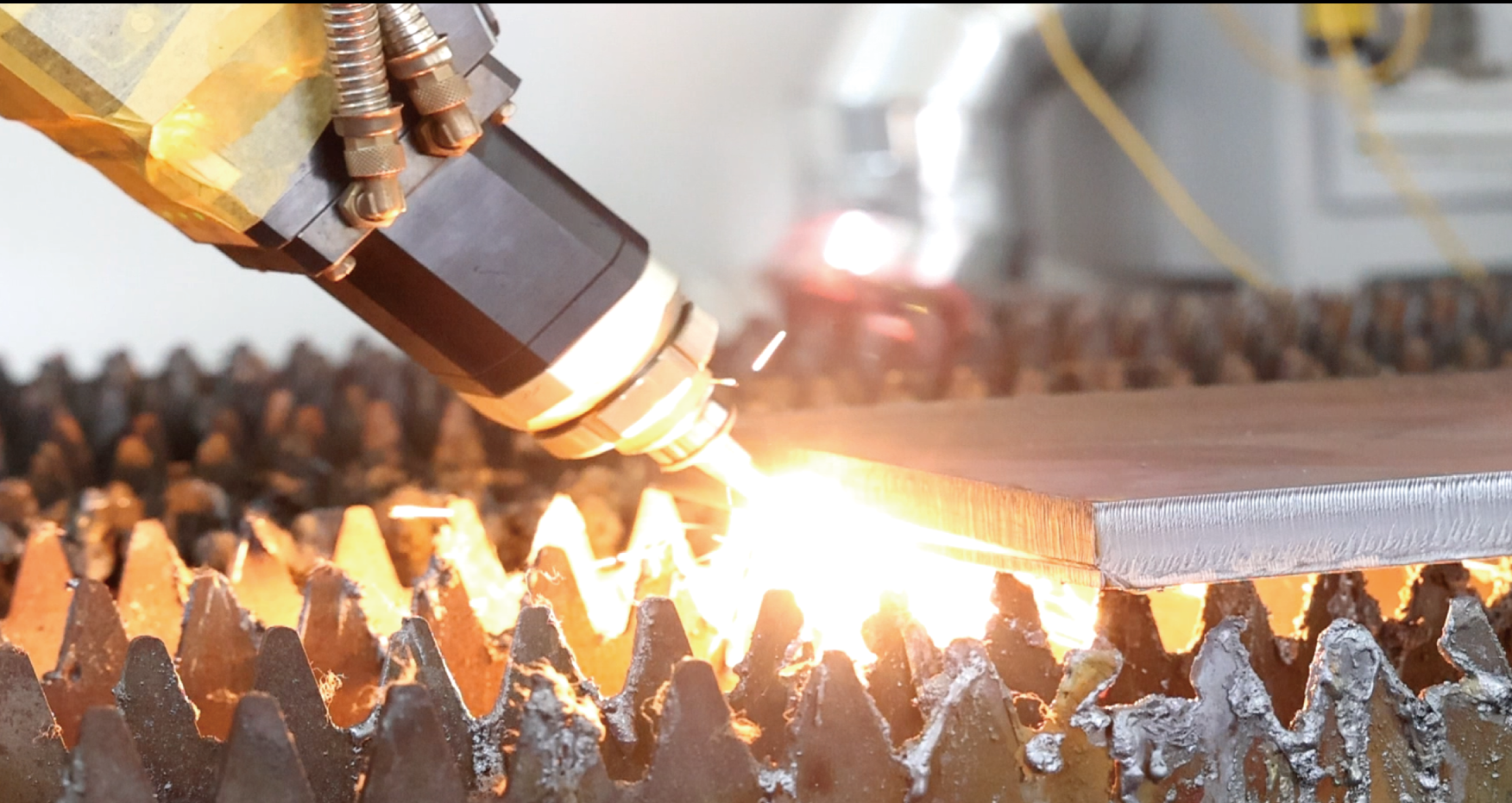

4. Bevel cutting function can be optional. Support V/Y/X/K bevel, and special types of gradient bevel upper-circle-lower-square bevel.
 |  |

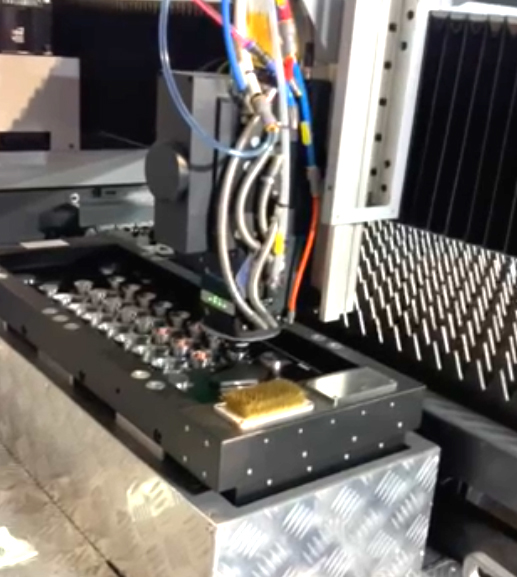

5. The automatic nozzle replacement function can be optional.It solves the problem of manual operation easily damaging ceramic rings, improving production efficiency and safety.
Model | JLMT3015 | JLMT4015 | JLMT6015 | JLMT4020 | JLMT6020 | JLMT6025 |
Laser Source | 6kw /12kw/ 15kw/ 20kw /30kw /40kw /60kw/ 80kw | |||||
Effective cutting size | 3m*1.5m | 4m*1.5m | 6m*1.5m | 4m*2m | 6m*2m | 6m*2.5m |
Cutting material | Carbon steel ,Stainless steel ,Galvanized sheet, Aluminum, Brass,Red copper, etc. | |||||
PositionaI accuracy (mm/m) | X /Y axle : ±0.03, Z axle :±0.01 | |||||
repeated positioning accuracy(mm) | X /Y axle : ±0.01, Z axle :±0.005 | |||||
Rapid positioning speed (m/min) | X /Y axle :120, Z axle :60 | |||||
Acceleration speed(G) | 1.5 | |||||
Other size can be customized. | ||||||
| Materia Laser power | 6kw | 12kw | 15kw | 20kw | 30kw | 40kw | 60kw |
Carbon steel(mm) | 22 | 35 | 35 | 50 | 50 | 70 | 100 |
Stainless steel(mm) | 18 | 25 | 30 | 40 | 50 | 70 | 100 |
Aluminum(mm) | 16 | 25 | 30 | 30 | 30 | 50 | 60 |
Brass(mm) | 12 | 14 | 16 | 18 | 20 | 25 | 25 |
Red copper(mm) | 6 | 8 | 10 | 10 | 12 | 16 | 20 |
Double table laser cutting machine is applied in the rail transit industry, aerospace, automotive manufacturing, machinery industry, etc
 |  |  |  |
1. How many types of exchange table do you have?
We have parallel exchange table, hydraulic exchange table, and electric exchange table.
2. What gas is used for laser cutting machine?

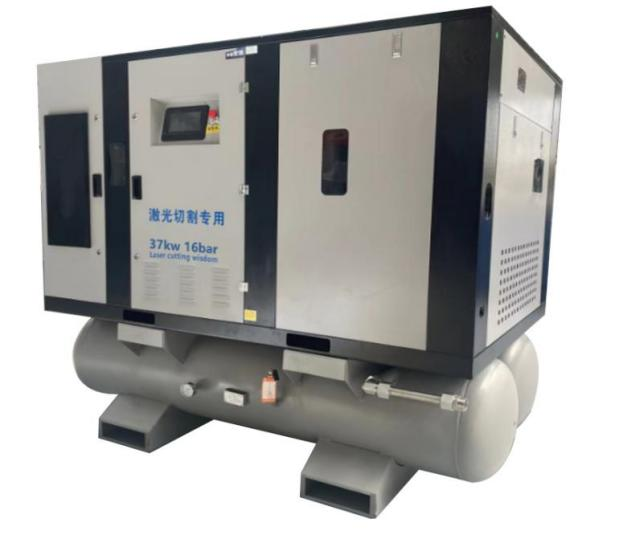

Carbon steel uses air and oxygen to cut.Air cutting thickness depends on the laser power. Any thickness of carbon steel can be cut with oxygen. The oxygen cutting speed is much lower than the air cutting speed.
Stainless steel and aluminum are cut with nitrogen or air.
Brass is cut with nitrogen gas
Red copper is cut with high pressure oxygen.
3. What is the warranty for the machine?
Laser power: Two years warranty,excluding laser output head and output fiber and all lenses.
Electronics and motion parts: one year warranty.
