I. Product advantage

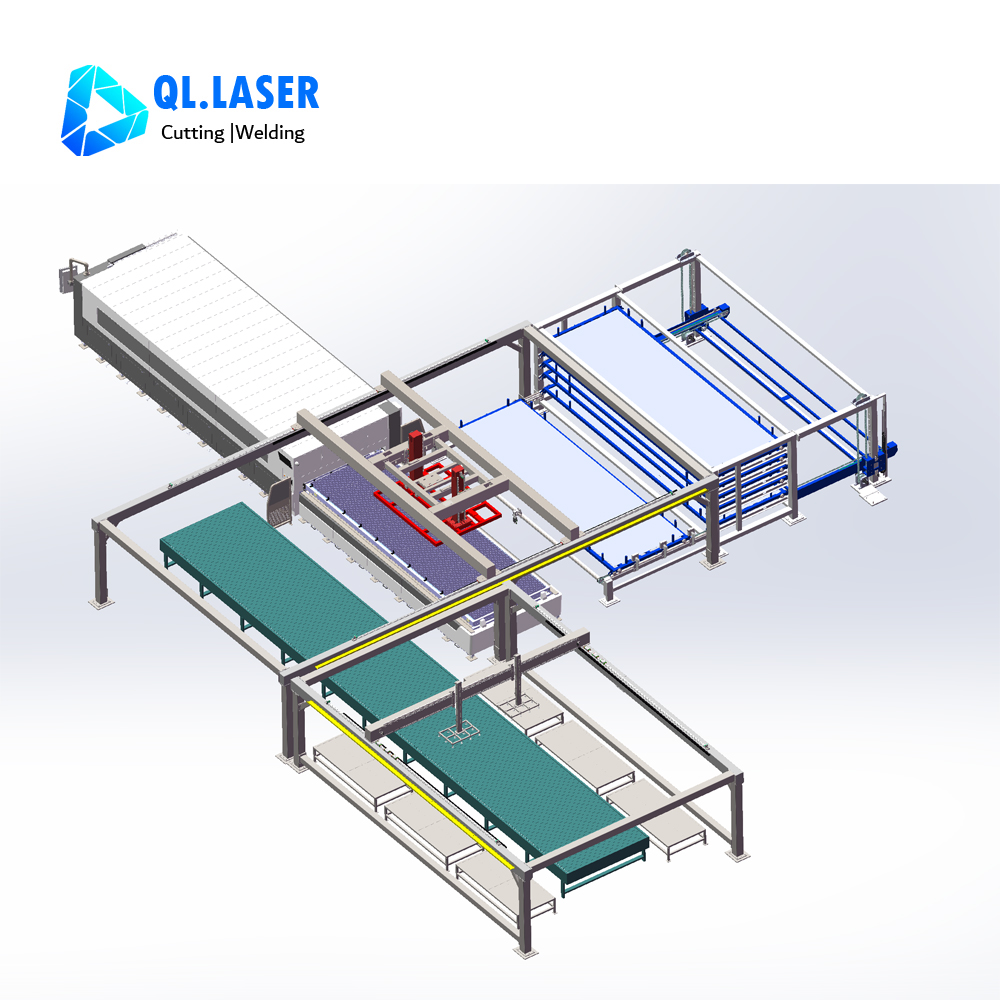

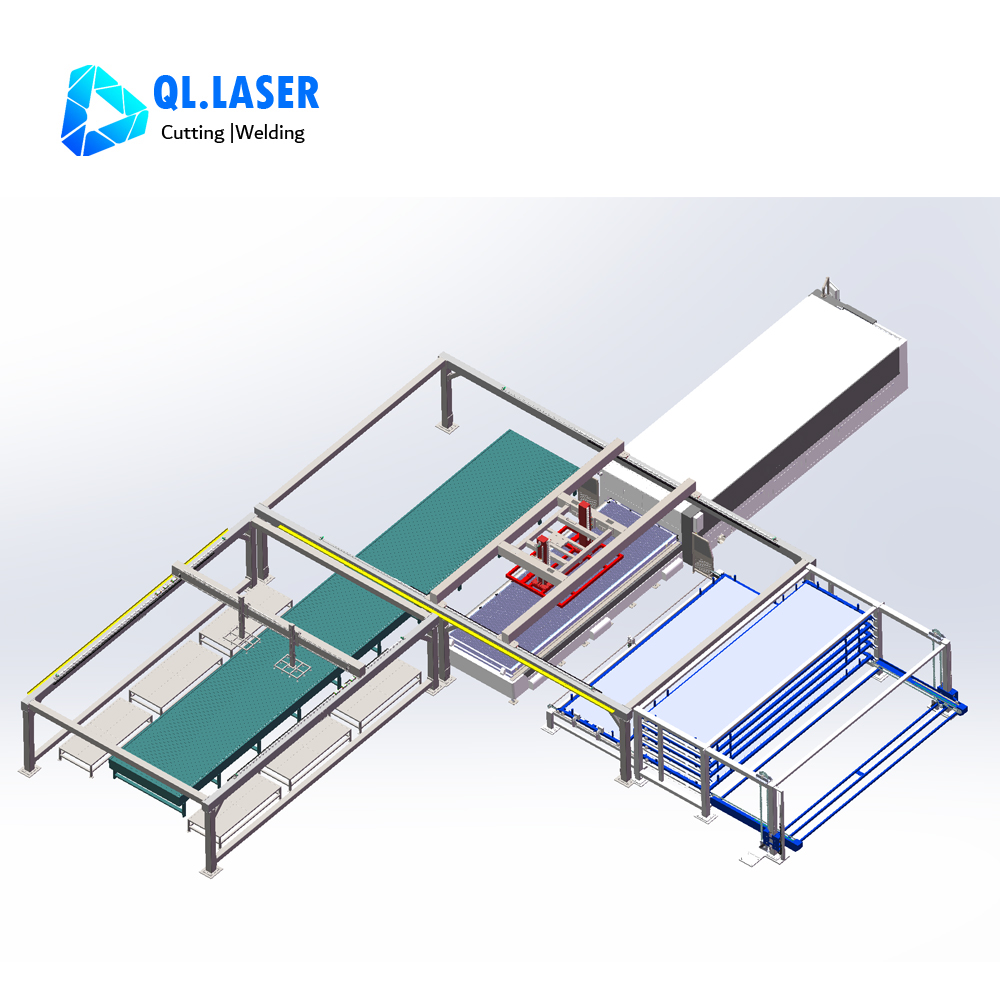

1. Stereoscopic storage unit
Adopting a layered structure, fully utilizing three-dimensional space, supporting multi-layer metal sheet storage, meeting the batch storage needs of different specifications of metal sheet, and saving floor space. Equipped with a chain drive or servo motor drive system to ensure the stability and accuracy of metal sheet storage and retrieval.
2. Automatic loading and unloading mechanism
Using vacuum suction cups or robotic arms to grab the sheet metal, it is moved to the laser cutting machine worktable through the crossbeam guide rail to achieve precise positioning。The suction cup design can adapt to different sizes of metal sheets, avoiding tilting problems caused by center of gravity offset.

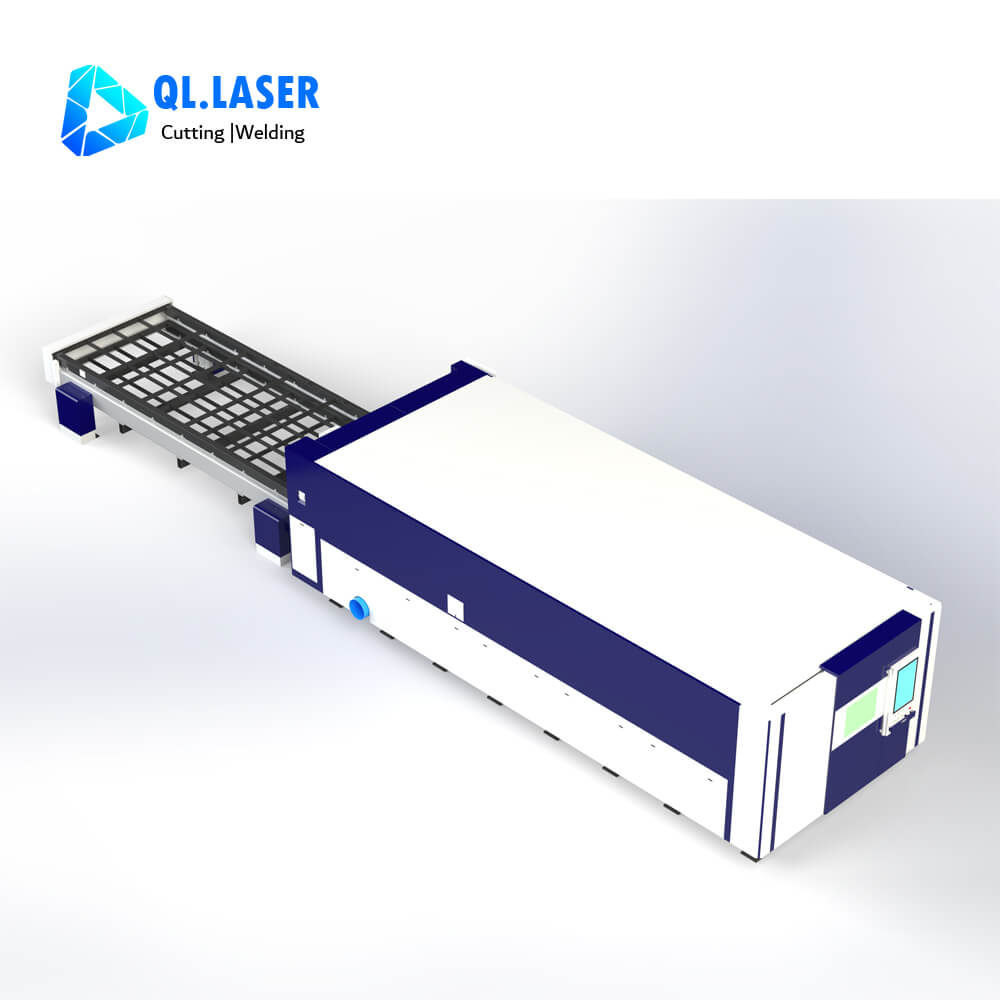

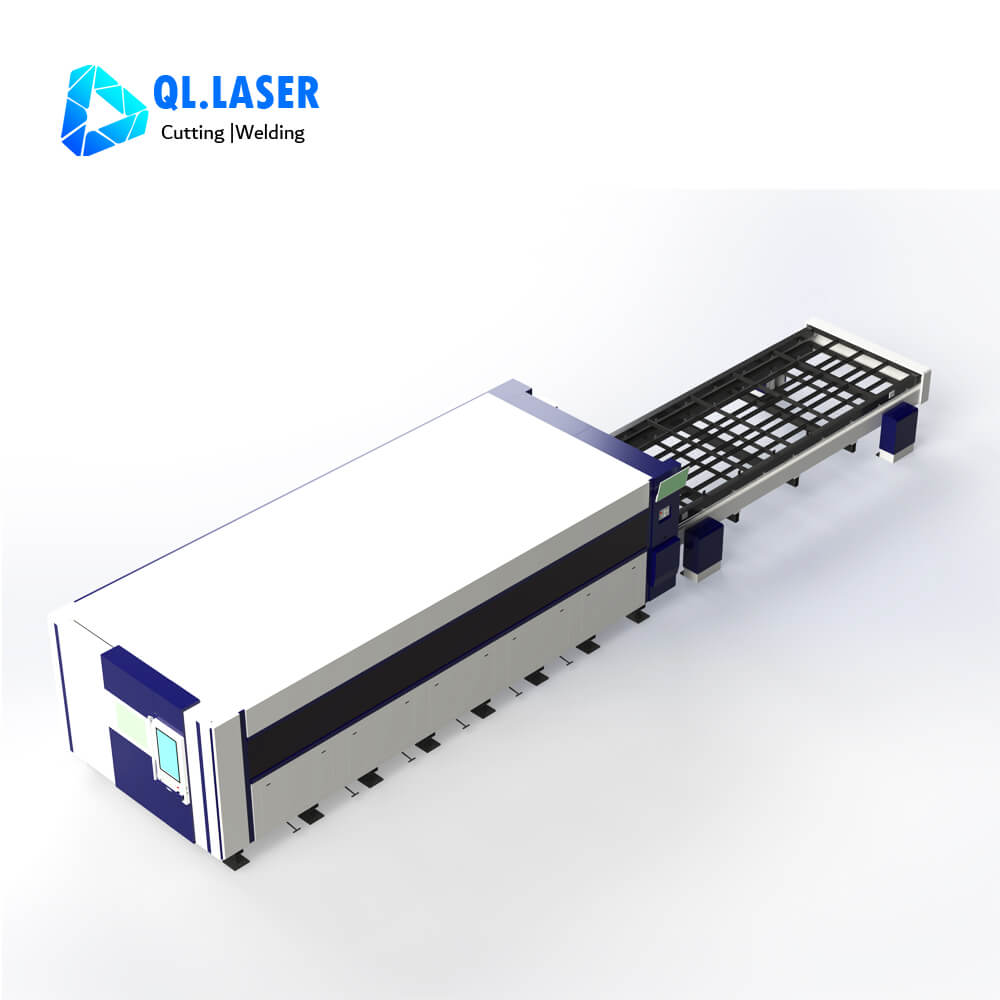

3. Fiber laser cutting machine
Select the appropriate laser cutting machine according to the size and thickness requirements of the customer to achieve cutting of metal sheets. Advantages: Laser cutting has fast speed, high efficiency, good quality, and no
need for secondary processing after cutting, saving labor. Less consumables, saving costs.
4. Conveyor system
Including conveyor belts and raw material carts, responsible for the automatic transfer of sheets between cutting machines and sorting stations. Advantages: Reduce manual handling, lower labor intensity, and avoid scratching the surface of the sheets.
5.Sorting mechanism
By using a robotic arm, different specifications of finished products can be sorted onto different material carts, saving labor and improving efficiency.
6.control system
The system that controls the entire automation unit, including the storage and extraction of metal sheets, transportation, and sorting of finished products, achieves automation of the entire production line.
II. Technical parameters
Laser cutting machine
Model | JLMT3015 | JLMT6015 | JLMT4020 | JLMT6020 | JLMT6025 | JLMT8025 |
Laser Source | 12kw/ 15kw/ 20kw /30kw /40kw /60kw/ 80kw | |||||
Effective cutting size | 3m*1.5m | 6m*1.5m | 4m*2m | 6m*2m | 6m*2.5m | 8m*2.5m |
Cutting material | Carbon steel ,Stainless steel ,Galvanized sheet, Aluminum, Brass,Red copper, etc. | |||||
PositionaI accuracy (mm/m) | X /Y axle : ±0.03, Z axle :±0.01 | |||||
repeated positioning accuracy(mm) | X /Y axle : ±0.01, Z axle :±0.005 | |||||
Rapid positioning speed (m/min) | X /Y axle :120, Z axle :60 | |||||
Acceleration speed(G) | 1.5 | |||||
Other size can be customized. | ||||||
Material Storage Parameters
| Parameter | Unit | Specification |
Number of Layers | layers | 8 raw material layers + 1 discharging layer ( made according to customer’s require) |
Load Capacity per Layer | kg | 5000 |
Applicable Material Size | mm*mm | 8000*2500(made according to customer’s require) |
Storage Layer Height | mm | 450 |
Plate Placement Height | mm | 200 |
Stacker Crane Vertical Speed | m/min | 5 |
Material Cart In/Out Speed | m/min | 5 |
Number of Pallets | pcs | 5 |
Storage Height | mm | <5500 |
Loading and unloading Parameters
| Parameter | Unit | Value |
Rated Load Weight | kg | 2000 |
X1 Axis Travel | mm | 8000 |
X2 Axis Travel | mm | 8000 |
Z1 Axis Travel | mm | Approx. 850 |
Z2 Axis Travel | mm | Approx. 850 |
X Axis Speed | m/min | 10 |
Z Axis Speed | m/min | 5 |
Applicable Plate Size | mm*mm | 8000*2500 (made according to customer’s require) |
Allowed Single Plate Thickness Range | mm | 1-20mm |
Air Supply Pressure | MPa | 0.55 |
Voltage | - | 380V-50Hz |
Note: Plate deformation < 3mm. | ||
III. Product uses

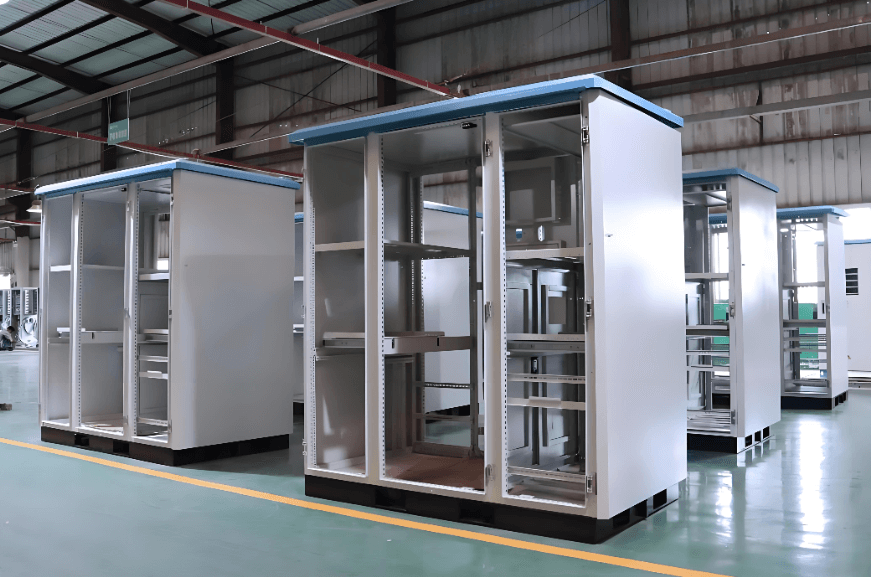

Metal laser cutting machine with automatic loading and unloading system is suitable for large-scale sheet metal processing plants, such as the mass production of chassis shells and elevator door panels.

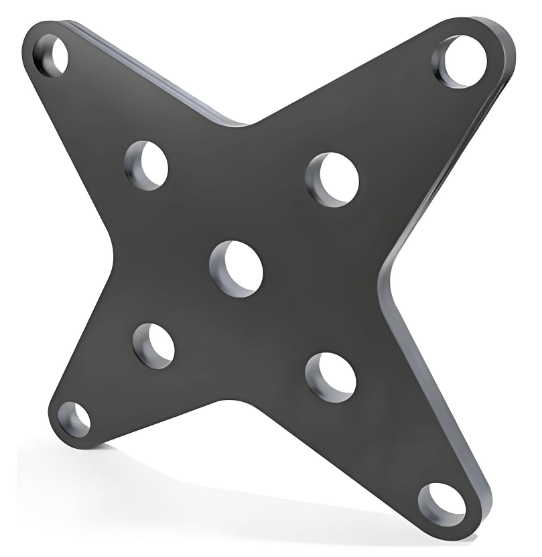

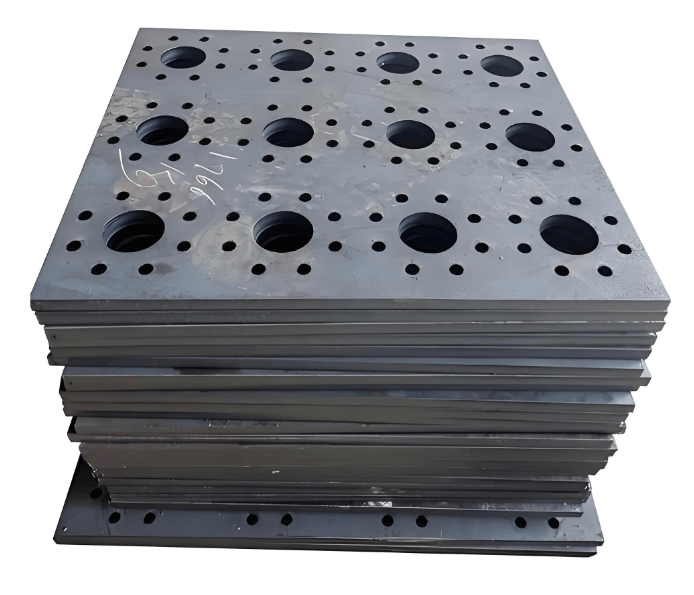

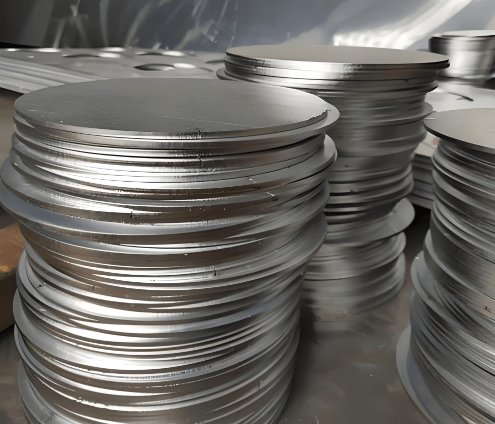

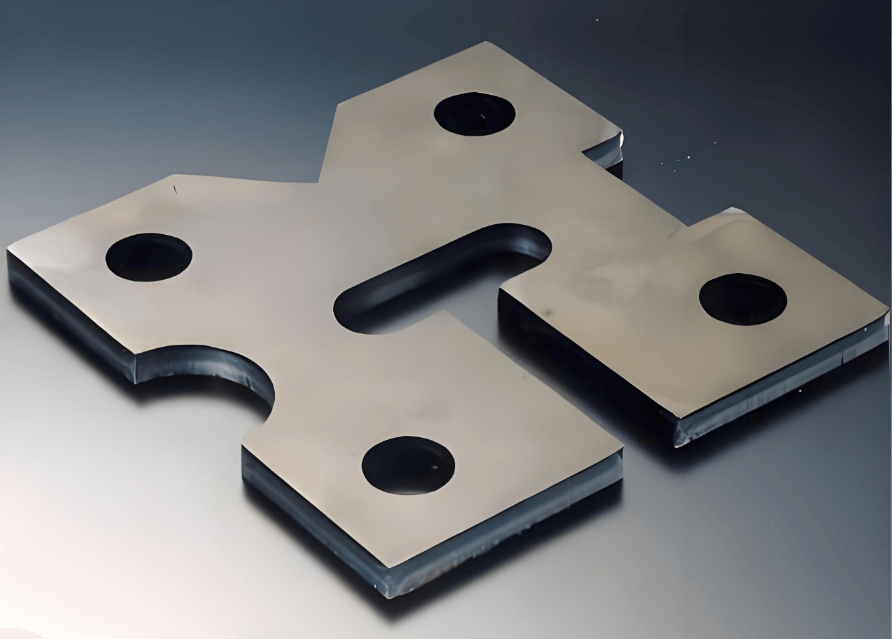

IV. Cutting samples
V.FAQ
1. How to choose automatic loading and unloading and storage ?
You need to tell us how many different thicknesses of steel plates need to be placed on the material warehouse, and we need to know the specific thickness of each steel plate.
2.which gas is used for laser cutting machine?
We can use air and oxygen to cut carbon steel, use air or nitrogen to cut stainless steel and aluminum.
3.Do you provide on-site installation training services?
Yes, we provide on-site installation and training services, which require payment of visa fees, round-trip airfare, salary, meals, and accommodation expenses. We also provide free online services.
