QL Laser
I.Product advantage
1.Dual functions of bevel cutting and spray marking
Integrated bevel cutting and inkjet marking design, finish metal cutting, chamfering and coding in one process, improve overall production efficiency.
2.40kW high-power laser cutting performance
Equipped with 40kW high-power laser source, realize fast cutting, smooth section and high processing accuracy for thick metal plates.
3.4.5-30m ultra-long working range
Customizable working length from 4.5m to 30m, suitable for large-scale metal parts and long workpiece processing.

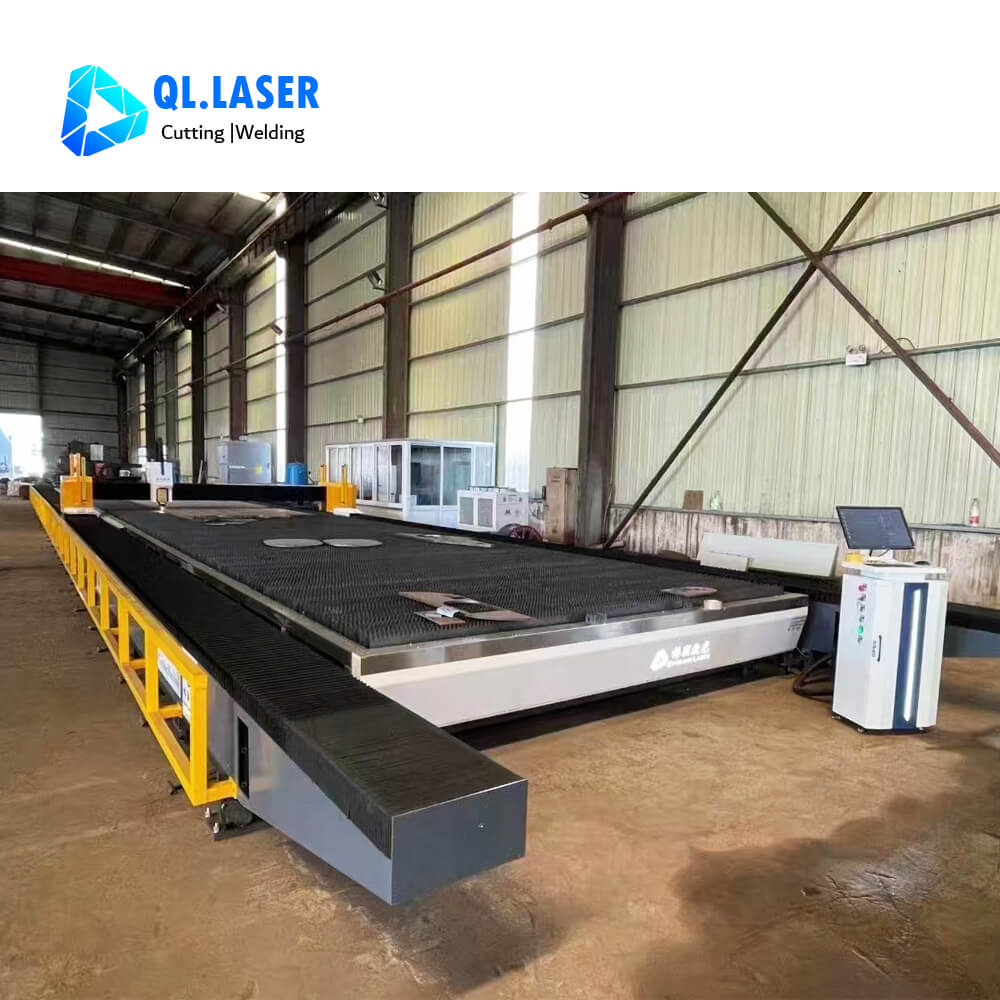

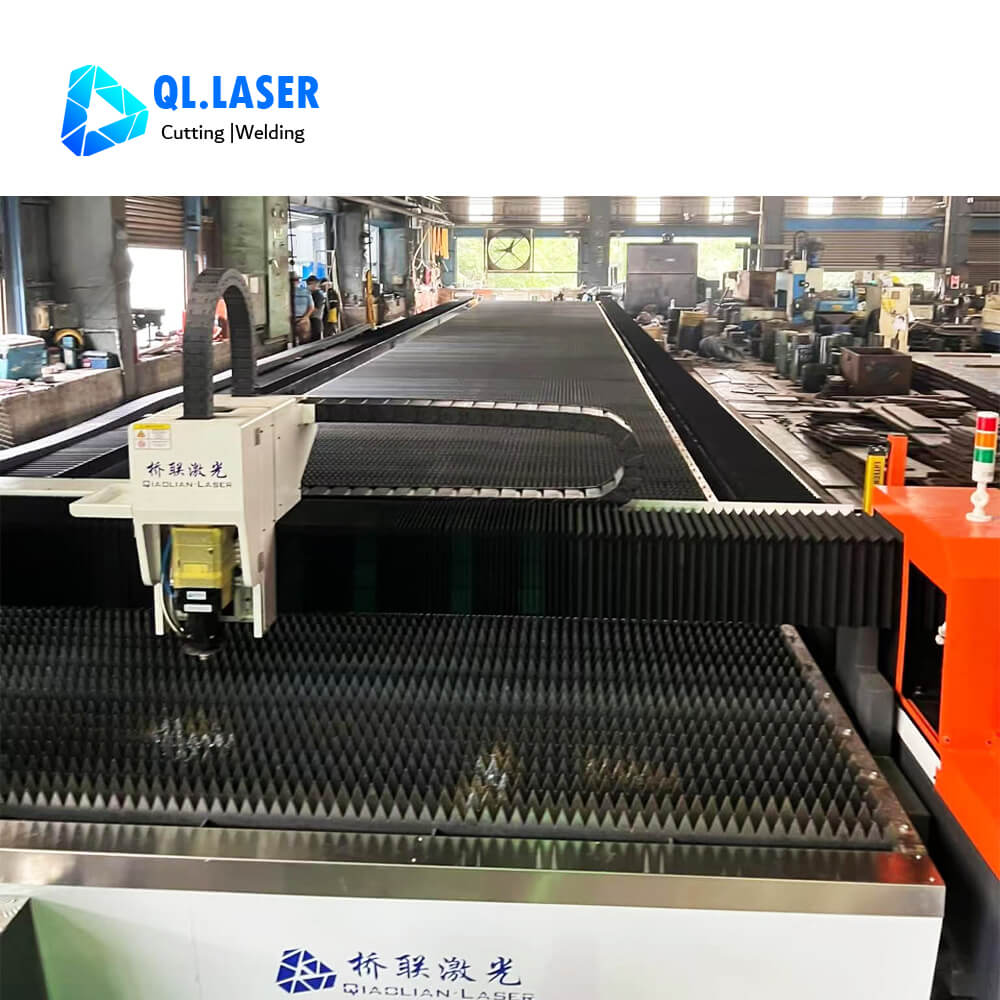

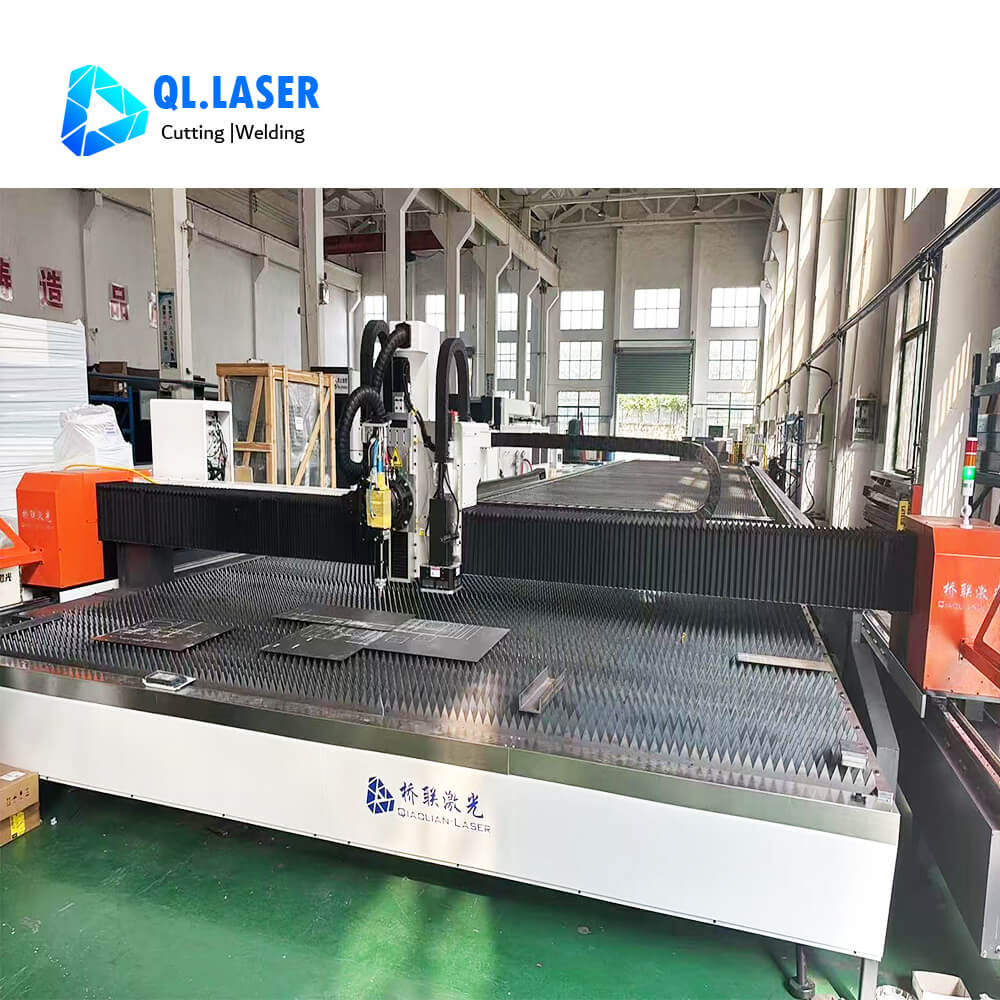

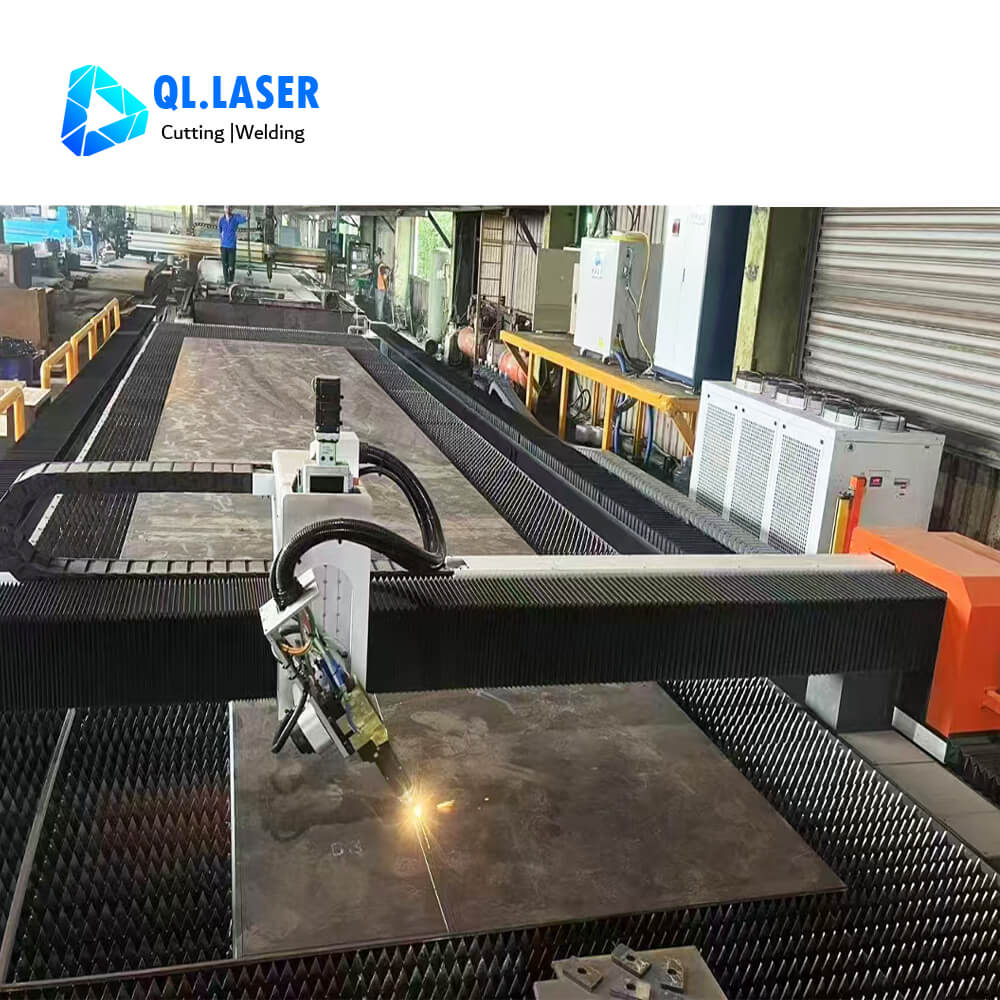

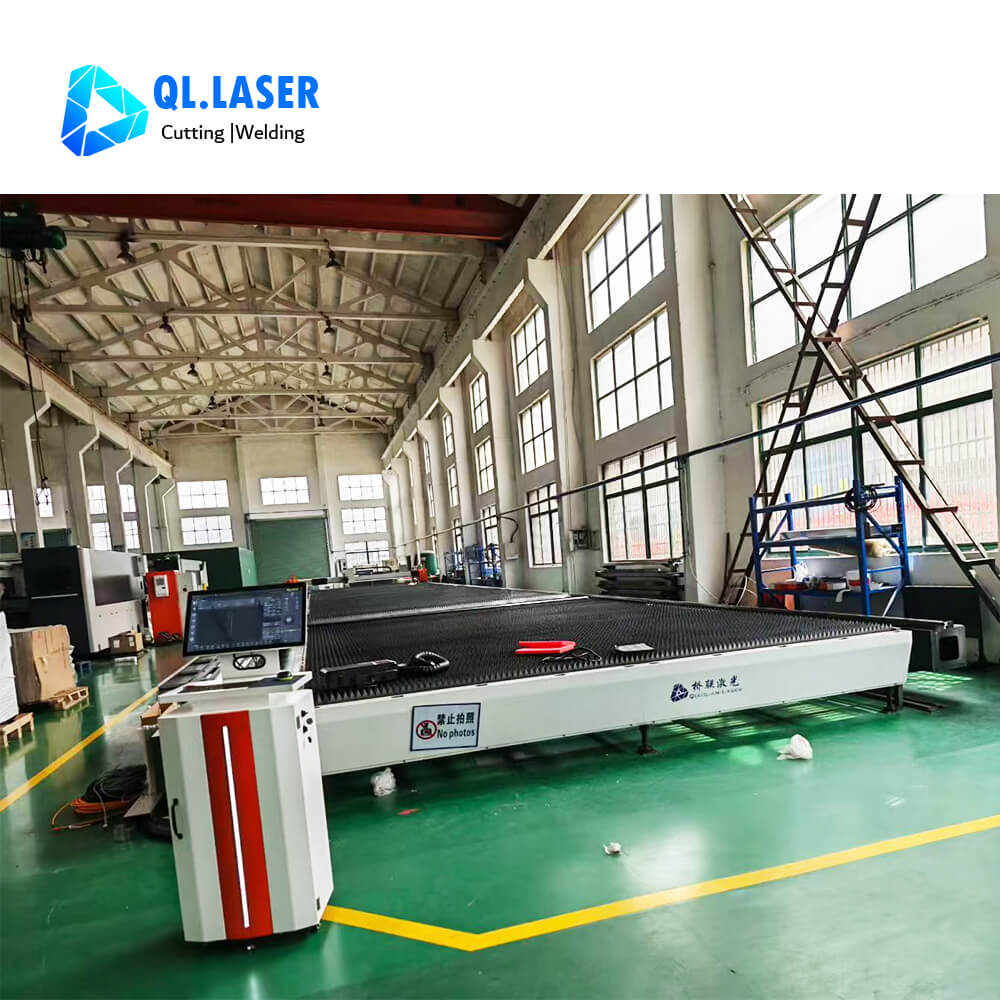

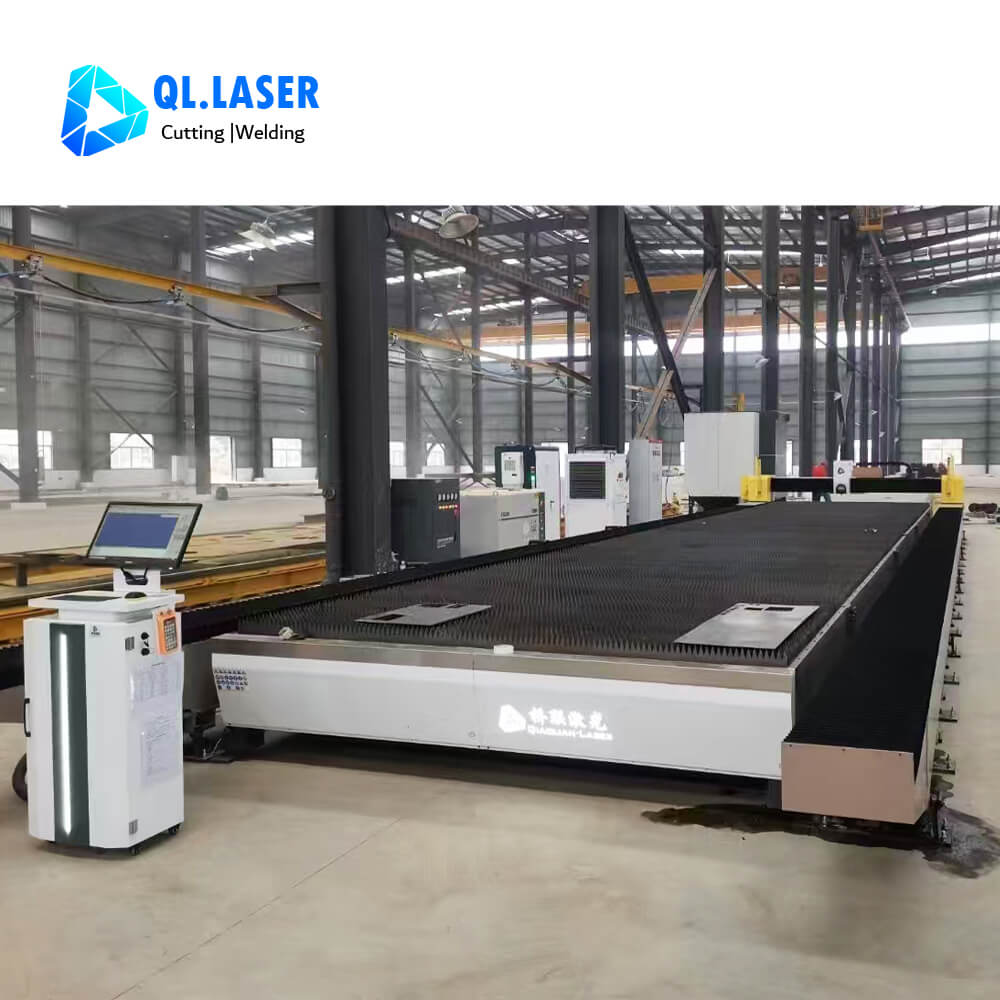

4.Stable heavy-duty gantry structure
Reinforced gantry type frame, strong shock resistance, stable long-term continuous operation, reduce equipment failure rate.
5.Wide metal material compatibility
Suitable for carbon steel, stainless steel, aluminum alloy and other metal materials, widely used in machinery, steel structure and engineering industry.
6.Intelligent & cost-effective industrial design
Easy operation, low maintenance cost, high automation level, save labor cost and create higher economic benefits.
II.Technical parameters
Model | JLH30045 |
Laser power | 40kW MAX |
Effective cutting size | Width 4.5m,length 30m |
Cutting material | Carbon steel ,Stainless steel ,Galvanized sheet, Aluminum, Brass,Red copper |
PositionaI accuracy (mm/m) | X /Y axle : ±0.03, Z axle :±0.01 |
repeated positioning accuracy(mm) | X /Y axle : ±0.01, Z axle :±0.005 |
Rapid positioning speed (m/min) | X /Y axle : 80, Z axle :30 |
Acceleration speed(G) | 0.8 |
IP Grade | IP54 |
Other size can be customized. | |
III. 40kW laser Cutting thickness for reference
Material | Cabon steel | Stainless steel | Aluminium | Brass | Red copper | |||
Thickness | Speed (m/min) | Speed (m/min) | Speed (m/min) | Speed (m/min) | Speed (m/min) | Speed (m/min) | Speed (m/min) | Speed (m/min) |
5 | 28-32 | 25-30 | 30-34 | 25-30 | 25-30 | 25-30 | 15-18 | |
6 | 25-28 | 22-25 | 25-30 | 20-25 | 20-25 | 20-25 | 10-15 | |
8 | 2.5-2.8 | 22-24 | 20-23 | 22-25 | 18-22 | 18-22 | 18-22 | 6-10 |
10 | 2.2-3.5 | 16-20 | 16-21 | 17-23 | 14-17 | 14-17 | 10-14 | 3.5-4.2 |
12 | 1.9-3.4 | 14-17 | 12-14 | 13-16 | 11-13 | 11-13 | 8-11 | 2.4-3.2 |
14 | 1.8-3.3 | 11-13 | 10-12 | 12-14 | 9-11 | 9-11 | 6-8 | 1.5-2 |
16 | 1.6-3.2 | 8-9.5 | 9-11 | 9-11.5 | 7-9 | 7-9 | 5-7 | 1-1.5 |
20 | 1.3-3.0 | 6.3-7.2 | 7-8 | 7-8.5 | 4-5 | 4-5 | 3-4 | 0.6-1 |
25 | 1.2-2.4 | 4.2-5.2 | 4.2-5.2 | 4.5-5.5 | 3-3.5 | 3-3.5 | 2.5-3 | |
30 | 1.1-1.5 | 3-3.7 | 3-3.7 | 3.2-4 | 1-1.6 | 1-1.6 | 2-2.5 | |
40 | 1.0-1.1 | 1.5-2 | 1.7-2.3 | 1.8-2.5 | 0.9-1.4 | 0.9-1.4 | ||
50 | 0.8-1.0 | 0.5-1.3 | 0.7-1.4 | 0.5-1 | 0.5-1 | |||
60 | 0.2-0.6 | 0.3-0.4 | 0.3-0.5 | 0.15-0.4 | 0.15-0.3 | |||
70 | 0.15-0.3 | 0.13-0.17 | 0.2-0.3 | 0.12-0.2 | ||||
80 | 0.1-0.2 | 0.12-0.14 | 0.2-0.3 | 0.1-0.18 | ||||
90 | 0.11-0.13 | 0.13-0.2 | 0.09-0.17 | |||||
100 | 0.1-0.15 | 0.1-0.15 | 0.08-0.15 | |||||
120 | 0.07-0.12 | |||||||
130 | 0.05-0.1 | |||||||
150 | 0.03-0.07 | |||||||
IV. Wide Application of 40kW Gantry Metal Laser Cutting Machine
This 40kW gantry laser cutter with bevel cutting and spray marking function is widely used in multiple industries, covering long-size and heavy metal processing demands.
1. Steel Structure Manufacturing
Professional cutting and bevel processing for thick steel plates, structural steel plates and heavy metal plates, with spray marking function.
2. Heavy Machinery Industry
High-precision cutting of mechanical shell plates, thick metal parts, equipment base plates and heavy industrial accessories.
3. Engineering & Construction Field
Custom processing of building steel plates, engineering metal panels, foundation accessories and thick plate structural components.
4. Metal Plate Fabrication
Suitable for carbon steel, stainless steel, alloy steel and other solid metal sheet cutting, beveling and integrated marking.
5. Pressure Vessel & Boiler Industry
Cutting and coding of thick boiler plates, pressure vessel steel plates and industrial thick plate raw materials.
6. New Energy & Heavy Industrial Supporting
Mass production of thick metal plates for energy equipment, large-scale base plates and heavy industry supporting plates.
V. Cutting Samples
VI.FAQ
A1: This industrial laser cutter is specially designed for solid metal sheet and thick steel plate processing. It is applicable to carbon steel, stainless steel, alloy steel and other metal plates. and realizes integrated bevel cutting and spray marking for flat metal plates.
A2: It is equipped with 40kW high-power laser source, supports 4.5-30m ultra-long processing range, integrates professional bevel cutting and automatic spray marking functions. With heavy-duty gantry structure, it features high cutting precision, stable operation and high production efficiency for heavy plate processing.
A3: It is widely used in steel structure manufacturing, heavy machinery production, construction engineering, pressure vessel manufacturing, metal plate processing and heavy industrial supporting fields, focusing on all kinds of flat thick metal plate custom cutting and marking work.
