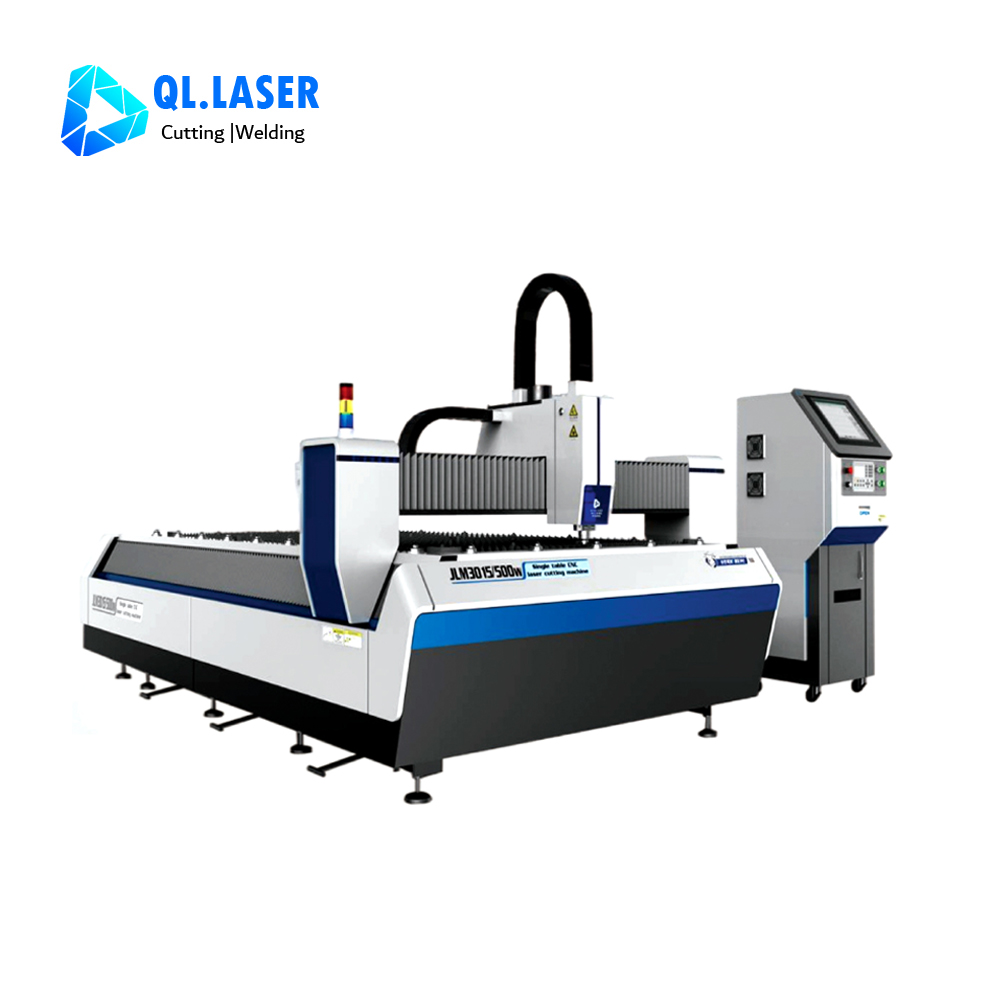

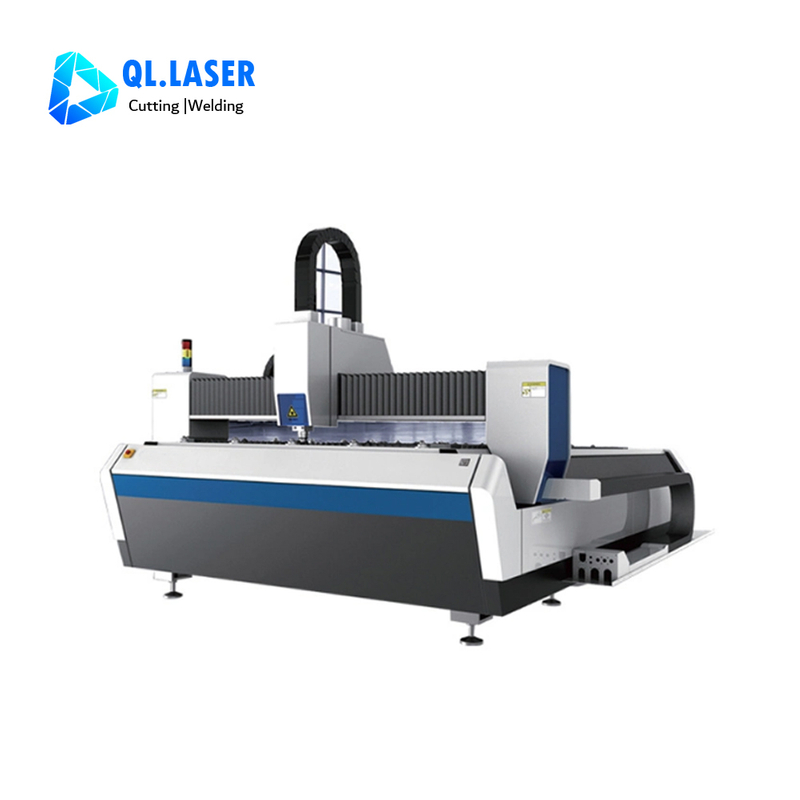

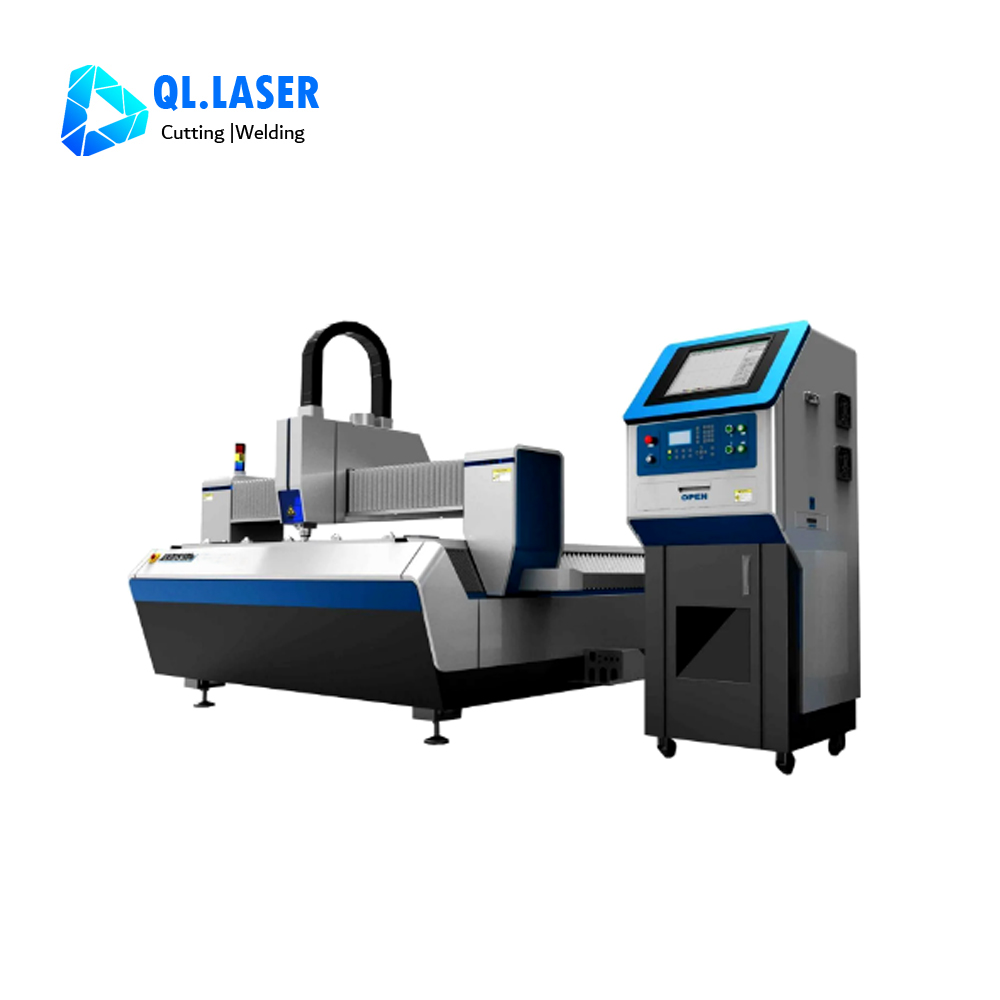

1. Industrial design, with a beautiful and elegant appearance
2. The inclined surface design on both sides of the guide rail effectively reduces iron slag and dust, extending the service life of the guide rail
3. The inclined design is more conducive to placing steel plates than the flat design.
4. The bed of this model is welded from steel plates, and the heavy-duty bed is sturdy and durable.
5. Equipped with an air compressor to achieve rapid cutting of steel plates.
Model Number | JLM3015 | JLM4015 | JLM6015 | JLM4020 | JLM6020 |
Fiber Laser Source | 1.5kw 2kw 3kw 6kw( Max/Raycus/IPG) | ||||
Effective cutting size | 3m*1.5m | 4m*1.5m | 6m*1.5m | 4m*2m | 6m*2m |
Cutting material | Carbon steel ,Stainless steel ,Galvanized sheet, Aluminum,Brass,Red copper, etc. | ||||
PositionaI accuracy (mm/m) | X /Y axle : ±0.03, Z axle :±0.01 | ||||
repeated positioning accuracy(mm) | X /Y axle : ±0.01, Z axle :±0.005 | ||||
Rapid positioning speed (m/min) | X /Y axle : 110, Z axle :30 | ||||
Acceleration speed(G) | 1.3 | ||||

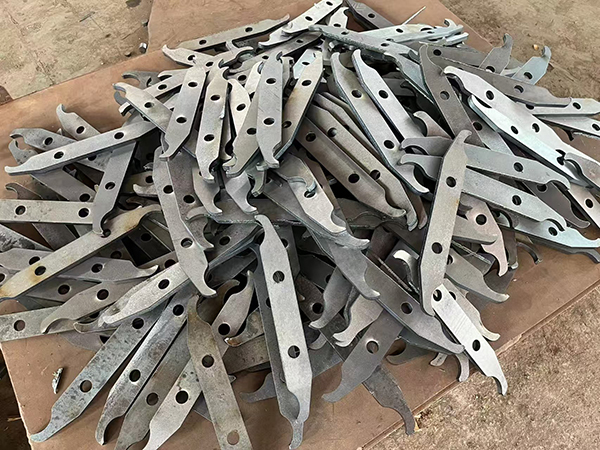

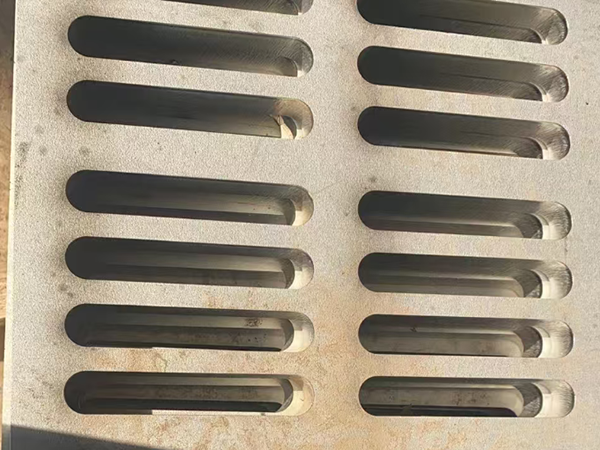

The surface cut by fiber laser cutting machine is very smooth and widely used in industries such as advertising sign production, sheet metal structure, high and low voltage electrical cabinet production, textile machinery parts, kitchenware, automobiles, machinery, elevators, electrical parts, subway parts, etc.
 |  |  |
It include Screw air compressor ,freeze dryer,Fine filters and Air Tank to make air no water no oil and very clean.
 | 22kw-16bar | ||
| Technical Parameters of All-In-One Air screw compressor | |||
Screw air | Volume Flow(m³/min) | 2.2m³/min | |
Power | 22kw | ||
Pressure(Mpa) | 1.58Mpa | ||
Cooling method | Air Cooling | ||
Start Method | Frequency Conversion | ||
Electricity | 380V/50Hz | ||
freeze | Free Air Deliver | 2.6m³/min | |
Electricity | 220V/50Hz | ||
Pressure(Mpa) | 1.58Mpa | ||
Inlet Temperature | ≤80℃ | ||
Ambient Temperature | ＜45℃ | ||
Pressure Dew-Point | 2-10℃ | ||
Outlet diameter | G1 | ||
Fine filter*5 | Free Air Deliver | 3.0m³ | |
Pressure | ≤2.0Mpa | ||
Exhaust dust content | 0.01um | ||
Outlet diameter | RP3/4 | ||
Air Tank*1 | Gas storage tank capacity | 340L | |
Pressure | 1.58Mpa | ||
Inlet diameter | RP3/4 | ||
Outlet diameter | RP3/4 | ||
Temperature | 150℃ | ||
Safety valve | RC1/2 | ||
Drain valve | RC1/2 | ||
size | Φ500*1760mm | ||
Size | 1800*730*1700mm | ||
Weight | 580kg | ||
1. What kind of container is used for shipping this laser machine?
3015 laser machine use 1pcs 20GP container. 4020 and 6020 laser machine use 1pcs 40OT container.
2. What are the delivery time and payment method?
Delivery time: 30working days after receive deposit.
Payment: 30% in advance. 70% before shipping.
3. Can you do OEM for us?
Yes, we can make OEM for you and paste your company logo.
