| Quantity: | |
|---|---|

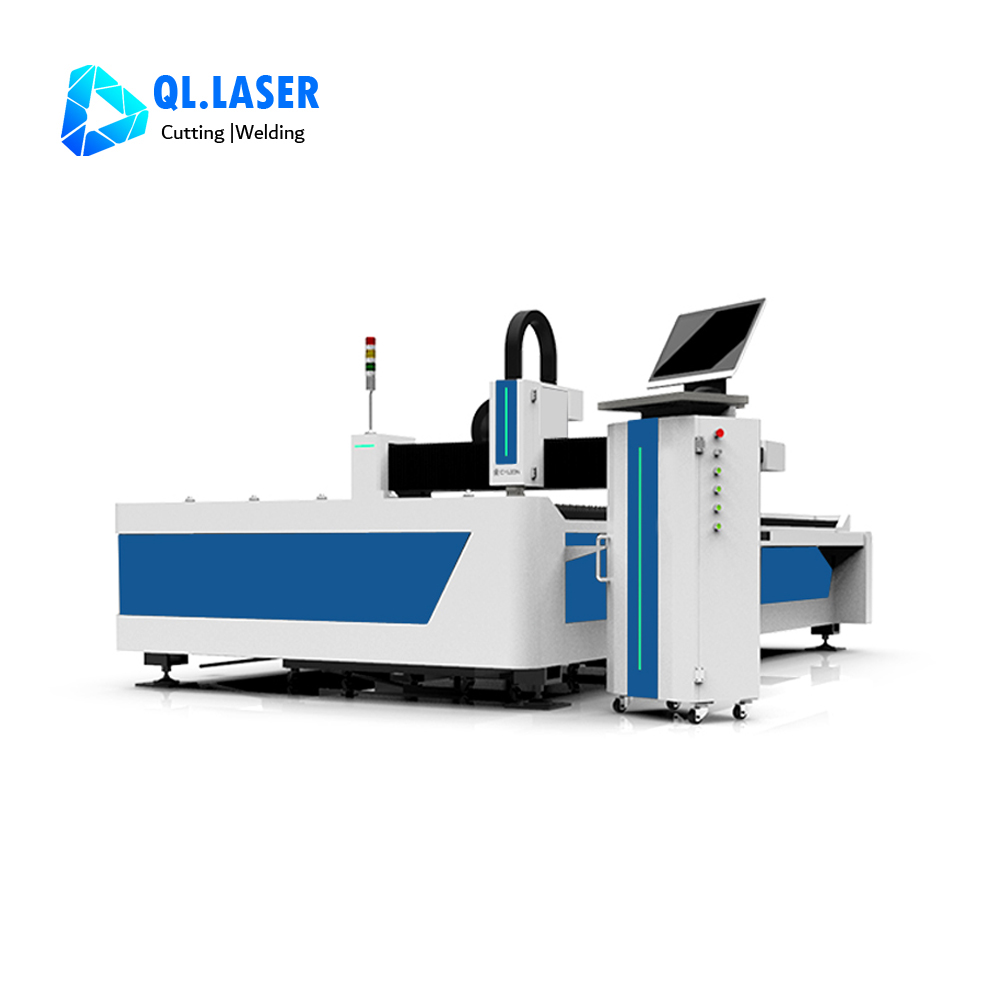

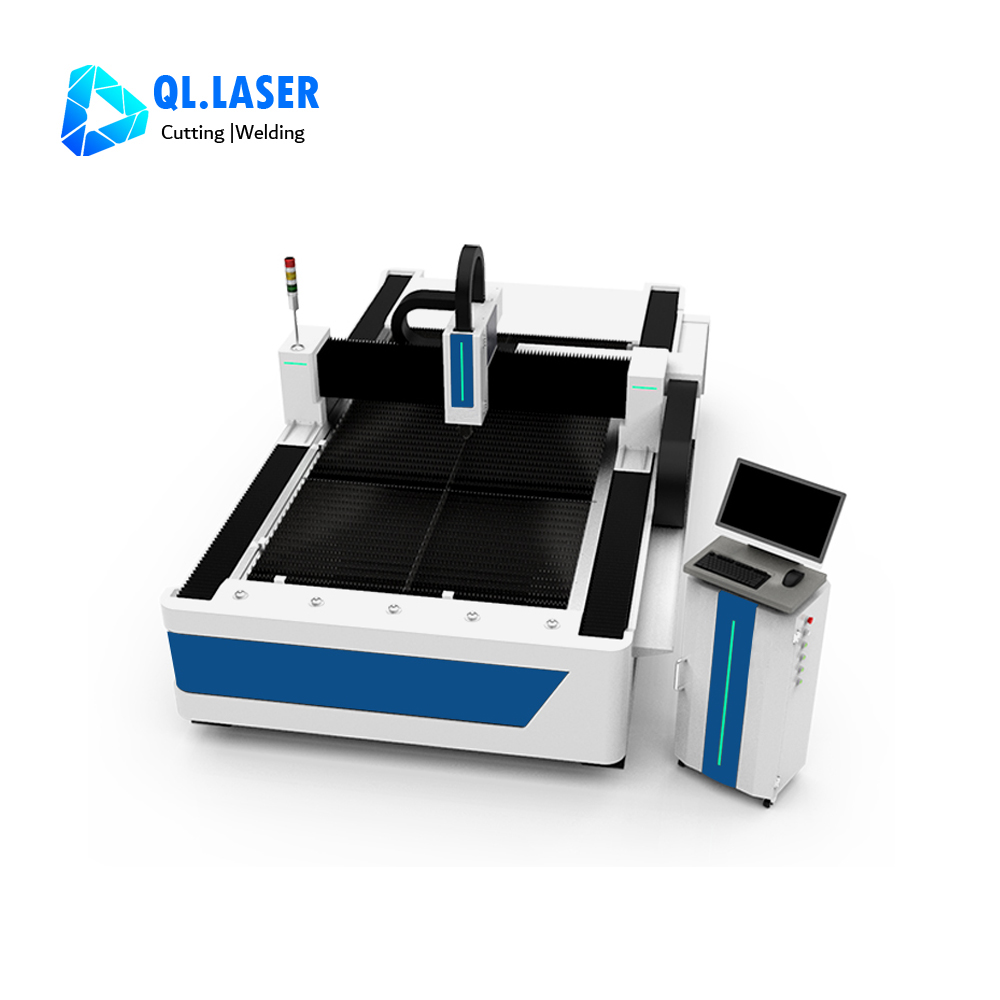

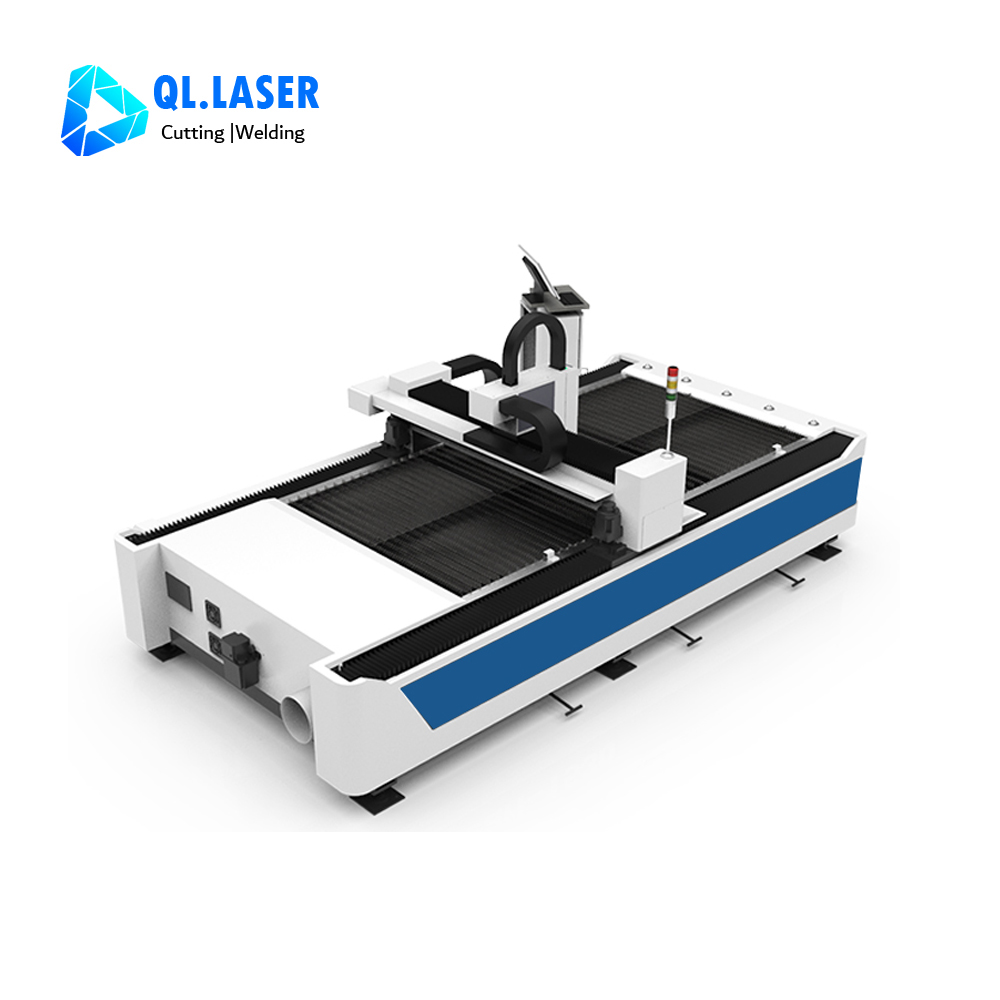

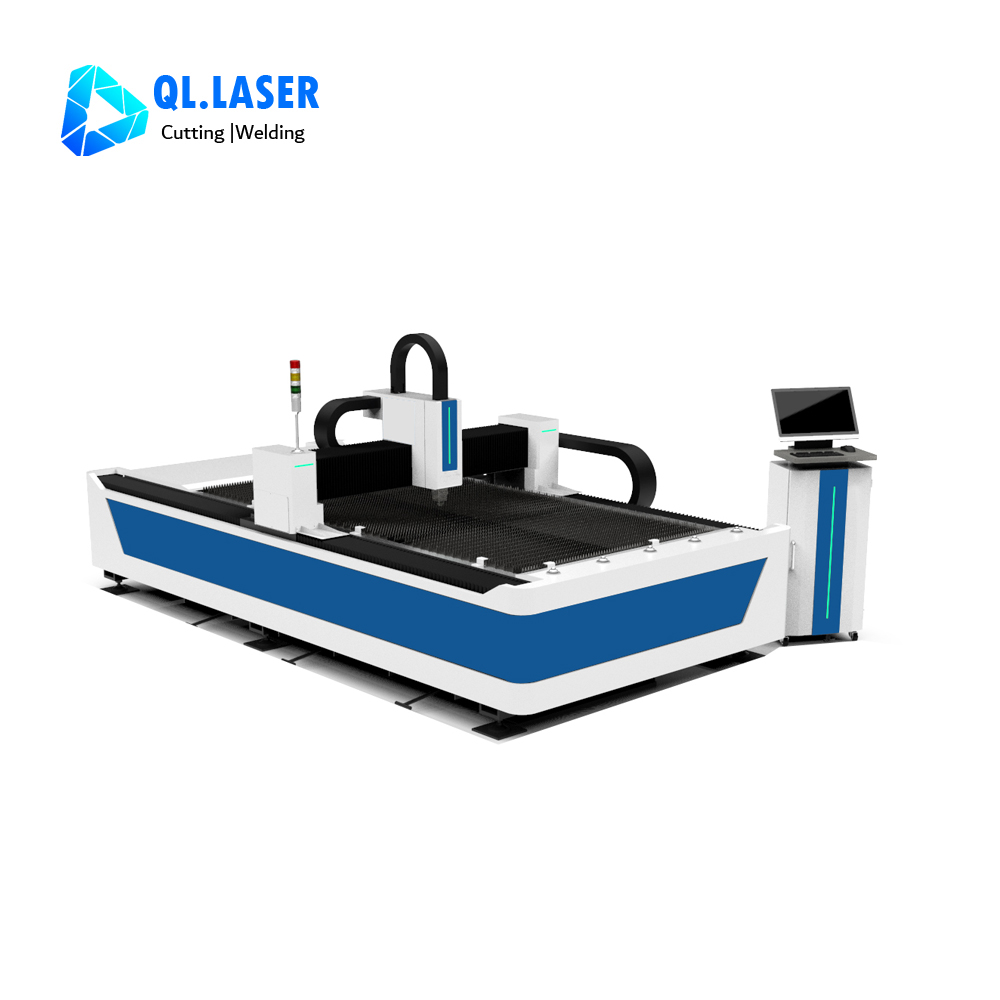

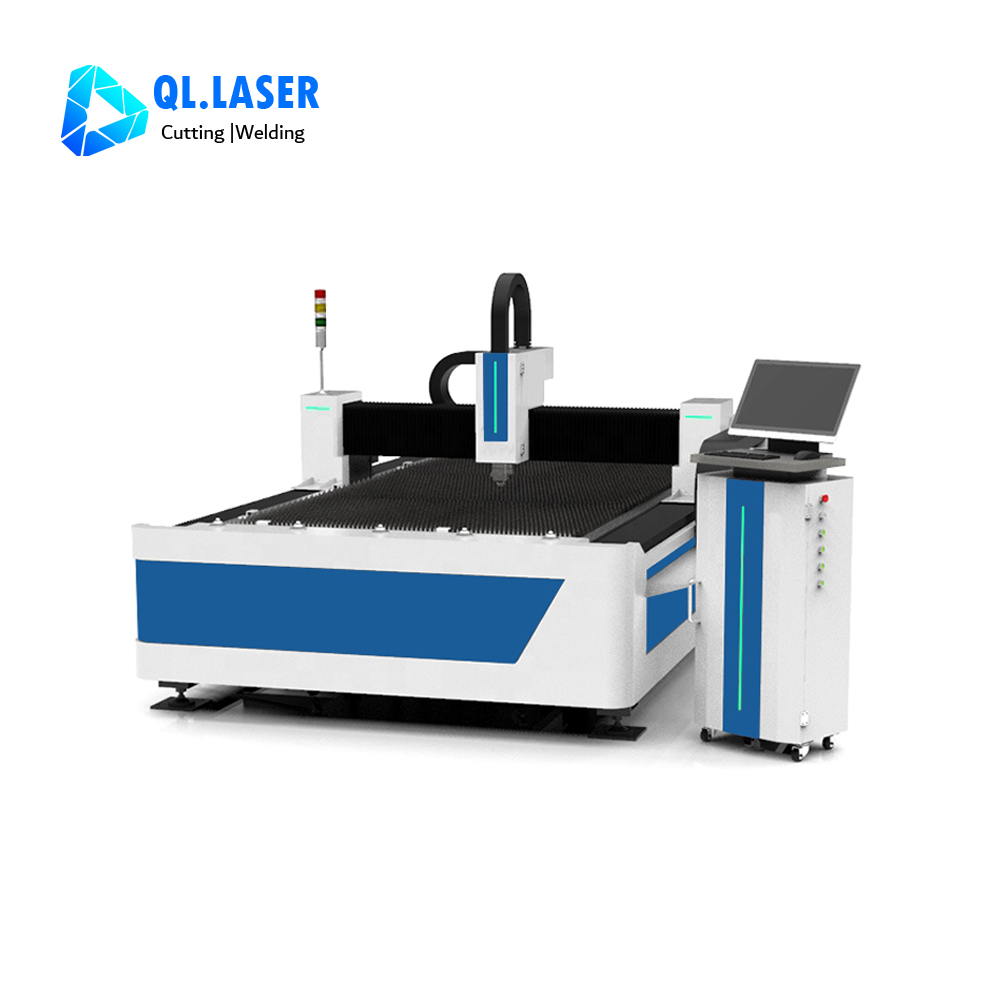

1. Compact structure, small footprint, high space utilization rate.
2. Whole packaging upon shipment, easy installation, no need for engineers to come and install, saving installation costs and time.
3. Suitable for 1000w-6000w lasers, can choose MAX/ Raycus/IPG laser power.
4. Adopting the BOCHU bus system (FSCUT2000E/FSCUT4000E) and the BOCI intelligent automatic focusing laser cutting head (BLT310/BLT421S)to achieve perfect cutting of workpieces.

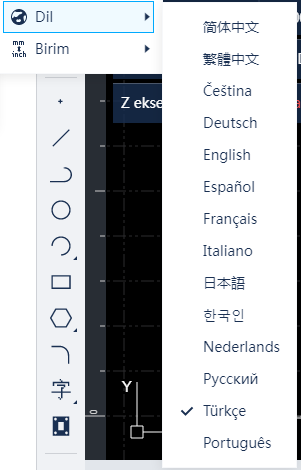

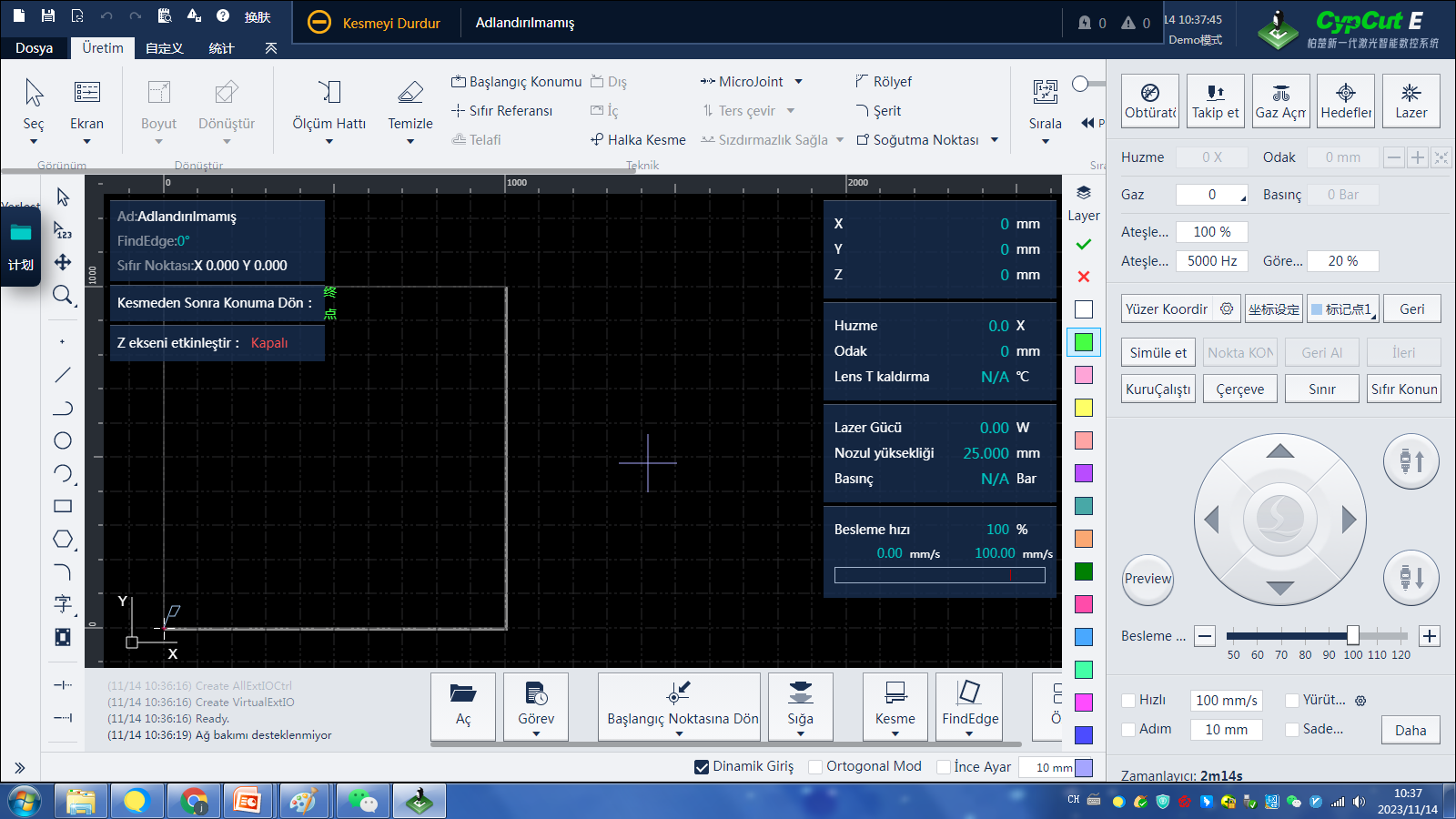

5. CypcutE Laser cutting software support multiple languages,include Chinese,English, Turkish ,Russian,Spanish ,French, German，Italian，Portuguese，Japanese，Korean, Nederlands etc.
Model Number | JWM3015 | JWM4015 | JWM6015 | JWM4020 | JWM6020 |
Fiber Laser power | 1500w 2000w 3000w 6000w | ||||
Effective cutting size | 3m*1.5m | 4m*1.5m | 6m*1.5m | 4m*2m | 6m*2m |
Cutting material | Carbon steel ,Stainless steel ,Galvanized sheet, Aluminum,Brass,Red copper, etc. | ||||
PositionaI accuracy (mm/m) | X /Y axle : ±0.03, Z axle :±0.01 | ||||
repeated positioning accuracy(mm) | X /Y axle : ±0.01, Z axle :±0.005 | ||||
Rapid positioning speed (m/min) | X /Y axle : 80, Z axle :30 | ||||
Acceleration speed(G) | 1 | ||||
| Materia Laser power | Carbon steel | stainless steel | Aluminum | Brass | Red copper |
1500w | 12mm | 5mm | 4mm | 2mm | |
2000w | 16mm | 6mm | 5mm | 4mm | 2mm |
3000w | 18mm | 8mm | 6mm | 5mm | 3mm |
6000w | 22mm | 14mm | 12mm | 10mm | 6mm |

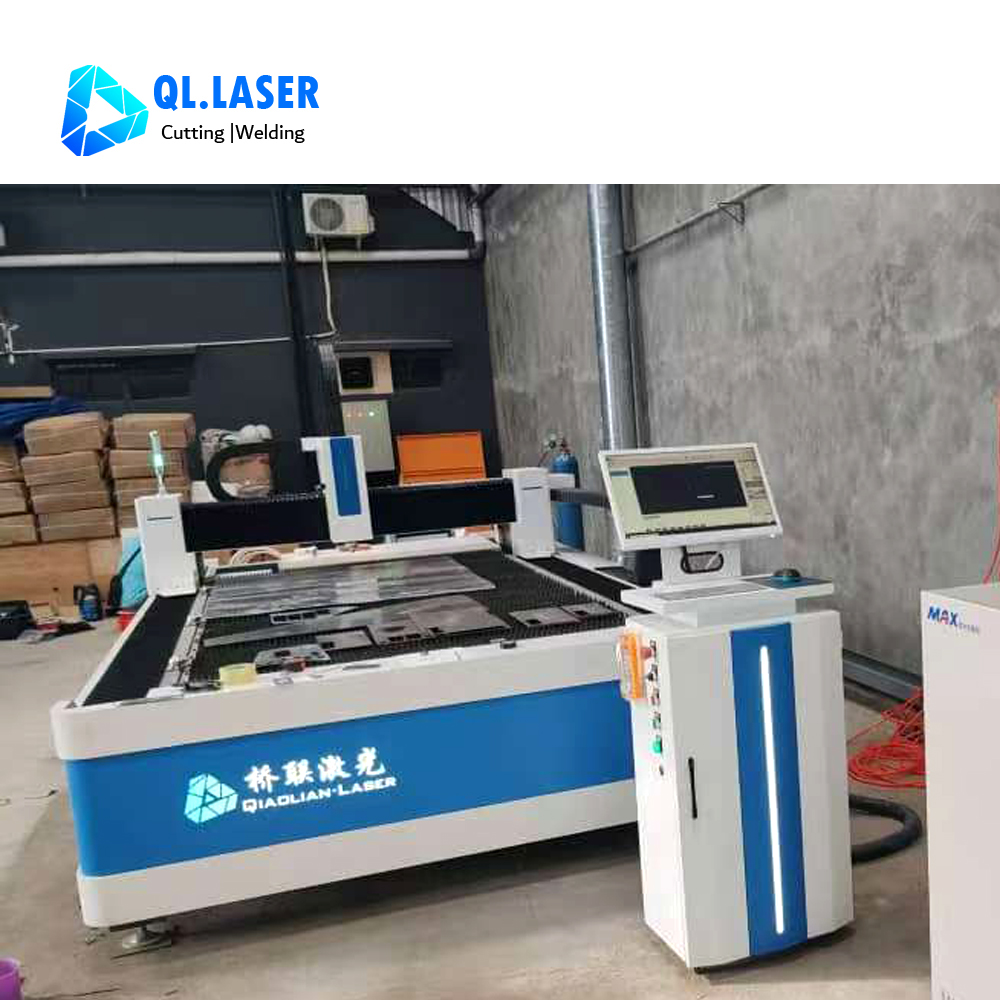

Single table laser cutting machines are widely used in fields such as sheet metal processing, chassis and cabinets, hardware products, advertising signs, automotive parts, and electrical manufacturing, especially suitable for small and medium-sized production environments that require high precision and efficiency.

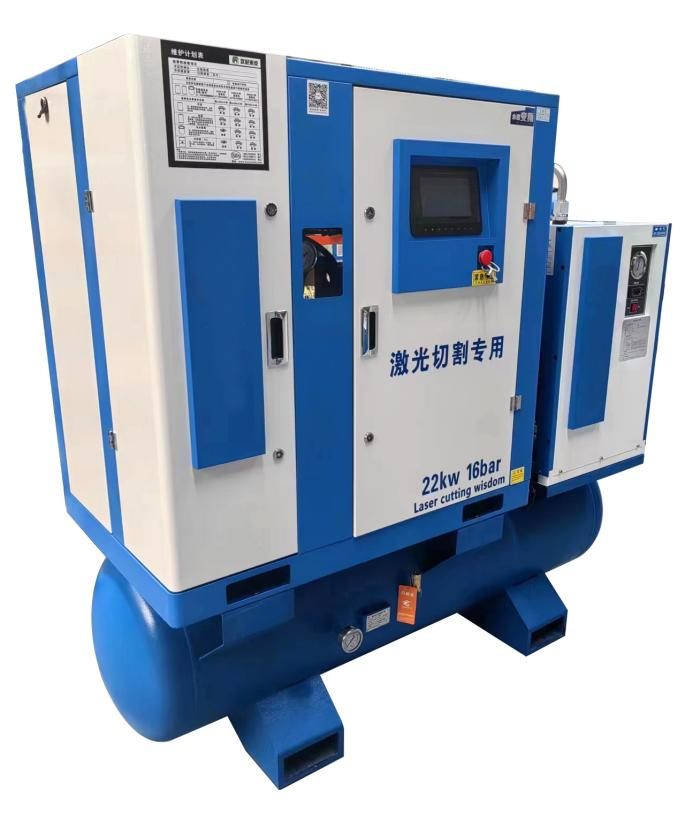

22kw-16bar Technical Parameters of All-In-One Air screw compressor | ||
Screw air compressor | Volume Flow(m³/min) | 2.2m³/min |
Power | 22kw | |
Pressure(Mpa) | 1.58Mpa | |
Cooling method | Air Cooling | |
Start Method | Frequency Conversion | |
Electricity | 380V/50Hz | |
freeze dryer | Free Air Deliver | 2.6m³/min |
Electricity | 220V/50Hz | |
Pressure(Mpa) | 1.58Mpa | |
Inlet Temperature | ≤80℃ | |
Ambient Temperature | ＜45℃ | |
Pressure Dew-Point | 2-10℃ | |
Outlet diameter | G1 | |
Fine filter*5 | Free Air Deliver | 3.0m³ |
Pressure | ≤2.0Mpa | |
Exhaust dust content | 0.01um | |
Outlet diameter | RP3/4 | |
Air Tank*1 | Gas storage tank capacity | 340L |
Pressure | 1.58Mpa | |
Inlet diameter | RP3/4 | |
Outlet diameter | RP3/4 | |
Temperature | 150℃ | |
Safety valve | RC1/2 | |
Drain valve | RC1/2 | |
size | Φ500*1760mm | |
Size | 1800*730*1700mm | |
Weight | 580kg | |
1. Does this fiber laser cutting machine have a flying cutting function?
Yes, Not only does it have fly cutting, but it also has functions such as Smooth Microjoint, Smooth Piercing, and Circle Center.
2. What are consumables for laser cutting machines?
Consumales is nozzle, protective lens and ceramic ring.
3. What is the service life of consumables
Nozzle and protective lens use about 3-7days, ceramic ring can use 1-2months.
