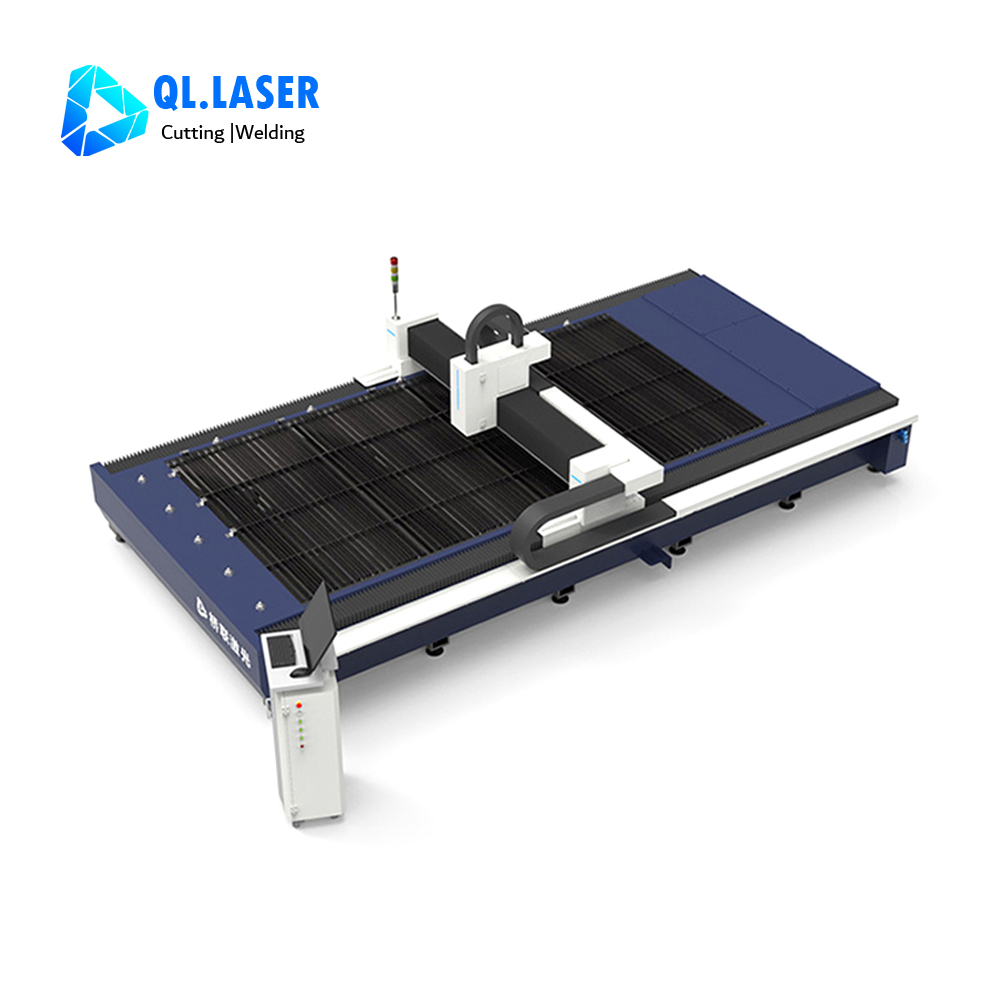

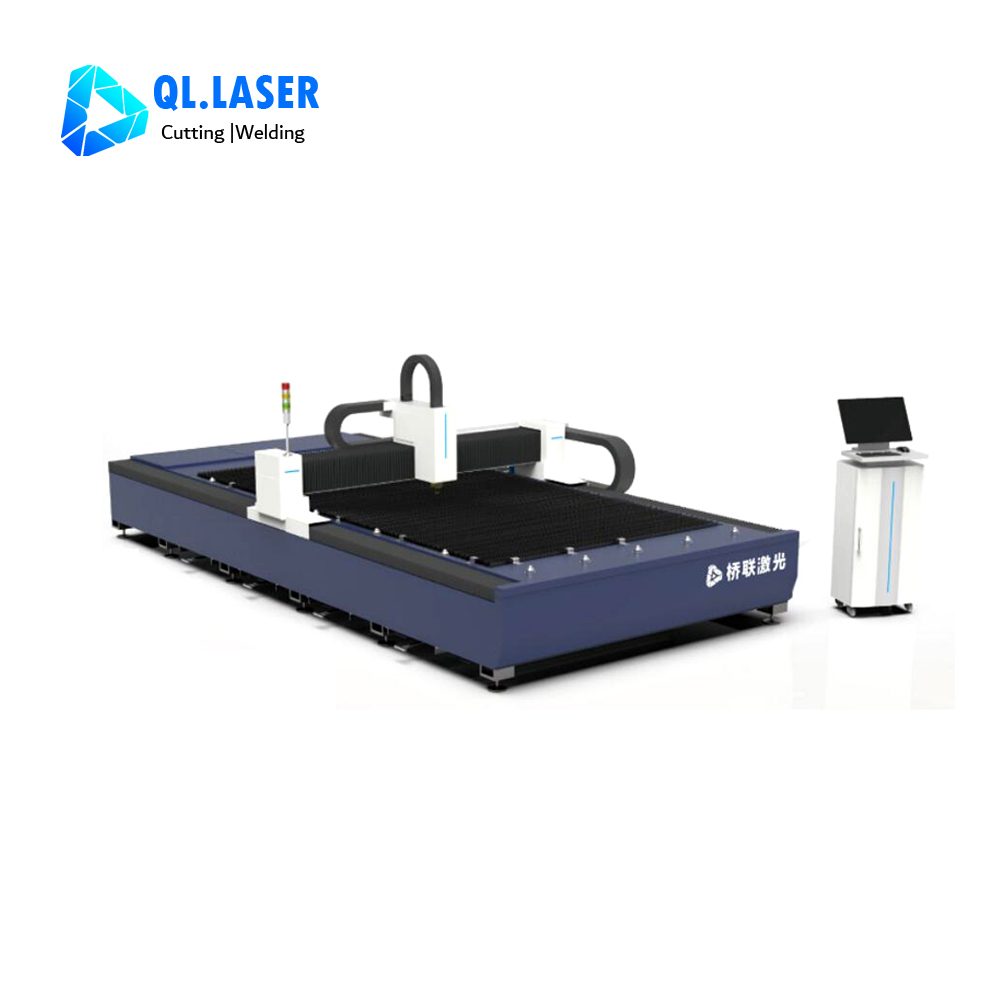

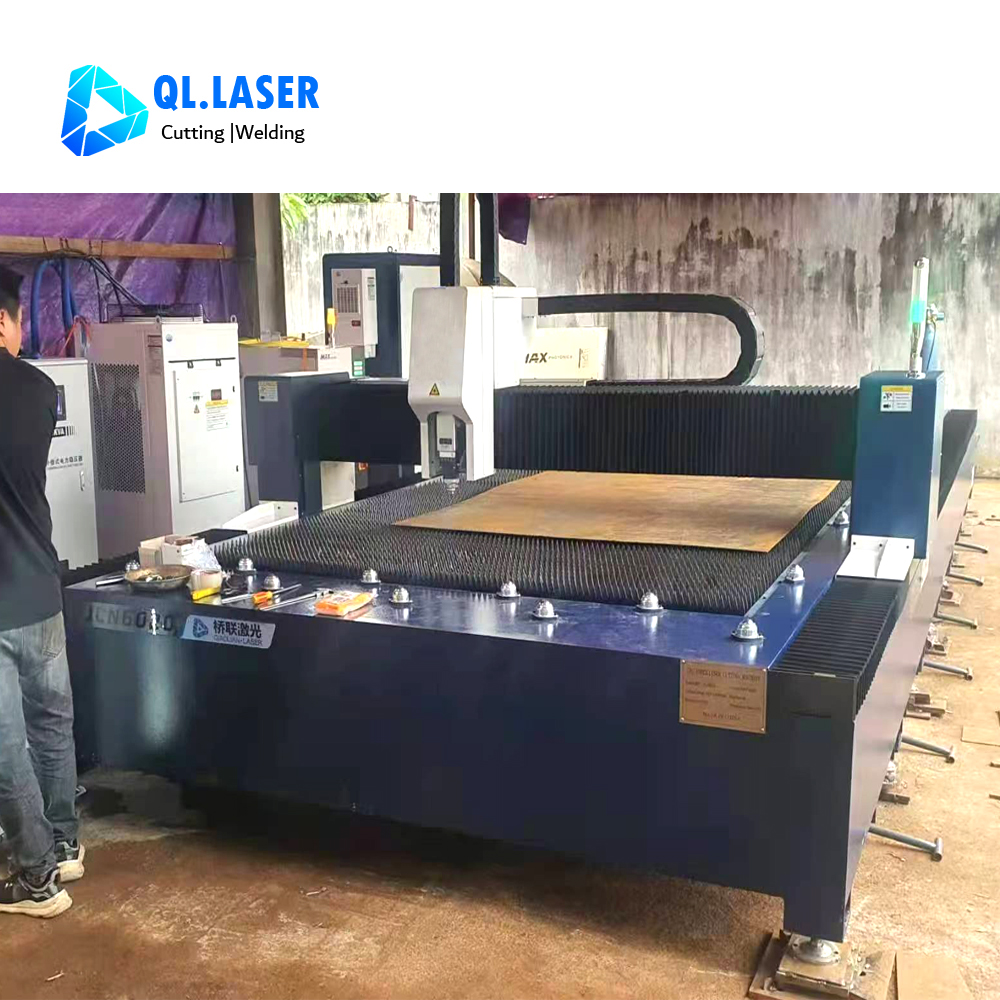

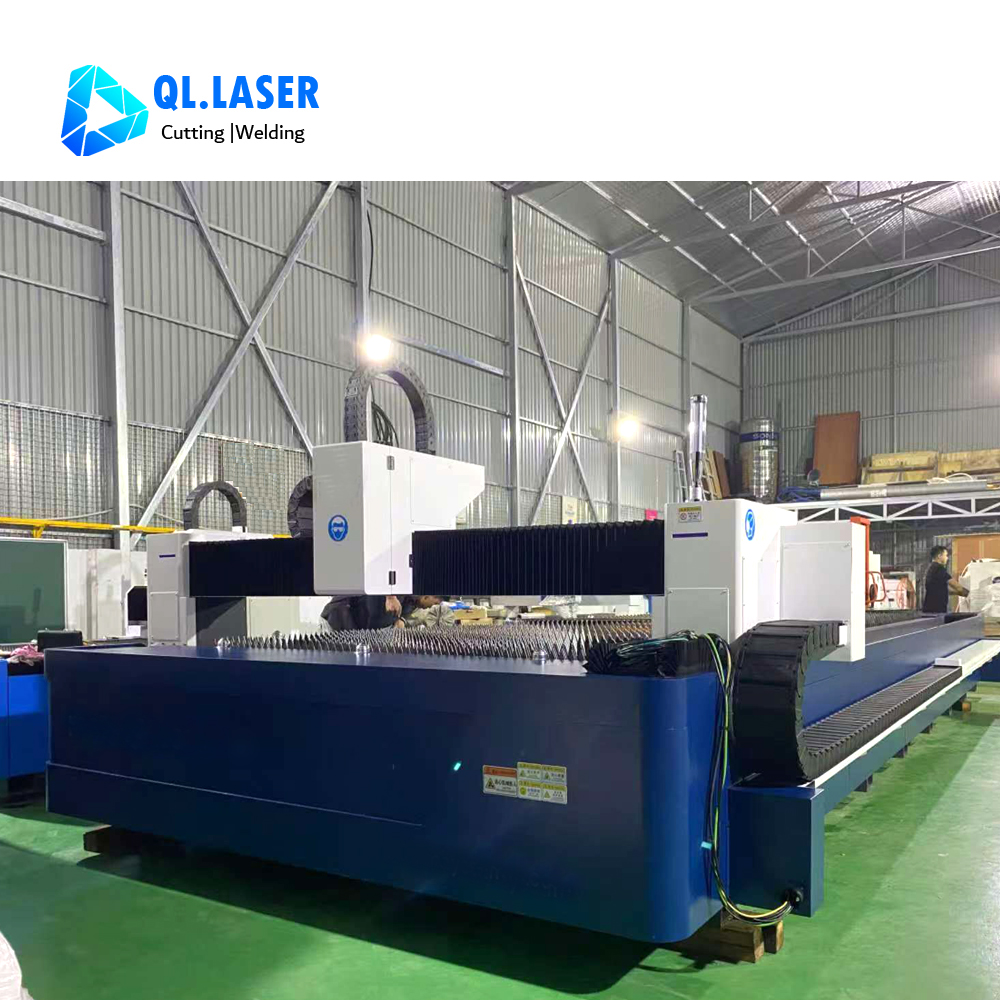

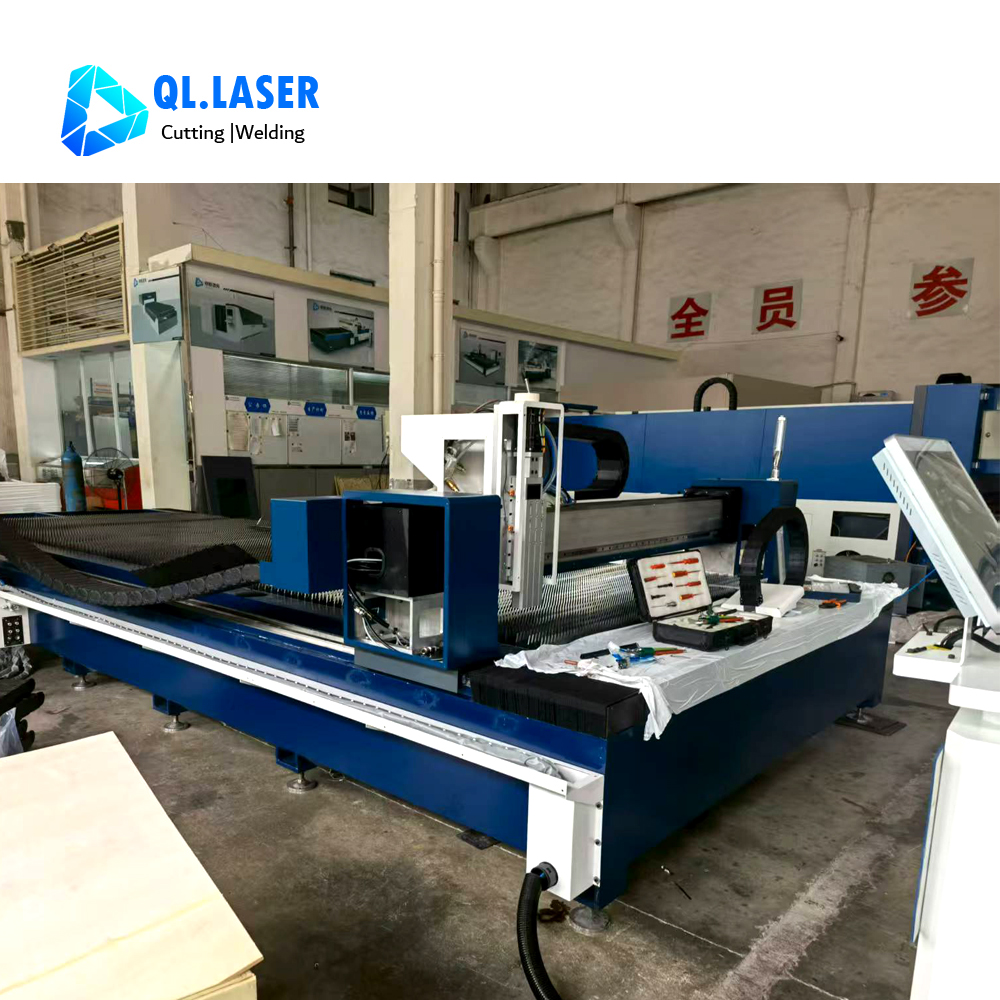

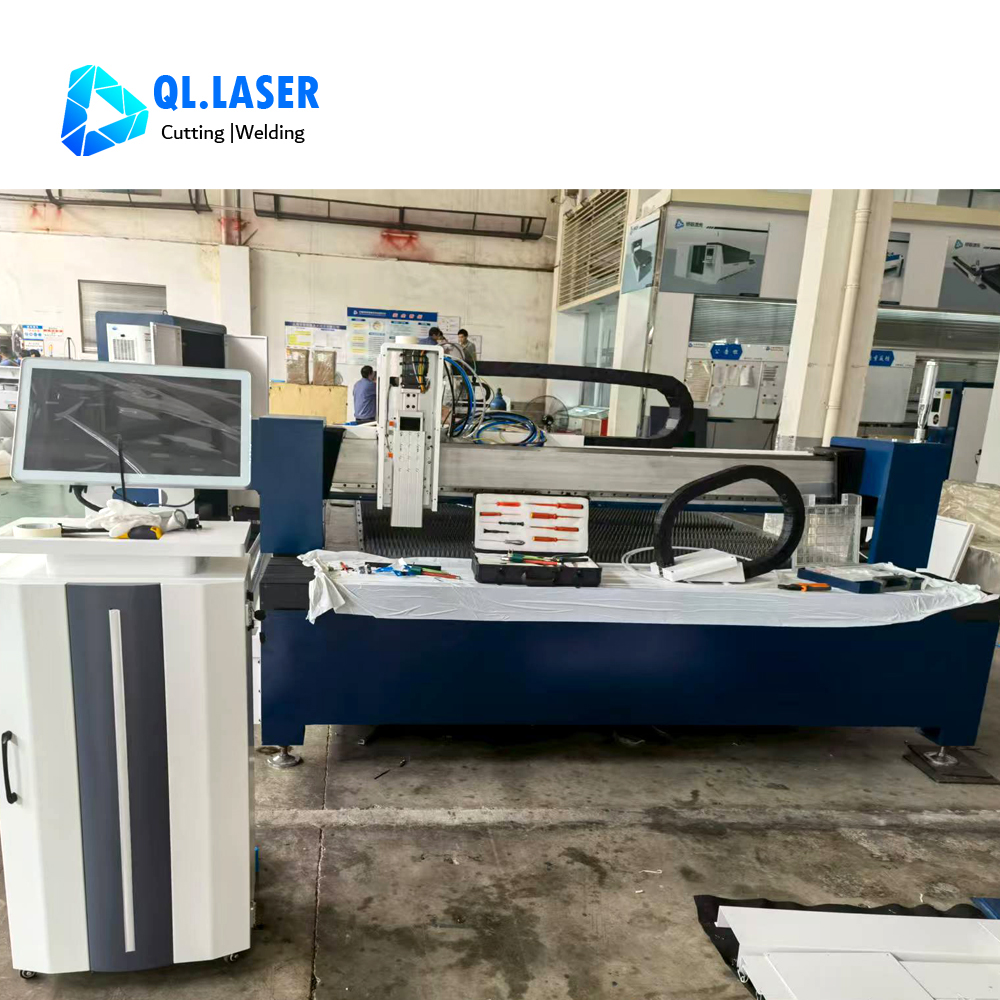

1. The heavy-duty machine boby is welded by steel plates, annealed and stress relieved, sturdy and durable, and will not deform after long-term use.
2. The bed is a partitioned dust removal structure that meets environmental requirements, and each partition is equipped with a material tray.
3. Equipped with refractory bricks to prevent the bed from deforming due to heat.

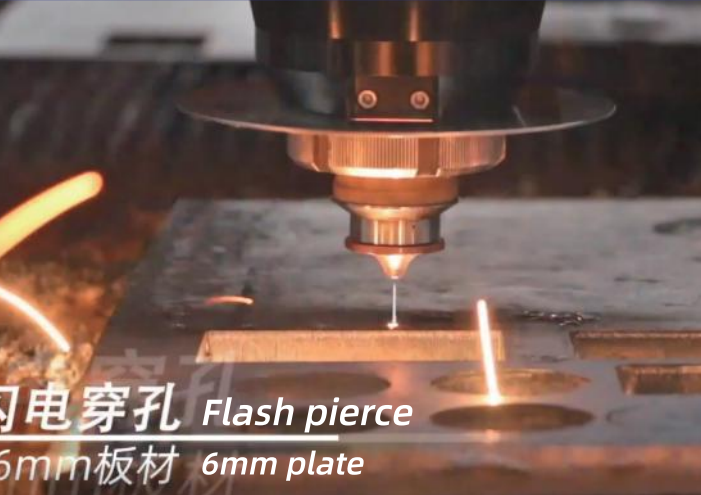

4.Flash piercing -speed up piercing on thick plates, improve efficiency on thick plates by variable frequency fast piercing.

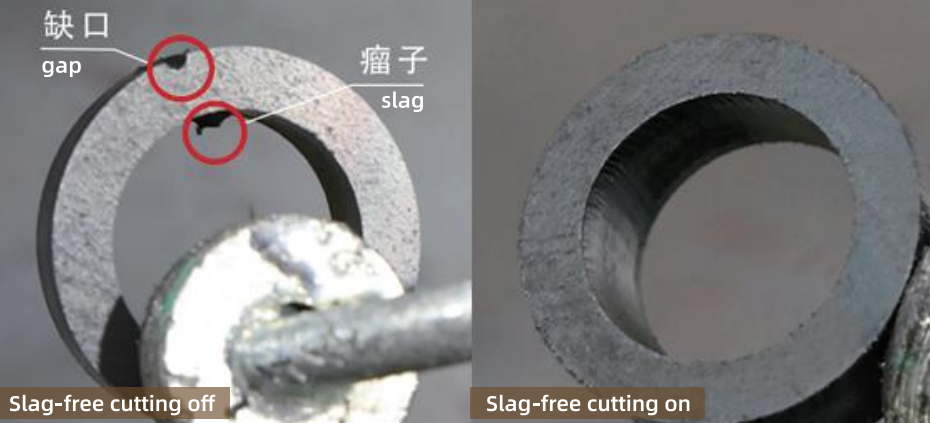

5. Smart LaserOff ,improve performance of inner and outer contour cutting,cently end processing according to cutting techniques to get a smooth inner and intact outer.

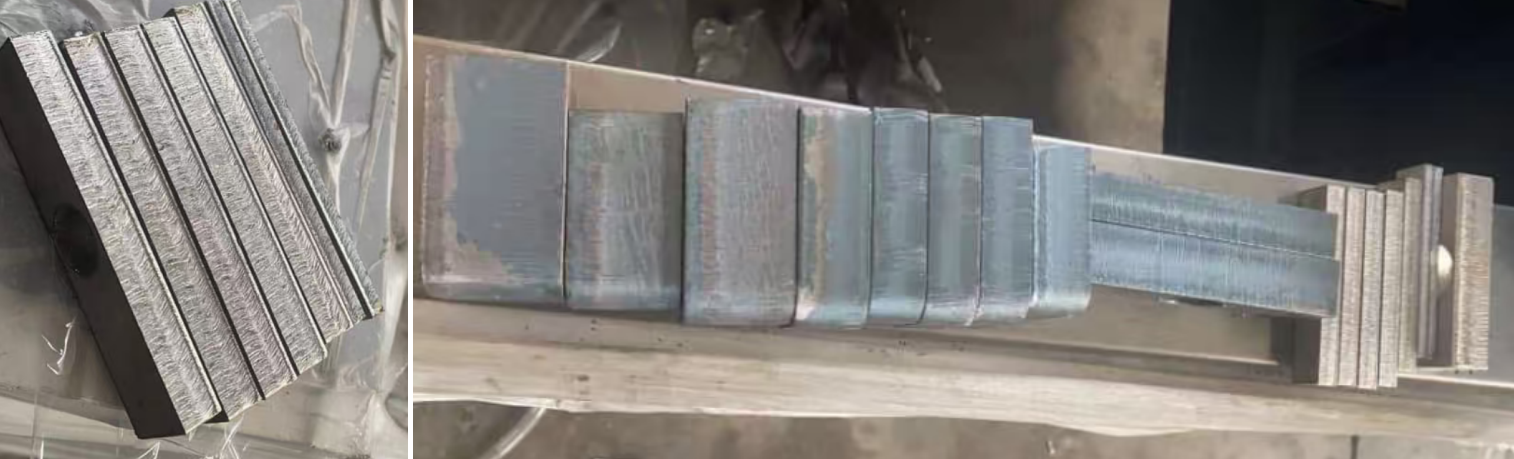

Model Number | JLN3015 | JLN4015 | JLN6015 | JLN4020 | JLN6020 |
Fiber Laser Source | 6000w 12000w (MAX/Raycus/IPG) | ||||
Effective cutting size | 3m*1.5m | 4m*1.5m | 6m*1.5m | 4m*2m | 6m*2m |
Cutting material | Carbon steel ,Stainless steel ,Galvanized sheet, Aluminum,Brass,Red copper, etc. | ||||
Positional accuracy (mm/m) | X /Y axle : ±0.03, Z axle :±0.01 | ||||
Repeated positioning accuracy(mm) | X /Y axle : ±0.01, Z axle :±0.005 | ||||
Rapid positioning speed (m/min) | X /Y axle : 120, Z axle :30 | ||||
Acceleration speed(G) | 1.2 | ||||
| Materia Laser power | Carbon steel | Stainless steel | Aluminum | Brass | Red copper |
6000w | 22mm | 14mm | 12mm | 10mm | 6mm |
12000w | 35mm | 25mm | 25mm | 14mm | 8mm |
Heavy duty single table laser cutting machines are widely used in the fields of automobile manufacturing, engineering machinery, power equipment, and aerospace, meeting the processing needs of large sheet metal parts, structural parts, or irregular parts.

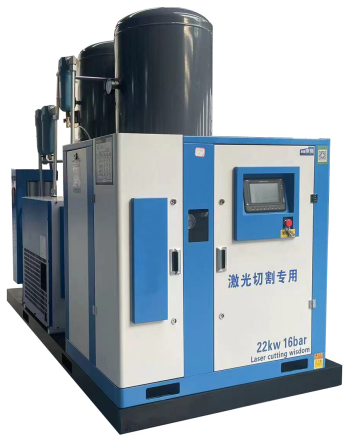

 | 22kw16bar Technical parameters of integrated | ||
Screw air compressor | Power | 22kw | |
Volume Flow(m³/min) | 2.2m³/min | ||
Pressure(Mpa) | 1.58Mpa | ||
Start Method | Frequency Conversion | ||
Cooling method | Air Cooling | ||
Electricity | 380V/50Hz | ||
Motor Protection class | IP23 | ||
Motor Insulation Class | F | ||
Motor connection method | Direct connection | ||
freeze dryer | Free Air Deliver | 3.0m³/min | |
Pressure(Mpa) | 1.6Mpa | ||
Inlet Temperature | ≤80℃ | ||
Ambient Temperature | ＜45℃ | ||
Pressure Dew-Point | 2-10℃ | ||
Outlet diameter | G1 | ||
Electricity | 220V 50Hz | ||
Module drying machine | Free Air Deliver | 2.6m³/min | |
Pressure(Mpa) | 1.6Mpa | ||
Electricity | 220V 50Hz | ||
Fine filter*8 pcs | Free Air Deliver | 3.0m³ | |
Pressure | ≤2.0 | ||
Exhaust dust content | 0.01um | ||
Outlet diameter | RP3/4 | ||
Air Tank *2 pcs | Gas storage tank capacity | 600L | |
Maximum working pressure | 1.58Mpa | ||
Inlet diameter | G1 | ||
Outlet diameter | G1 | ||
Temperature | 150℃ | ||
Safety valve | RC3/4 | ||
Drain valve | RC1/2 | ||
size | Φ650*2200mm | ||
Size | 2400*1200*2150mm | ||
Weight | 950kg | ||
1. How to choose a suitable laser cutting machine?
Tell us the machine size, material and each material thickness, then we will recommend the suitable machine for you.
2. What is the difference between laser cutting machine and plasma cutting machine?
Laser cutting machine belongs to precision machining, with high cutting accuracy, no slag hanging, and no need for secondary processing.
Plasma cutting machine belongs to rough machining, and the cutting section of the workpiece has a groove, with a cutting accuracy error of 1-2mm and slag hanging, requiring secondary processing.
3. How long is the lifespan of a laser cutting machine?
The fiber laser lifespan is 100000 hours.
