W12NC
QL Laser

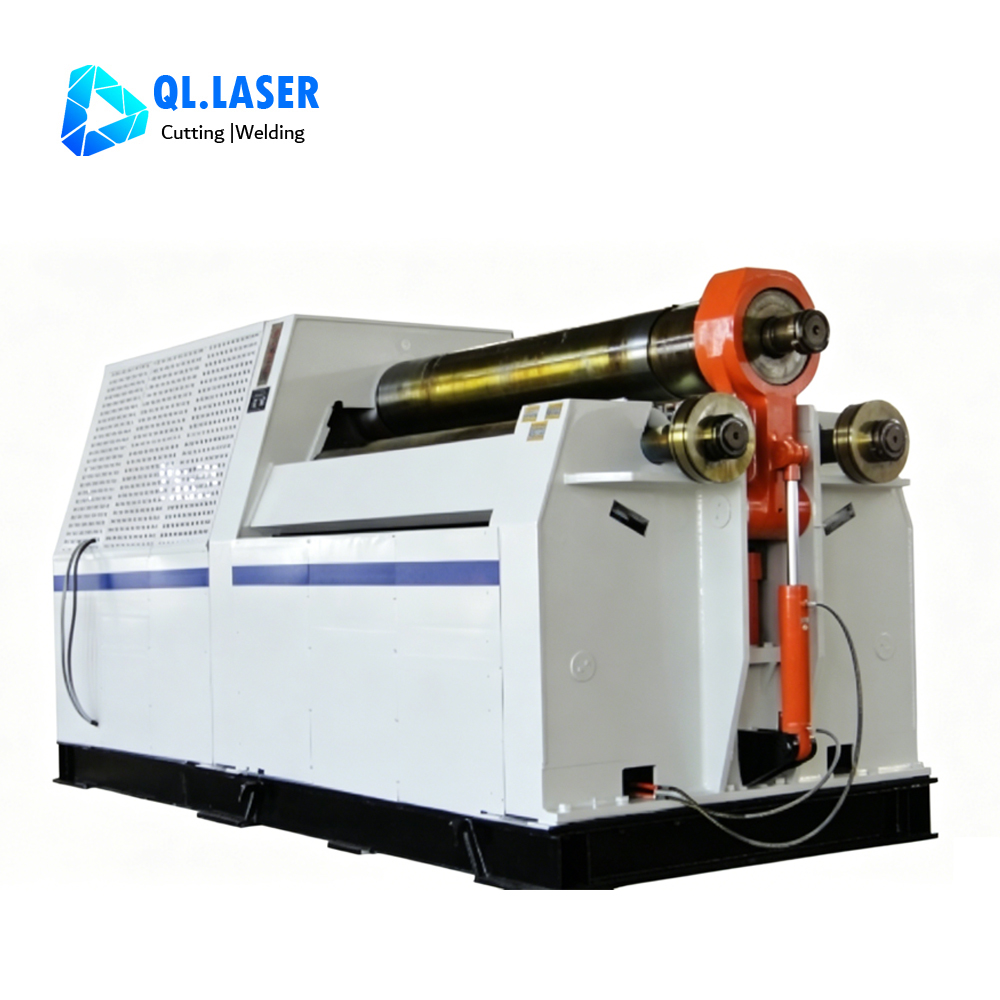

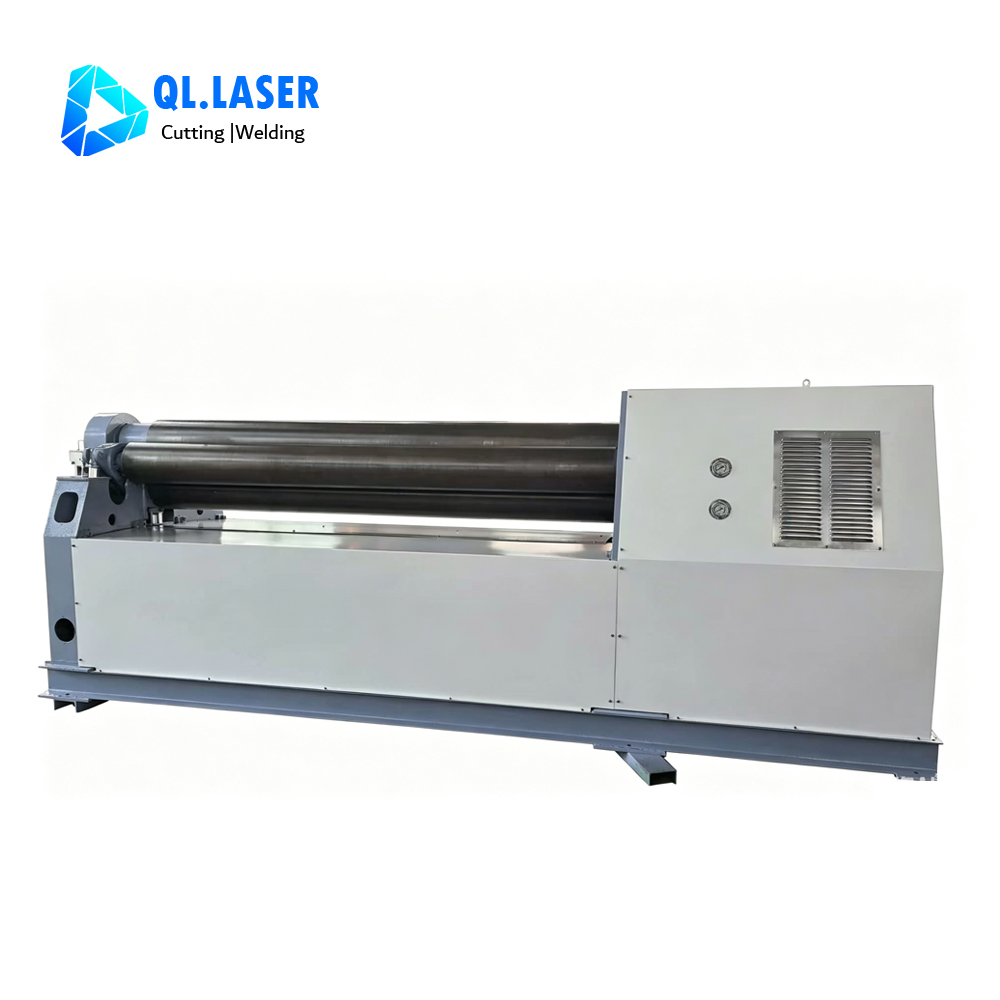

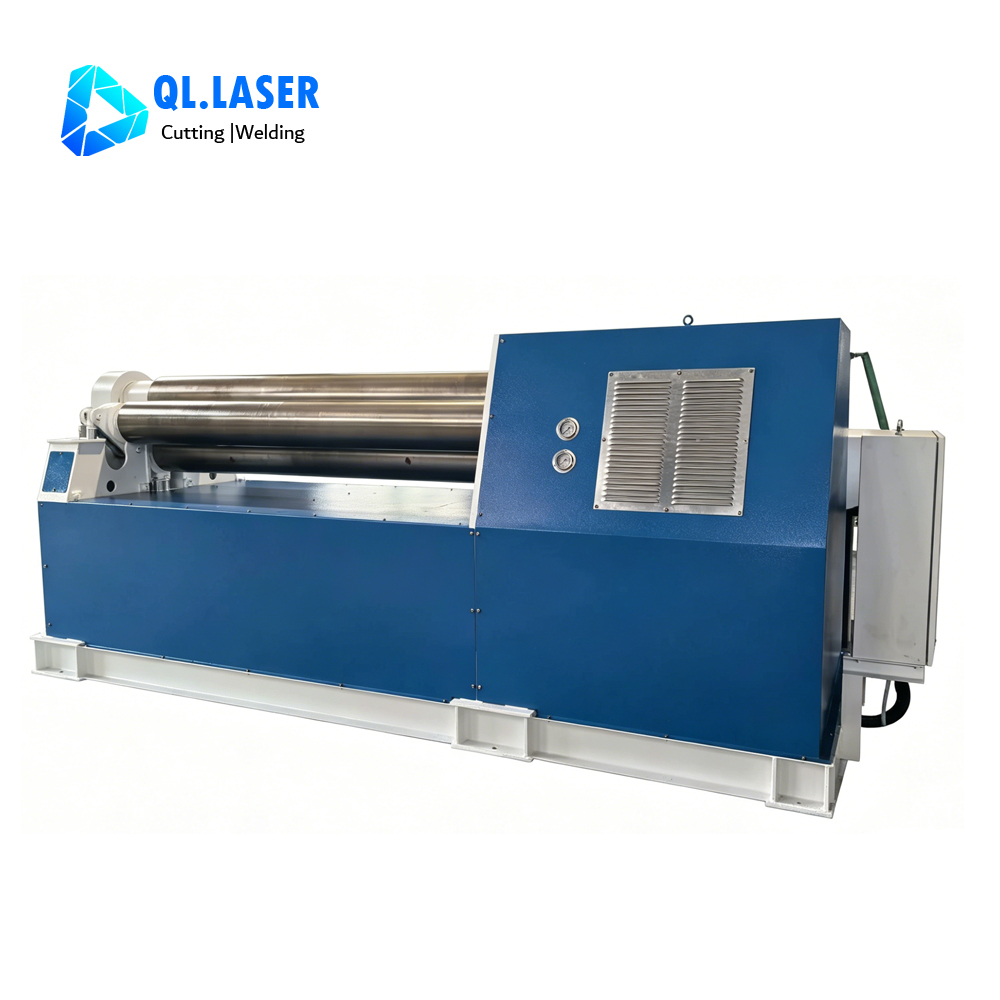

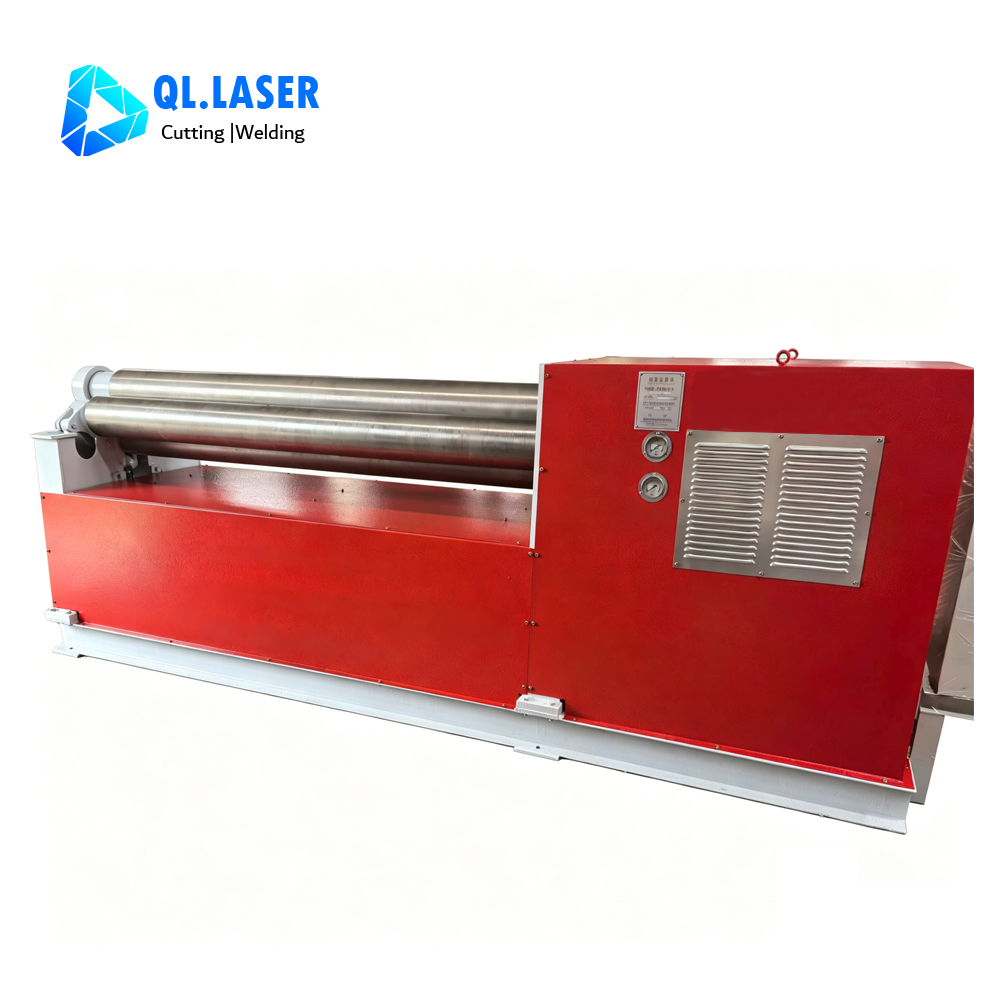

The full hydraulic four roll plate bending machine is a high-efficiency and precision metal rolling and forming equipment widely used for cylindrical and conical workpiece fabrication. Featuring four-roller symmetrical structure and full hydraulic driving system, this machine completes plate feeding, end pre-bending, full-circle rolling and precise rounding in one single clamping process. It completely solves the straight-edge residual problem existing in traditional three-roll rolling machines, requiring no secondary flipping or manual correction. Equipped with synchronized hydraulic control and CNC system, the four-roll plate roller maintains uniform rolling pressure and consistent forming tolerance even during long-term heavy-load operation. It handles carbon steel, stainless steel, alloy steel and other thick metal plates perfectly, delivering smooth, symmetrical and distortion-free cylinder products. Ideal for both small-batch customized production and large-scale standardized industrial manufacturing.

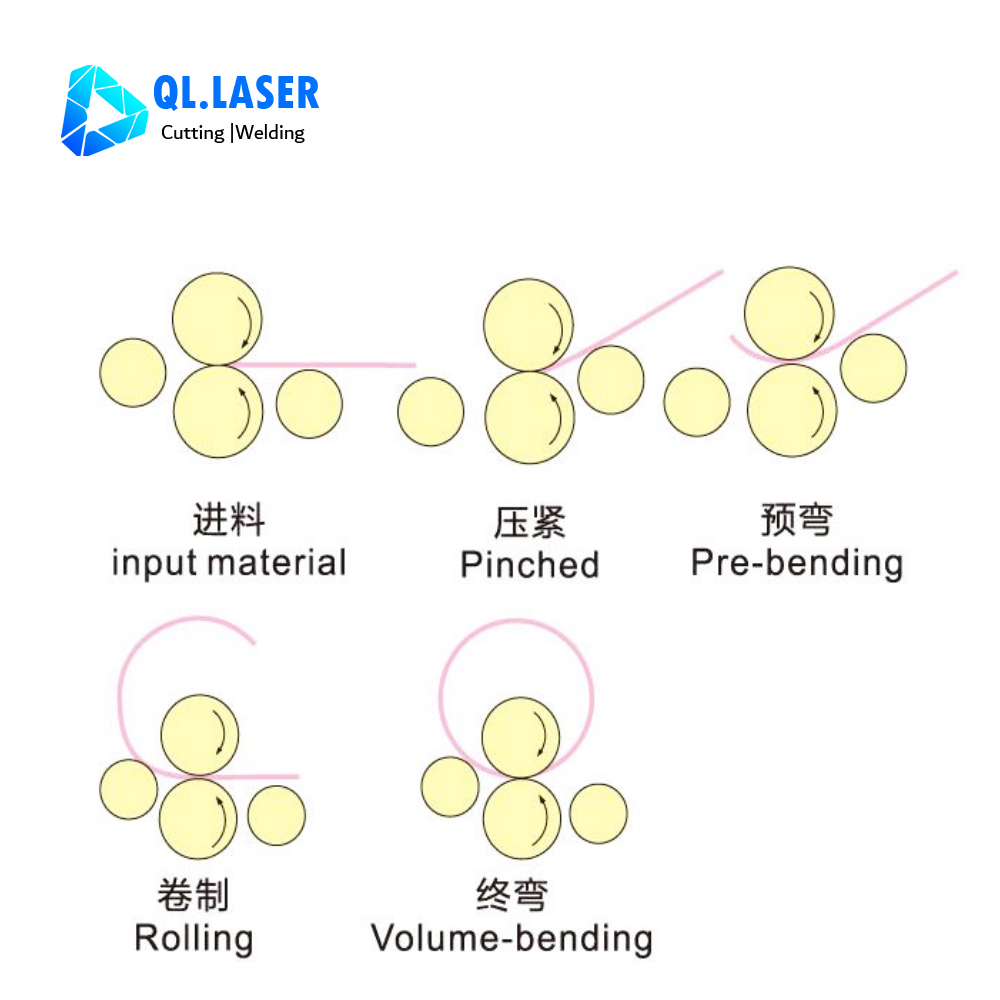

1. Zero Straight Edge Forming Technology
The unique four-roller symmetrical layout realizes one-time clamping and full pre-bending on both plate ends. It completely eliminates residual straight edges, requiring no secondary trimming or re-rolling, greatly improving finished product qualification rate and production efficiency compared with conventional three-roll machines.
2. Full Hydraulic Synchronous Transmission System
All movable rollers are driven by independent hydraulic cylinders with synchronous pressure balance control. The optimized hydraulic circuit provides stable, adjustable rolling force, ensuring uniform metal deformation and consistent roundness tolerance for different plate thicknesses and material hardness.
3. Reinforced Heavy-Duty Mechanical Structure
The integral welded machine frame undergoes high-temperature stress relief treatment to eliminate welding internal stress. High-hardness integral forged rollers feature strong wear resistance and anti-deformation performance, supporting long-term heavy-load rolling without precision attenuation.

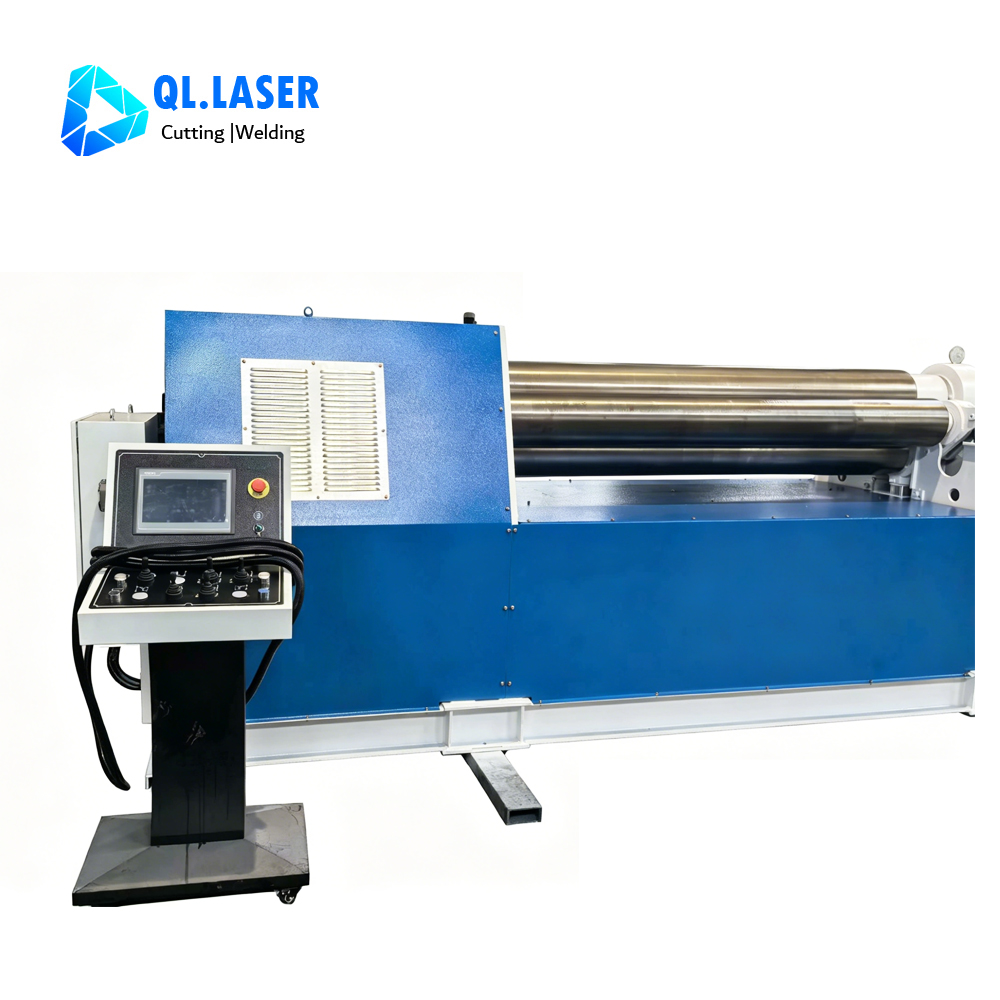

4. Intelligent Automatic Operation
Equipped with industrial control system for automatic parameter setting, roller stroke positioning and one-key forming. It can store multiple sets of processing data for batch production, realizing standardized and intelligent rolling operation and reducing manual operation errors.
5. Versatile Multi-Specification Forming Capacity
This hydraulic four-roll roller supports rolling of round cylinders, tapered tubes, arc workpieces and special curved parts. It flexibly processes thin sheets and thick plates of carbon steel, stainless steel, alloy steel and low-temperature steel, meeting diverse industrial forming demands.
6. Low Failure Rate & Easy Maintenance
Adopts integrated hydraulic valve groups and sealed oil circuit design to reduce oil leakage failure. Standardized wearing parts and humanized structural layout simplify daily inspection and maintenance, effectively lowering later-stage operation costs for manufacturing enterprises.
| Model | Thickness of Rolling Plate | Max. Width of Rolling Plate(mm) | Dia. of Upper Roller (mm) |
Dia. of Lower Roller (mm) |
Dia. of Side Roller(mm) | Power of Primary Motor(KW) | |
| End Bending (mm) |
Center(mm) | ||||||
| W12-6×2000 | 4.5 | 6 | 2000 | 180 | 180 | 145 | 5.5 |
| W12-6×2500 | 4.5 | 6 | 2500 | 210 | 210 | 165 | 7.5 |
| W12-8×2000 | 6 | 8 | 2000 | 215 | 215 | 165 | 7.5 |
| W12-8×2500 | 6 | 8 | 2500 | 230 | 230 | 180 | 11 |
| W12-12×2000 | 10 | 12 | 2000 | 260 | 260 | 200 | 15 |
| W12-12×2500 | 10 | 12 | 2500 | 280 | 280 | 220 | 15 |
| W12-16×2000 | 12 | 16 | 2000 | 280 | 280 | 220 | 15 |
| W12-16×2500 | 12 | 16 | 2500 | 330 | 330 | 260 | 22 |
| W12-20×2000 | 16 | 20 | 2000 | 330 | 330 | 260 | 22 |
| W12-20×2500 | 16 | 20 | 2500 | 360 | 360 | 280 | 30 |
| W12-25×2000 | 20 | 25 | 2000 | 360 | 360 | 280 | 30 |
| W12-25×2500 | 20 | 25 | 2500 | 410 | 400 | 320 | 30 |
| W12-30×2000 | 25 | 30 | 2000 | 410 | 400 | 320 | 30 |
| W12-30×2500 | 25 | 30 | 2500 | 460 | 460 | 380 | 30 |
| W12-30×3000 | 25 | 30 | 3000 | 560 | 520 | 420 | 37 |
| W12-40×2500 | 35 | 40 | 2500 | 560 | 520 | 420 | 37 |
| W12-40×3000 | 35 | 40 | 3000 | 650 | 580 | 480 | 45 |
| W12-50×2500 | 45 | 50 | 2500 | 650 | 580 | 480 | 45 |
| W12-50×3000 | 45 | 50 | 3000 | 720 | 650 | 520 | 55 |
| W12-60×2500 | 50 | 60 | 2500 | 720 | 650 | 520 | 55 |
| W12-60×3000 | 50 | 60 | 3000 | 750 | 710 | 560 | 75 |
| W12-70×3000 | 60 | 70 | 3000 | 750 | 720 | 600 | 75 |
| W12-80×3000 | 70 | 80 | 3000 | 800 | 780 | 620 | 75 |
| W12-90×3000 | 80 | 90 | 3000 | 840 | 820 | 660 | 90 |
| W12-100×3000 | 90 | 100 | 3000 | 900 | 880 | 700 | 90 |

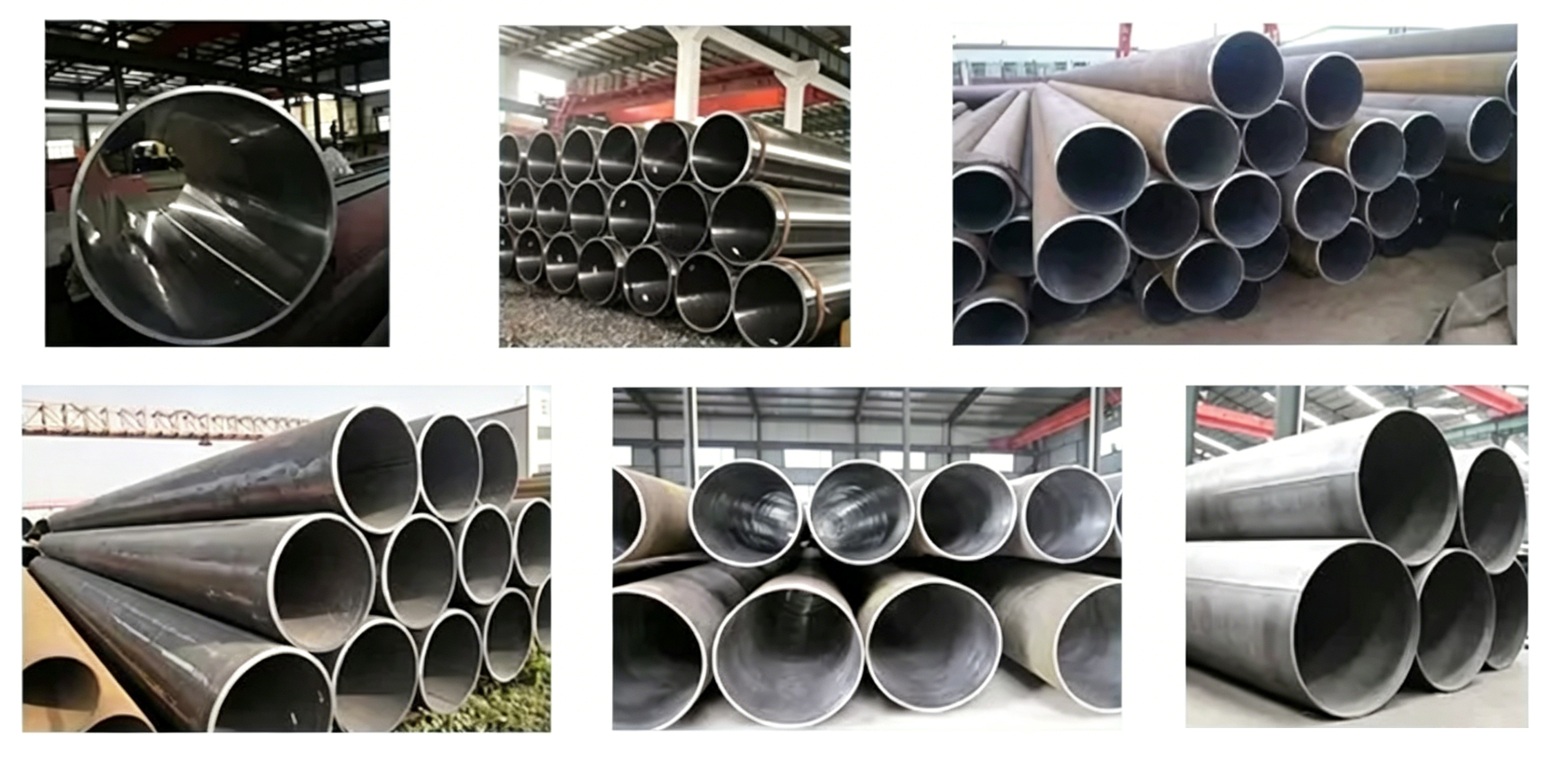

1. Pressure Vessel & Boiler Industry
Specialized for rolling boiler barrels, pressure vessel cylinders and storage tank shells, providing seamless and high-roundness workpieces that meet industrial pressure container standards.
2. Petrochemical & Pipeline Engineering
Used for processing large-diameter steel pipe casings, chemical storage cylinders and pipeline transition arc parts, adapting to harsh industrial environment manufacturing requirements.
3. Steel Structure & Mechanical Manufacturing
Fabricates mechanical equipment casings, structural arc parts, cylindrical supports and conical metal components for engineering machinery and steel structure projects.
4. Environmental & Wind Power Industry
Suitable for rolling wind power equipment accessories, environmental protection dust removal cylinders and ventilation pipeline components, supporting new energy and environmental protection equipment production.
Q1: What is the main advantage of four-roll roller compared with three-roll rolling machine?
A: The full hydraulic four roll plate rolling machine can complete double-end pre-bending and one-time forming without plate flipping, with no residual straight edge. It delivers higher forming precision and production efficiency, which is more suitable for high-standard cylinder and pressure vessel production.
Q2: What types of metal materials can this machine process?
A: It can stably roll carbon steel, stainless steel, alloy steel, low-alloy structural steel and other metal plates. It supports customized processing of different plate thicknesses and forming radians to adapt to various industrial production needs.
Q3: Does the machine support automatic operation?
A: Yes. We provide automatic control versions. This model realizes automatic positioning, parameter memory and batch intelligent production, ideal for mass standardized processing.
Q4: What after-sales and customization services are available?
A: We support customized machine tonnage, rolling width and voltage configuration. Complete after-sales services include long-term warranty, remote technical guidance, equipment debugging videos and global spare parts supply.
