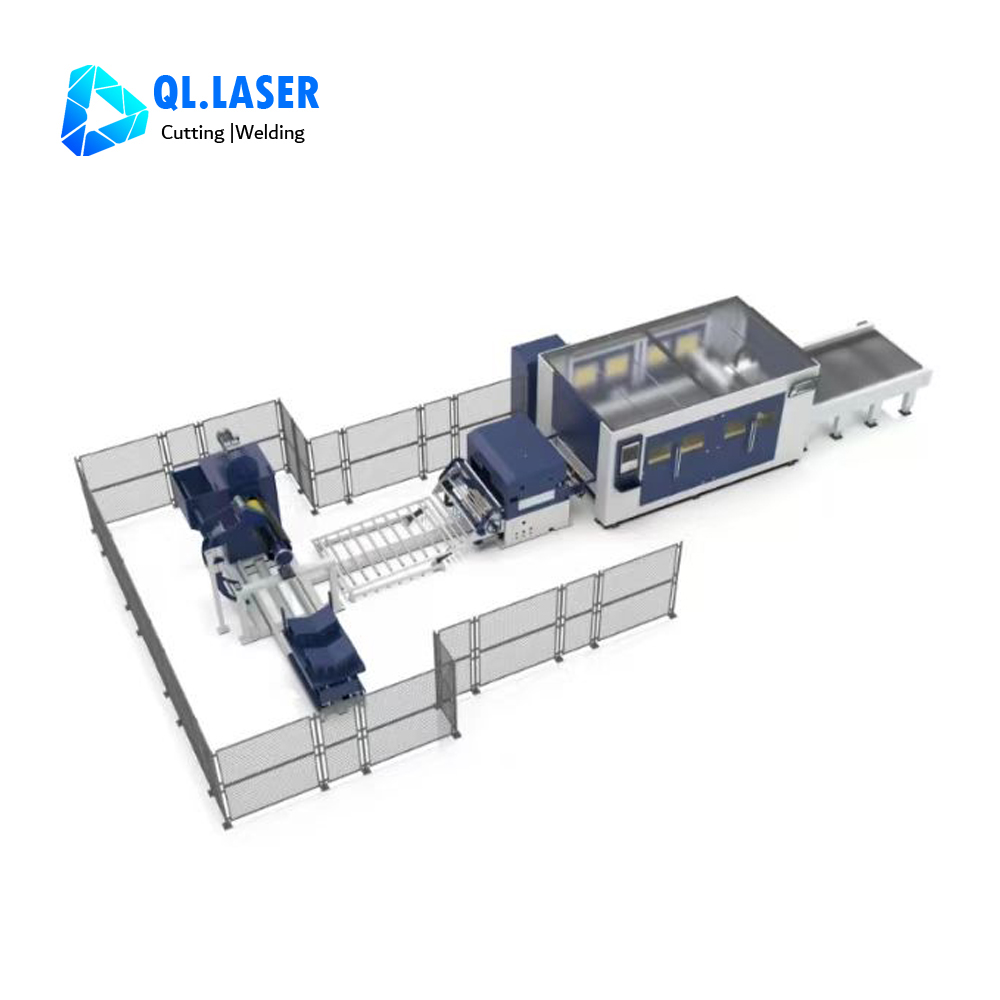

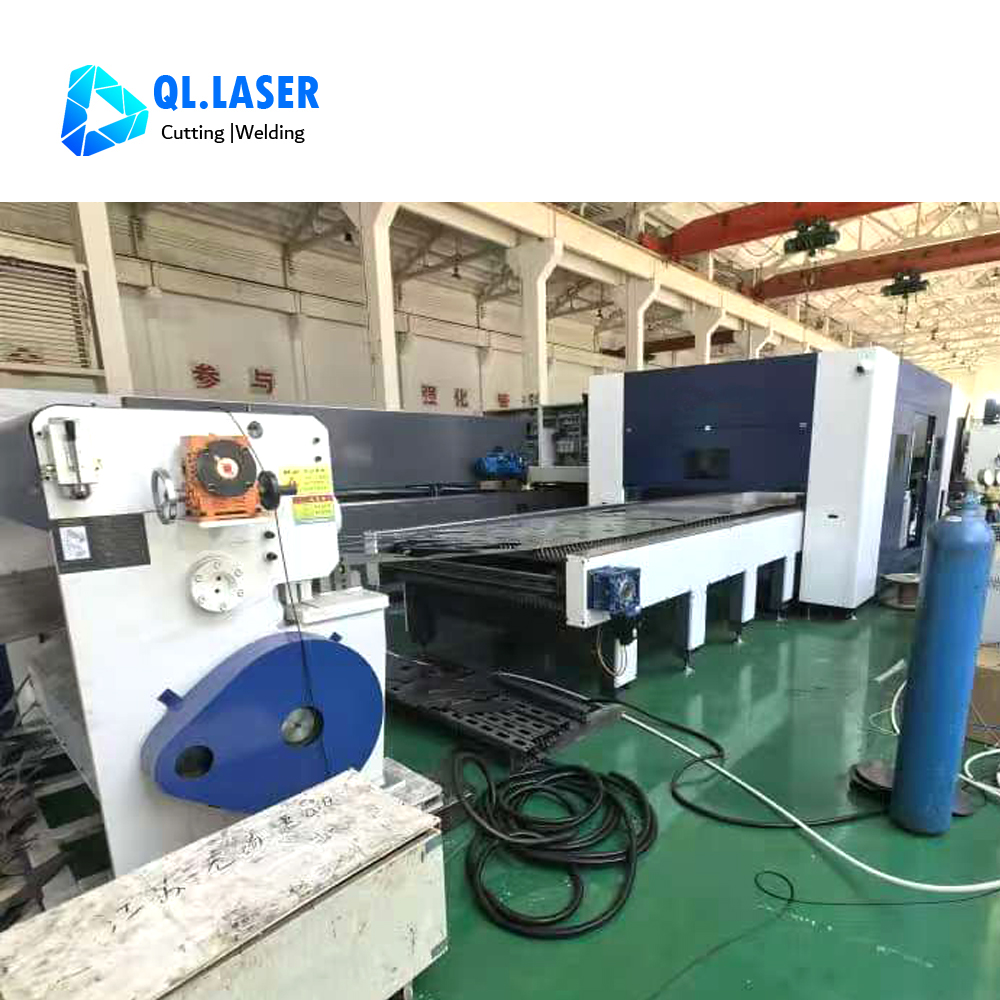

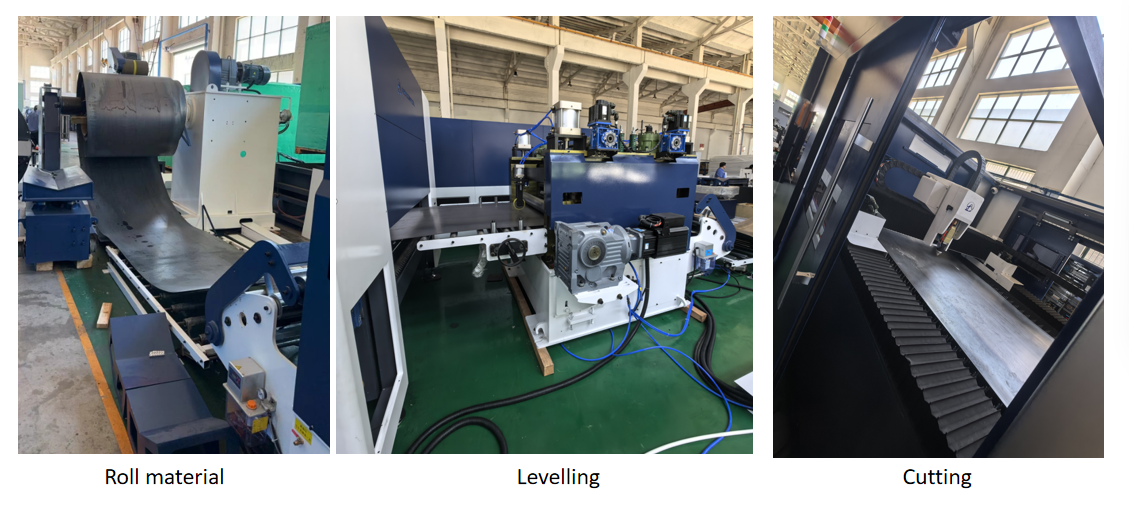

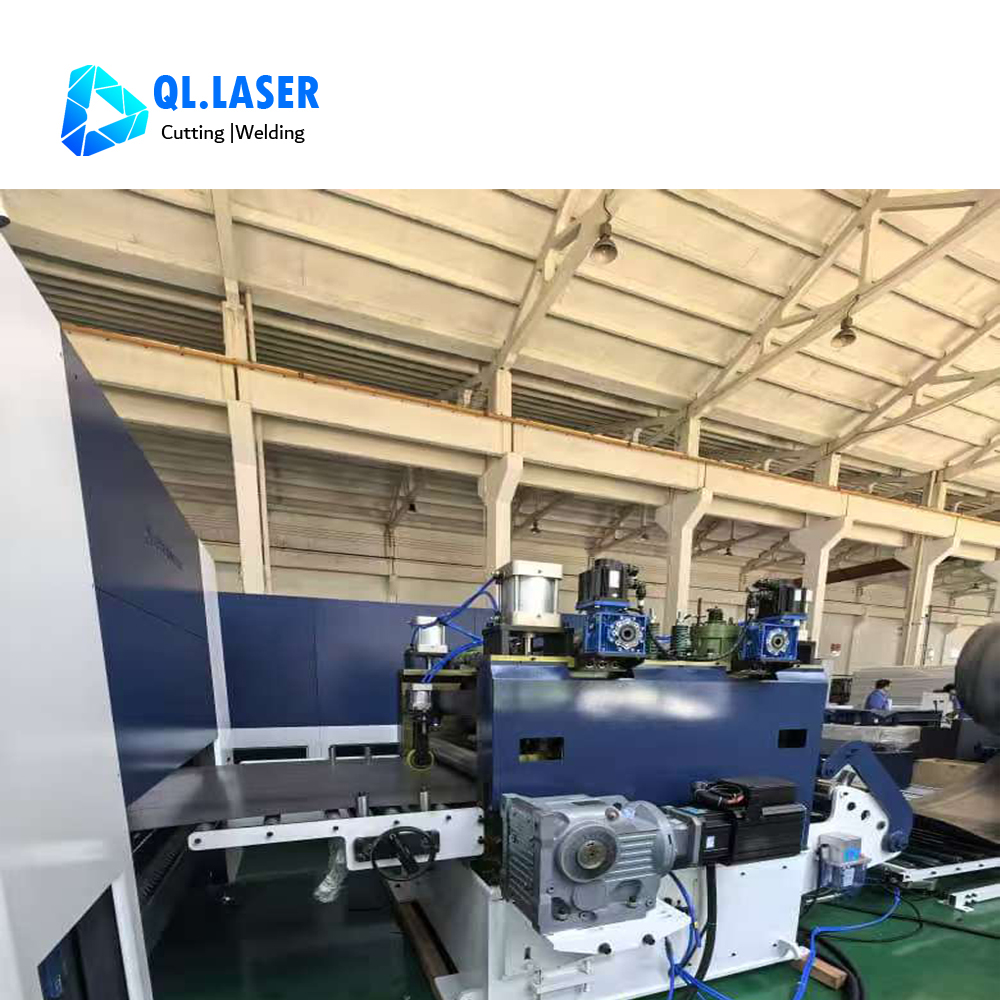

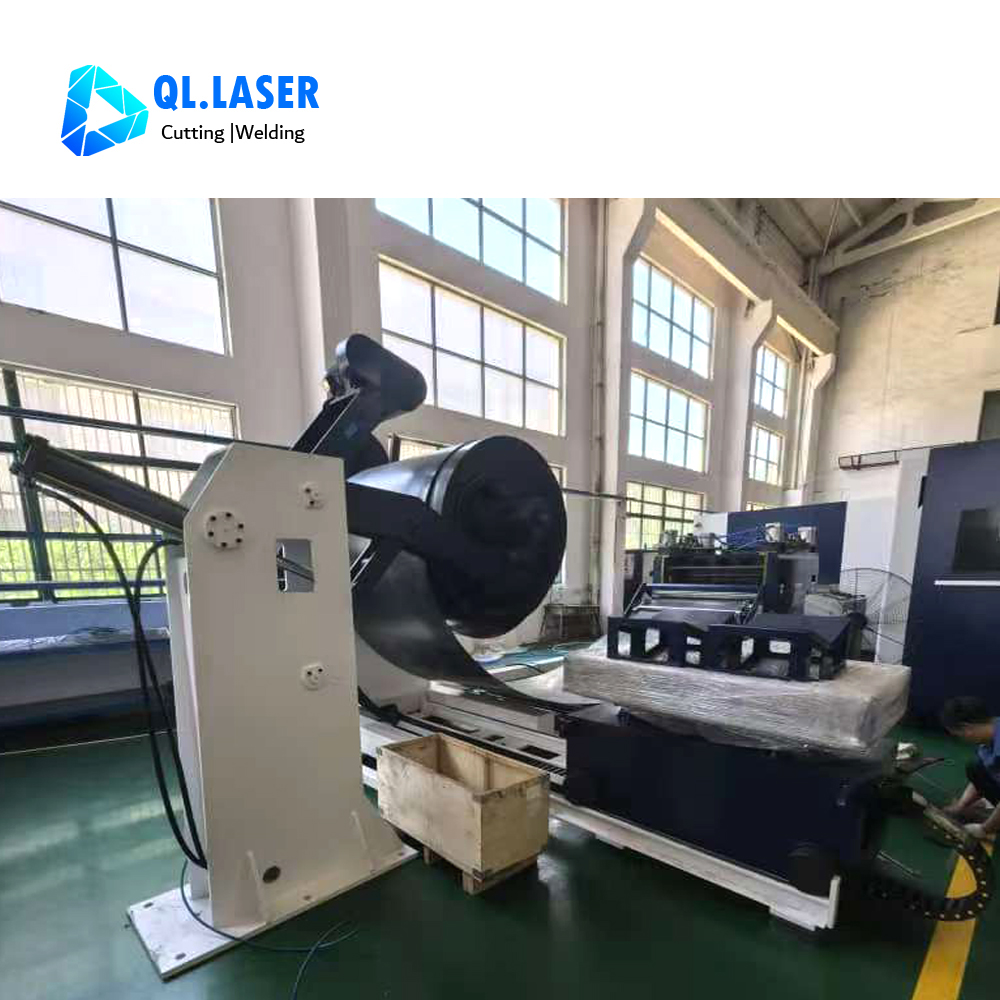

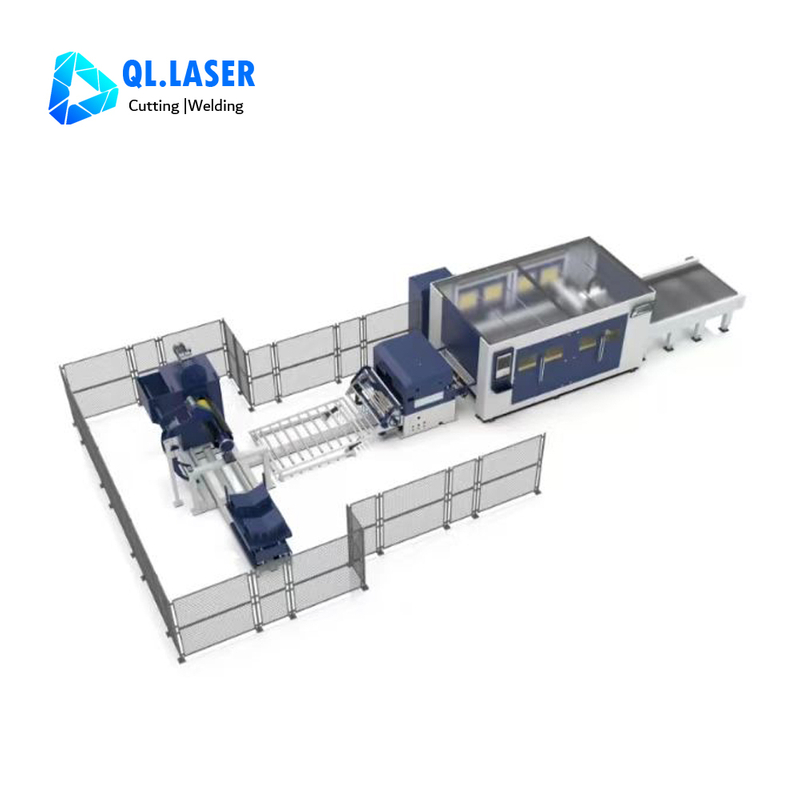

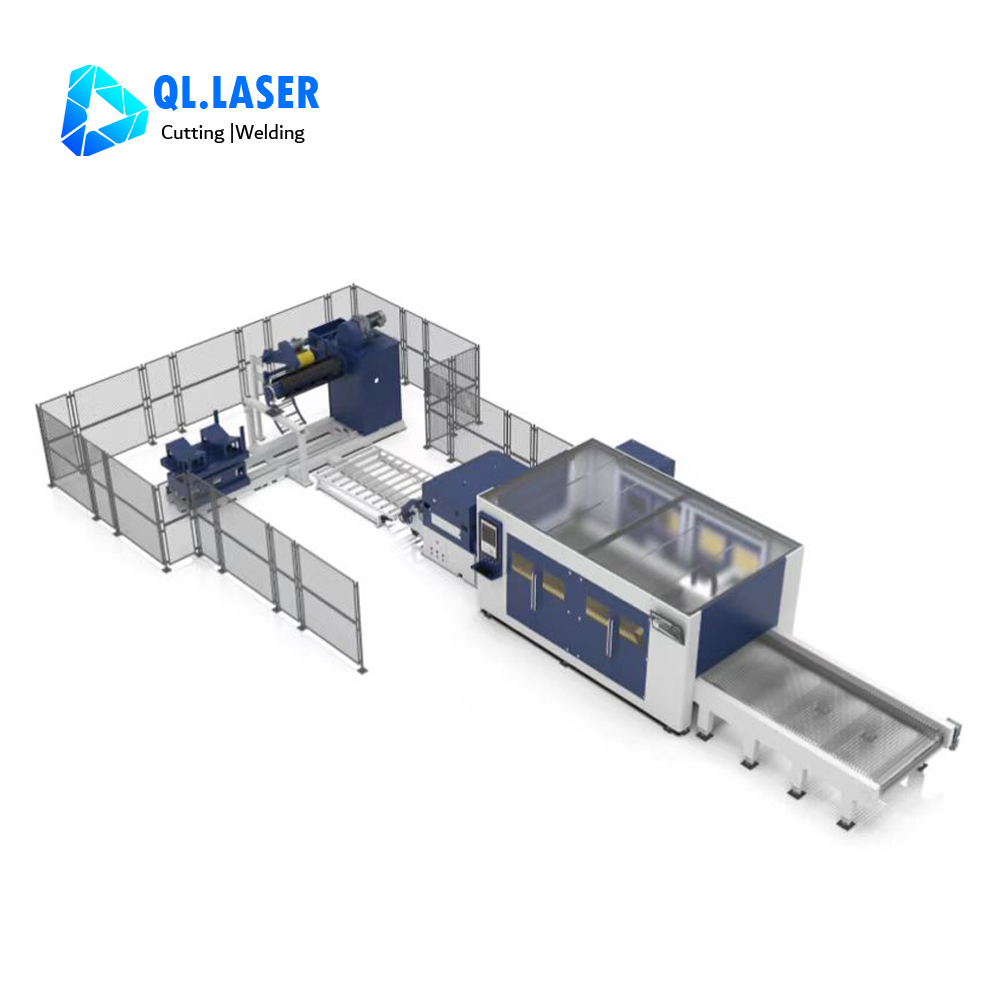

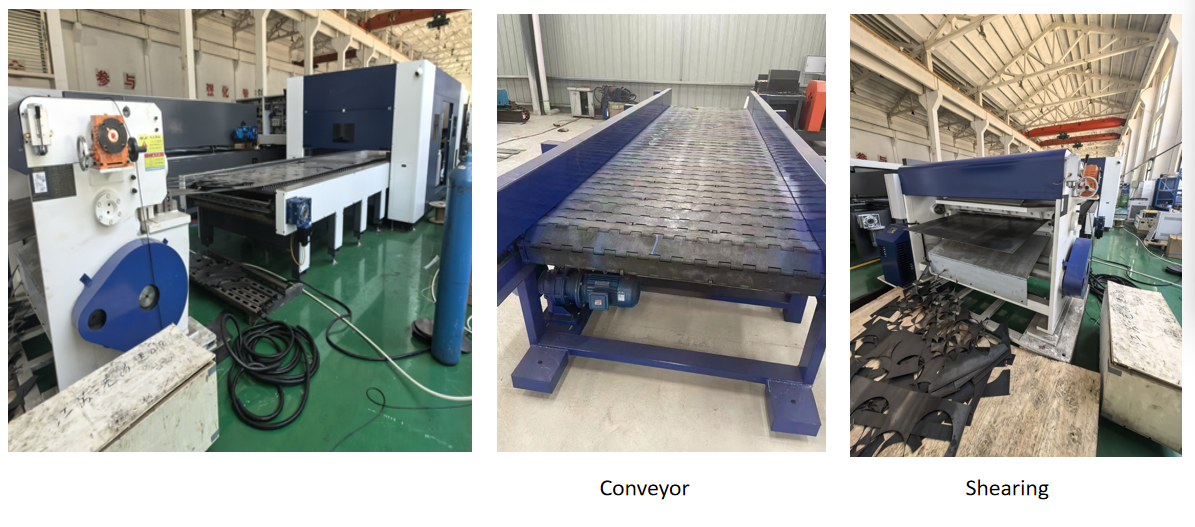

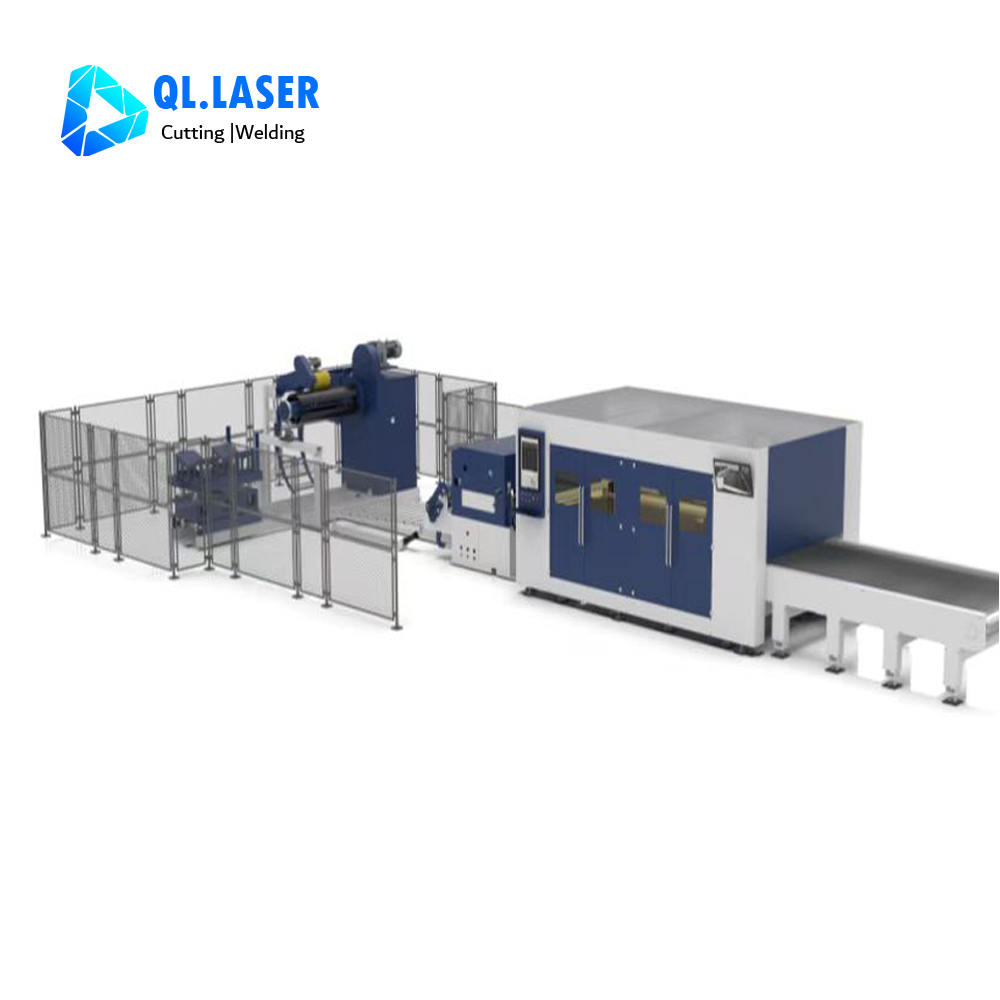

The coil laser cutting machine is a specialized equipment for automated cutting of metal coil materials, integrating roll material, leveling, feeding, laser cutting and shearing functions, and achieving efficient and high-precision processing through continuous operation. It mainly consists of an rolling material machine, a leveling machine, a laser cutting machine, a conveyor, and a shearing machine. Suitable for metal coils within 6mm.

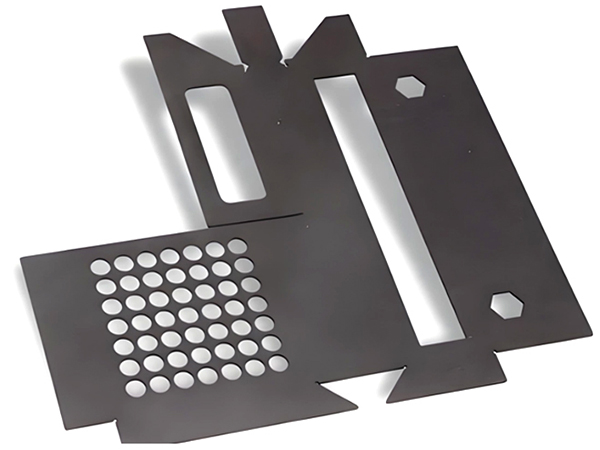

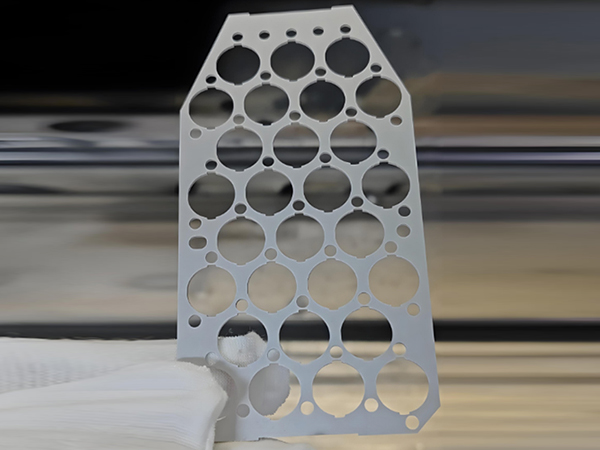

1. Directly cut the coil material, equipped with automatic nesting function to improve material utilization and save materials.
2. The coil does not need to be pre cut into plate and leveling, saving time and labor.

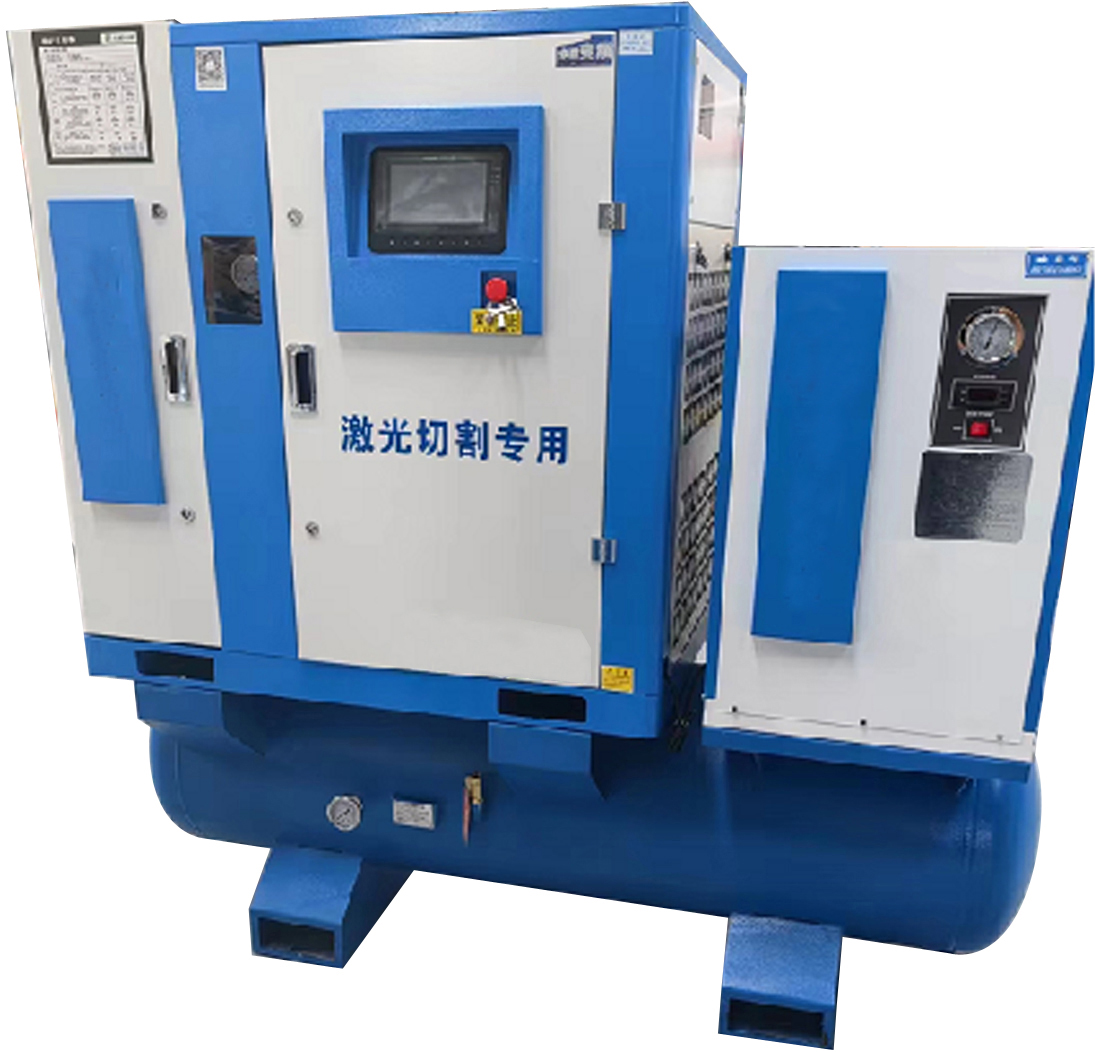

3. Use air cutting to improve cutting speed and efficiency.
4. Integrate the processes of roll material, leveling, feeding, and cutting to achieve simultaneous feeding and cutting, increasing equipment utilization by over 40%. The fully automated production line can operate continuously, reducing manual intervention and adapting to the needs of large-scale production.
| Items | Technical parameters | |
| Effective cutting size (mm) | 3000×1500 | |
Effective travel | X axle(mm) | 3050 |
Y axle (mm) | 1520 | |
Z axle (mm) | 100 | |
PositionaI accuracy | X axle (mm/m) | ±0.03 |
Y axle (mm/m) | ±0.03 | |
Z axle (mm/m) | ±0.01 | |
repeated positioning accuracy | X axle (mm) | ±0.01 |
Y axle (mm) | ±0.01 | |
Z axle (mm) | ±0.005 | |
Rapid positioning speed | X axle (m/min) | 120 |
Y axle (m/min) | 120 | |
Z axle (m/min) | 60 | |
Acceleration speed(G) | 2 | |
IP Grade | IP54 | |

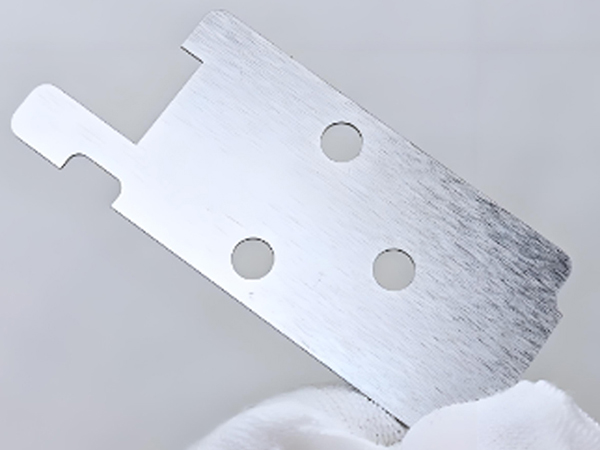

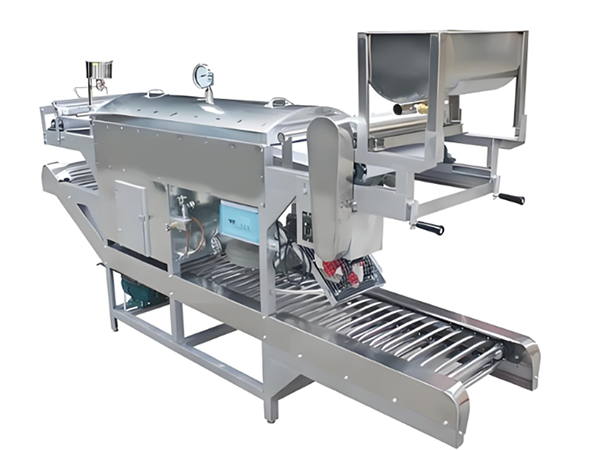

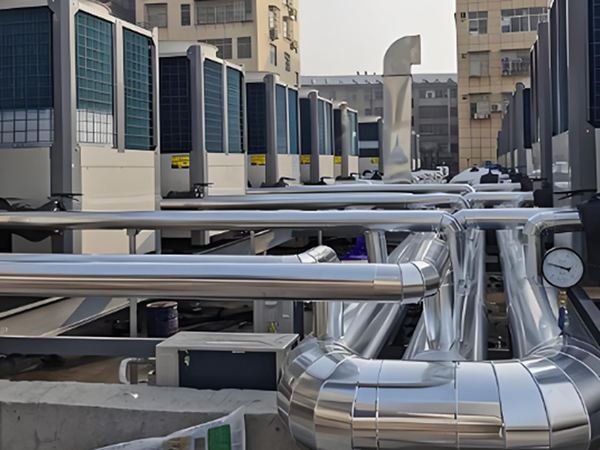

The coil feeding laser cutting machine can cut various types of coils, including stainless steel, carbon steel, manganese steel, galvanized sheet, alloy sheet, and other materials. Widely used in heating, chemical, food machinery, textile, building materials, medicine and other fields.
 |  |  |
 |  |  |
1. How to choose coil feeding laser cutting machne?
You need to tell us the roll material width, thickness, material and weight. Then we will recommend suitable machine or you.
2. What is the difference between air cutting and oxygen cutting?
The coil materials are all thin sheets with a thickness of 1-6mm. Using air cutting can greatly improve the cutting speed. Oxygen cutting of thin sheets is too slow and cannot reflect the efficiency of the coil cutting production line.
3. What is payment and delivery time for this laser machine?
Payment is 30% in advance, 70% balance before shipping.
Delivery time is 45working days after receive deposit.
