QL Laser

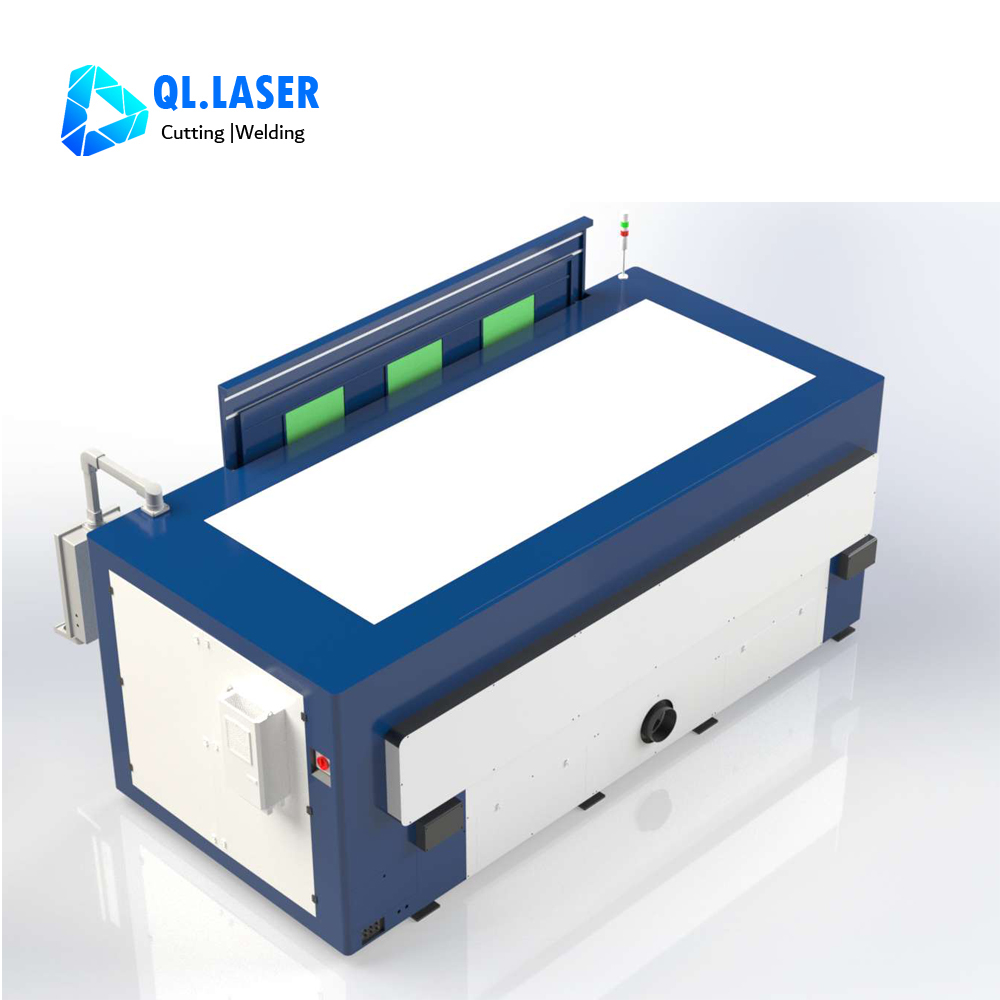

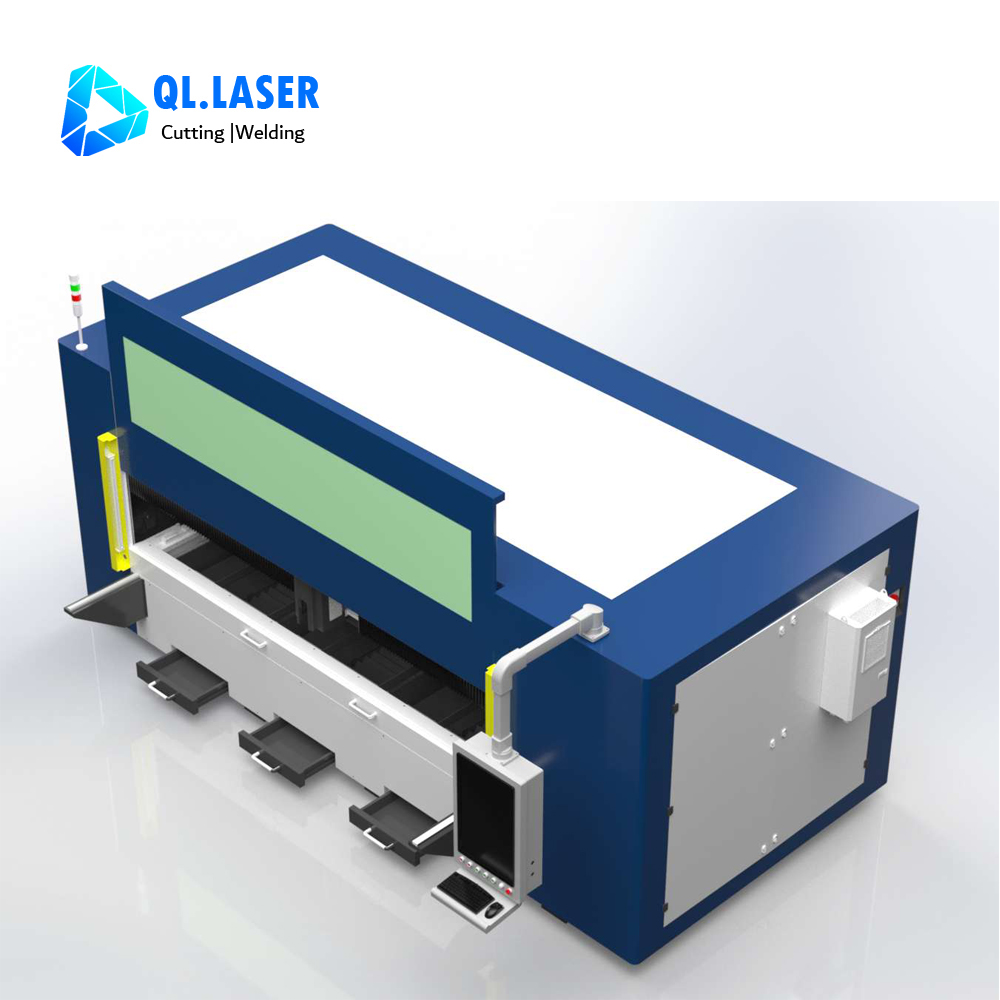

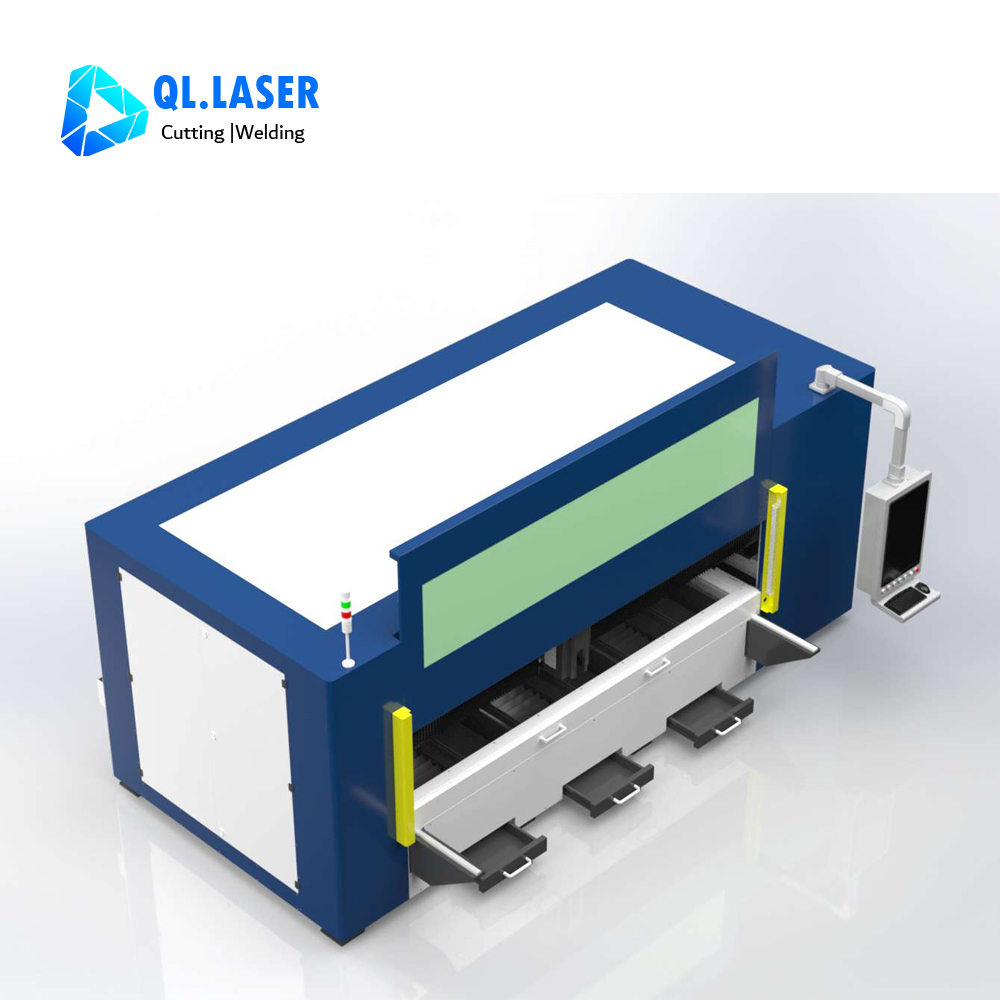

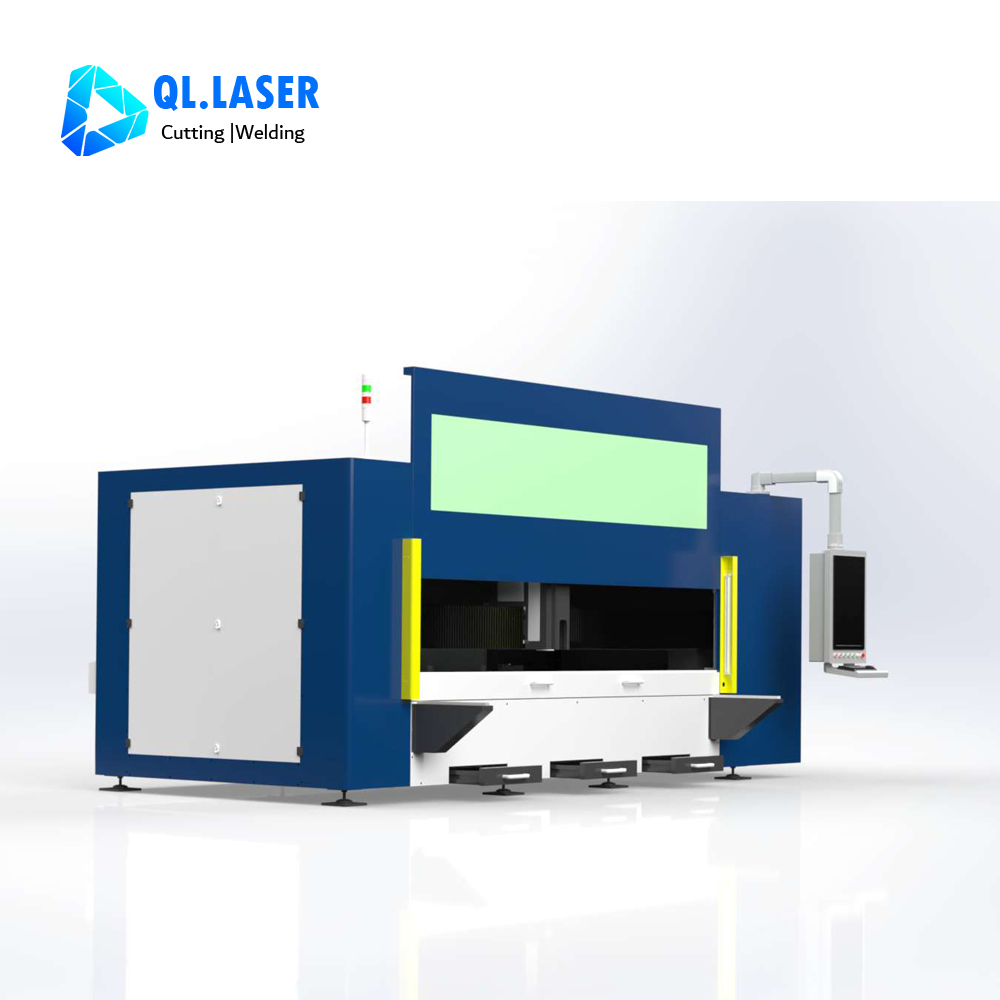

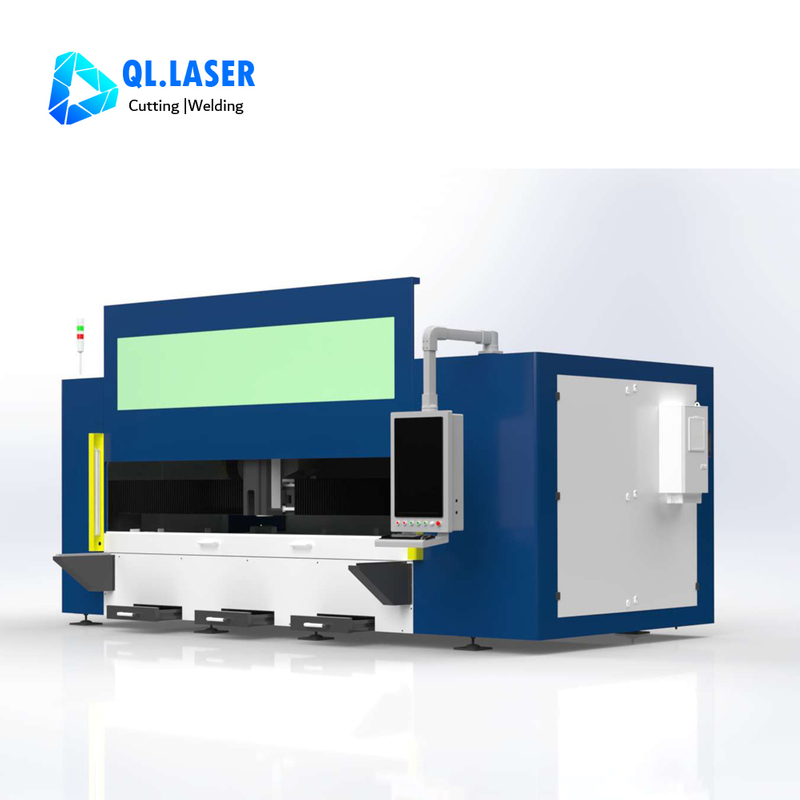

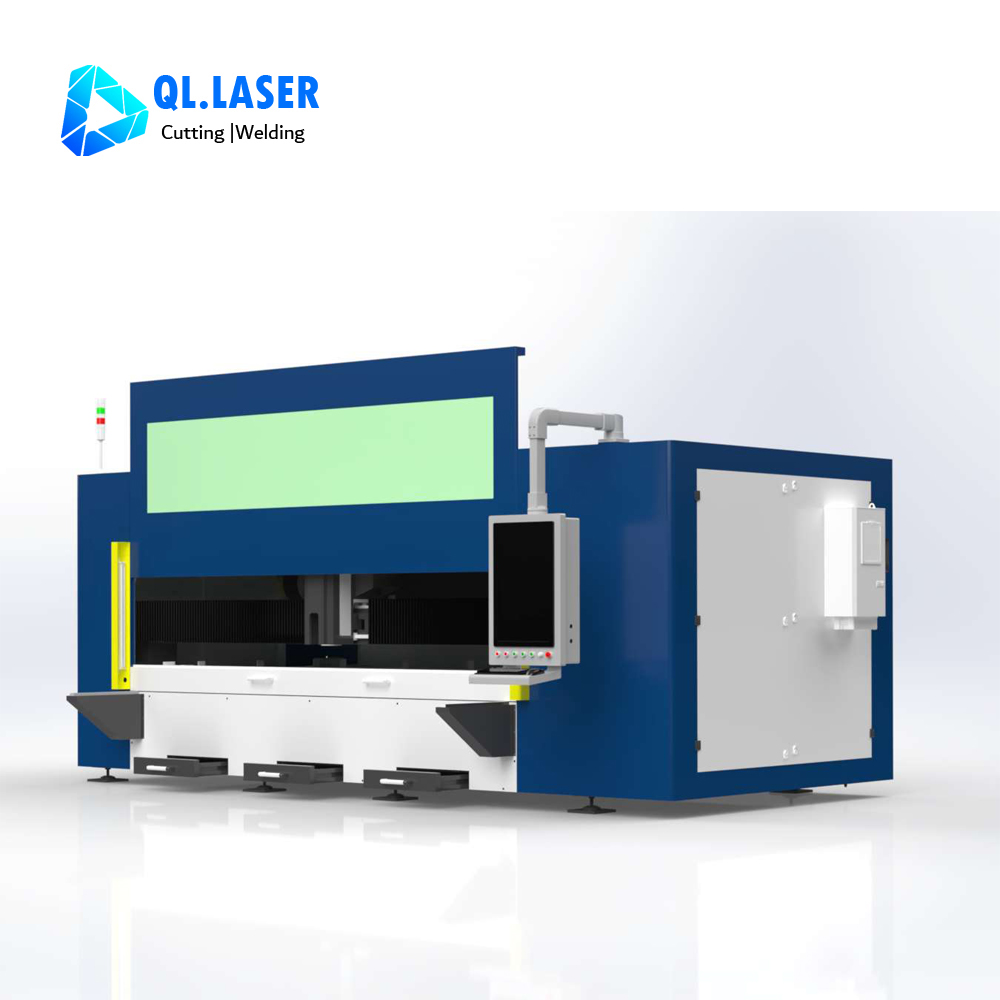

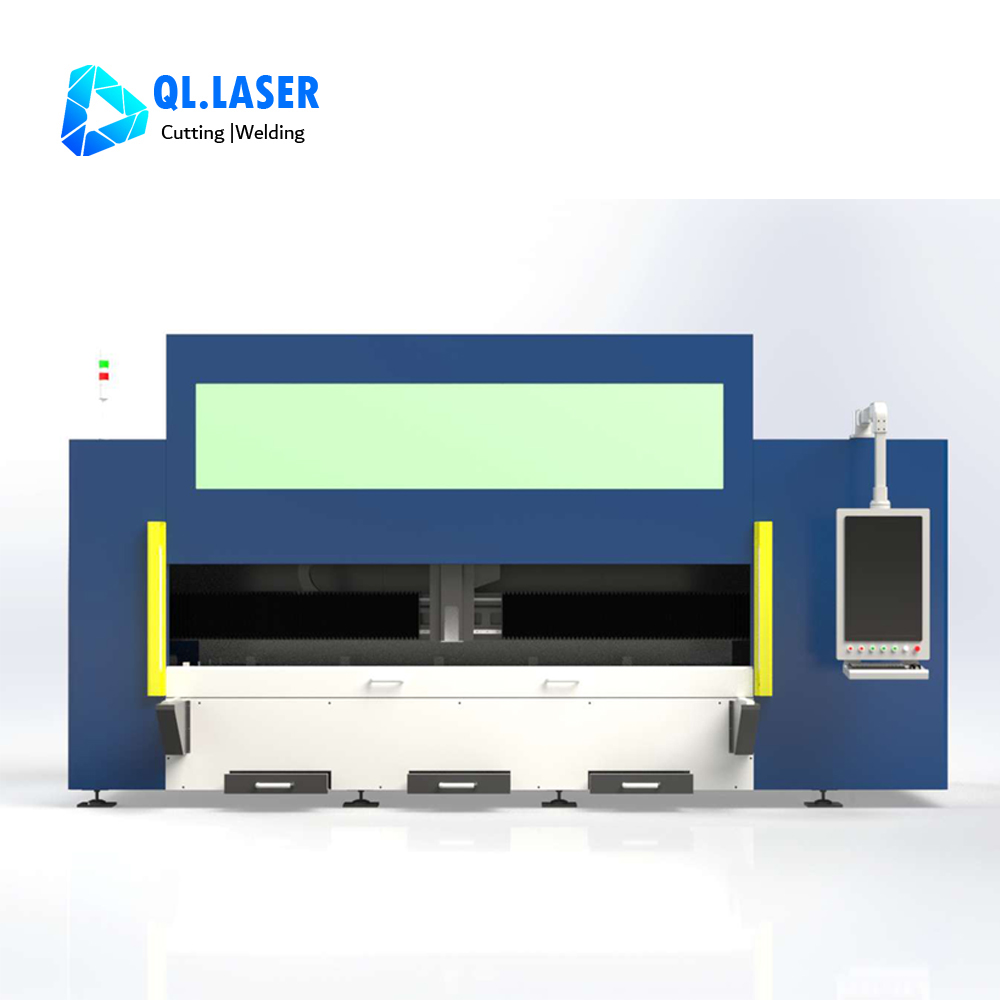

Our enclosed single-table fiber laser cutting machine is a compact, safe and cost-effective industrial metal cutting solution specially optimized for small and medium processing factories. Different from traditional fixed single-table laser machines, this model adopts a unique full protective enclosure + pull-out sliding worktable structure, combining safety environmental protection, operational convenience and stable cutting performance in one unit.
1. Full Enclosed Safety & Eco-Friendly Structure
Adopts fully closed protective cover with laser-proof viewing window and safety interlock device. It completely isolates laser radiation, sparks and cutting smoke. Equipped with professional dust exhaust system, it realizes clean production, fully meeting CE certification and international environmental protection standards.
2. Innovative Pull-Out Sliding Worktable
The entire cutting table can slide out smoothly, allowing operators to load heavy sheets and pick up finished workpieces outside the machine. It avoids collision between sheets and laser head, solves the narrow feeding problem of traditional enclosed machines, and greatly improves operation convenience.
3. Space-Saving Compact Single Table Design
Integrated single-platform structure occupies smaller workshop area compared with dual-exchange table laser machines. It features lower site requirement and more cost-effective investment, perfectly suitable for medium and small factories with limited space.
4. Stable High-Precision Cutting Performance
Adopts heavy-duty integral welded bed and high-precision dual servo drive system. After high-temperature stress relief treatment, the machine bed is not deformed for long-term operation. It ensures stable cutting accuracy, narrow kerf and burr-free cutting edges for both thin and medium-thick plates.
5. Intelligent & User-Friendly Operation System
Supports multiple drawing formats including DXF and DWG. Automatic nesting and path optimization functions reduce material waste. The intuitive touch screen system lowers operation threshold and saves staff training time.
6. Wide Compatibility & Customization
Compatible with carbon steel, stainless steel, galvanized steel, aluminum alloy and other metal materials. Multiple laser power and working size options are available. Customized voltage, appearance color and auxiliary configurations support global market adaptation.
Model | JLMAP |
Laser power | 1500W-6000W |
CNC Controller | Bochu EtherCAT Bus System |
Laser cutting head | Intelligent auto focus laser cutting head |
Effective cutting size | 1000-1000mm/ 1000-1500mm/1500-1500mm/1500-3000mm |
Cutting material | MS,SS,Galvanized sheet, Aluminum, Brass,Red copper |
| Laser chiller | Tongfei/Hanli |
Servo motor and Driver | Inovance/Yaskawa/Bochu/Rexroth |
Linear Guide | Rexroth |
Cutting software | CypcutE |
Nesting software(Optional) | CypNest |
Electronic pieces | Schneider |
| Material | Cabon steel | Stainless steel | Aluminium | Brass | Red copper | |
| Thickness | Speed(m/min) Air /N2 | Speed(m/min) O2 | Speed(m/min) N2/Air | Speed(m/min) N2/Air | Speed(m/min) N2 | Speed(m/min) high pressure O2 |
| 1 | 45-60 | 45-60 | 40-50 | 40-50 | 25-35 | |
| 2 | 20-35 | 25-35 | 20-25 | 15-25 | 12-18 | |
| 3 | 13-24 | 3.6-4.5 | 17-24 | 14-16 | 8-14 | 7-10 |
| 4 | 10-20 | 3.2-3.5 | 10-16 | 8-10 | 8-9.5 | 5-7 |
| 5 | 9-13 | 2.6-3.2 | 7-12 | 5-8 | 5-6.5 | 3-4 |
| 6 | 6.5-9 | 2.5-2.8 | 6-8.5 | 3.5-5.5 | 3.5-4.5 | 2.5-3.5 |
| 8 | 2.2-2.5 | 3-4.8 | 2.5-3.5 | 1.5-1.8 | 1.5-2 | |
| 10 | 2.0-2.2 | 1.6-2.5 | 1.5-2.5 | 0.8-1 | ||
| 12 | 1.8-2.0 | 1-1.8 | 0.8-1.3 | 0.6-0.7 | ||
| 14 | 1.4-1.7 | 0.8-1.2 | 0.7-1.1 | |||
| 16 | 0.9-1.2 | 0.6-0.95 | 0.5-0.8 | |||
| 18 | 0.7-1.0 | 0.4-0.7 | 0.4-0.6 | |||
| 20 | 0.6-0.8 | 0.4-0.6 | 0.4-0.55 | |||
| 22 | 0.55-0.65 | 0.4-0.5 | ||||
| 25 | 0.4-0.6 | 0.1-0.2 | ||||
| Note: During air and nitrogen cutting of carbon steel and stainless steel, efficiency and stability will be improved, but as the thickness increases, slag formation is more likely to occur. The above data parameters may vary during actual bulk cutting due to the influence of factors such as the machine tool, system, cutting head, air pressure, and materials. The parameters marked in red in the table are proofing parameters, which are greatly influenced by various factors during actual processing and are only suitable for small batch production. Mass production is not recommended. It is recommended to use higher power lasers. Red Copper needs to be cut with high-pressure oxygen, as air or nitrogen can easily cause damage to the laser. | ||||||
1. Sheet Metal Fabrication
Ideal for cutting electrical cabinet shells, chassis parts, metal structural plates and customized sheet metal components with high dimensional requirements.
2. Hardware & Kitchenware Manufacturing
Process stainless steel kitchenware, hardware brackets, door and window accessories with smooth and flawless cutting surfaces without secondary polishing.
3. Advertising & Decoration Industry
Produce metal logos, advertising characters, decorative art panels and architectural decoration metal parts with delicate cutting effect.
4. Mechanical & Agricultural Equipment
Used for blanking and forming of machinery brackets, agricultural machinery fittings, engineering hardware and general mechanical parts.
Q1: What metals can this enclosed pull-out table laser cutter process?
A: It is widely applicable to carbon steel, stainless steel, galvanized steel, aluminum alloy, copper and other common metal sheets. Different laser power configurations support processing thicknesses from 0.5mm to 40mm.
Q2: What is the biggest advantage of pull-out worktable compared with fixed table?
A: The slidable pull-out design enables external loading and unloading, eliminating the need to stretch hands into the narrow closed cavity. It improves operation safety, speeds up feeding efficiency and avoids equipment collision damage.
Q3: Is the fully enclosed design suitable for long-time continuous production?
A: Yes. The closed structure matches an efficient dust removal . It effectively reduces smoke accumulation, ensuring stable 24-hour continuous operation with low failure rate and long service life.
Q4: Do you provide customization and after-sales service?
A: We support full customization of laser power, working size, machine color and working voltage. Complete after-sales service includes 12-month warranty, remote technical guidance, online training and global spare parts supply.
