1. It can cut various metals, such as mild steel, stainless steel, and aluminum.

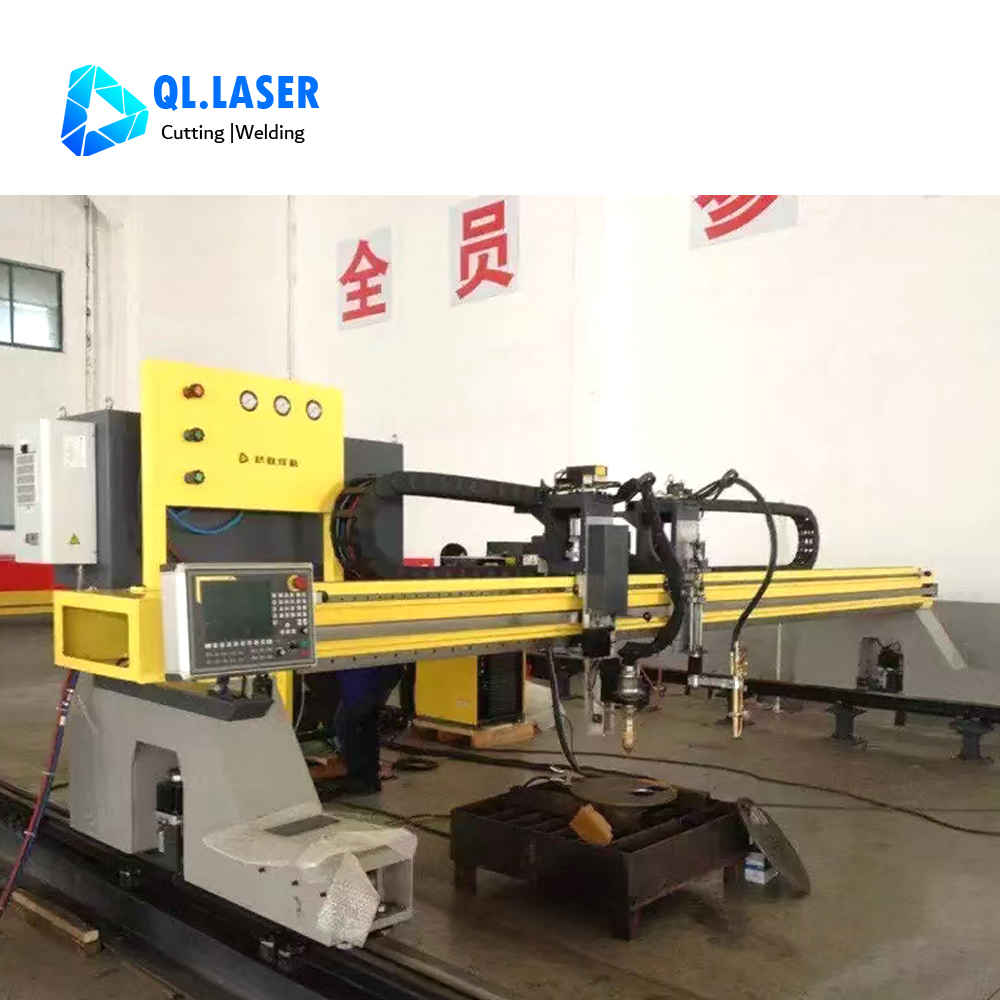

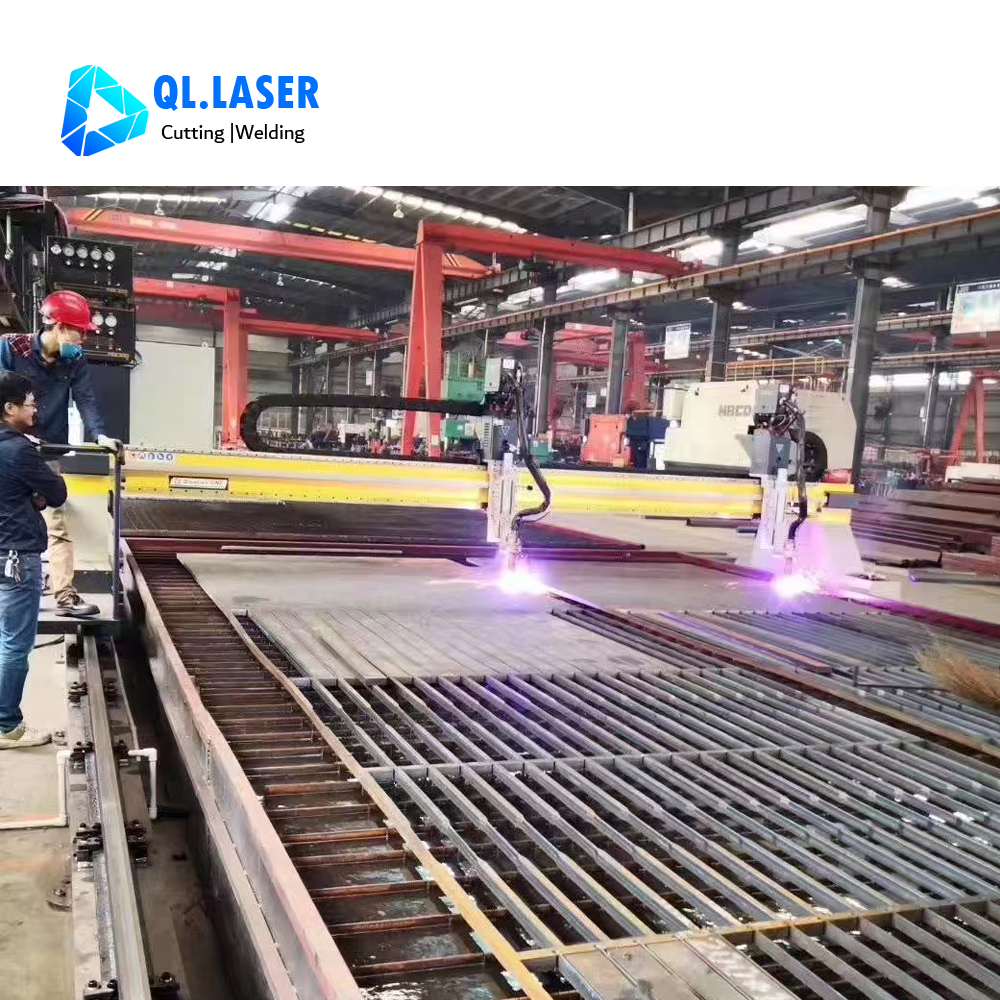

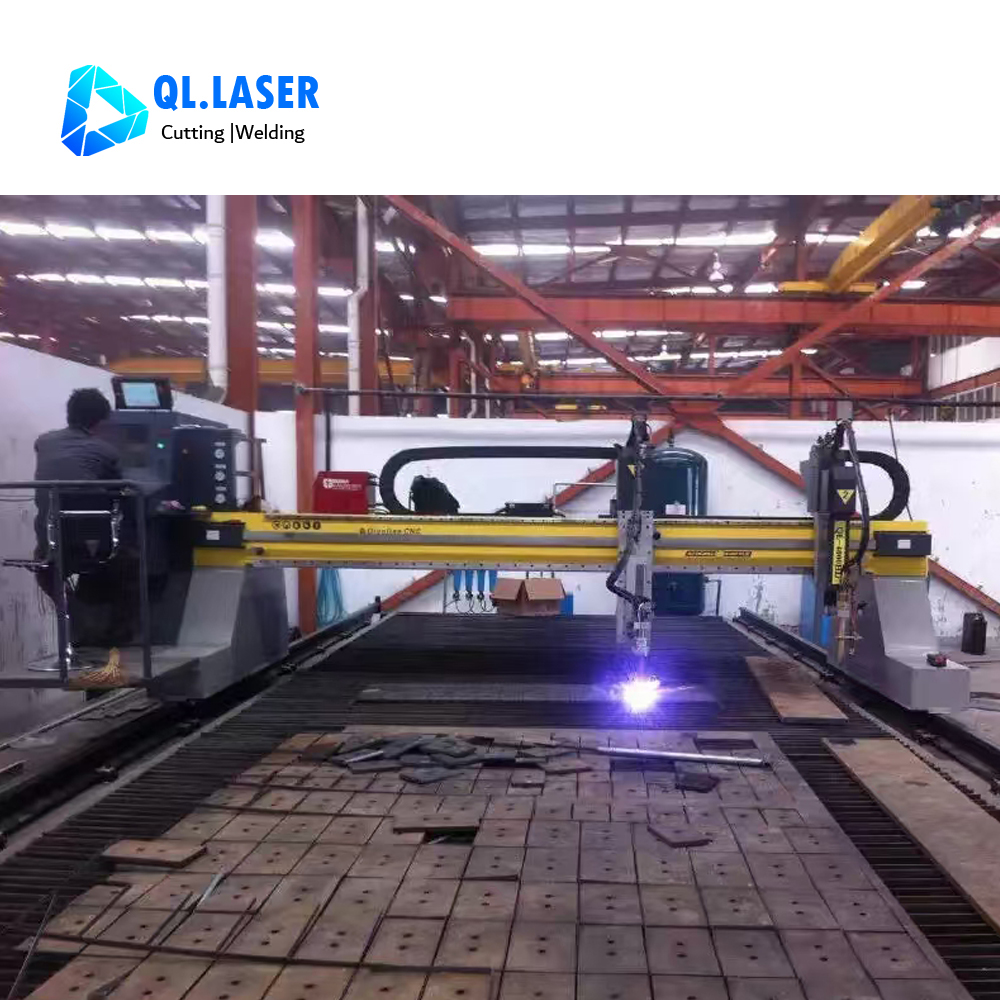

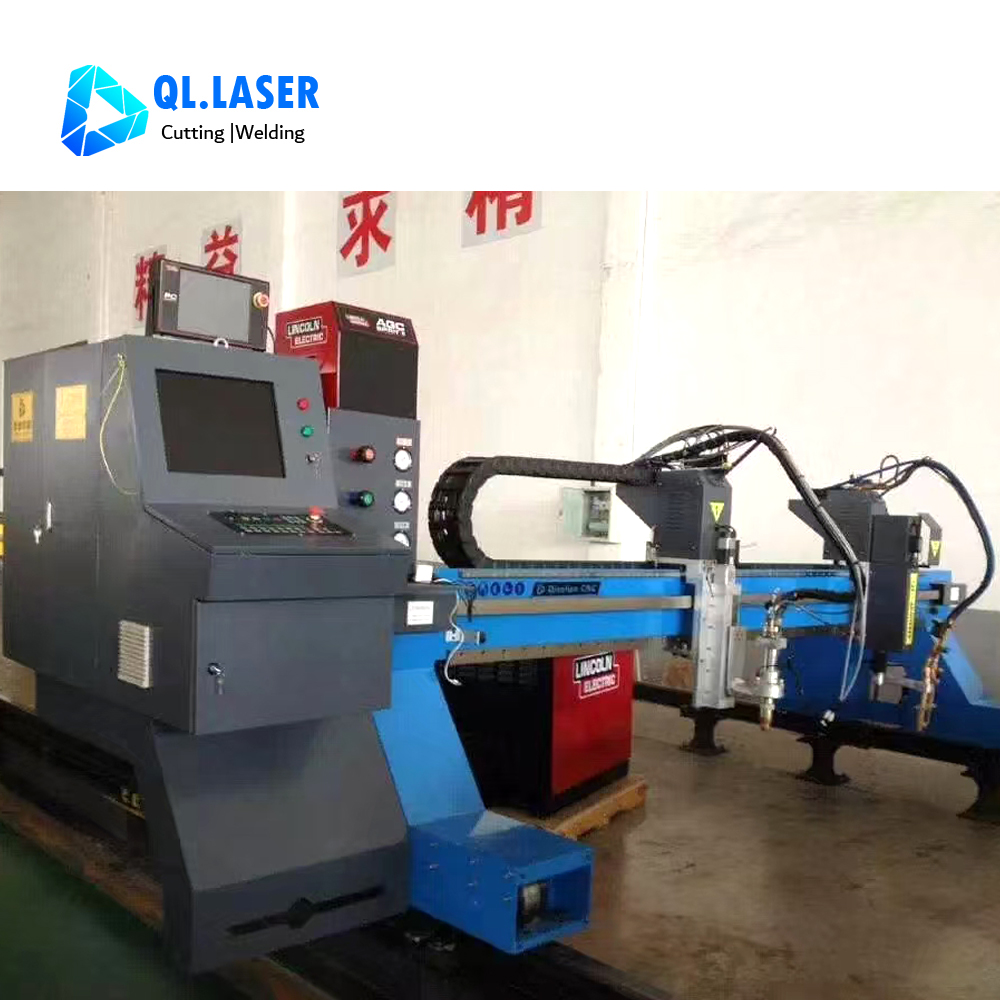

2. Gantry style structure, achieving an effective cutting range of up to 7m in width and tens of meters in length.
3. Plasma cutting uses air, low cost.
4. The machine is equipped with a CNC system and nesting software, making it easy to operate.
5. Bevel function is optional.
1 | Cutting Shape | Steel plate with any plane shapes fromed by straight lines and arcs |
2 | LCD Display Dimension | 10.4Inches（or 19inches) |
3 | Effective Cutting plate Size | 3000*12000mm(other size can be customized) |
4 | Railway Size | 4000*14000mm (other size can be customized) |
5 | Flame Cutting Thickness | 5-200mm |
6 | Plasma Cutting Thickness | 0.5-35mm (according to plasma power) |
7 | Height Control | Electric Height Control+Arc Voltage Height Control(THC) |
8 | Motor and driver | Japan pansonic servo motor and driver |
9 | Reducer | Chinese top reducer |
10 | Lifter | one lifter for plasma, the other lifter for flame |
11 | Travel Speed | 0-10000mm per minute |
12 | Drive Mode | Double driver |
13 | Cutting Mode | Plasma and flame |
14 | Ignition Device | Auto |
15 | File Transmission | USB |
16 | Cutting Gas | Flame: Oxygen+ Acetylene/ Propane/ Coal gas |
17 | Gas Pressure | Max. 0.1 Mpa |
18 | Oxygen Pressure | Max. 0.7 Mpa |
19 | Position Accuracy | ±0.1mm |
20 | Software | Australia Fastcam professional nesting software |
21 | Power Supply Voltage/Frequency | 220V/110V 50HZ 60HZ |
22 | Rated Power Supply | 1500W |
23 | Working Temperature | -10℃-60℃. Relative Humidity from 0-95% |
The application fields of CNC plasma cutting machines cover industries such as mechanical manufacturing, shipbuilding, aerospace, petrochemicals, and boiler manufacturing.
We have Hypertherm plasma power and chinese plasma power.

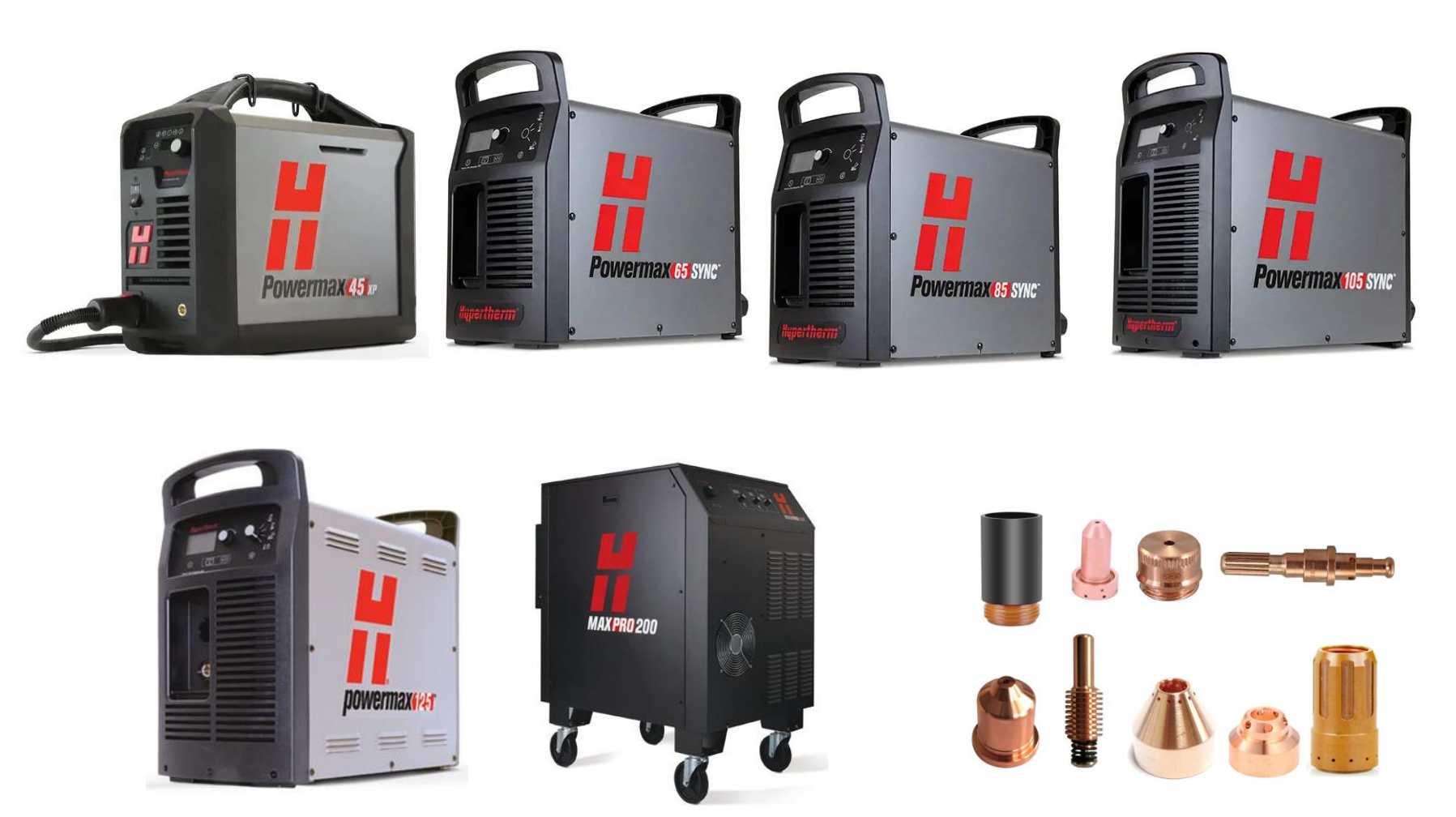

Hypertherm plasma include: powermax45 /65 /85/105/125,Maxpro200,XPR170, XPR300etc.

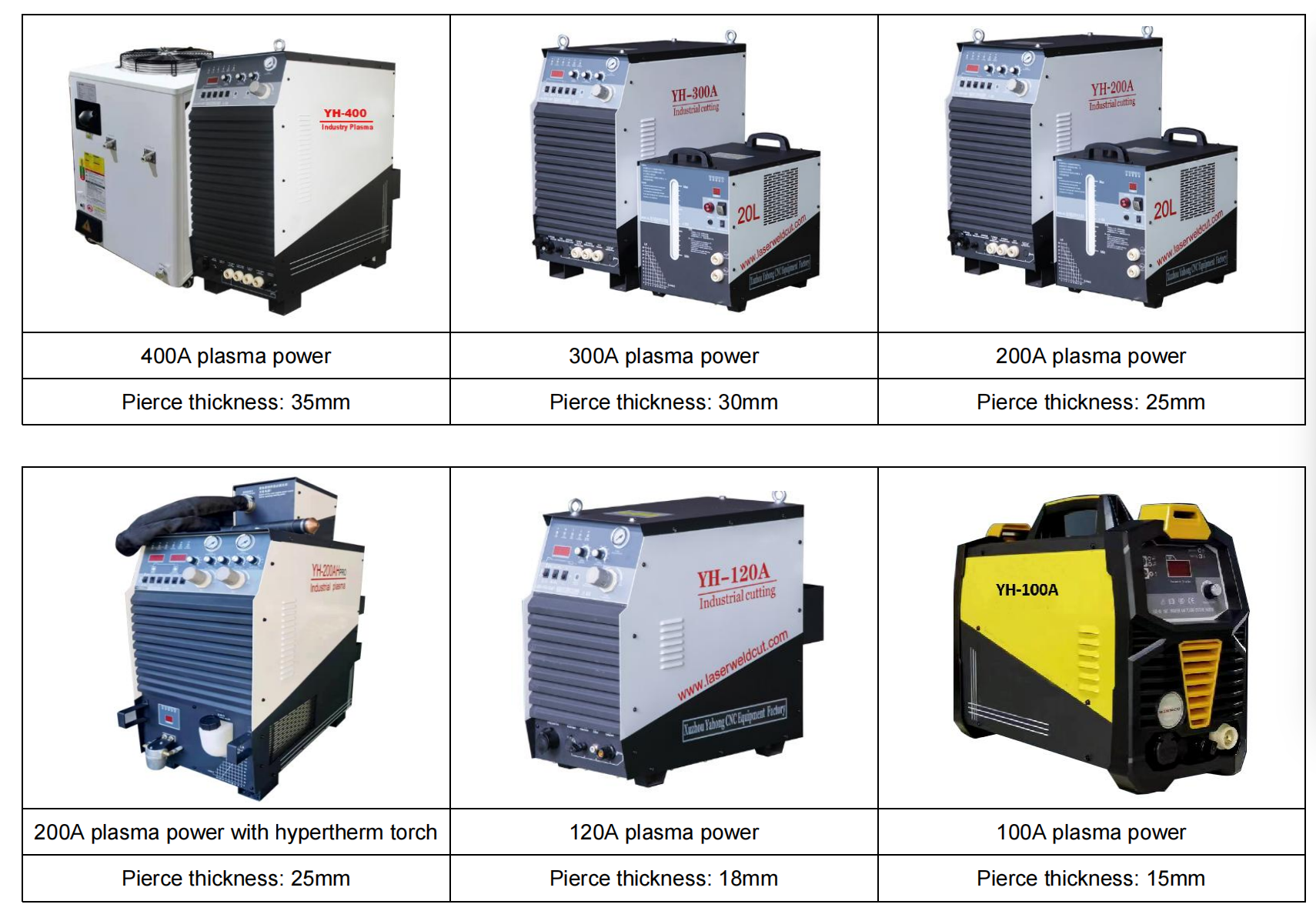

Chinese plasma power: 65a/ 100a /120a/200a/300a/400a
1. Can we install this gantry plasma cutting machine by ourselves？
Yes, there is manual and we provide online service. Dont worry install and operation.
2. What is warranty ?
Warranty is 12months. Dont include consumables and human factors.
3. What is delivery time?
Delivery time: 15-20working days after receive deposit.
