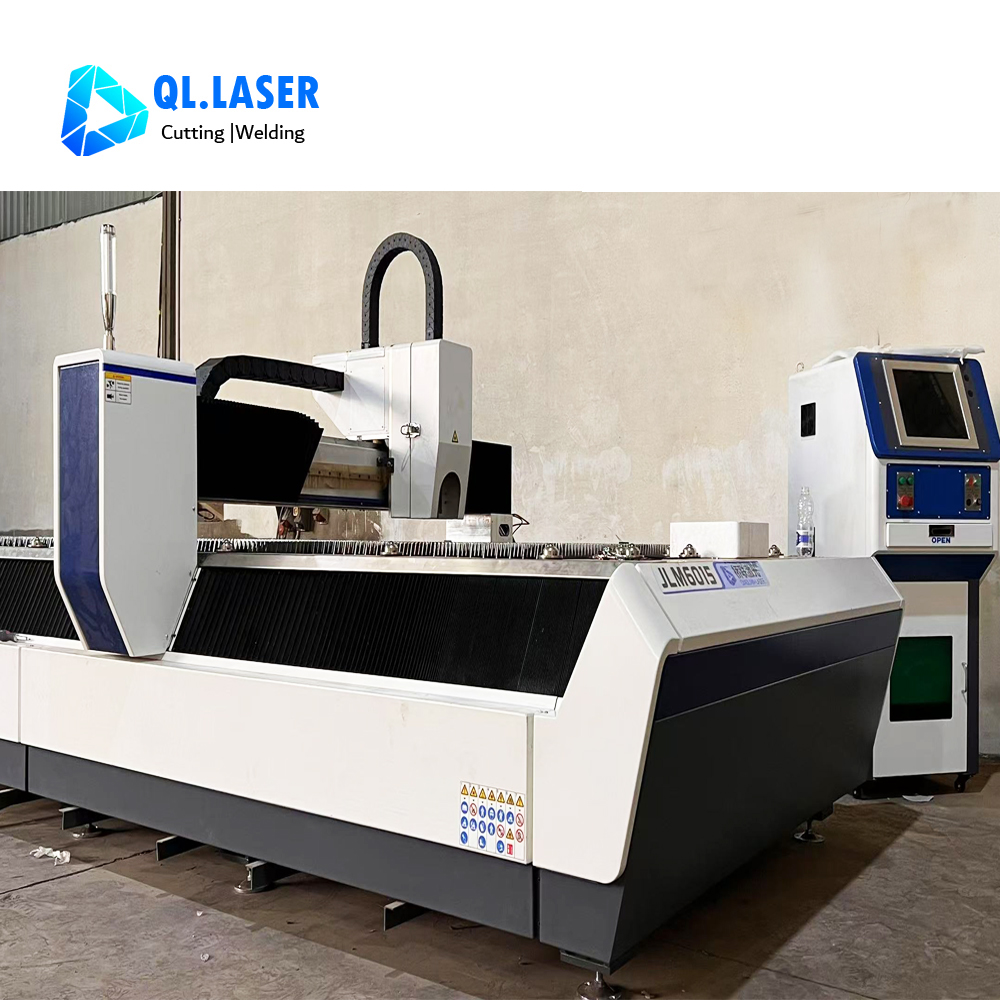

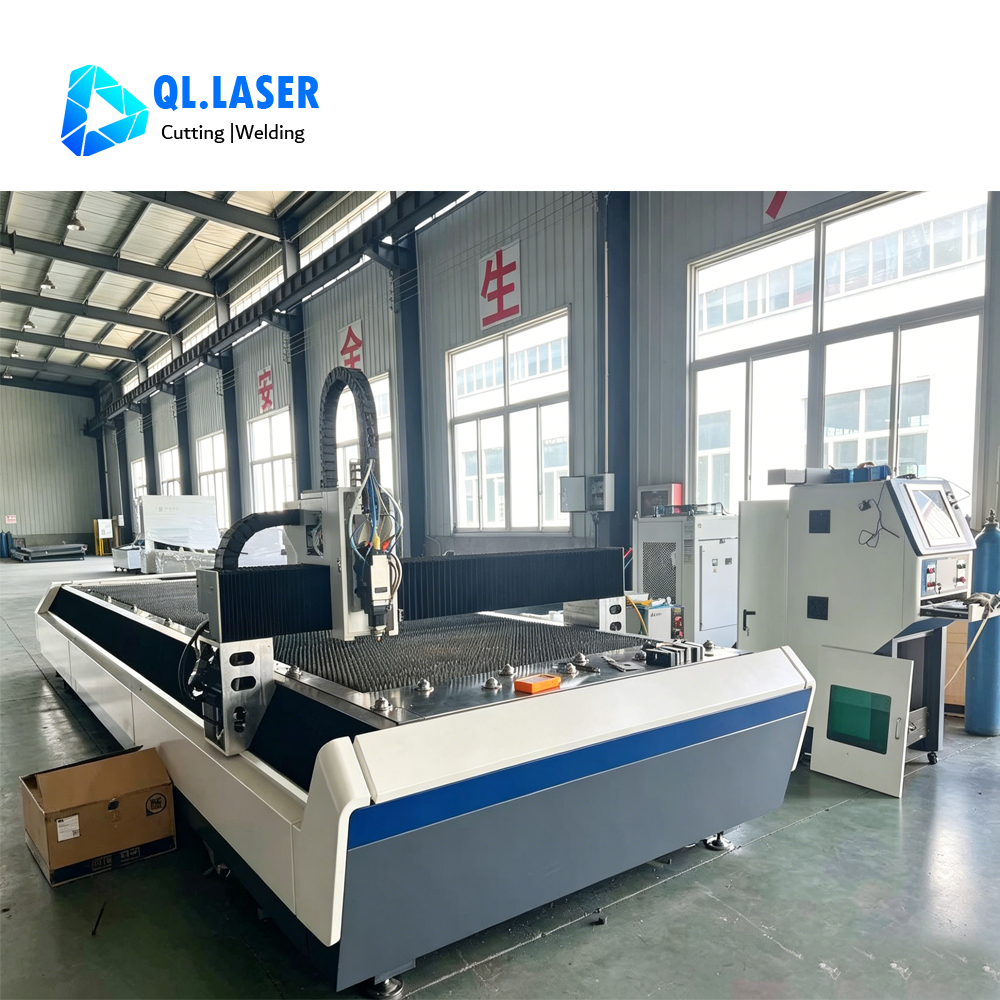

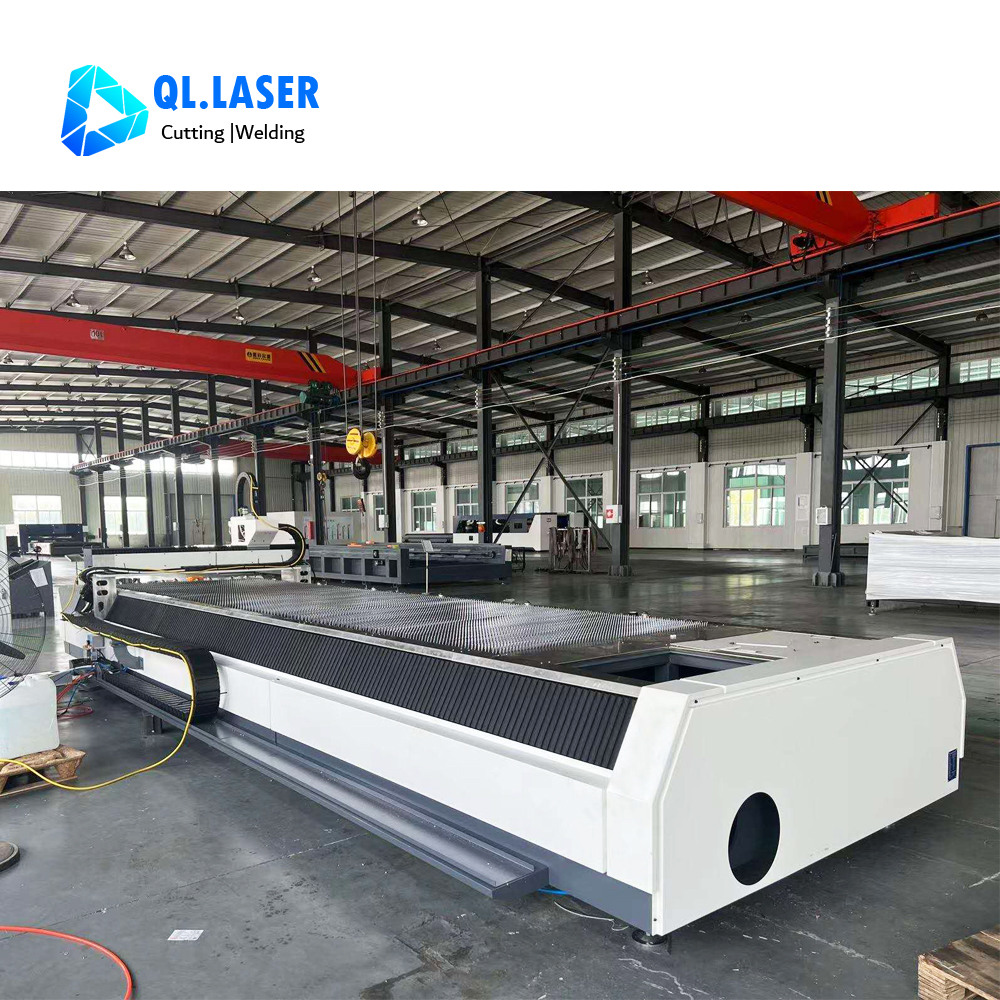

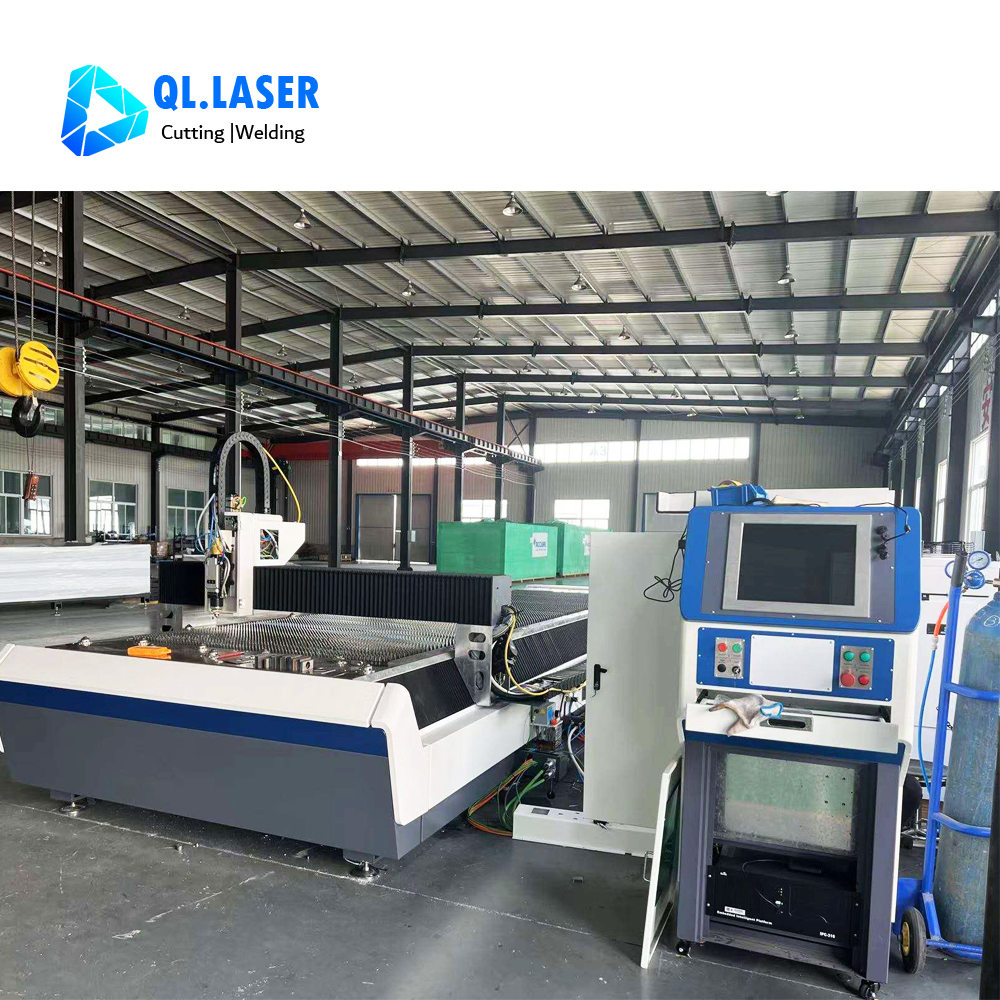

JLM6015-6000W
QL Laser
Model | JLM6015-6KW |
Laser power | Raycus laser power source RFL-C6000 with CE(global service) |
CNC Controller | Bochu FSCUT4000E EtherCAT Bus System |
Laser cutting head | Intelligent auto focus laser cutting head BLT421 |
Effective cutting size | 6000-1500mm |
Cutting material | MS,SS,Galvanized sheet, Aluminum, Brass,Red copper |
| Laser chiller | Tongfei/Hanli |
Servo motor and Driver | Inovance |
Linear Guide | Rexroth |
Cutting software | CypcutE |
Nesting software(Optional) | CypNest |
Electronic pieces | Schneider |
| Voltage Stabilizer | Xinbaoming/Feixiangda |
| Material | Cabon steel | Stainless steel | Aluminium | Brass | Red copper | |
| Thickness | Speed(m/min) Air /N2 | Speed(m/min) O2 | Speed(m/min) N2/Air | Speed(m/min) N2/Air | Speed(m/min) N2 | Speed(m/min) high pressure O2 |
| 1 | 45-60 | 45-60 | 40-50 | 40-50 | 25-35 | |
| 2 | 20-35 | 25-35 | 20-25 | 15-25 | 12-18 | |
| 3 | 13-24 | 3.6-4.5 | 17-24 | 14-16 | 8-14 | 7-10 |
| 4 | 10-20 | 3.2-3.5 | 10-16 | 8-10 | 8-9.5 | 5-7 |
| 5 | 9-13 | 2.6-3.2 | 7-12 | 5-8 | 5-6.5 | 3-4 |
| 6 | 6.5-9 | 2.5-2.8 | 6-8.5 | 3.5-5.5 | 3.5-4.5 | 2.5-3.5 |
| 8 | 2.2-2.5 | 3-4.8 | 2.5-3.5 | 1.5-1.8 | 1.5-2 | |
| 10 | 2.0-2.2 | 1.6-2.5 | 1.5-2.5 | 0.8-1 | ||
| 12 | 1.8-2.0 | 1-1.8 | 0.8-1.3 | 0.6-0.7 | ||
| 14 | 1.4-1.7 | 0.8-1.2 | 0.7-1.1 | |||
| 16 | 0.9-1.2 | 0.6-0.95 | 0.5-0.8 | |||
| 18 | 0.7-1.0 | 0.4-0.7 | 0.4-0.6 | |||
| 20 | 0.6-0.8 | 0.4-0.6 | 0.4-0.55 | |||
| 22 | 0.55-0.65 | 0.4-0.5 | ||||
| 25 | 0.4-0.6 | 0.1-0.2 | ||||
| Note: During air and nitrogen cutting of carbon steel and stainless steel, efficiency and stability will be improved, but as the thickness increases, slag formation is more likely to occur. The above data parameters may vary during actual bulk cutting due to the influence of factors such as the machine tool, system, cutting head, air pressure, and materials. The parameters marked in red in the table are proofing parameters, which are greatly influenced by various factors during actual processing and are only suitable for small batch production. Mass production is not recommended. It is recommended to use higher power lasers. Red Copper needs to be cut with high-pressure oxygen, as air or nitrogen can easily cause damage to the laser. | ||||||

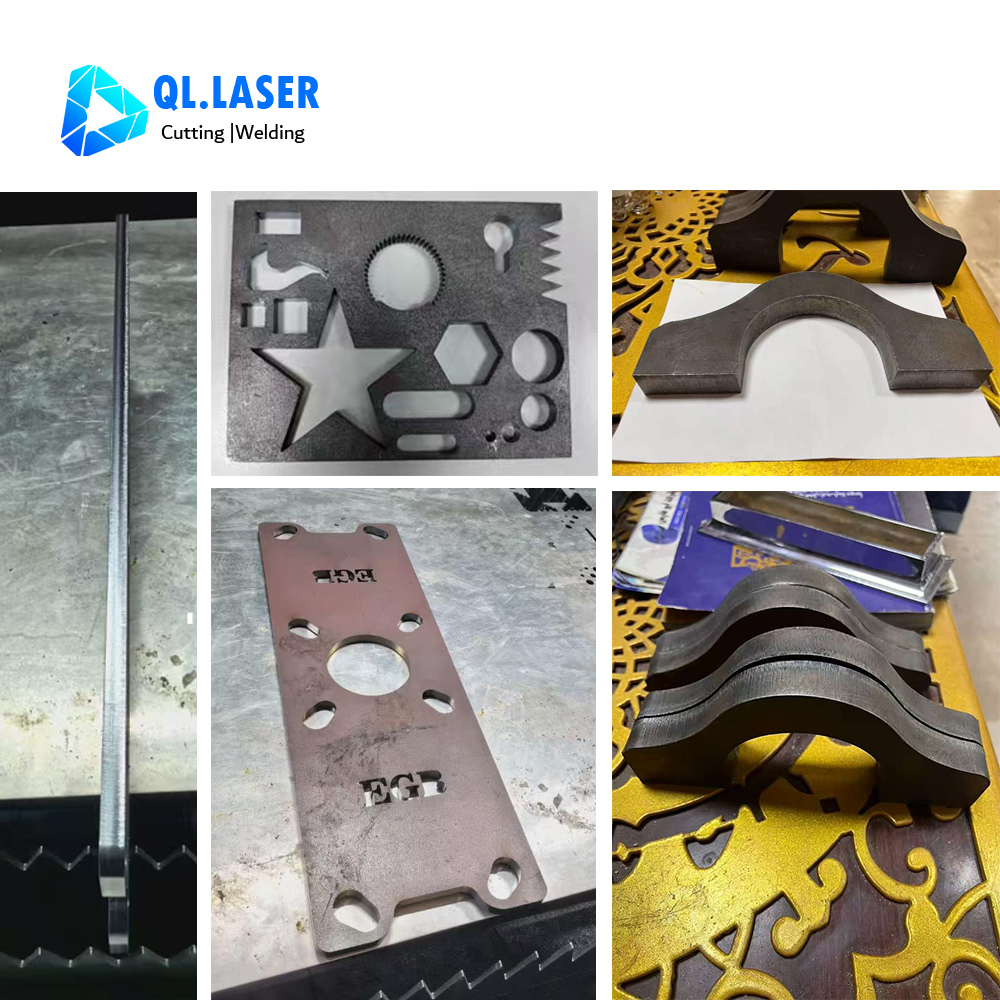

A1: It can cut up to 22mm carbon steel, 14mm stainless steel and 12mm aluminum sheet. The actual cutting thickness depends on auxiliary cutting gas and sheet material quality.
A2: Yes, the built-in CNC system supports DXF, DWG and other mainstream drawing formats. You can directly import drawings from AutoCAD without format conversion.
