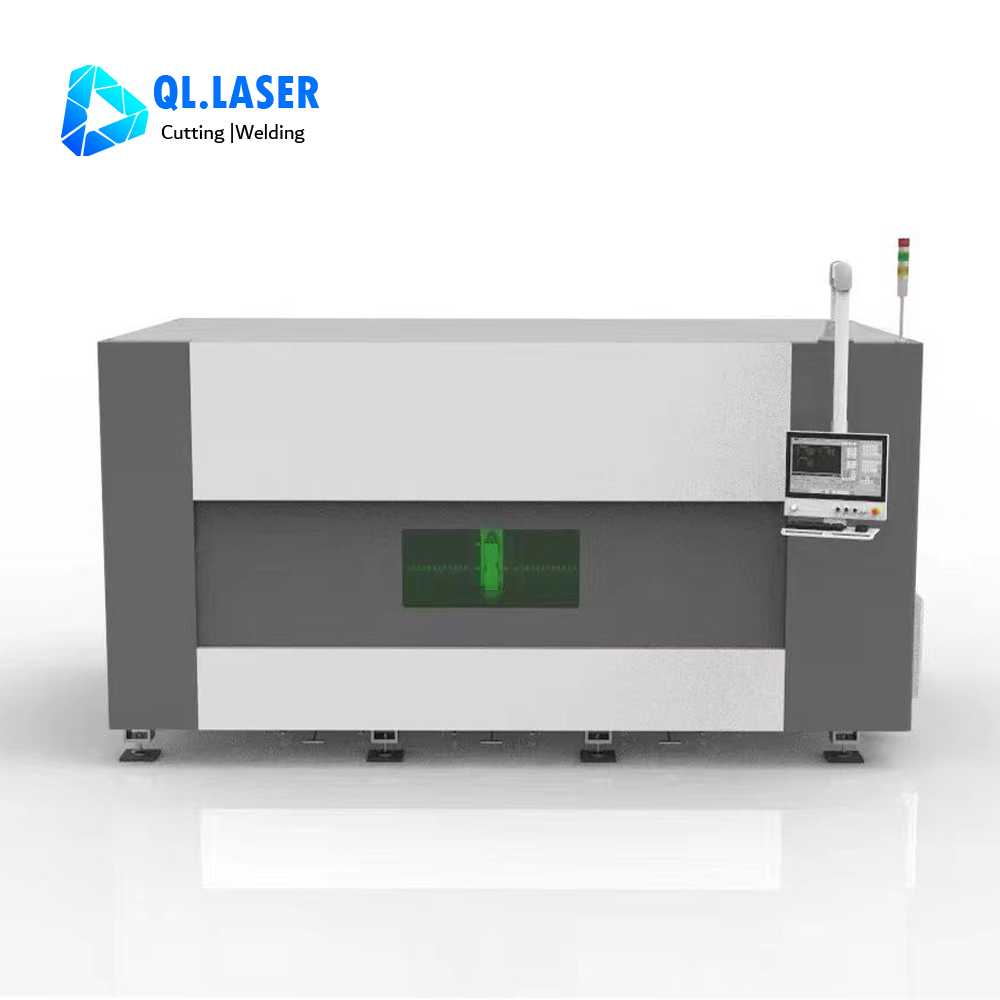

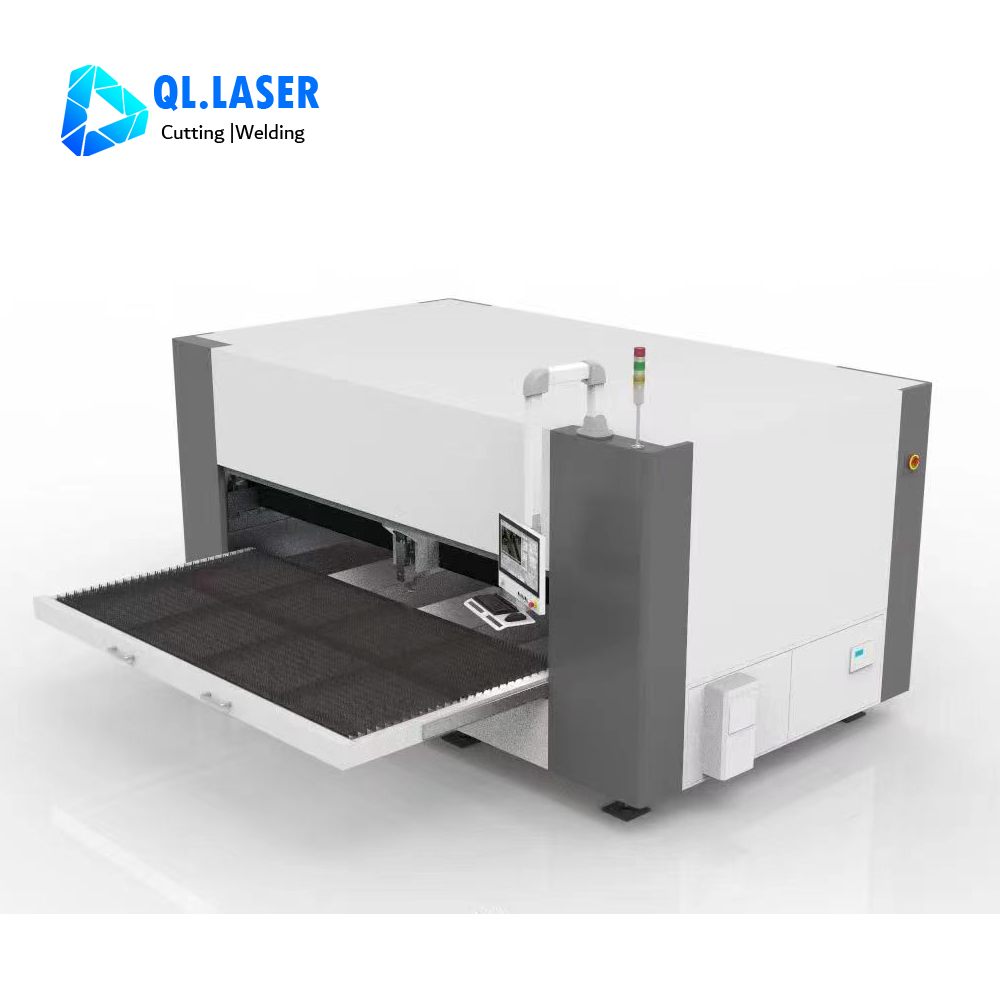

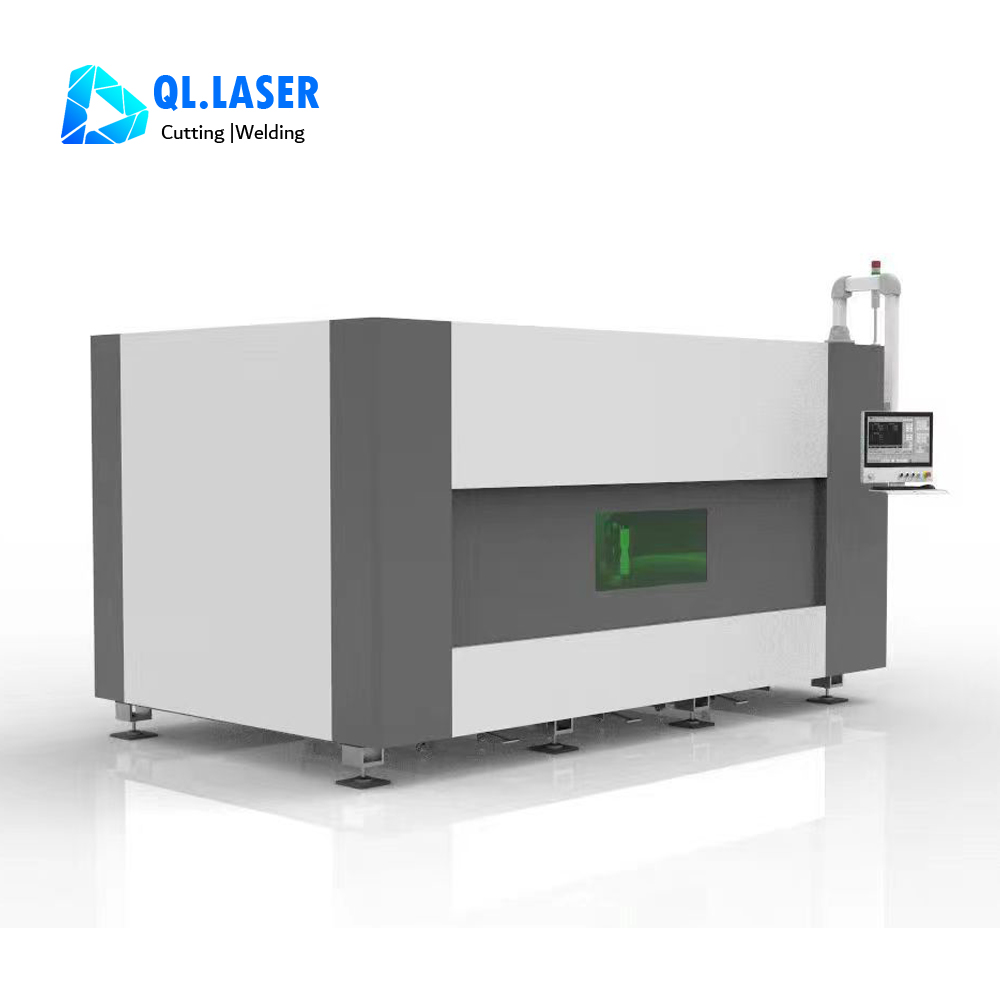

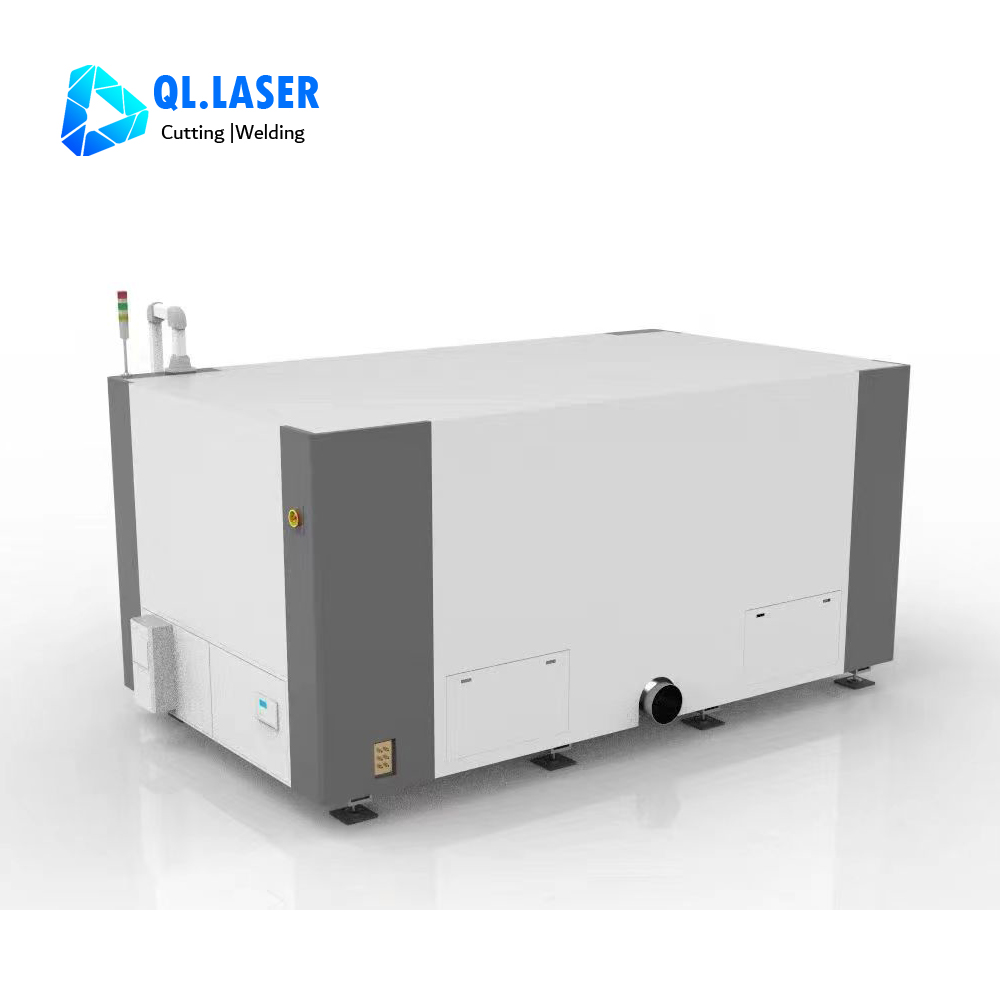

1. Closed design, in compliance with some national environmental requirements.

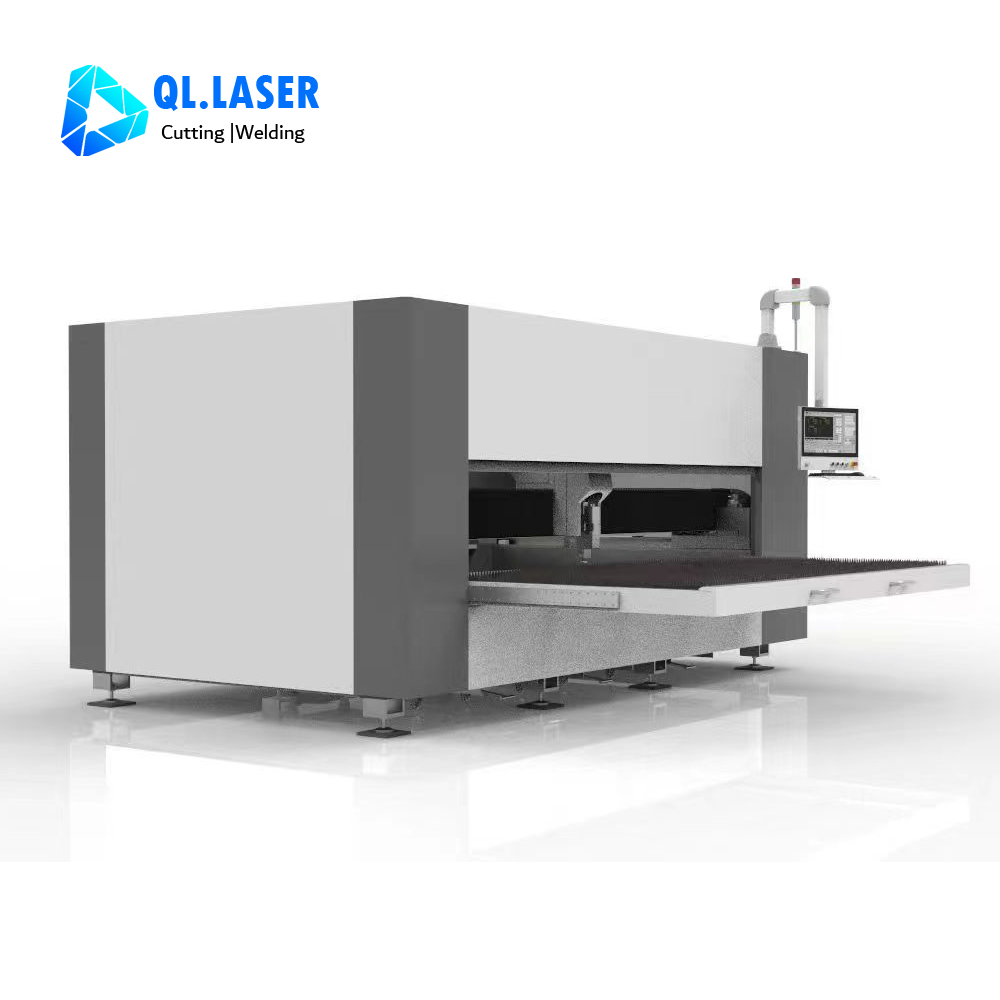

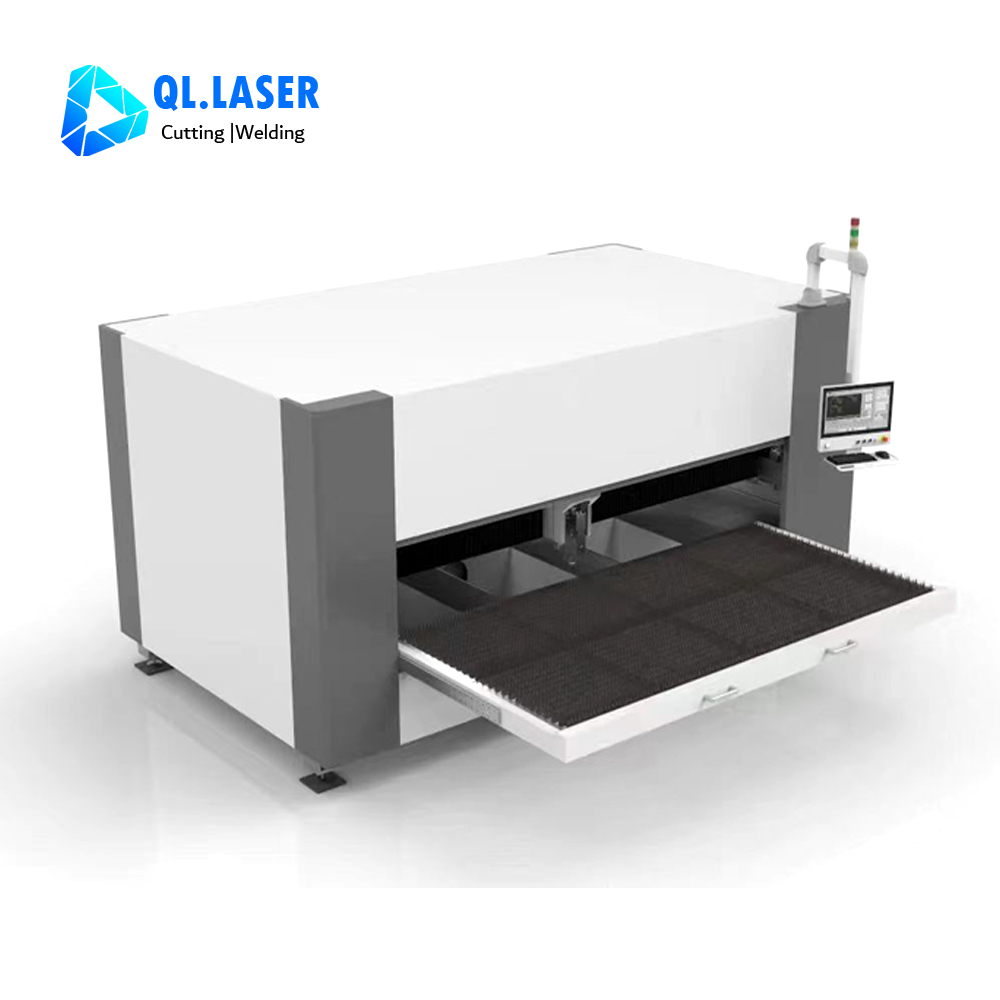

2. Mobile cutting table, convenient for loading and unloading materials.
3. Single table design, compact structure, small footprint, beautiful and elegant appearance.

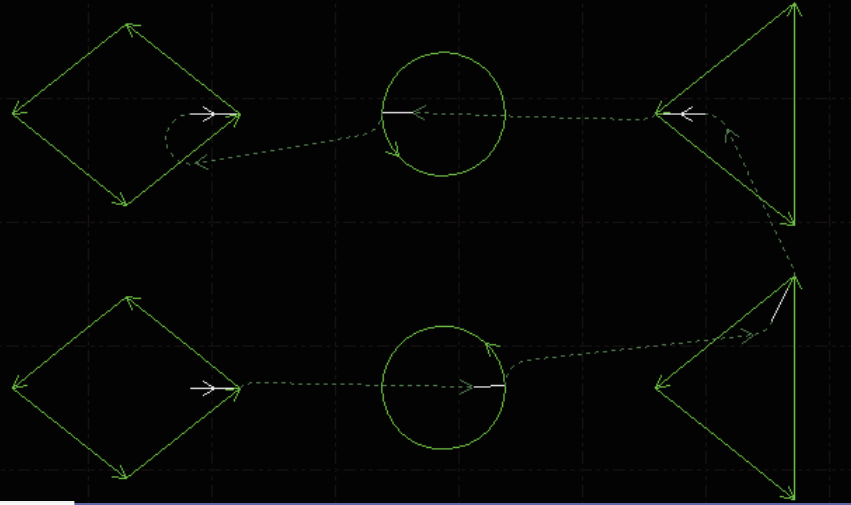

4. One-Path Flycut,efficient flycut path is supported for all figures.

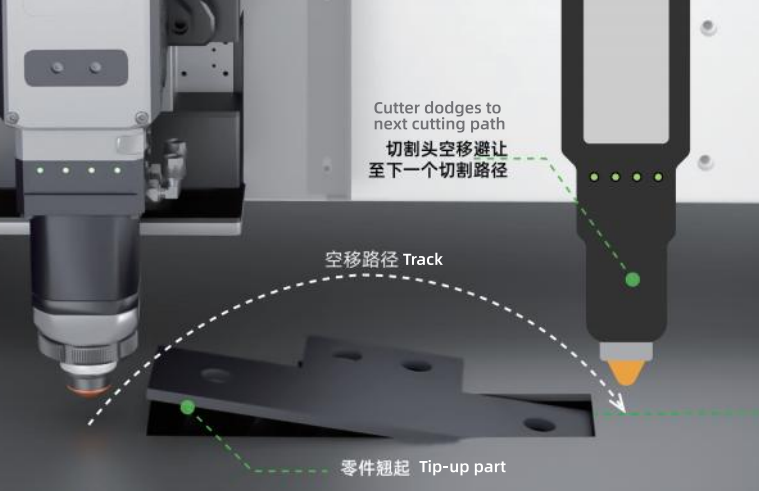

5. Avoid Collision in Travel , reduce the risk of cutting head collision.
Model Number | JWMS3015 |
Fiber Laser power | 1.5KW 2KW 3KW 6KW |
Cutting size | 3000-1500MM |
Cutting material | Carbon steel ,Stainless steel ,Galvanized sheet, Aluminum,Brass,Red copper, etc. |
PositionaI accuracy (mm/m) | X /Y axle : ±0.03, Z axle :±0.01 |
repeated positioning accuracy(mm) | X /Y axle : ±0.01, Z axle :±0.005 |
Rapid positioning speed (m/min) | X /Y axle : 110, Z axle :30 |
Acceleration speed(G) | 1.3 |

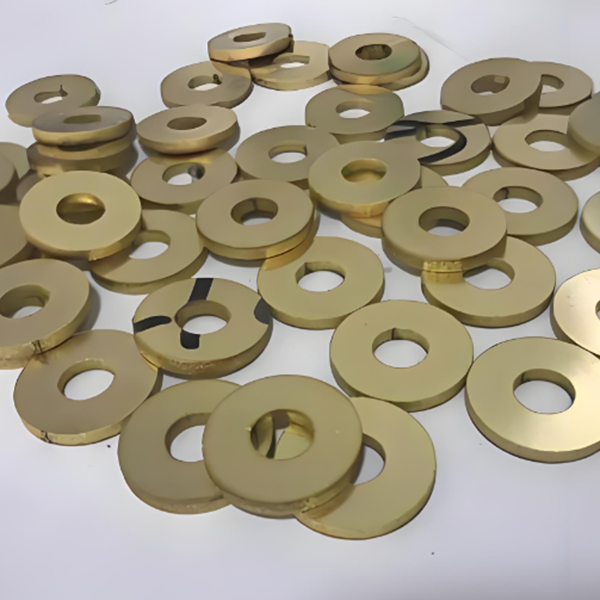

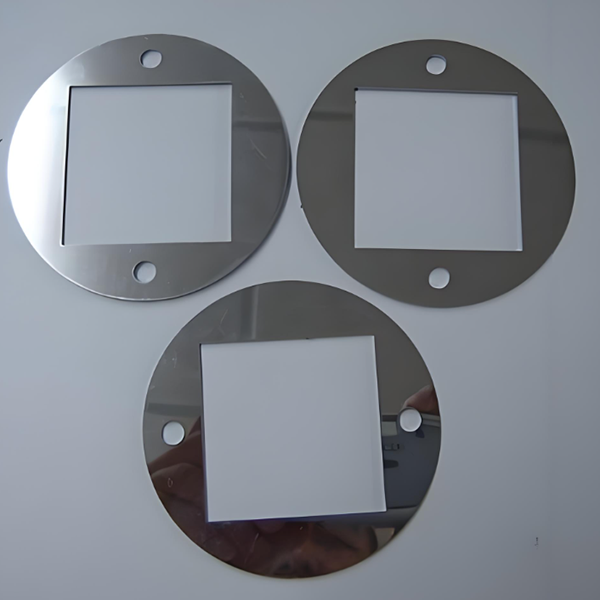

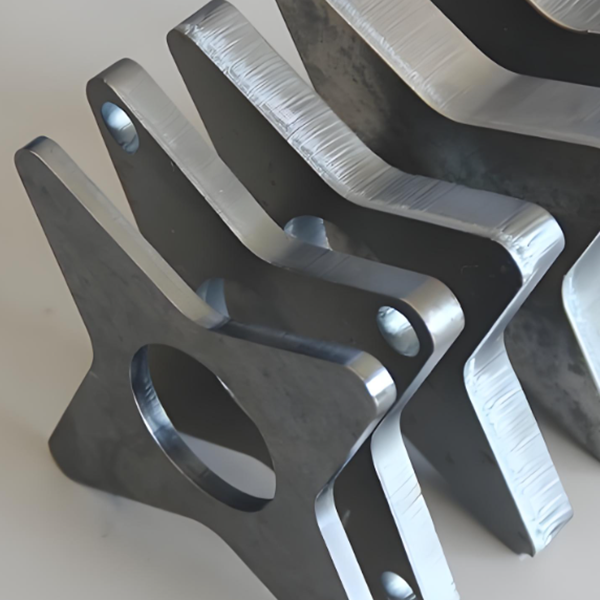

| Materia Laser power | Carbon steel | stainless steel | Aluminum | Brass | Red copper |
1500w | 12mm | 5mm | 4mm | 2mm | |
2000w | 16mm | 6mm | 5mm | 4mm | 2mm |
3000w | 18mm | 8mm | 6mm | 5mm | 3mm |
6000w | 22mm | 14mm | 12mm | 10mm | 6mm |

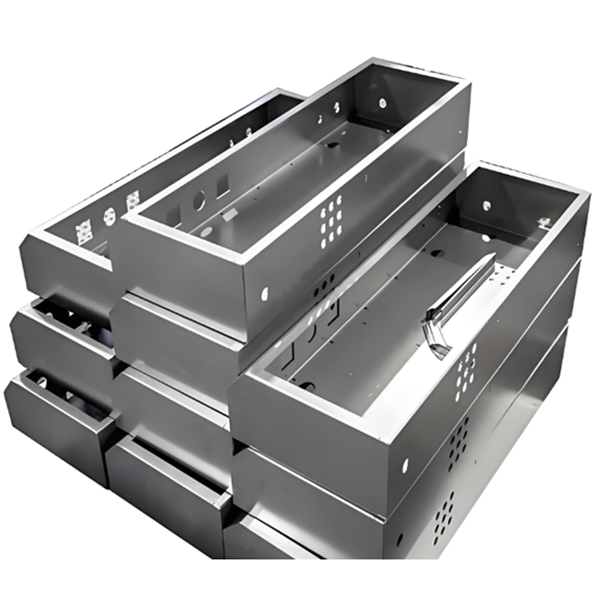

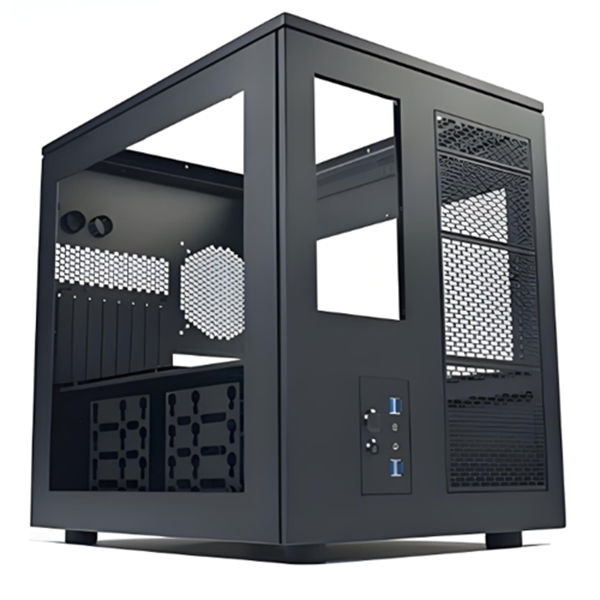

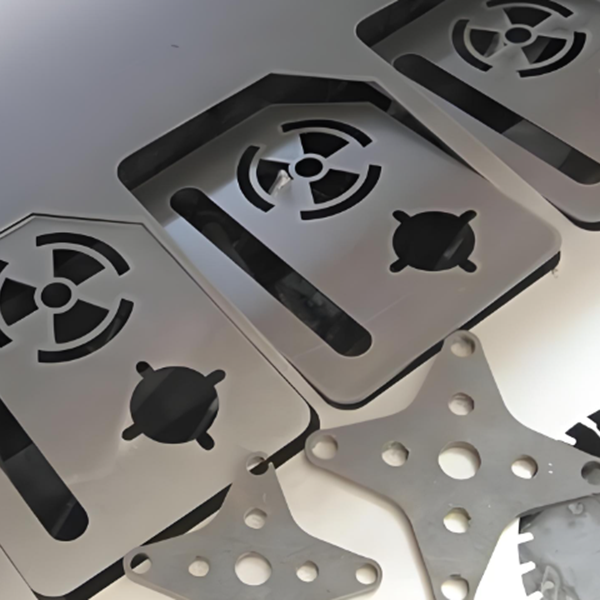

Fully closed single table laser cutting machine widely used in the metal processing industry, especially suitable for cutting various metal materials such as SS, MS, galvanized sheet, etc., commonly used in sheet metal processing, chassis and cabinet manufacturing, advertising sign production and other fields.
 |  |  |
 |  |  |  |
1. What is the loading weight of this fully closed laser cutting machine?
This machine loading weight is about 600kg.
2. Can this laser cutting machine be made into larger sizes?
No. This machine size is only 1500*3000mm
3. Do you have CE certificate?
Of course, we have a CE certificate and our products are exported to EU countries such as Germany, Greece, and the Czech Republic.
